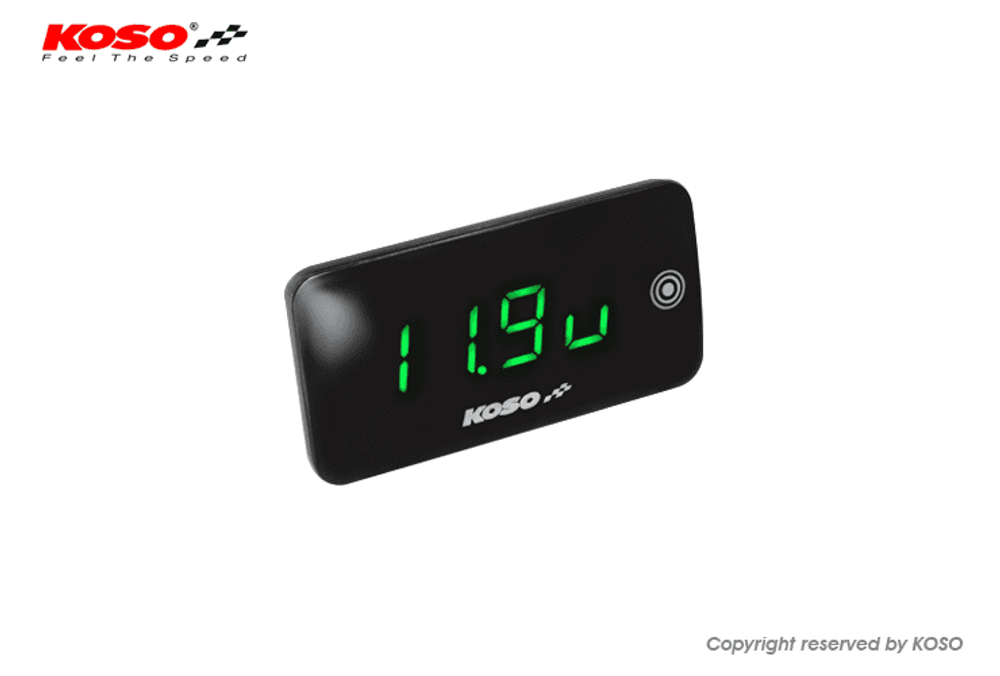

Slim Line New Generation Voltmeter + Thermometer Green (with touchscreen)

The Slim Line New Generation Voltmeter + Thermometer is a modern, slim device equipped with a touchscreen . This new generation offers enhanced features and greater flexibility for accurately monitoring the temperature and voltage in your vehicle.

Main functions:

• Touchscreen mode: Allows the user to switch between different values and adjust the settings.
• Auto-Lock Mode: This mode is automatically activated to lock operation after a certain time, thus preventing distractions while driving.
• Warning system: In Auto-Lock mode , the driver is warned if the set values are exceeded – by a flashing signal.
• Slim design: The compact construction allows for almost universal installation in the cockpit.
• Color options: In addition to red , blue and green are also available.

Technical details:

• Temperature display:

  • Display range: 0 – 120°C (32 – 302°F).
  • Unit: 0.1°C / 0.1°F.
  • Max. temperature recording: 0 – 120°C (32 – 302°F).
  • Temperature warning: Adjustable at 1°C / 1°F (preset: 100°C).

• Voltmeter:

  • Display range: 8V – 18V.
  • Unit: 0.1V.
  • Low voltage warning: Adjustable from 8.0V to 18.0V (default: 11.5V).

• Environmental conditions:

  • Required ambient temperature: -10°C to +60°C.
  • Operating voltage: DC 8V – 16V.

Size and weight:

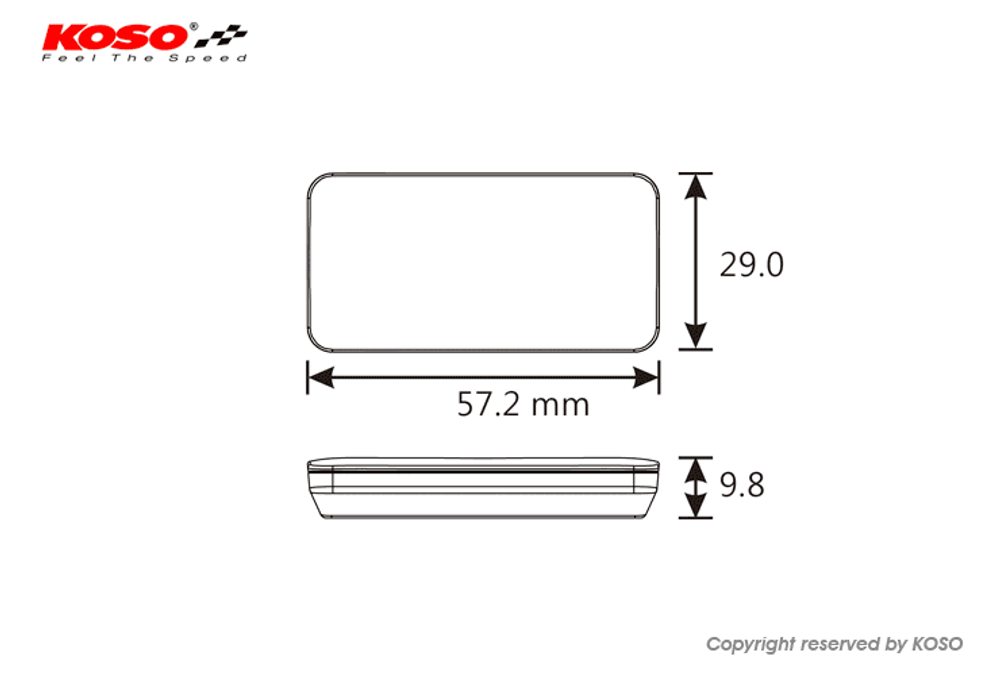

• Dimensions: Approx. 57 x 29 x 8.7 mm.
• Weight: Compact and lightweight.

Conclusion:

The Slim Line New Generation Voltmeter + Thermometer offers user-friendly touchscreen operation , precise temperature and voltage measurement , and a low-voltage and high-temperature warning system . Its slim design and variety of colors make it a practical and visually appealing addition to your cockpit.
