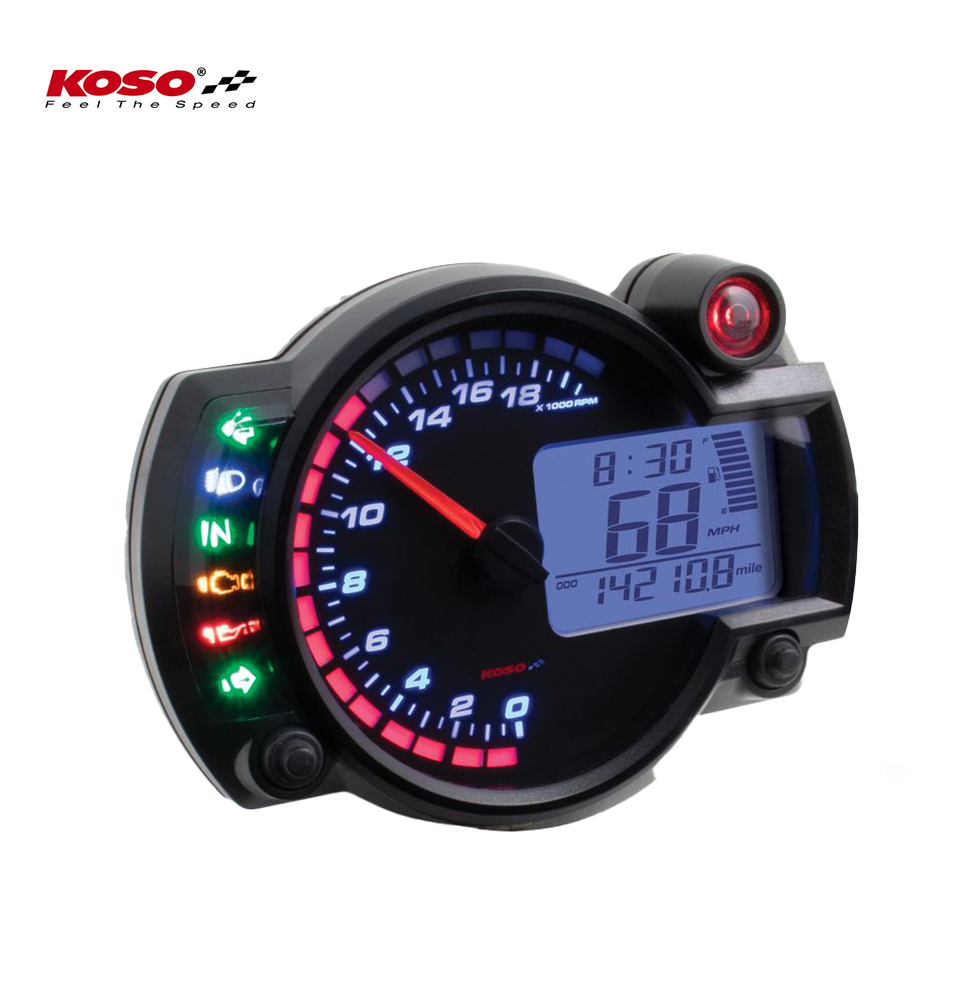

RX2N+ GP Style Speedometer RX2N ~20,000 RPM - new software with ABE/KBA

RX2N+ GP Style Speedometer – Tachometer with ABE/KBA for Motorcycle & ATV

Variants:

• 0 – 10,000 rpm (for cruisers or ATVs)

• 0 – 20,000 rpm (for sport motorcycles)

Speedometer & Speedometer:

• Range: 0 – 360 km/h (0 – 223 mph)

• Unit: km/h or mph

• Total odometer reading: 0 – 99,999.9 km (miles)

• Trip odometer A/B: 0 – 999.9 km (miles)

• Speed ​​warning light: 30 – 180 km/h (20 – 110 mph), walking pace 5 km/h (5 mph)

• Maximum speed memory: 0 – 360 km/h (0 – 223 mph)

• Tire circumference: 300 – 2,500 mm, increments of 1 mm

• Number of sensors: 1 – 60

Tachometer:

• Range: 0 – 20,000 rpm

• Unit: 100 rpm

• Shift light: 0 – 20,000 rpm, increments of 100 rpm

• Maximum speed memory: 0 – 20,000 rpm

Engine adaptation:

• 2-stroke: 1, 2, 3, 4 pistons

• 4-stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons

Temperature measurement & warnings:

• Unit: °C or °F

• Digital water thermometer: 0 – 250 °C (32 – 482 °F), increments of 0.1 °C (0.1 °F)

• Water temperature gauge: 20 – 120 °C (68 – 248 °F), 10 bars (1 bar = 10 °C/50 °F)

• Digital oil thermometer: 0 – 250 °C (32 – 482 °F), increments of 0.1 °C (0.1 °F)

• Overheating warning: 60 – 120 °C (140 – 248 °F), increments of 1 °C (1 °F)

• Maximum storage temperature: 0 – 250 °C (32 – 482 °F)

Fuel gauge & fuel monitoring:

• Fuel gauge: 10 bars (1 bar = 10%)

• Resistance: 100 ohms, 510 ohms

• Reserve warning: 10–50%, increment 10%

Other features:

• Clock: 24-hour format

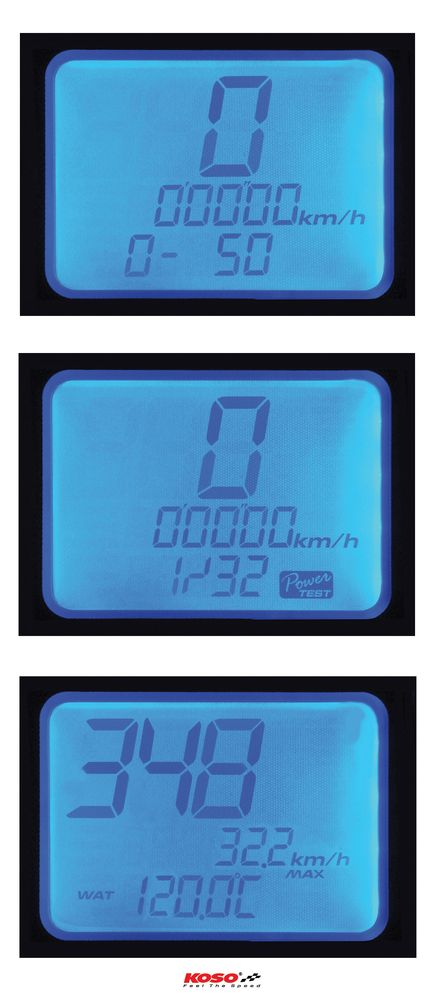

• Target speed timer: 30 – 360 km/h (20 – 220 mph), increments of 5 km/h (5 mph)

• Target distance timer: 50 – 1,000 m (1/32 – 20/32 miles), step size 50 m (1/32 mile)

• Maximum speed timer:

  • Speed: 0 – 360 km/h (0 – 223 mph)

  • Distance: 0 – 999 m (0 – 3,280 ft)

  • Speed: 0 – 20,000 rpm

  • Time: 0 – 9'59"99

Indicator lights:

• Turn signal: Green

• High beam: Blue

• Oil: Red

• On-Board Diagnostics (OBD): Orange

• Neutral: Green

• Speed: Red
