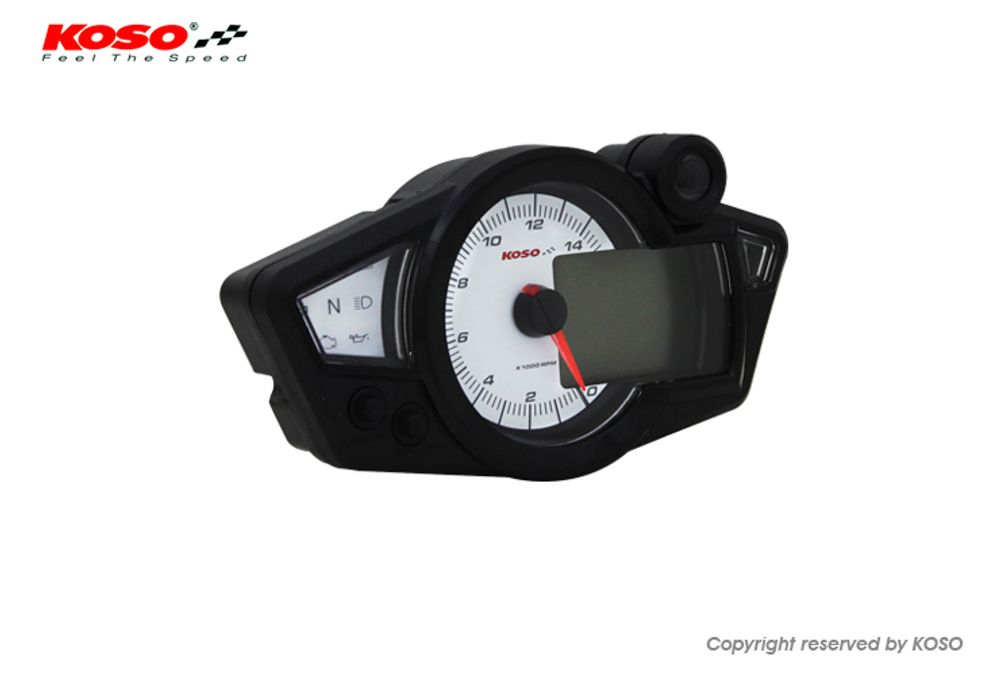

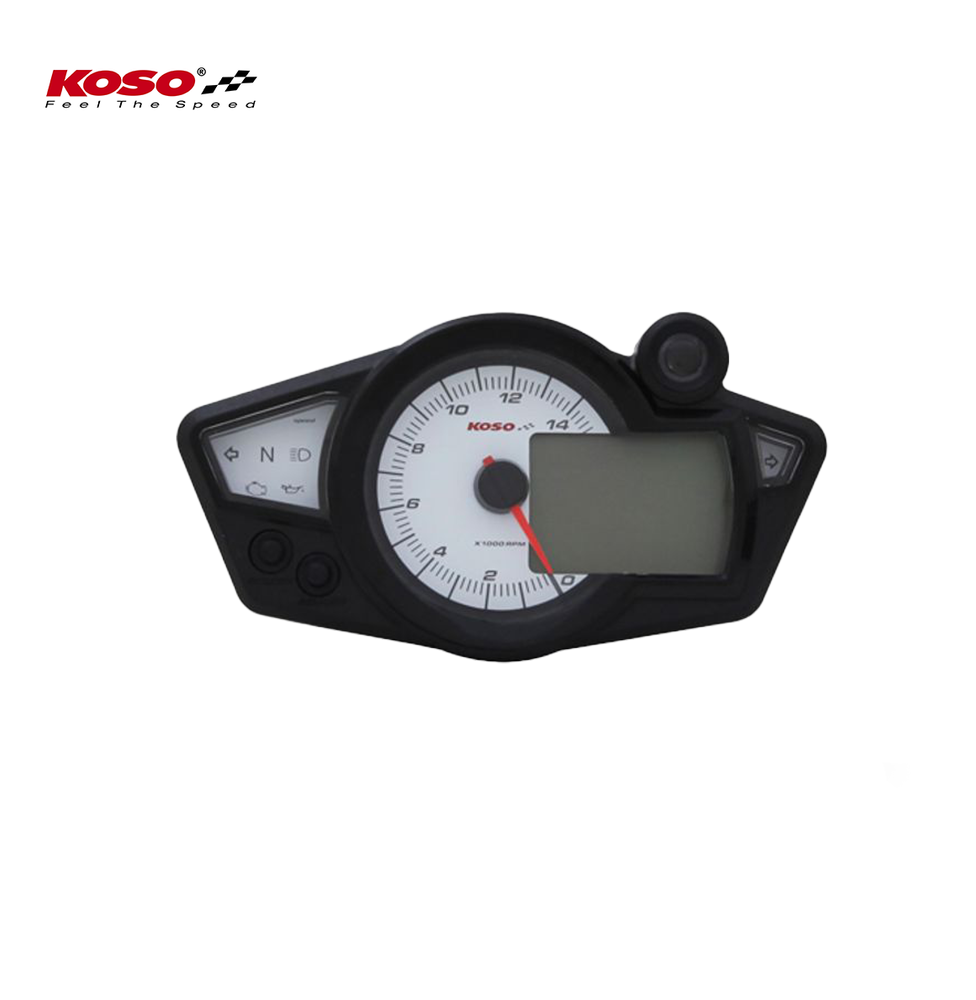

RX1N+ GP Style – Tachometer with ABE for motorcycles & ATVs

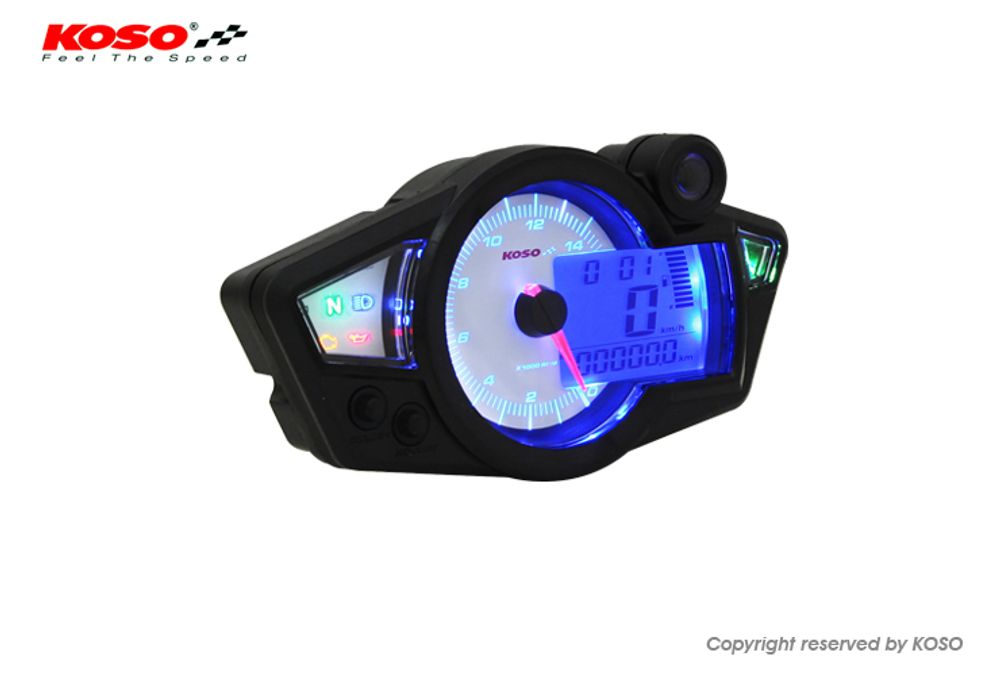

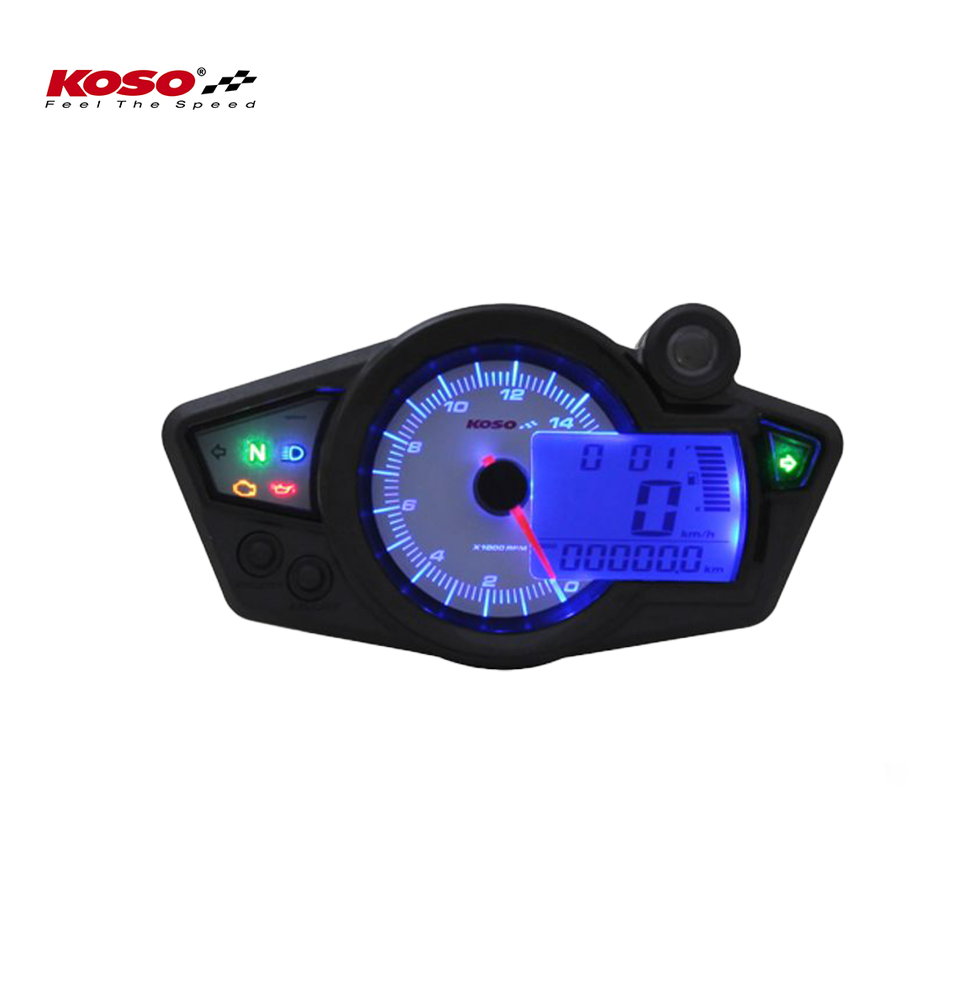

The RX1N+ GP Style combines a compact design with a precise display and modern look. Thanks to the white /blue backlighting and the illuminated speedometer needle, all important data can be read perfectly even in the dark.

With integrated features such as the MaxPower test , target distance timer and target speed timer, this tachometer offers far more than just a standard display – it transforms your motorcycle or ATV into a mobile test station for power and speed.

Technical data

Speedometer & Speed

• Display range: 0 - 360 km/h (0 - 223 mph)
• Speed ​​units: km/h or mph
• Total odometer reading: 0 - 99,999.9 km (miles)
• Trip odometer A/B: 0 - 999.9 km (miles)
• Speed ​​warning light: Adjustment range 30 - 180 km/h (20 - 110 mph)
• Maximum speed memory: 0 - 360 km/h (0 - 223 mph)
• Tire circumference setting: 300 - 2,500 mm (adjustment unit: 1 mm)
• Number of sensors: 1 - 60
• Uses speed sensors with black connector

Tachometer

• Display range: 0 - 15,000 rpm
• Display unit: 100 rpm
• Shift light setting: 5,000 - 15,000 rpm (adjustment unit: 100 rpm)
• Maximum speed memory: 0 - 15,000 rpm

Engine adaptation

• Number of strokes and pistons:
  • 2-stroke: 1, 2, 3, 4 pistons
  • 4-stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons

Temperature measurement & warnings

• Temperature unit: °C or °F
• Digital water temperature thermometer: 0 - 120°C (32 - 248°F), display in 0.1°C increments
• Bar thermometer: 20 - 120°C (68 - 248°F), display in 10 bars (1 bar = 10°C/50°F)
• Digital oil thermometer: 0 - 120°C (32 - 248°F), display in 0.1°C increments
• Overheating warning (water & oil): Setting range 60 - 120°C (140 - 248°F), setting unit: 1°C (1°F)
• Maximum storage temperature: 0 - 120°C (32 - 248°F)

Fuel gauge & fuel monitoring

• Fuel gauge: 10 bars (1 bar = 10% fuel)
• Fuel gauge resistance: 100 ohms, 510 ohms
• Reserve warning: Setting range 10 - 50% (setting unit: 10%)

Additional features

• Clock: 24-hour display
• Target speed timer: 30 - 360 km/h (20 - 220 mph), setting unit: 5 km/h (5 mph)
• Target distance timer: 50 - 1,000 m (1/32 - 20/32 miles), setting unit: 50 m (1/32 miles)
• Maximum speed timer:
  • Speed: 0 - 360 km/h (0 - 223 mph)
  • Distance: 0 - 999 m (0 - 3,280 ft)
  • Speed: 0 - 15,000 rpm
  • Time: 0 - 9'59"99

Indicator lights

• Turn signal: Green
• High beam: Blue
• Oil pressure warning: Red
• On-Board Diagnostics (OBD): Orange
• Neutral indicator: Green
• Speed ​​warning: Red

The RX1N+ GP Style is the ideal solution for motorcycle and ATV riders who demand a precise and comprehensive display. Thanks to its ABE approval , extensive performance analysis , and clear presentation, this tachometer is a real highlight for anyone who wants to keep a close eye on their vehicle.

Ready for the next race?

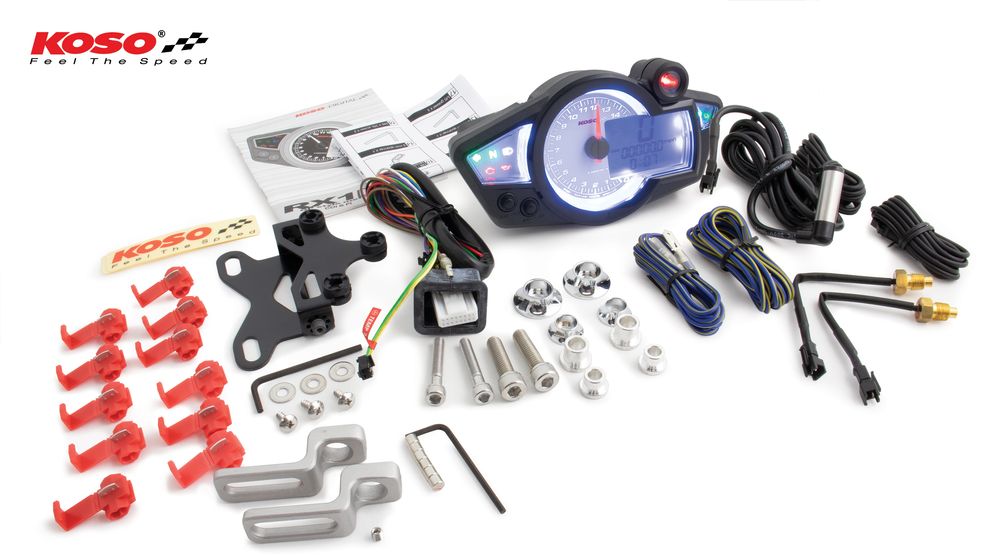

• Measuring device – 1×

• Main cabling – 1×

• Speed ​​cable (Type A) – 1×

• Speed ​​cable (Type B) – 1×

• Temperature sensor cable – 2×

• Water temperature sensor PT 1/8 – 1×

• Passive speed sensor – 1×

• Magnet D6 × 5L mm – 6×

• Terminal block – 1×

• Speed ​​sensor bracket M8 / Type S – 1×

• Speed ​​sensor bracket M10 / Type S – 1×

• Hex bolt M5 × 5L mm – 2×

• Allen key 2.5 mm – 1×

• 3 mm Allen key – 1×

• Instrument holder – 1×

• M4 screw – 3×

• M5 seal – 3×

• Screw M6 × 35L – 2×

• Screw M8 × 30L – 2×

• M6 screw – 2×
