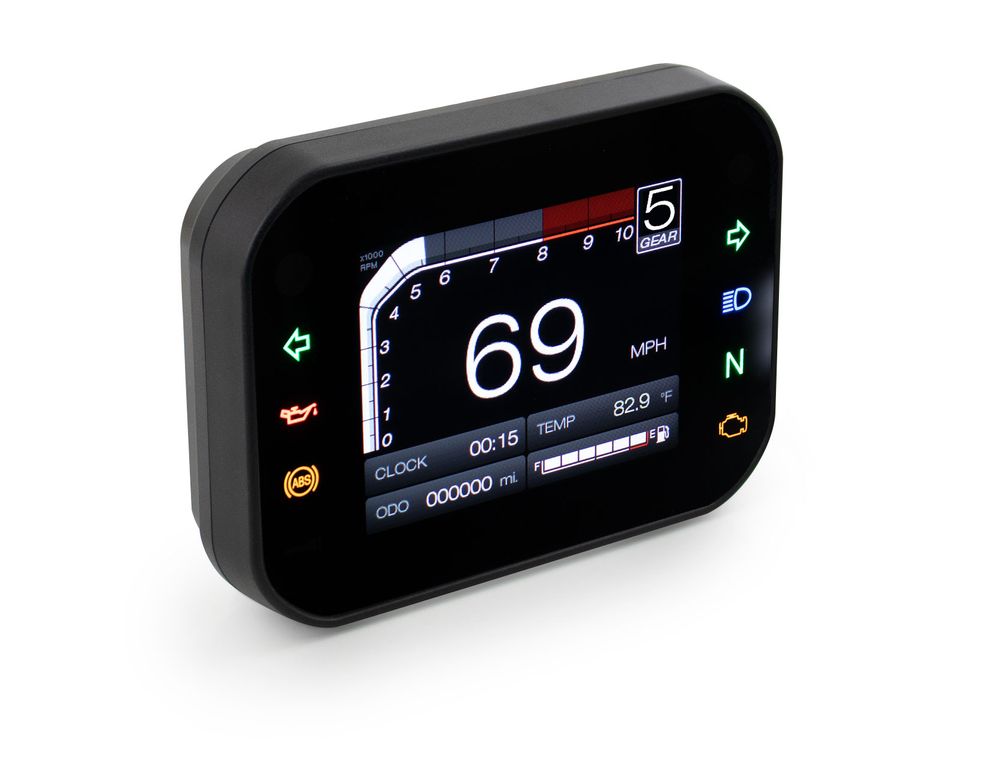

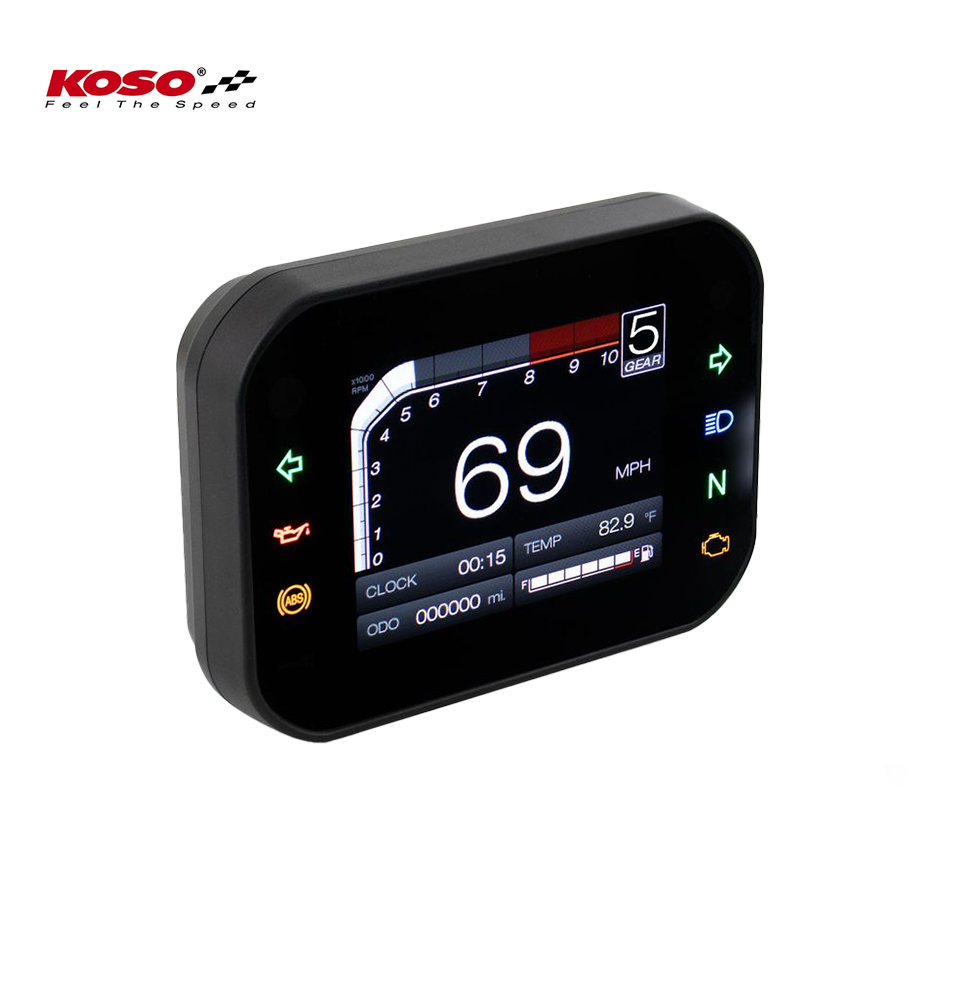

RX-3S TFT multifunction meter 15,000 RPM

RX-3S TFT multifunction meter 15,000 RPM

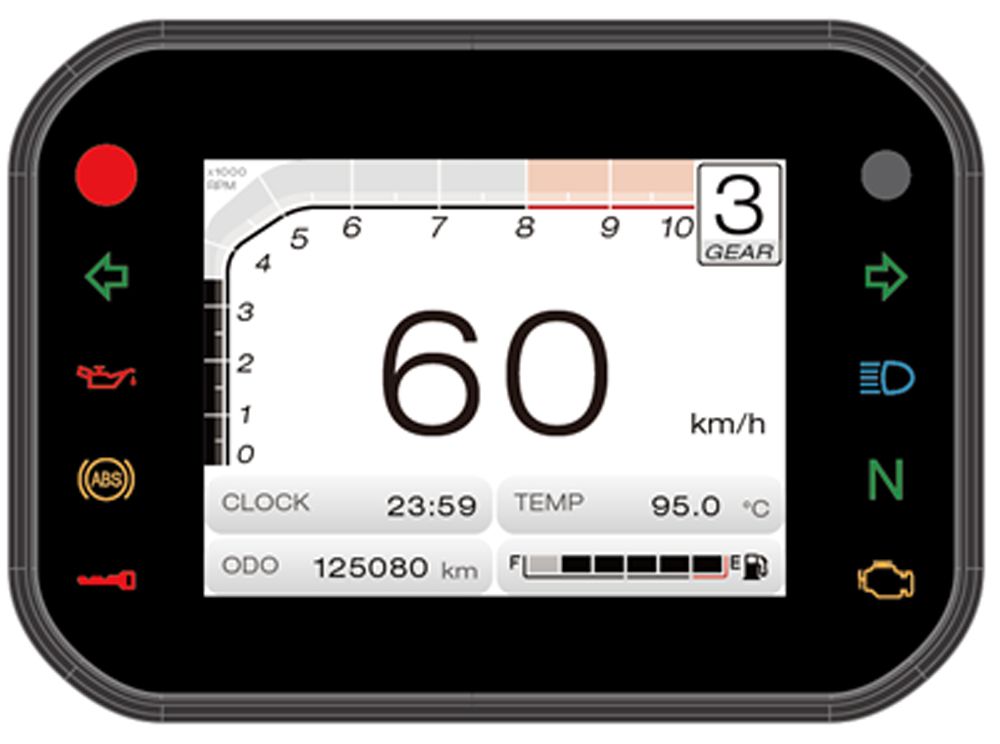

The RX3-TFT instrument is redefined for the aftersales market. The latest colorful 3.5-inch TFT LCD display with a brand new design and user interface ensures that your application on the bike, trike or scooter is not only upgraded by a level. All the functions you need for speedometer, tachometer, odometer and trip, as well as the gear position are already integrated in this instrument. Versatile information and displays: Target distance and target speed are the other features that ensure that the information and status of your vehicle are always available to you. The RX3 instrument turns every trip into a journey full of fun!

Speedometer
Range: 0~225 MPH (0~360 km/h)
Unit: 1 MPH or km / h (alternative)

Odometer
Range: 0 ~ 99,999 miles (km)

Unit: 1 mile (km)

Odometer A / B
Range: 0 ~ 9,999.9 miles (km)

Unit: 0.1 mile (km)

Oil change interval
Range: 300 ~ 10,000 miles
(500 ~ 16,000km), OFF
Unit: 100 miles (km)

Speed ​​warning light
Range: 20 ~ 225 MPH (30 ~ 360 km / h)
Unit: 1 MPH (km)

Top speed record
Range: 0~225 MPH (0~360 km/h?)

Tire circumference
Range: 300 ~ 2,500 mm

Unit: 1mm
Sensitivity point: 1 ~ 40

Gear display (learning)
Range: -, N, 1 ~ highest gear
(the highest gear based on gear learning)

Tachometer
Range: 0 ~ 15,000 rpm

RPM Shift light
Range: 1,000 ~ 15,000 rpm

Unit: 100 rpm
Indicator light: steady light or rapid flash

Max. rpm

Range: 0 ~ 15,000 RPM

Setting the speed of the input signal
Range: 0.5, 1 ~ 24

RPM input pulse
Range: Low-Ac, High-Ac

thermometer
Range: 32.0 to 482.0° F (0 to 250 ° C)

Unit: 0.1 ° C (° F)

Overtemperature warning
Range: 60 ~ 250 ° C

Unit: 1 ° F (° C)

A / F ratio meter
Range: 12.1 ~ 17.5

Unit: 0.1

Fuel meter
Range: 6 levels

Unit: 1 level = 16.6%

Fuel resistance
Range: OFF, 100, 250, 270, 510,
1200, SW, learning mode

Low fuel warning
Range: 0 ~ 3/6

Unit 1

Clock

Range: 24 H / 12 H format

Voltmeter
Range: DC 8.0 ~ 18.0 V

Unit: DC 0.1 V

Low voltage warning
Range: DC 8.0 ~ 13.0 V

Unit: 0.1

High voltage warning
Range: DC 13.1 ~ 18.0 V

Unit: 0.1

Target speed
Range: 20 to 225 MPH (30 to 360 km/h)
Unit: 5 MPH (km / h)

Target distance
Range: 50 ~ 1,500 m (1/32 ~ 30/32 mile)
Unit: 50 m (1/32 mile)

Top speed
Range: Speed: 0~360km/h (0~225MPH)
Distance: 0 ~ 999 m (0 ~ 3,280 feet)
RPM: 0~15,000
RPM Time: 0~9:59”99

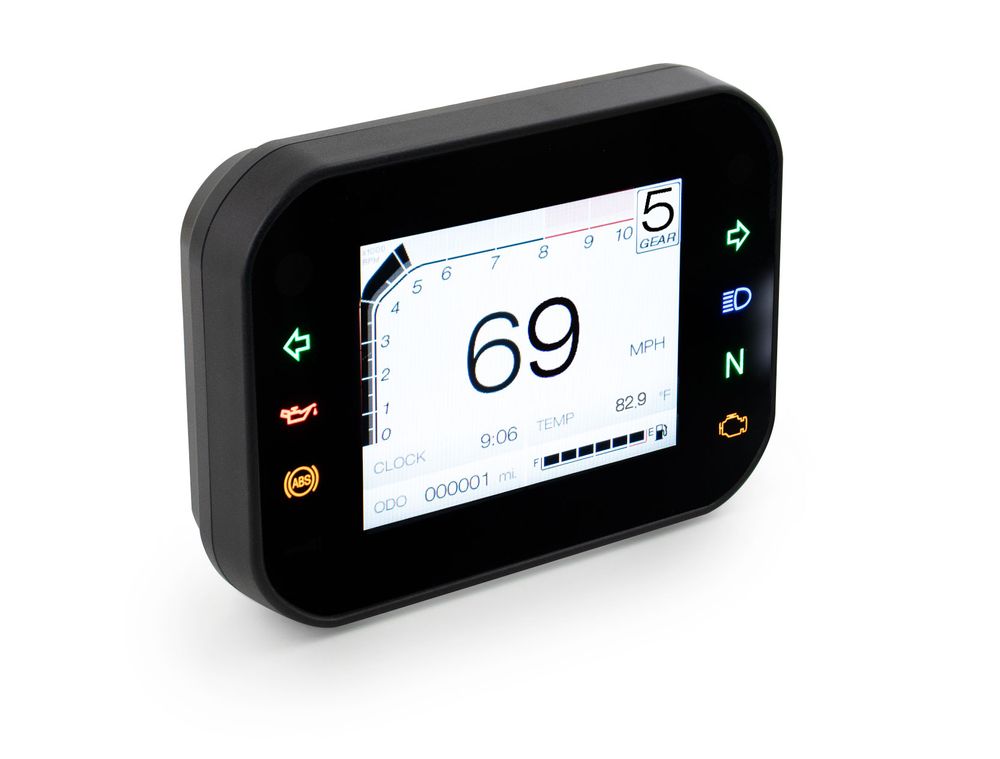

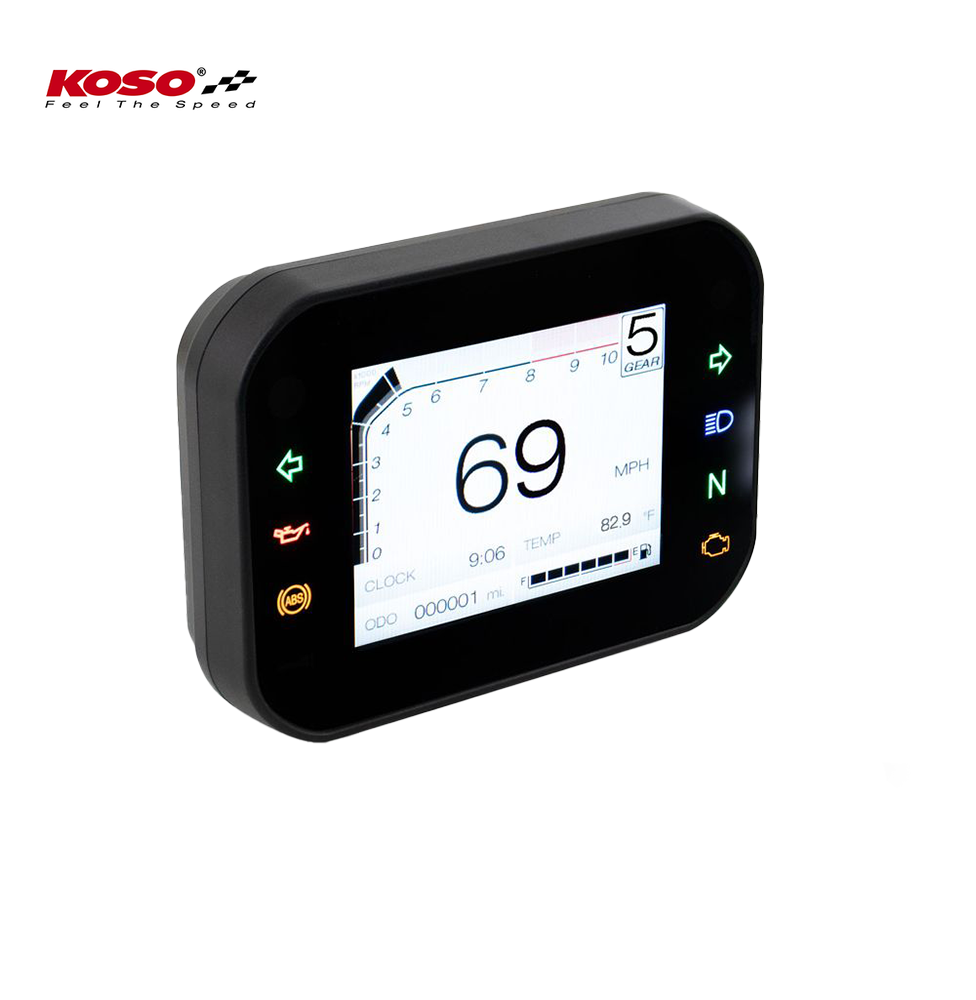

Background display
Range: Auto (Switch according to the ambient light: Day mode / Night mode.)

Backlight brightness (day)
Range: 3/5 ~ 5/5 (brightest)

Unit: 1/5

Backlight brightness (night)
Range: 1/5 (darkest) ~ 5/5 (lightest)

Unit: 1/5

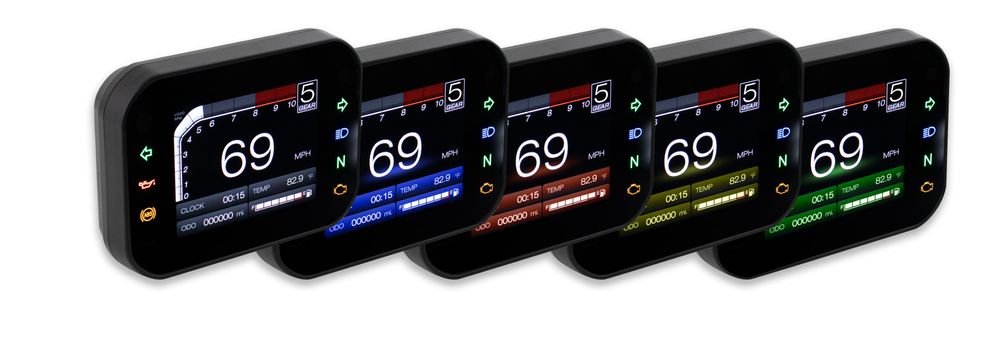

Backlight colors
Range: White, Red, Orange, Green, Blue

Indicator lights
Neutral / High beam / Indicator / Engine oil level
check / ABS / warning / speed shift light

Effective temperature range
Range: -10 ~ 60 ° C (14 ~ 140 ° F)

Effective voltage

DC 12V

specification
JIS D0203 (S2)

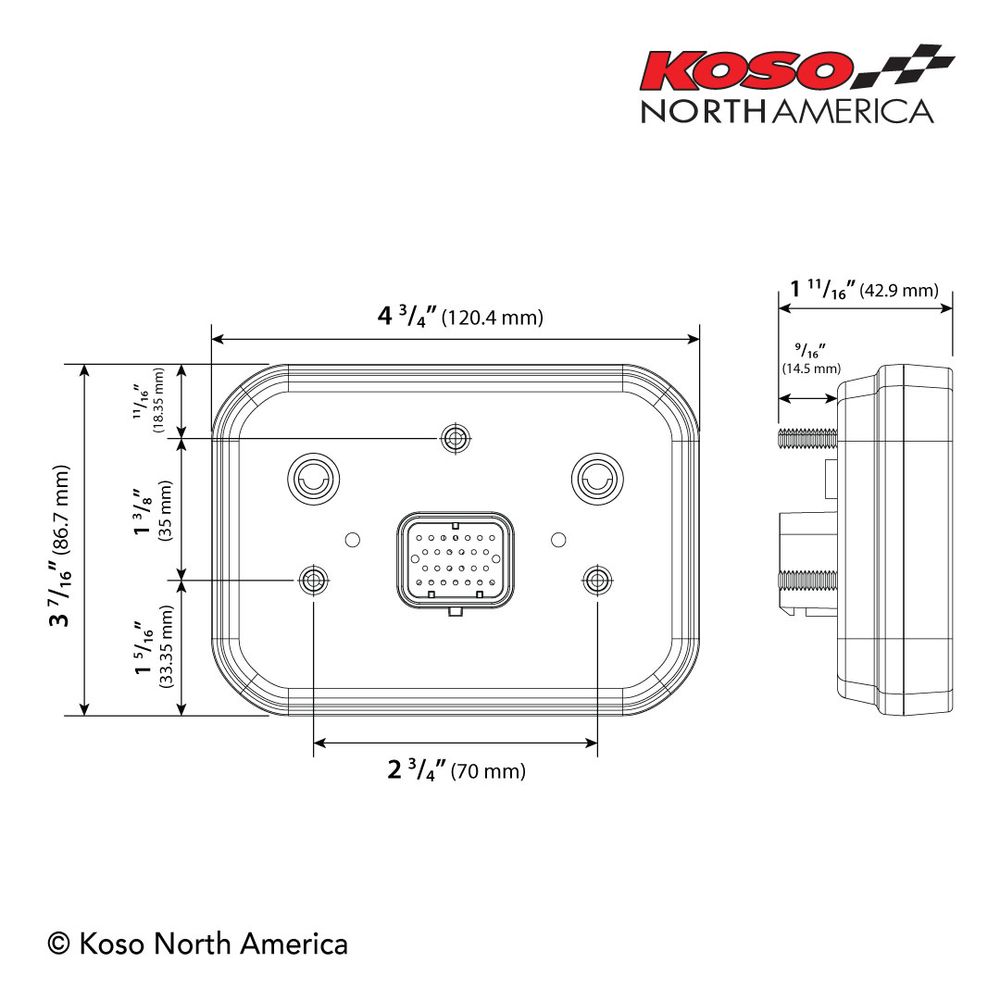

Meter size

(W x L x H) 140.9 x 90.9 x 45.3 mm

Weight per meter

+/- 188g
