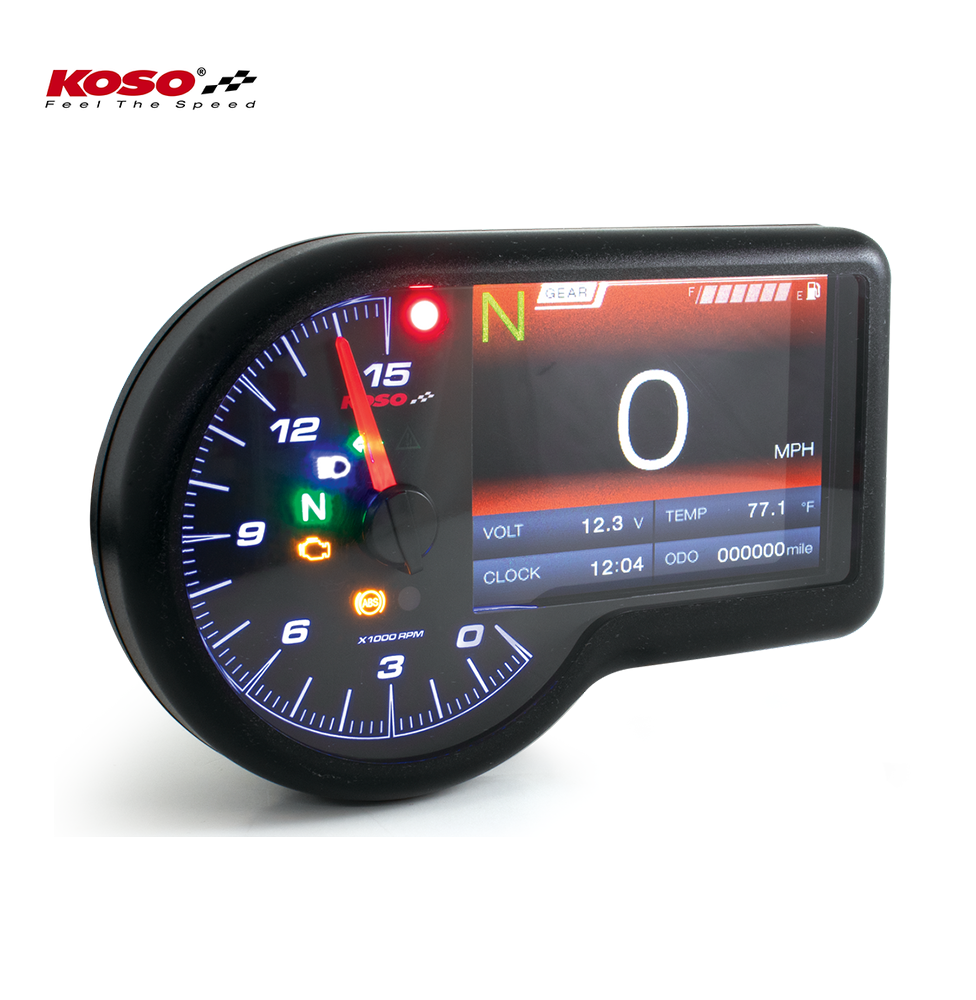

RX-3 TFT multifunction meter 15,000 RPM

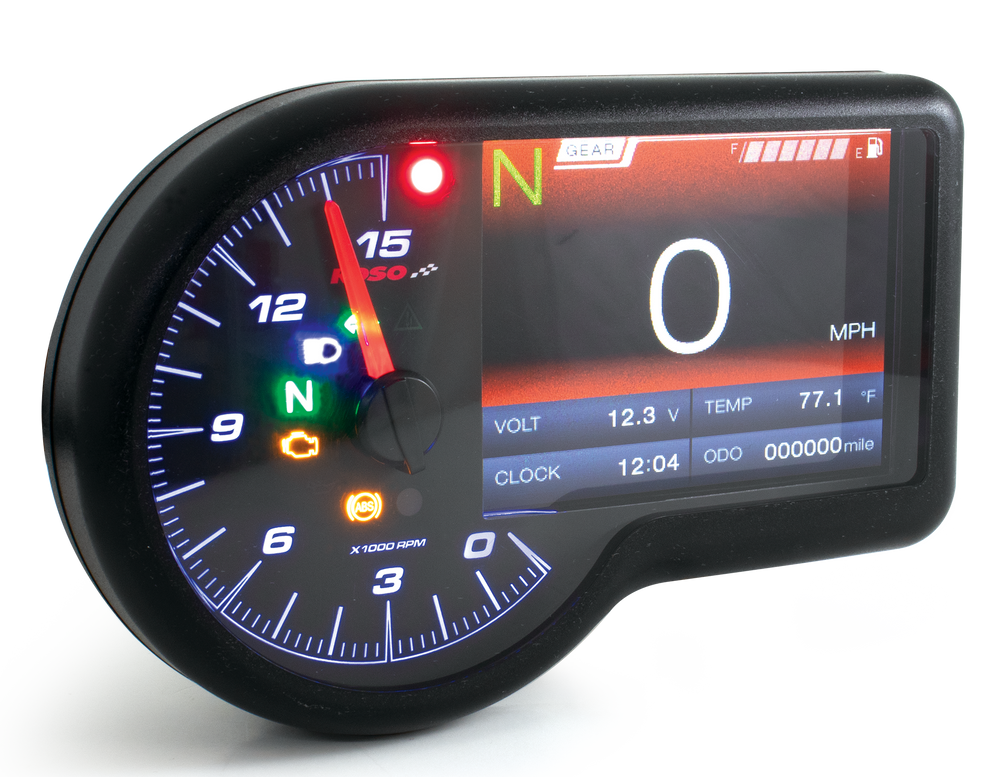

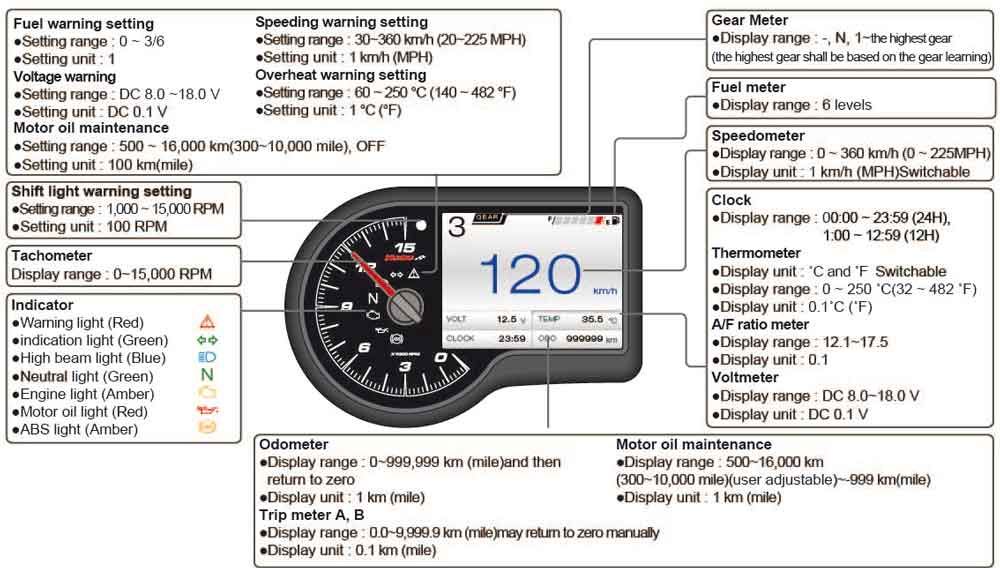

RX-3 TFT multifunction measuring device The RX3-TFT instrument is redefined for the aftersales market. The latest colorful 3.5-inch TFT LCD display with a brand new design and user interface ensures that your application on the bike, trike or scooter is not only upgraded by a level. All the functions you need for speedometer, tachometer, odometer and trip, as well as the gear position are already integrated in this instrument. Versatile information and displays: Target distance and target speed are the other features that ensure that the information and status of your vehicle are always available to you. The RX3 instrument turns every trip into a journey full of fun! Speedometer Range: 0~225 MPH (0~360 km/h) Unit: 1 MPH or km / h (alternative) Odometer Range: 0 ~ 99,999 miles (km) Unit: 1 mile (km) Odometer A / B Range: 0 ~ 9,999.9 miles (km) Unit: 0.1 mile (km) Oil change interval Range: 300 ~ 10,000 miles (500 ~ 16,000km), OFF Unit: 100 miles (km) Speed ​​warning light Range: 20 ~ 225 MPH (30 ~ 360 km / h) Unit: 1 MPH (km) Top speed record Range: 0~225 MPH (0~360 km/h?) Tire circumference Range: 300 ~ 2,500 mm Unit: 1mm Sensitivity point: 1 ~ 40 Gear display (learning) Range: -, N, 1 ~ highest gear (the highest gear based on gear learning) Tachometer Range: 0 ~ 15,000 rpm RPM Shift light Range: 1,000 ~ 15,000 rpm Unit: 100 rpm Indicator light: steady light or rapid flash Max. rpm Range: 0 ~ 15,000 RPM Setting the speed of the input signal Range: 0.5, 1 ~ 24 RPM input pulse Range: Low-Ac, High-Ac thermometer Range: 32.0 to 482.0° F (0 to 250 ° C) Unit: 0.1 ° C (° F) Overtemperature warning Range: 60 ~ 250 ° C Unit: 1 ° F (° C) A / F ratio meter Range: 12.1 ~ 17.5 Unit: 0.1 Fuel meter Range: 6 levels Unit: 1 level = 16.6% Fuel resistance Range: OFF, 100, 250, 270, 510, 1200, SW, learning mode Low fuel warning Range: 0 ~ 3/6 Unit 1 Clock Range: 24 H / 12 H format Voltmeter Range: DC 8.0 ~ 18.0 V Unit: DC 0.1 V Low voltage warning Range: DC 8.0 ~ 13.0 V Unit: 0.1 High voltage warning Range: DC 13.1 ~ 18.0 V Unit: 0.1 Target speed Range: 20 to 225 MPH (30 to 360 km/h) Unit: 5 MPH (km / h) Target distance Range: 50 ~ 1,500 m (1/32 ~ 30/32 mile) Unit: 50 m (1/32 mile) Top speed Range: Speed: 0~360km/h (0~225MPH) Distance: 0 ~ 999 m (0 ~ 3,280 feet) RPM: 0~15,000 RPM Time: 0~9:59”99 Background display Range: Auto (Switch according to the ambient light: Day mode / Night mode.) Backlight brightness (day) Range: 3/5 ~ 5/5 (brightest) Unit: 1/5 Backlight brightness (night) Range: 1/5 (darkest) ~ 5/5 (lightest) Unit: 1/5 Backlight colors Range: White, Red, Orange, Green, Blue Indicator lights Neutral / High beam / Indicator / Engine oil level check / ABS / warning / speed shift light Effective temperature range Range: -10 ~ 60 ° C (14 ~ 140 ° F) Effective voltage DC12V specification JIS D0203 (S2) Meter size (W x L x H) 140.9 x 90.9 x 45.3 mm Meter weight +/- 188g
