RX-3 TFT multifunction meter 10,000 RPM

€516,46
€516,46
Tax included. Shipping calculated at checkout.

Vendor : Koso

Product Type :

Sku : BA071300

Add to wishlist
Sizechart

Some name:

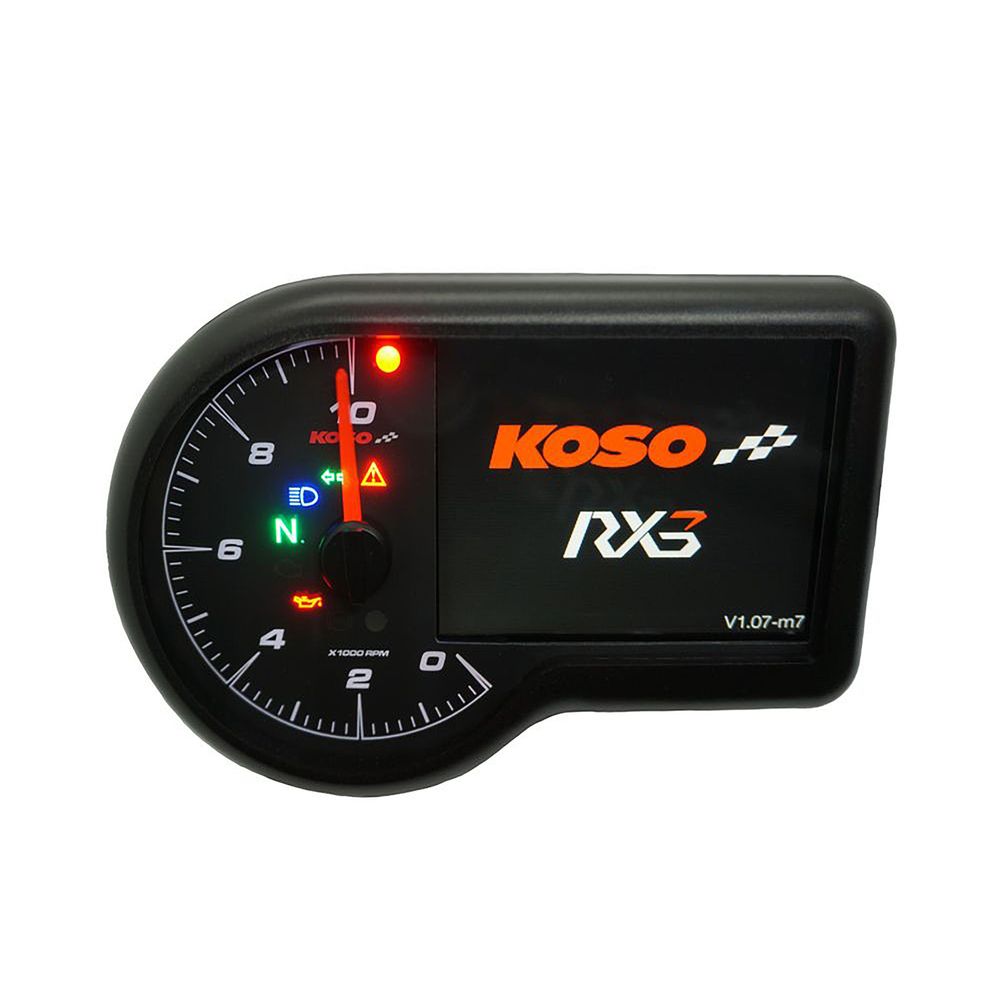

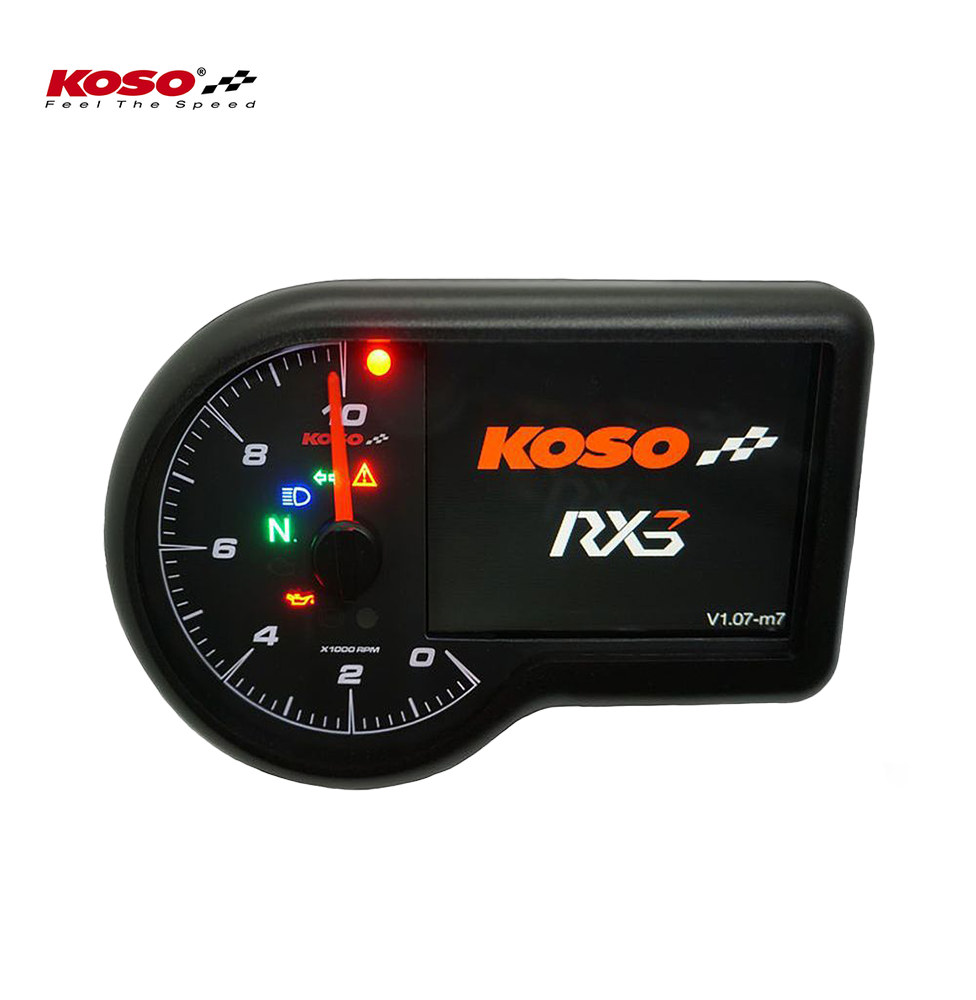

RX-3 TFT multifunction meter

The RX3-TFT instrument is redefined for the aftersales market. The latest colorful 3.5-inch TFT LCD display with a brand new design and user interface ensures that your application on the bike, trike or scooter is not just upgraded one level. All the functions you need for speedometer, tachometer, odometer and trip, as well as the gear position, are already integrated into this instrument. Versatile information and displays: Target distance and target speed are the other features that ensure that the information and status of your vehicle are always available to you. The RX3 instrument makes every ride a journey full of fun!

  • Speedometer
    Range : 0~225MPH (0~360km/h)
    Unit: 1 MPH or km/h (alternative)

  • Odometer
    Range: 0~99,999 miles (km)
    Unit : 1 mile (km)

  • Odometer A/B
    Range: 0 ~ 9,999.9 miles (km)
    Unit : 0.1 mile (km)

  • Oil change interval
    Range: 300~10,000 miles
    (500 ~ 16,000km), OFF
    Unit : 100 miles (km)

  • Speed ​​warning light
    Range: 20~225MPH (30~360km/h)
    Unit : 1 MPH (km)

  • Top speed record
    Range: 0~225 MPH (0~360 km/h?)

  • Tire circumference
    Range: 300~2,500mm
    Unit : 1mm
    Sensitivity point: 1~40

  • Gear indicator (learning)
    Range: -, N, 1 ~ the highest gear
    (the highest gear based on gear learning)

  • Tachometer
    Range: 0 ~ 10,000 rpm

  • RPM shift light
    Range: 1,000 ~ 15,000 rpm
    Unit : 100 rpm
    Indicator light: steady on or quick flash

  • Max. rpm
    Range : 0~15,000RPM

  • Setting the speed of the input signal
    Range: 0.5, 1~24

  • RPM input pulse
    Range : Low-Act, High-Ac

  • thermometer
    Range: 32.0 to 482.0°F (0 to 250°C)
    Unit : 0.1°C (°F)

  • Over temperature warning
    Range: 60~250°C
    Unit : 1°F (°C)

  • A/F ratio meter
    Range: 12.1~17.5
    Unit : 0.1

  • Fuel meter
    Range: 6 levels
    Unit : 1 level = 16.6%

  • Fuel resistance
    Range: OFF, 100, 250, 270, 510, 1200, SW, learning mode

  • Low fuel warning
    Range: 0~3/6
    Unit 1

  • Clock
    Range: 24H / 12H format

  • Voltmeter
    Range: DC 8.0 ~ 18.0V
    Unit : DC 0.1V

  • Low voltage warning
    Range: DC 8.0 ~ 13.0V
    Unit : 0.1

  • High voltage warning
    Range: DC 13.1~18.0V
    Unit : 0.1

  • Target speed
    Range: 20 to 225 MPH (30 to 360 km/h)
    Unit : 5 MPH (km/h)

  • Target distance
    Range: 50 ~ 1,500 m (1/32 ~ 30/32 mile)
    Unit : 50 m (1/32 mile)

  • Top speed
    Range: Speed: 0~360km/h (0~225MPH)
    Distance: 0~999m (0~3,280 feet)
    RPM: 0~15,000
    RPM Time: 0~9:59”99

  • Background display
    Range: Auto (Switch according to the ambient light: Day mode / Night mode.)

  • Backlight Brightness (Day)
    Range: 3/5 ~ 5/5 (brightest)
    Unit : 1/5

  • Backlight brightness (night)
    Range: 1/5 (darkest) ~ 5/5 (brightest)
    Unit : 1/5

  • Backlight colors
    Range: White, Red, Orange, Green, Blue

  • Indicator lights
    Neutral / High Beam / Turn Signal / Check Engine Oil Level / ABS / Warning / Speed ​​Switch Light

  • Effective temperature range
    Range: -10~60°C (14~140°F)

  • Effective tension
    DC 12V

  • specification
    JIS D 0203 (S2)

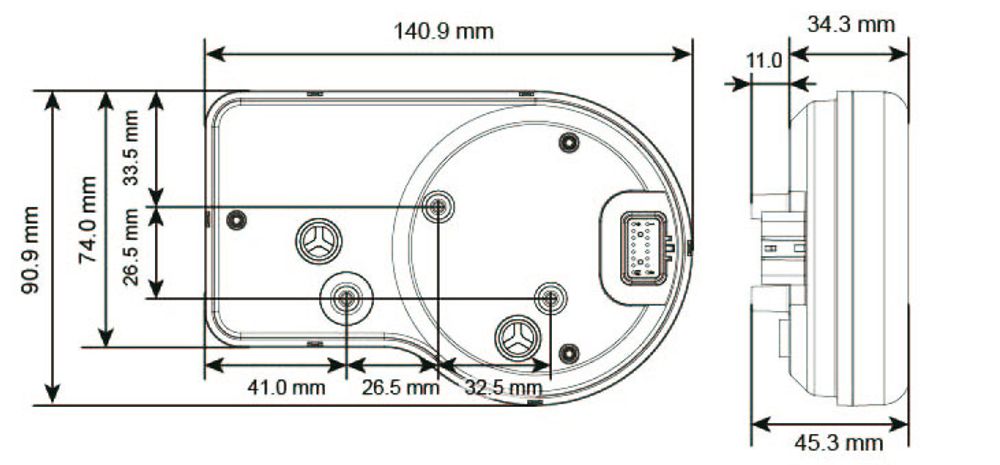

  • meter size
    (W x L x H) 140.9 x 90.9 x 45.3 mm

  • meter weight
    +/- 188g
