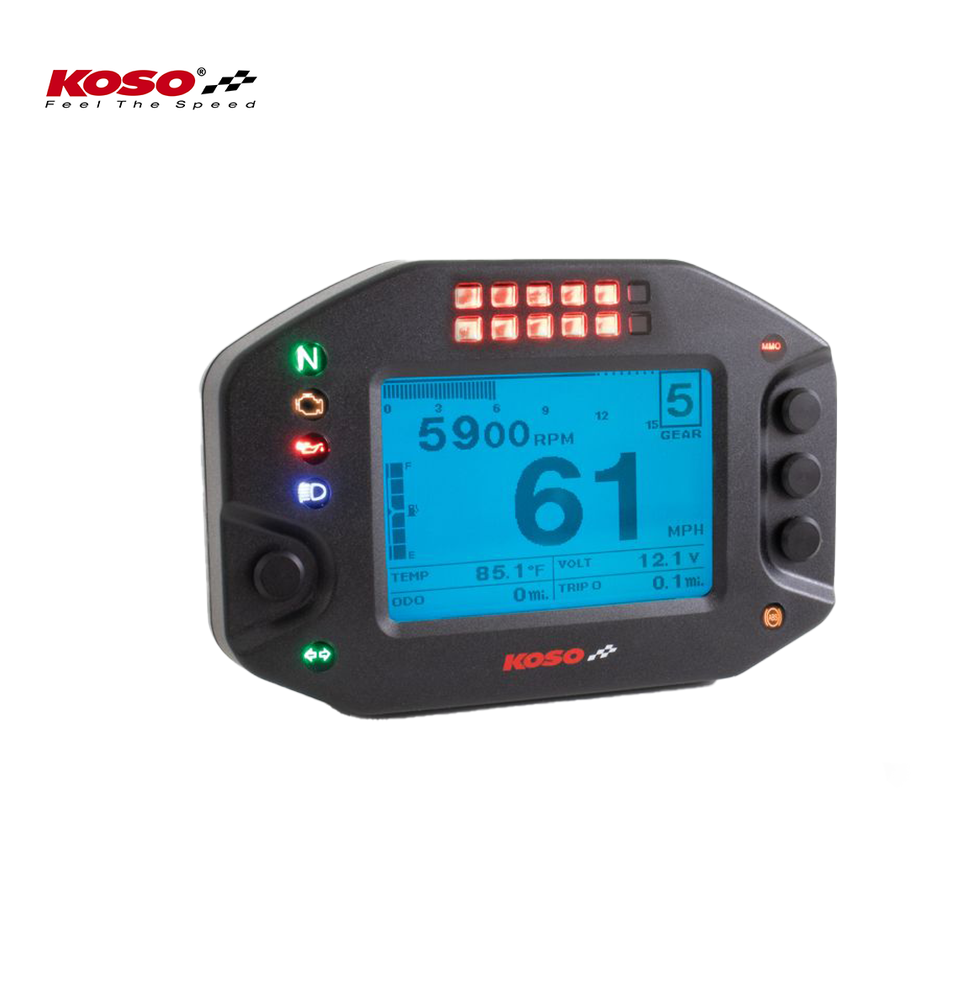

RS2 multifunctional measuring device

RS2 Multifunction Measuring Device – Compact versatility for your vehicle monitoring

The RS2 multifunction gauge is a highly advanced instrument specifically designed for motorcyclists and vehicle owners who value precise measurements and extensive functionality. With a wide range of customizable display options and useful features, it offers an excellent solution for both riders seeking performance data and those who simply want to keep track of riding conditions.

Key features of the RS2 multifunction measuring device

Speedometer

• Range: 0 - 360 km/h (0 - 223 MPH)
• Unit: 1 km/h (MPH) switchable
• Warning light speed: Adjustment range: 0 - 90 km/h (0 - 56 MPH)

odometer

• Total odometer: 0 - 99,999 km (miles), automatically resets to 0
• Trip odometer A/B: 0 - 9999.9 km (miles), automatically resets to 0
• Unit: 0.1 km/h (MPH)

Tire circumference

• Range: 300 - 2,500 mm
• Unit: 1 mm, Sensor points: 1 - 60

Gear indicator

• Range: N / 1-6 / OFF

Tachometer

• Digital tachometer: Range up to 20,000 RPM, Unit: 100 RPM
• Level speed: 0 - 9,000 / 12,000 / 15,000 / 18,000 / 20,000 RPM
• RPM warning light: Adjustment range: 3,000 – 20,000 RPM
• Maximum recording speed: 0 - 20,000 RPM

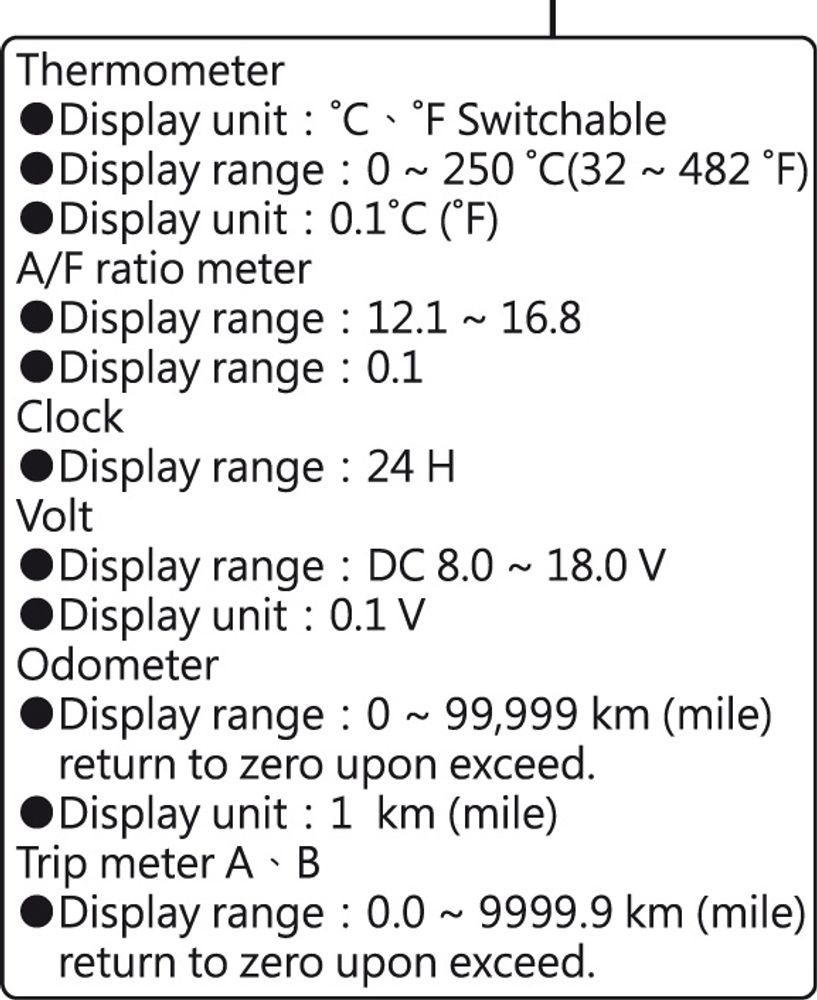

Temperature measurement

• Thermometer: Range: 0 - 250°C (32 - 482°F)
• Unit: 1°C (°F)
• Temperature warning: Setting range: 50 - 250°C (122 - 482°F)
• Maximum temperature recording: 0 - 250°C (32 - 482°F)

Fuel gauge

• Range: 6 bars (16.6% per bar)
• Tank sender resistance: 100 / 250 / 510 / 1200 / SW / Learning mode
• Reserve: Adjustment range: 0 - 3/6 (Unit: 11/6)

Additional functions

• Oil change interval: Setting range: 500 - 16,000 km (312 - 10,000 miles)
• ABS: Setting range: ON / OFF
• Clock: 24-hour format
• Voltmeter: Range: DC 8 - 18 V, Unit: 0.1 V

Dyno function

• Target speed: Setting range: 30 - 360 km/h (20 - 223 MPH)
• Target distance: Setting range: 50 - 1,500 m (1/32 - 30/32 mile)

Top Speed ​​Timer

• Speed: 0 - 360 km/h (0 - 225 MPH)
• Distance: 0 - 999 m (0 - 3,280 ft)
• Speed: 0 - 20,000 RPM
• Display timer: 0 - 9:59'99 seconds

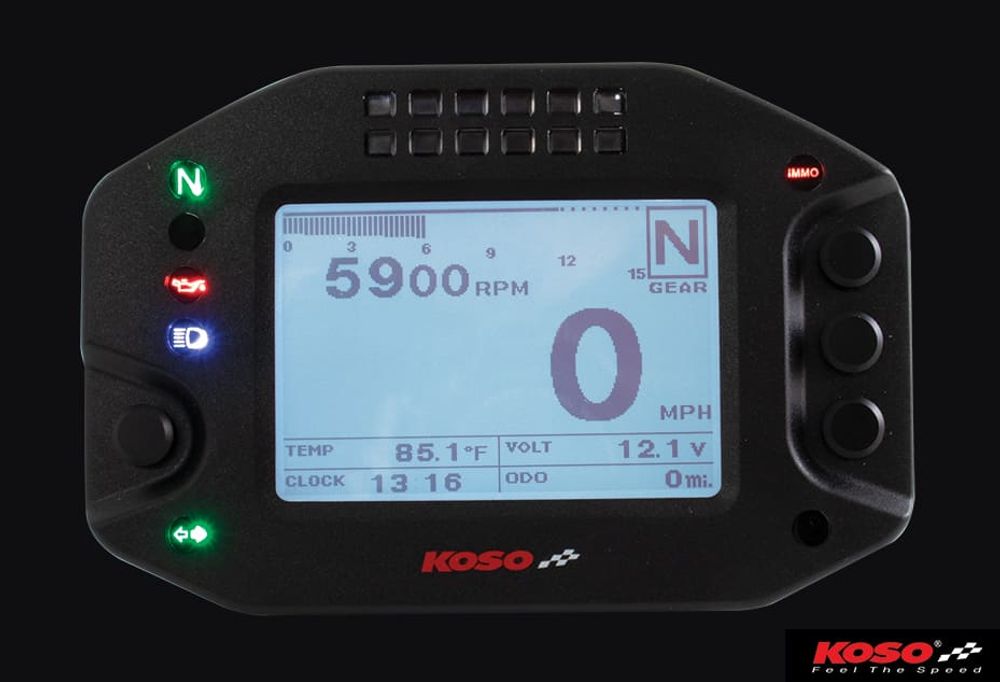

Display options and customization

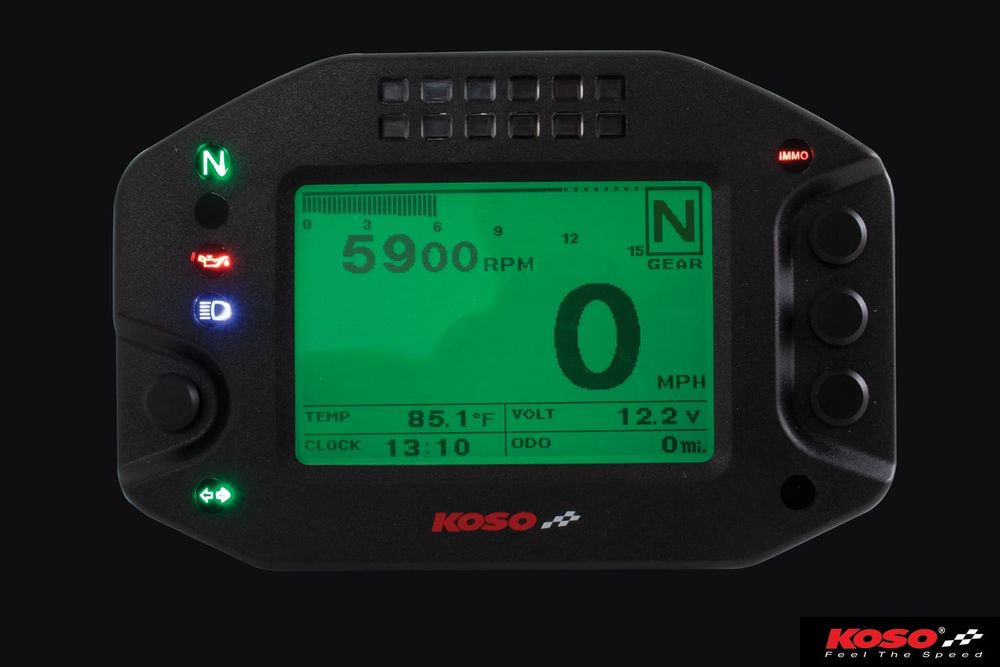

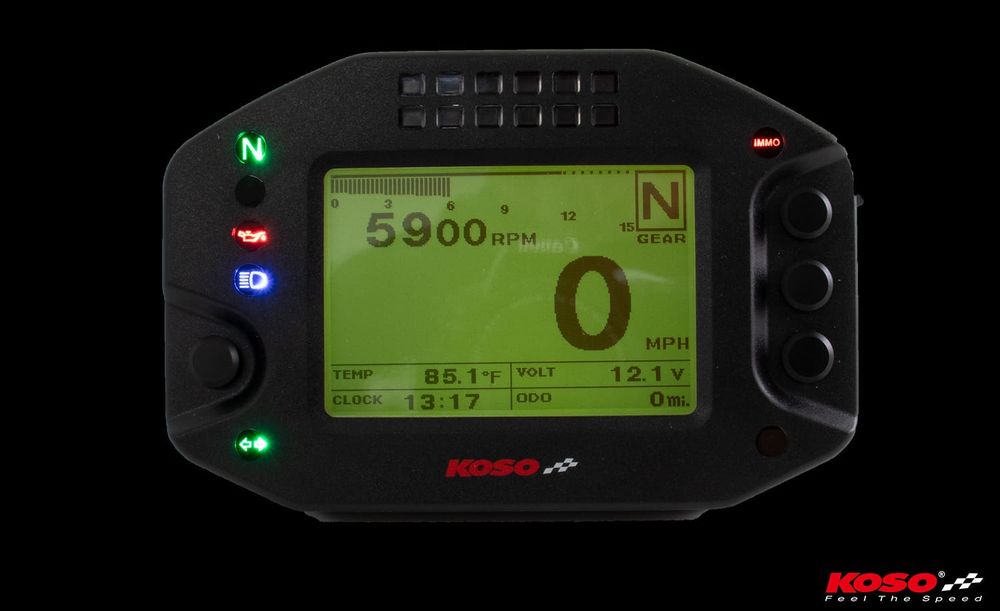

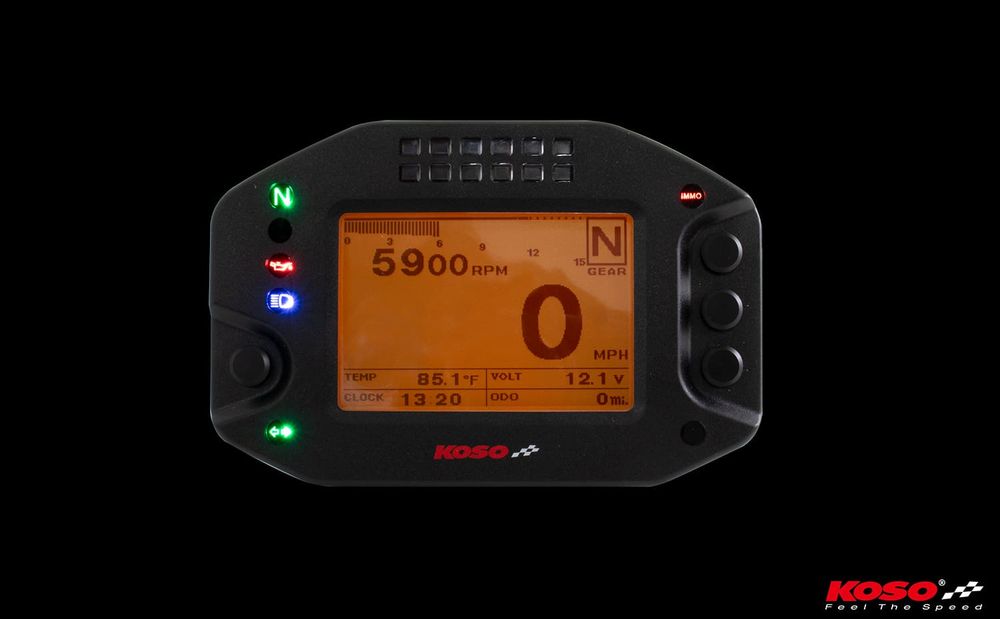

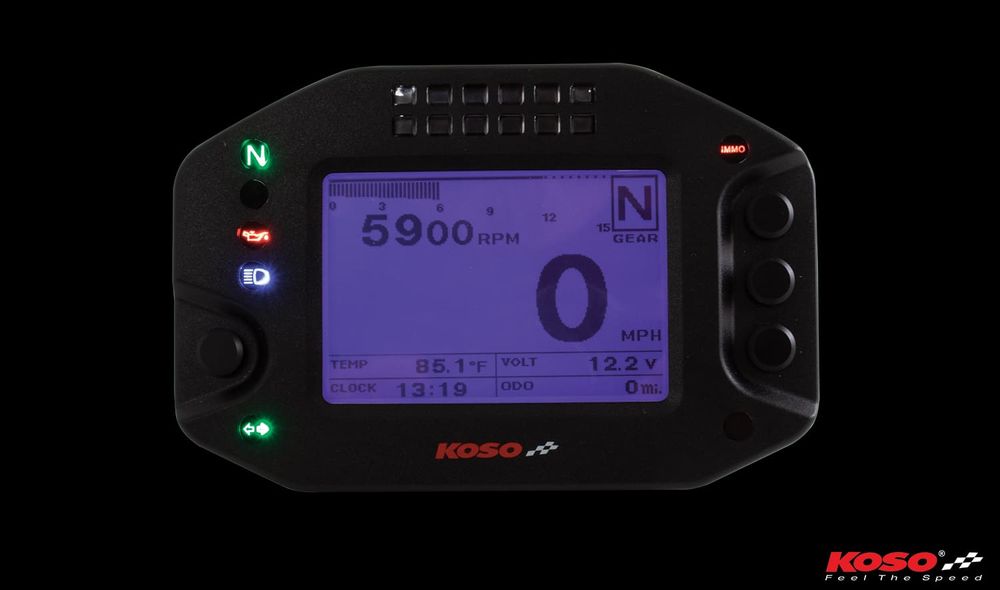

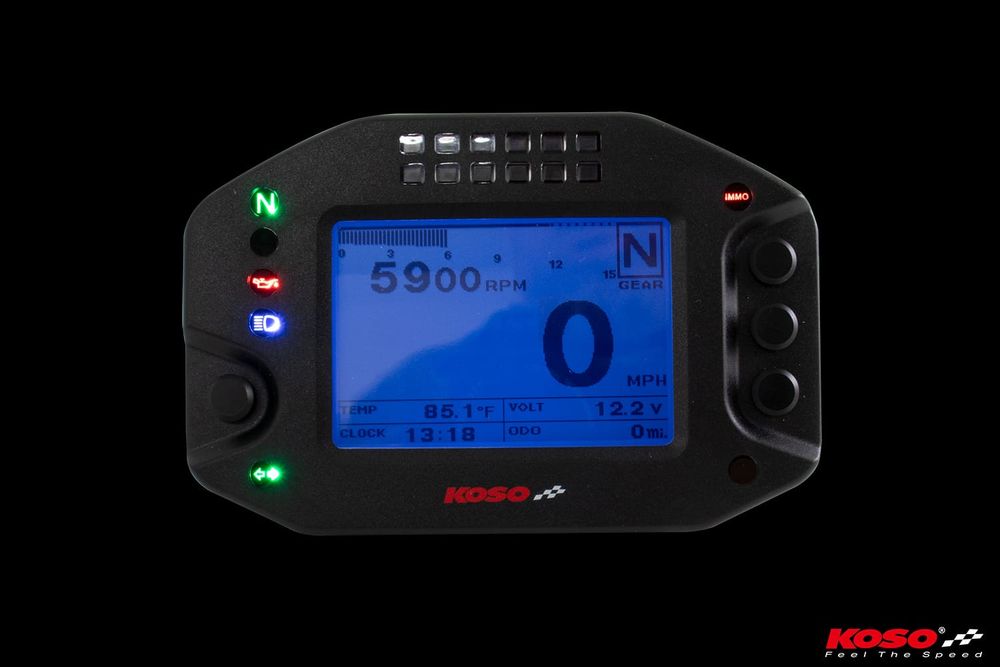

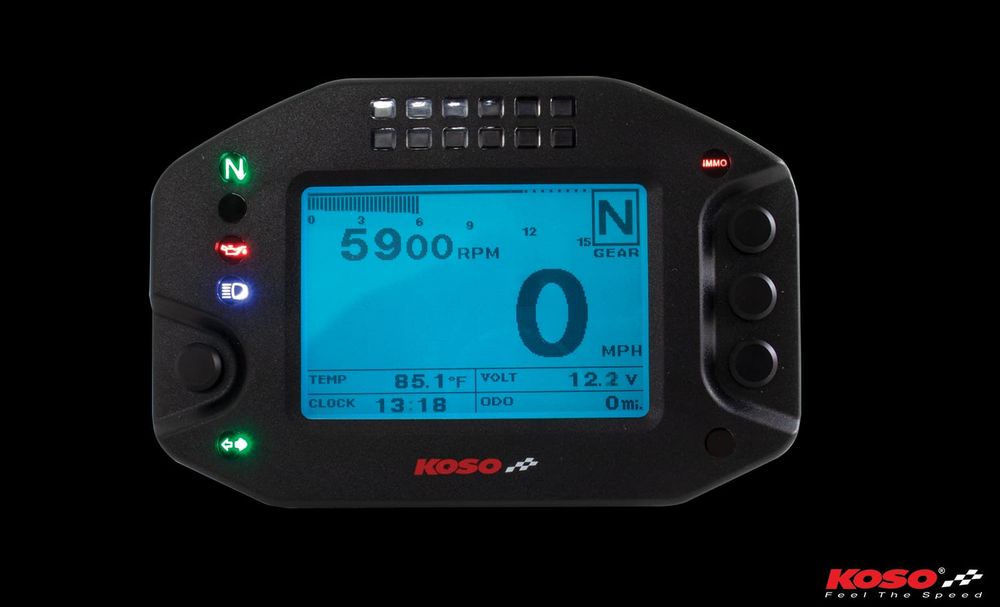

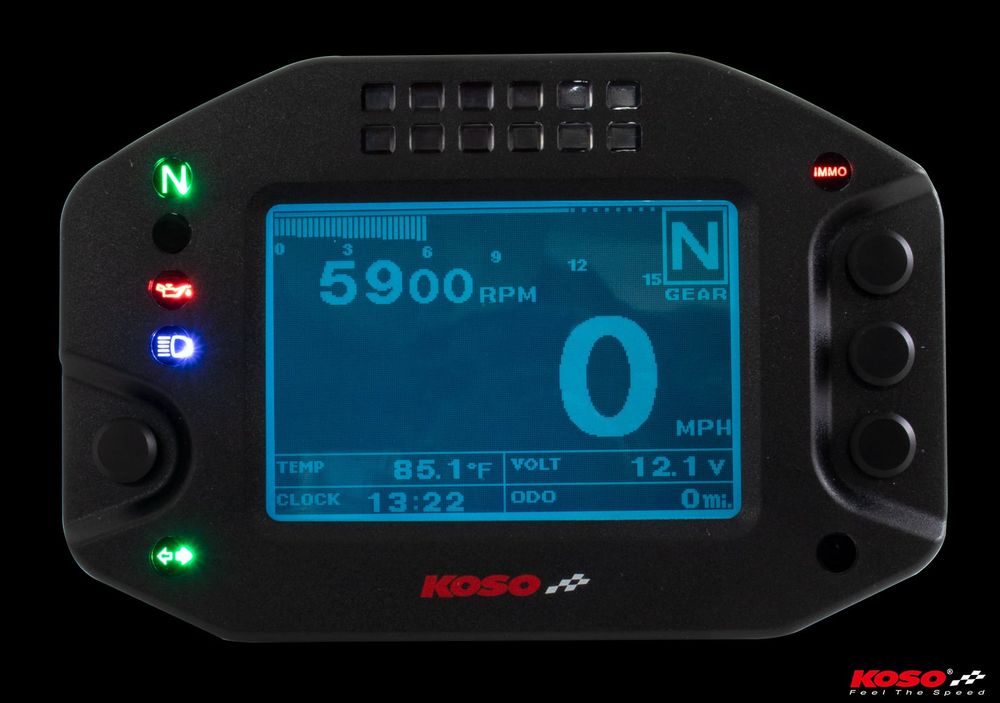

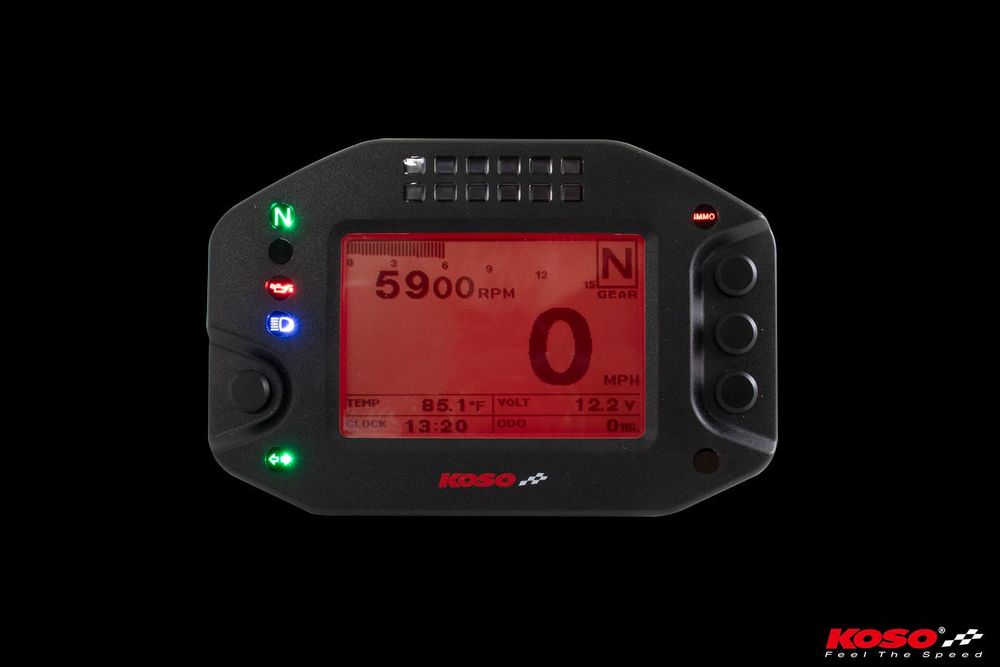

• Background color: Setting range: White, Green, Light Blue, Blue, Purple, Red, Orange, Yellow
• Intensity: Adjustment range: 1/3 (darkest) to 3/3 (brightest)
• Backlight brightness: Adjustment range: 1/5 (darkest) to 5/5 (brightest)
• Separate settings for day and night

Supply and operating temperatures

• Required voltage: DC 12 V
• Effective temperature range: -10°C to +60°C
• Device standard: JIS D 0203 (S2)

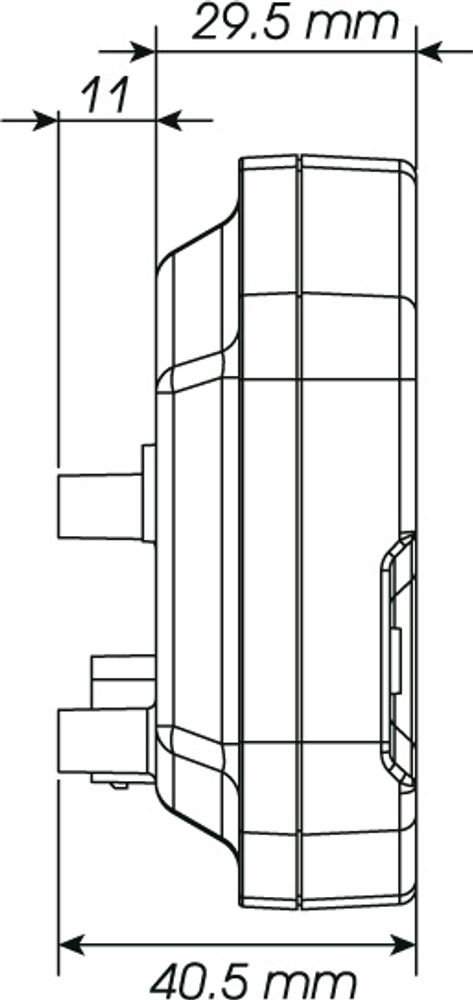

Dimensions and weight

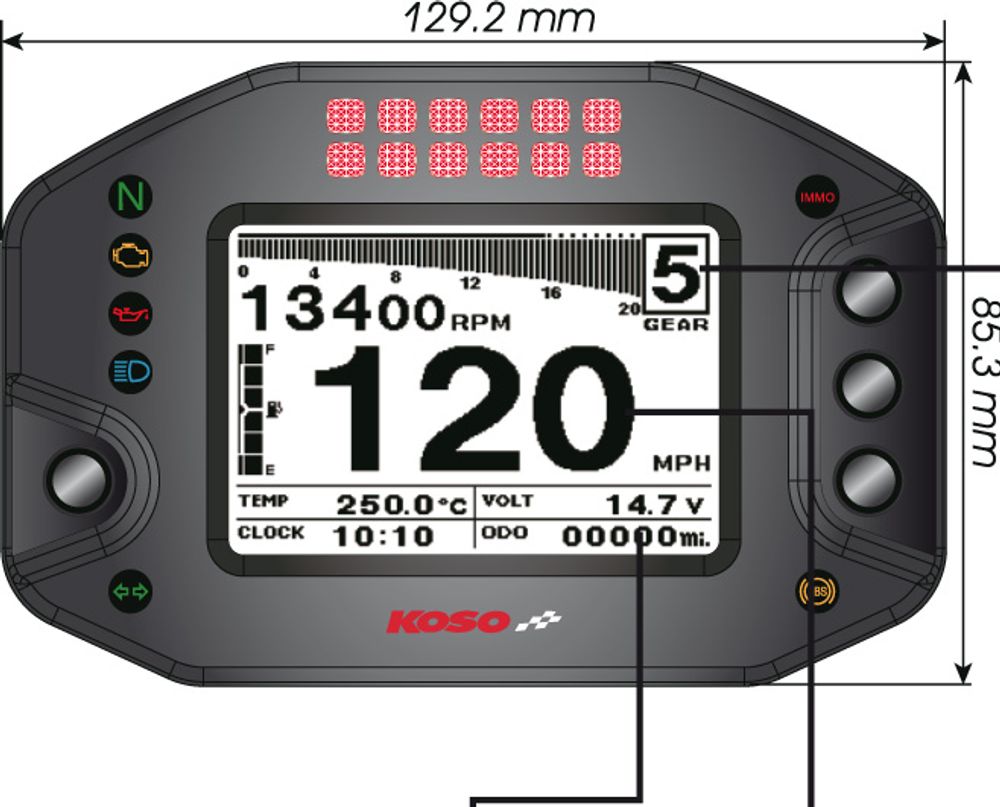

• Dimensions: 129.2 x 85.3 x 40.5 mm
• Weight: Approx. 151 g

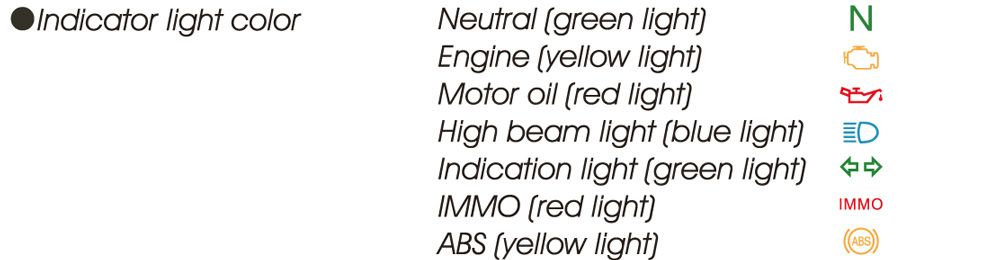

Indicator lights

• Neutral (green)
• Engine (yellow)
• Oil (red)
• High beam (blue)
• Turn signal (green)
• REAL ESTATE (red)
• ABS (yellow)

The RS2 multifunction meter offers an impressive list of features that significantly enhance the riding experience. With customizable display color , automatic brightness adjustment for night riding, and a variety of performance-oriented measurement functions (such as the dyno function for target speed and target distance measurement), this device truly stands out. Whether you're looking for precise riding data or pure riding enjoyment, the RS2 delivers everything you need in a user-friendly package.

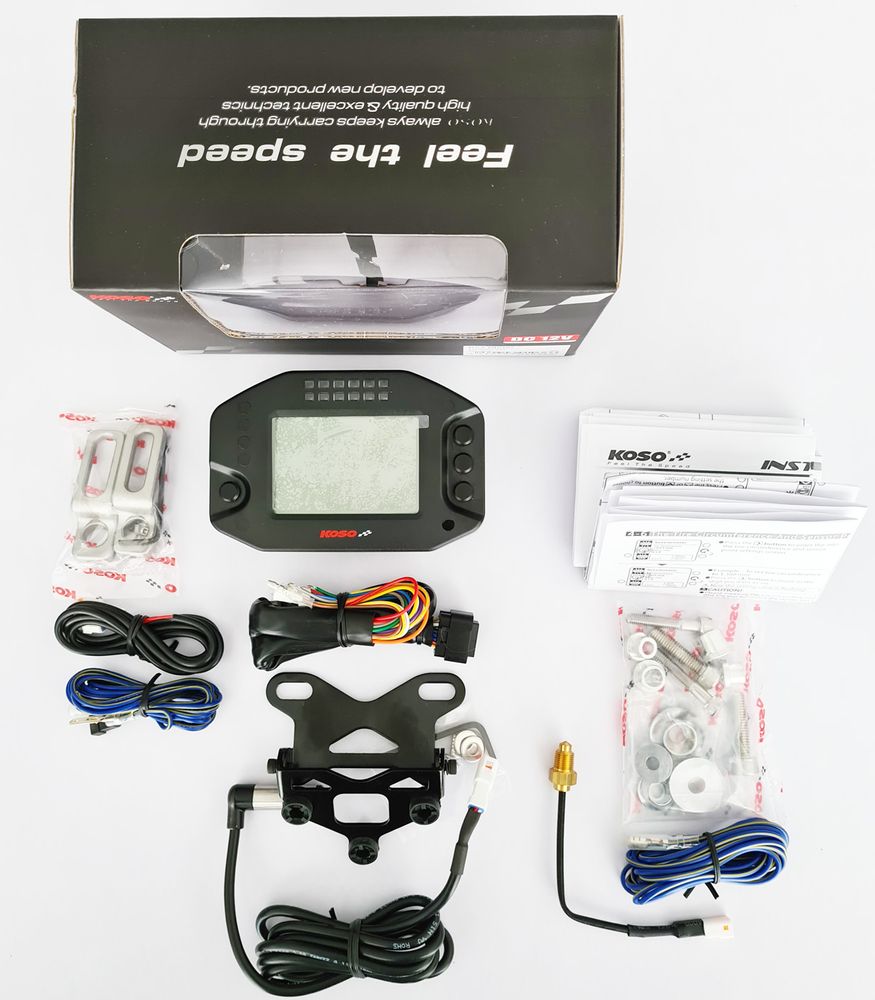

Table of contents:

• Display / Speedometer – 1×

• Main cable – 1×

• Temperature sensor cable – 1×

• Water temperature sensor TH-01 – 1×

• Active speed sensor – 1×

• Speed ​​sensor cable (Type A) – 1×

• Speed ​​sensor cable (Type B) – 1×

• Mounting bracket for speed sensor M8/S – 1×

• Mounting bracket for speed sensor M10/S – 1×

• Hex socket screw M5×5L – 2×

• Allen key 2.5 mm – 1×

• 3 mm Allen key – 1×

• Display bracket – 1×

• Screw M4 × 12L – 3×

• Washer M5 – 3×

• Screw M6×35L – 2×

• Screw M8×30L – 2×

• Aluminum threaded bushing M6 – 2×

• Aluminum threaded bushing M8 – 2×

• M6 seal – 2×

• M8 seal – 2×
