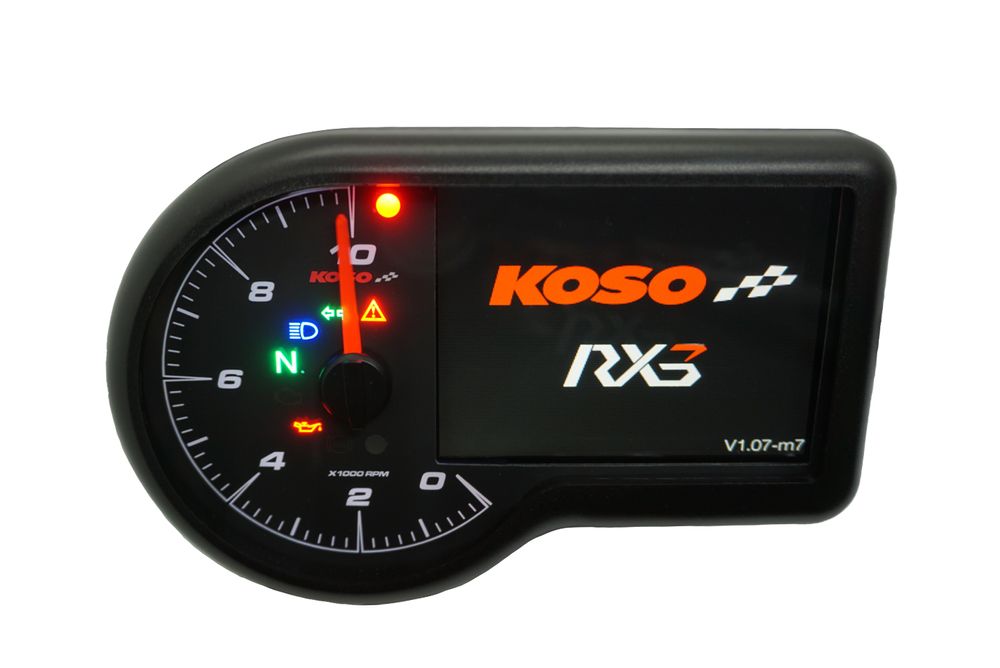

RF RX-3 TFT multifunction meter 10,000 RPM

RX-3 TFT multi-function meter The RX3-TFT instrument is redefined for the aftersales market. The latest colorful 3.5-inch TFT LCD display with a brand new design and user interface ensures that your application on the bike, trike or scooter is not only upgraded by a level. All the functions you need for speedometer, tachometer, odometer and trip, as well as the gear position are already integrated in this instrument. Versatile information and displays: Target distance and target speed are the other features that ensure that the information and the status of your vehicle are always available to you. The RX3 instrument turns every trip into a journey full of fun! Speedometer Range: 0~225 MPH (0~360 km/h) Unit: 1 MPH or km/h (alternative) Odometer Range: 0~99,999 miles (km) Unit: 1 mile (km) Odometer A/B Range: 0~9,999.9 miles (km) Unit: 0.1 mile (km) Oil change interval Range: 300~10,000 miles (500~16,000km), OFF Unit: 100 miles (km) Speed ​​warning light Range: 20~225 MPH (30~360 km/h) Unit: 1 MPH (km) Top speed record Range: 0~225 MPH (0~360 km/h?) Tire circumference Range: 300~2,500mm Unit: 1mm Sensitivity point: 1 ~ 40 Gear indicator (learning) Range: -, N, 1 ~ the highest gear (the highest gear based on gear learning) Tachometer Range: 0 ~ 10,000 RPM RPM Shift light Range: 1,000 ~ 15,000 RPM Unit: 100 RPM Indicator lamp: steady light or fast flash Max. RPM Range: 0 ~ 15,000 RPM Input signal RPM setting Range: 0.5, 1 ~ 24 RPM input pulse Range: Low-Act, High-Ac Thermometer Range: 32.0 to 482.0°F (0 to 250°C) Unit: 0.1°F (°C) Over temperature warning Range: 60 ~ 250°C Unit: 1°F (°C) A/F ratio meter Range: 12.1 ~ 17.5 Unit: 0.1 Fuel Meter Range: 6 Levels Unit: 1 Level = 16.6% Fuel Resistance Range: OFF, 100, 250, 270, 510, 1200, SW, Learning Mode Fuel Shortage Warning Range: 0~3/6 Unit: 1 Clock Range: 24H/12H Format Voltmeter Range: DC 8.0~18.0V Unit: DC 0.1V Low Voltage Warning Range: DC 8.0~13.0V Unit: 0.1 High Voltage Warning Range: DC 13.1~18.0V Unit: 0.1 Target Speed ​​Range: 20~225 MPH (30~360 km/h) Unit: 5 MPH (km/h) Target Distance Range: 50~1,500m (1/32~30/32 mile) Unit: 50m (1/32 mile) Top Speed ​​Range: Speed: 0~360km/h (0~225MPH) Distance: 0~999m (0~3,280ft) RPM: 0~15,000RPM Time: 0~9:59”99 Background Display Range: Auto (Switch according to the ambient light: Day mode / Night mode.) Backlight Brightness (Day) Range: 3/5~5/5 (Brightest) Unit: 1/5 Backlight Brightness (Night) Range: 1/5 (Darkest)~5/5 (Brightest) Unit: 1/5 Backlight Colors Range: White, Red, Orange, Green, Blue Indicator Lights Neutral / High Beam / Turn Signal / Check Engine Oil Level / ABS / Warning / Speed ​​Shift Light Effective Temperature Range: -10~60°C (14~140° F) Effective voltage DC 12 V Specification JIS D 0203 (S2) Meter size (W x L x H) 140.9 x 90.9 x 45.3 mm Meter weight +/- 188 g
