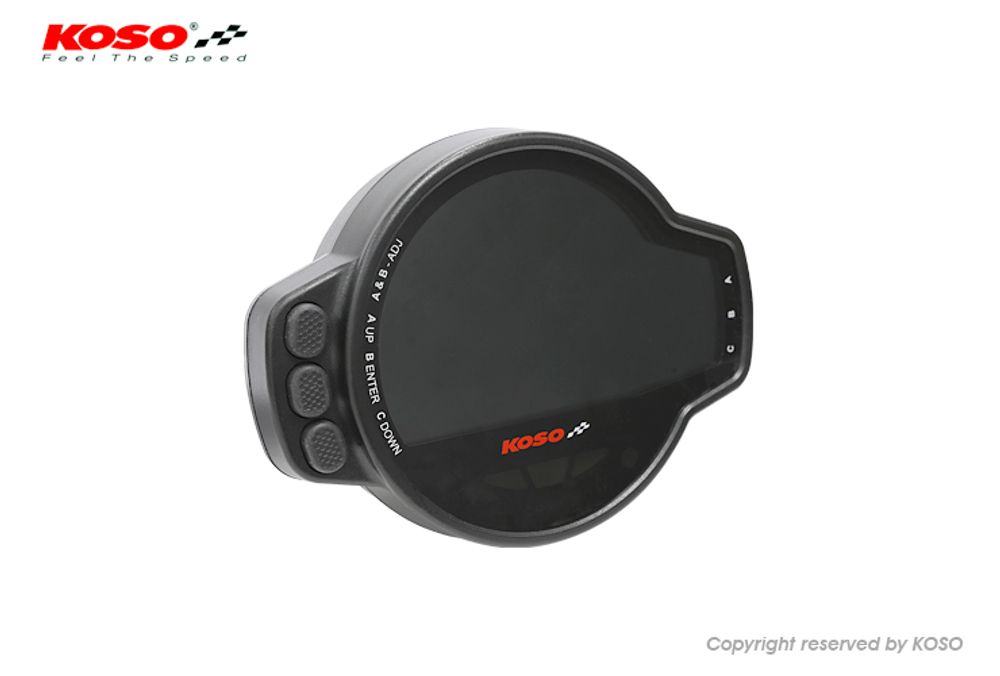

MS-01 Speedometer Digital speedometer with ABE

MS-01 | Multifunction measuring device

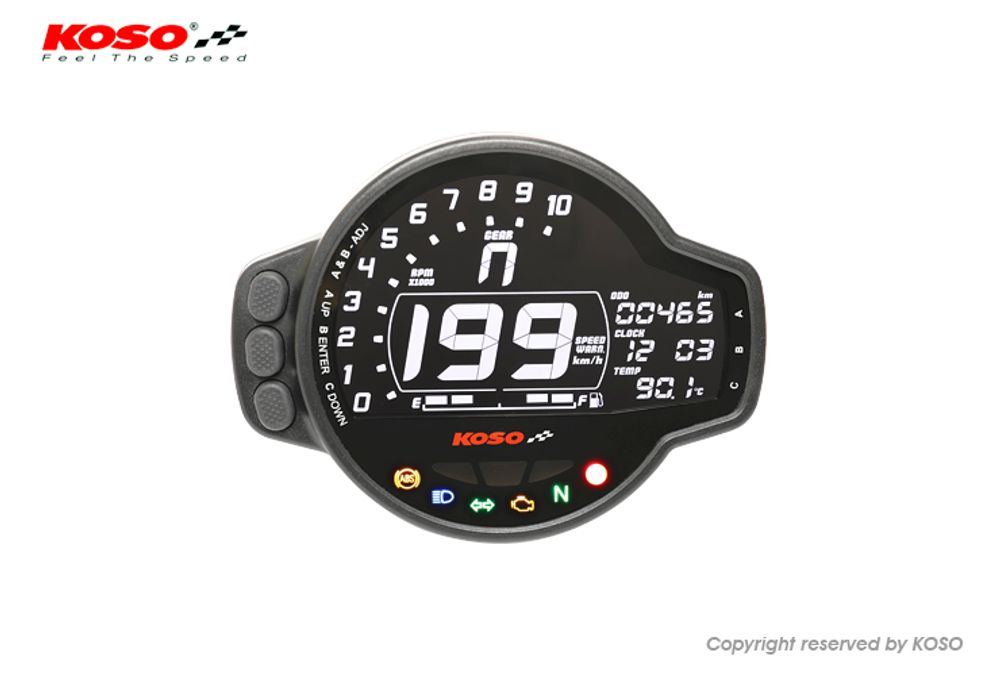

The MS-01 multifunction meter is the latest achievement for enthusiasts who like to take multiple readings from their vehicle. It features a modern negative LCD display that shows all the information.
Compact, lightweight and easy to use, this modern meter features a clean and simple design. This universal meter can be used for any application.

Specifications
(R= area U=unit)
Speedometer
R: 0 ~ 124 MPH (0 ~ 199 km/h)
U: 1 MPH or km/h (alternative)
Odometer
R: 0 ~ 99,999 miles (km) | U: 1 mile (km)
Trip meter A/B
R: 0 ~ 9,999.9 miles (km) | U: 0.1 mile (km)
Speeding warning light
R: 19 ~ 124 MPH (30 ~ 199 km/h)
U: 1 MPH(km/h)
Warning light lights up when ≥ setting value
Tire circumference
R: 300 ~ 2,500mm | U: 1 mm
Sensitive point: 1 ~ 40
Gear display (learning)
R: OFF, N, 1 ~6, the highest gear
Oil maintenance
R: 300 ~ 10,000 miles
(500 ~ 16,000km), OFF
U: 100 miles (km)
Bar-segment tachometer
R: 0 ~ 10,000 RPM /
0 ~ 13,000 RPM
U: 0 ~ 10,000 RPM (250 RPM/segment)
0 ~ 13,000 RPM (250 RPM/segment)
Speed ​​input pulse
R: POS(+) / NEG(-)
RPM signal
P: P-0.5 / P-1 / P-1.5 / P-2 / P-2.5 /
P-3 / P-4 / P-5 / P-6 / P-9 / P-10 /
P-11 / P-12 / P-17 / P-18 / P-23 / P-24 /
P-34 / P-36
First level warning for
Overspeed (illuminated)
R: 0 ~ 10,000 RPM
Setting: 3,000 ~ 9,750 RPM
R: 0 ~ 13,000 RPM
Setting: 3,000 ~ 12,750 RPM
Signal lamp lights up (green) when overspeed
if ≥ set value
Second level of warning for
Overspeed (lit)
R: 0 ~ 10,000 RPM
Setting: 3,000 ~ 9,750 RPM
R: 0 ~ 13,000 RPM
Setting: 3,000 ~ 12,750 RPM
Signal lamp lights up (red) when overspeed
if ≥ set value
Third level of warning for
Overspeed (flashing)
R: 0 ~ 10,000 RPM
Setting: 3,250 ~ 10,000 RPM
R: 0 ~ 13,000 RPM
Setting: 3,250 ~ 13,000 RPM
Signal lamp flashes (green/red)
for overspeed at ≥ set value
U: 100 RPM
Temperature and maximum temperature recording
R:
1- OFF
2- Cylinder head temperature
P-1 -20 ~ 200˚C (-4 ~ 392°F)
P-2 -40 ~ 185˚C (-40 ~ 365°F)
P-3 -20 ~ 220˚C (-4 ~ 428°F)
P-4 -20 ~ 200˚C (-4 ~ 392°F)
P-5 -20 ~ 120˚C (-4 ~ 248°F)
P-6 -30 ~ 200˚C (-22 ~ 392°F)
P-1A ​​-20 ~ 200˚C (-4 ~ 392°F)
P-2A -40 ~ 185˚C (-40 ~ 365°F)
P-5A -20 ~ 120˚C (-4 ~ 248°F)
P-6A -30 ~ 200˚C (-22 ~ 392°F)
3- Temperature sensor
P-250 0 ~ 250˚C (32 ~ 482°F)

thermometer
R: 32.0 ~ 482.0 ˚F (0 ~ 250 ˚C)
U: 0.1 °C (°F)

Overtemperature warning
R: 122 ~ 356°F (50 ~ 180°C) | U: 3°F (5°C)
Temperature warning when the value is exceeded

Fuel gauge
R: 6 steps | U: 1 step = 16.6%.

Fuel resistance
R: OFF, 100 Ω, 250 Ω, 270 Ω, 390 Ω ,
510 Ω, 1200 Ω, SW

Low fuel level warning
R: 0 ~ 3 segments | U: 1 segment
Low fuel warning flashes ≥ value
Clock
R: 1:00 ~ 12:59 (12H)
Voltmeter
R: DC 8.0 ~ 18.0 V | U: DC 0.1 V
Low voltage warning
R: DC 8.0 ~ 13.0V | U: 0.1
Signal lamp on ≥ value
Backlight brightness
R: 1/5(darkest) ~ 5/5(brightest) | U: 1/5
SECTION
R: ON / OFF
AFR (optional)
R: ON / OFF
R: 12.1 ~ 17.5 | U: 0.1
Flashing lights
Neutral / High beam / Indicator /
Check engine / ABS / Warning
Effective temperature range
14 ~ 140 °F (-10 ~ 60 °C)
Effective tension
DC12V
