Koso Tachometer Mini 4

The Koso Mini 4 tachometer is a compact and precise device for measuring the current engine speed of vehicles. Developed by Koso, this mini LCD meter offers a user-friendly way to accurately monitor an engine's RPM. Particularly useful for motorcycles or other fuel-powered vehicles, the Mini 4 tachometer is powered by a CR2032 battery , providing a long operating time of approximately 350 hours.

Technical details:

Tachometer:

• Display range: 0 - 15,000 rpm
• Resolution: 10 rpm
• Operating mode: The device starts automatically after the engine is ignited and begins recording the engine speed.

Battery:

• Battery type: CR2032
• Battery life: Approx. 350 hours with continuous operation (24h/day)
• Battery life: Approximately 100 days
• On-board voltage: DC 12V

Automatic sleep mode:

• The device goes into sleep mode after 30 seconds without new signals to save energy and extend battery life.

Sensor:

• Sensor cable length: Approx. 120 cm , ideal for flexible installation.

Operating temperature range:

• Temperature range: -10°C to +60°C

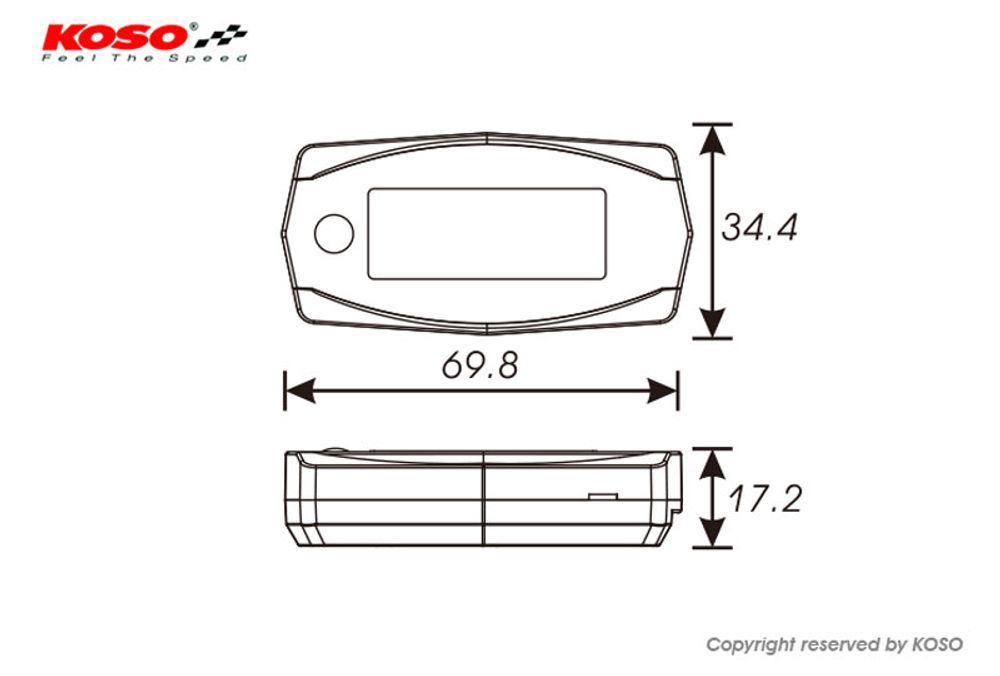

Device size:

• Width x Length x Height: 69.8 mm x 34.4 mm x 17.2 mm
• Weight: Compact and lightweight for easy installation

Features and benefits:

• Easy to use: The device starts automatically and begins measuring the rotational speed as soon as the engine is started.
• Automatic sleep mode: Ensures a longer battery life by putting the device into sleep mode when inactive.
• Long battery life: With a battery life of up to 350 hours, the Mini 4 tachometer is perfect for long-term applications.
• Compact size: Fits well in any cockpit and is easy to install without taking up much space.

The Koso Mini 4 tachometer is an excellent choice for anyone needing a compact and reliable solution for monitoring their vehicle's RPM. Especially suitable for vehicles with 12-volt systems, it offers high accuracy and user-friendly features to keep track of the RPM at all times.

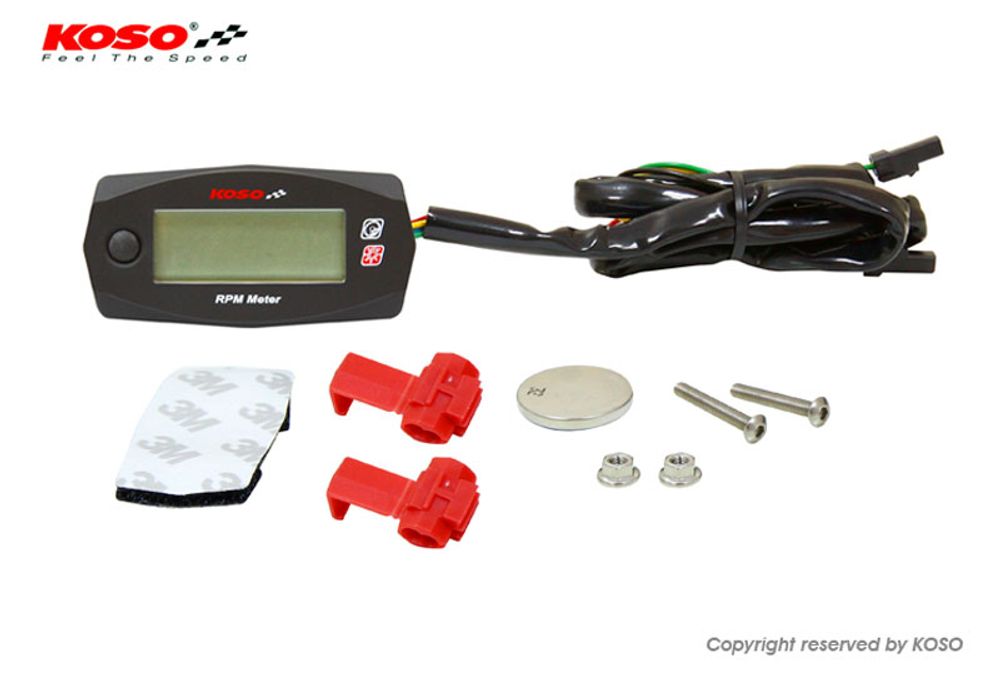

Table of contents:

• LCD measuring device – 1×

• Measuring device case – 1×

• Mid-way connector – 2×

• Allen screw M3 × 20L – 2×

• M3 × P0.5 Nut – 2×

• Battery – 1×

• Hook and loop fastener – 1 set
