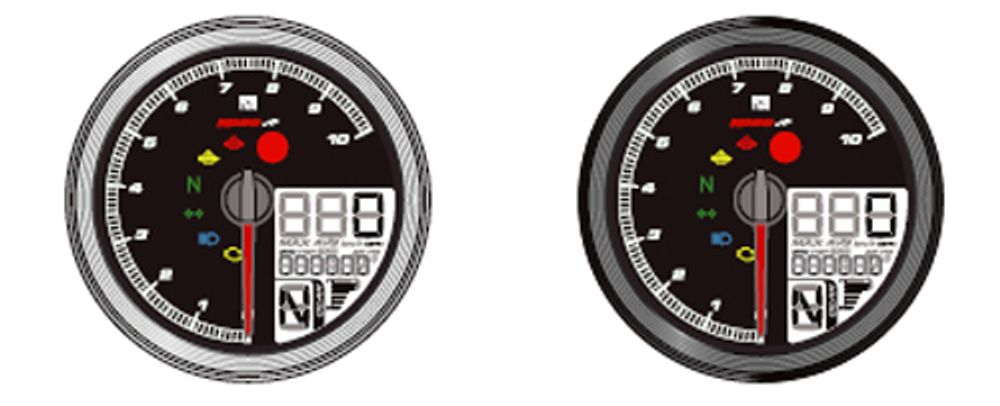

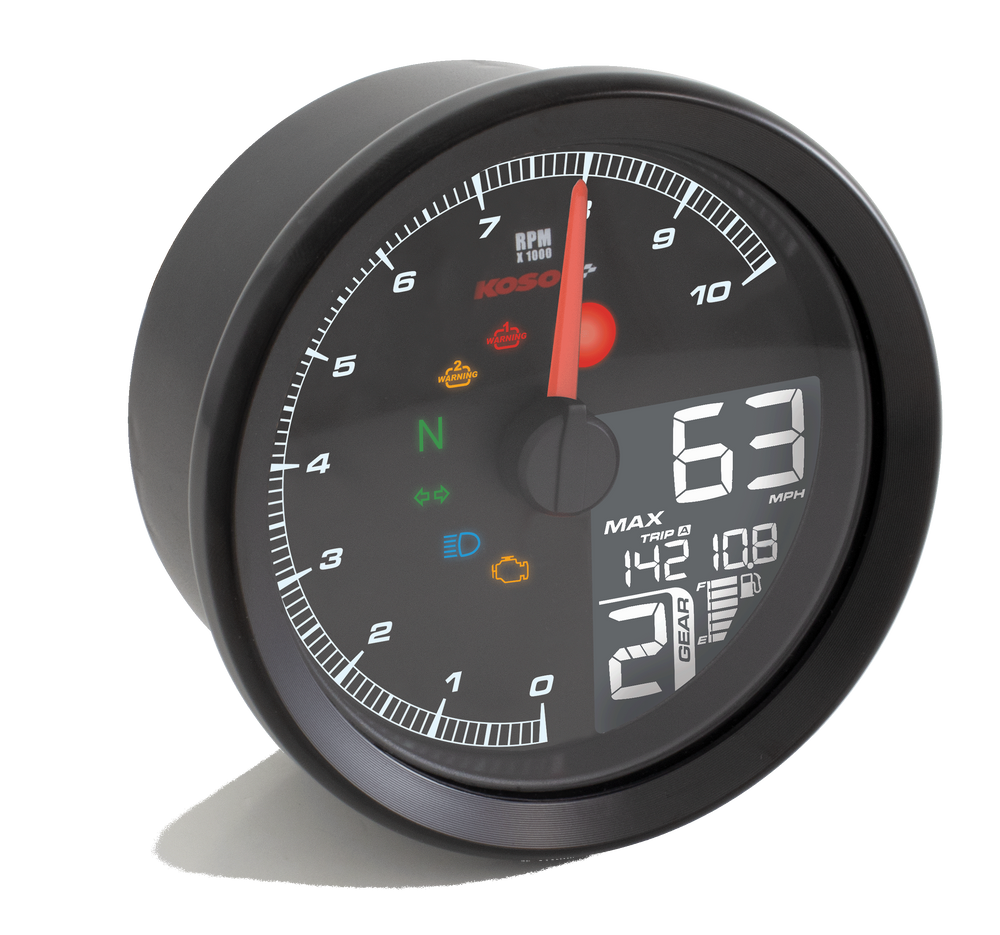

KOSO TNT-04 tachometer/tachometer with black ring with ABE/KBA positive LCD

KOSO TNT-04 Tachometer/Speedometer with black ring – Positive LCD, with ABE/KBA approval

The KOSO TNT-04 is a compact tachometer and speedometer with a positive LCD display and black bezel. With ABE/KBA approval, it offers a legal and functional solution for displaying speed, RPM, and other important driving data.

Technical data
speedometer

• Display range: 0 ~ 360 km/h (0 ~ 225 mph), switchable

• Unit: 1 km/h (mph)

• Speed ​​warning: Adjustable range 30 ~ 360 km/h (19 ~ 225 mph), warning light flashes when reached/exceeded.

• Maximum speed: 0 ~ 360 km/h (mph)

odometer

• Total: 0 ~ 999,999 km (miles), Unit: 1 km (mile)

• Trip odometer A/B: 0 ~ 9999.9 km (miles), Unit: 0.1 km (mile)

Oil change interval

• Setting range: Off / 500 ~ 16,000 km (300 ~ 10,000 miles)

• Setting unit: 100 km (miles)

Fuel gauge

• Values: 100, 250, 270, 510, 1200, SW, User

• Display: 6 bars

Tire circumference

• Adjustment range: 50 ~ 200%

• Unit: 1%

Gear indicator

• Display: – (none), N, 1, 2, 3, 4, 5, 6

Shift recommendation

• Display: – (none), N, 1, 2, 3, 4, 5, 6

Shift light

• Adjustment range: 1,000 ~ 8,000 RPM

• Display when the value is exceeded

Tachometer

• Display range: 0 ~ 8,000 RPM

• Unit: 100 RPM

thermometer

• Unit: °C or °F, switchable

• Water temperature: -30 ~ 225°C (-22 ~ 437°F), Unit: 1°C (°F)

Voltmeter

• Display range: 8 - 18 volts

Clock

• Setting range: 12 / 24 hours

Warning indicators on the display

• Warning light 1

• Warning light 2

• RPM flash

• Neutral (N)

• blinker

• High beam

• Engine warning light

Warnings

• Type: Light (L), slow flash (S), flash (F)

• Low voltage: 8.0 ~ 18.0 V, Unit: 0.1 V

Backlight

• Brightness: 1 – 5 levels (20% each)

• Colors: Purple, Red, Yellow, Green, Blue, Light Blue, White

General technical data

• Voltage: DC 12V

• Standard: JIS D 0203

• Dimensions: 94.7 x 94.7 x 69.2 mm

• Weight: ±165 g

• Approval: ABE/KBA 91397

Table of Contents

• LCD measuring device – 1×

• Temperature sensor – 1×

• Speed ​​cable (Type A) – 1×

• Speed ​​cable (Type B) – 1×

• Sensor cable set – 1×

• Active speed sensor – 1×

• Mounting bracket for speed sensor M8 / S-type – 1×

• Mounting bracket for speed sensor M10 / S-type – 1×

• Hex bolt M5 × 5L mm – 2×

• 2.5 mm Allen key – 1×

• Measuring device holder – 1×

• Handlebar clamp – 1×

• Rubber – 1×

• Screw M6 × 18L – 1×

• Mother M5 × P0.8 – 3×

• Mother M6 × P1.0 – 1×

• M5 washer – 3×

• M6 washer – 1×

• External button – 1×
