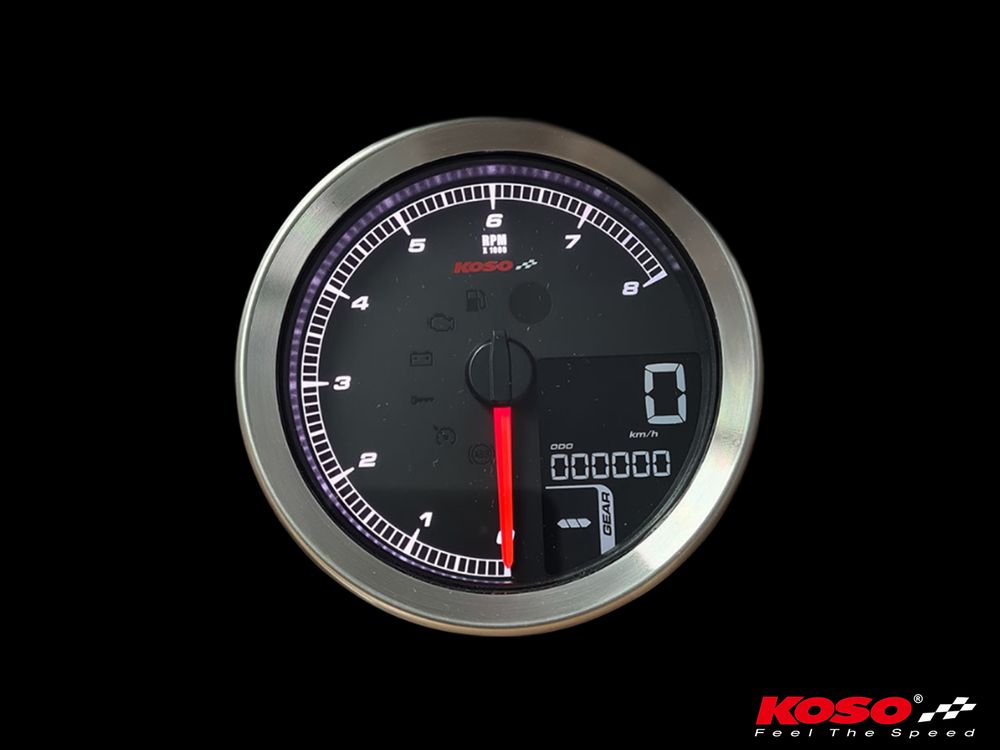

KOSO HD-01-04 for XL-883 & XL-1200 2014+ //Softail 2011+ // Dyna 2012+ silver edge

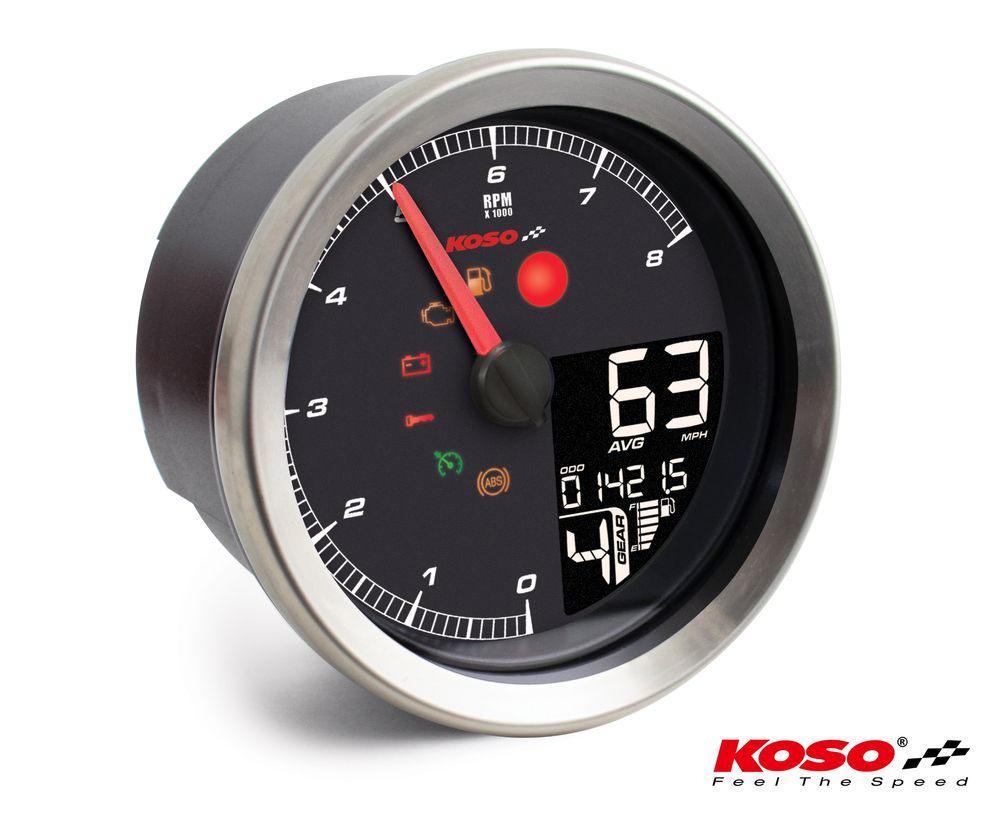

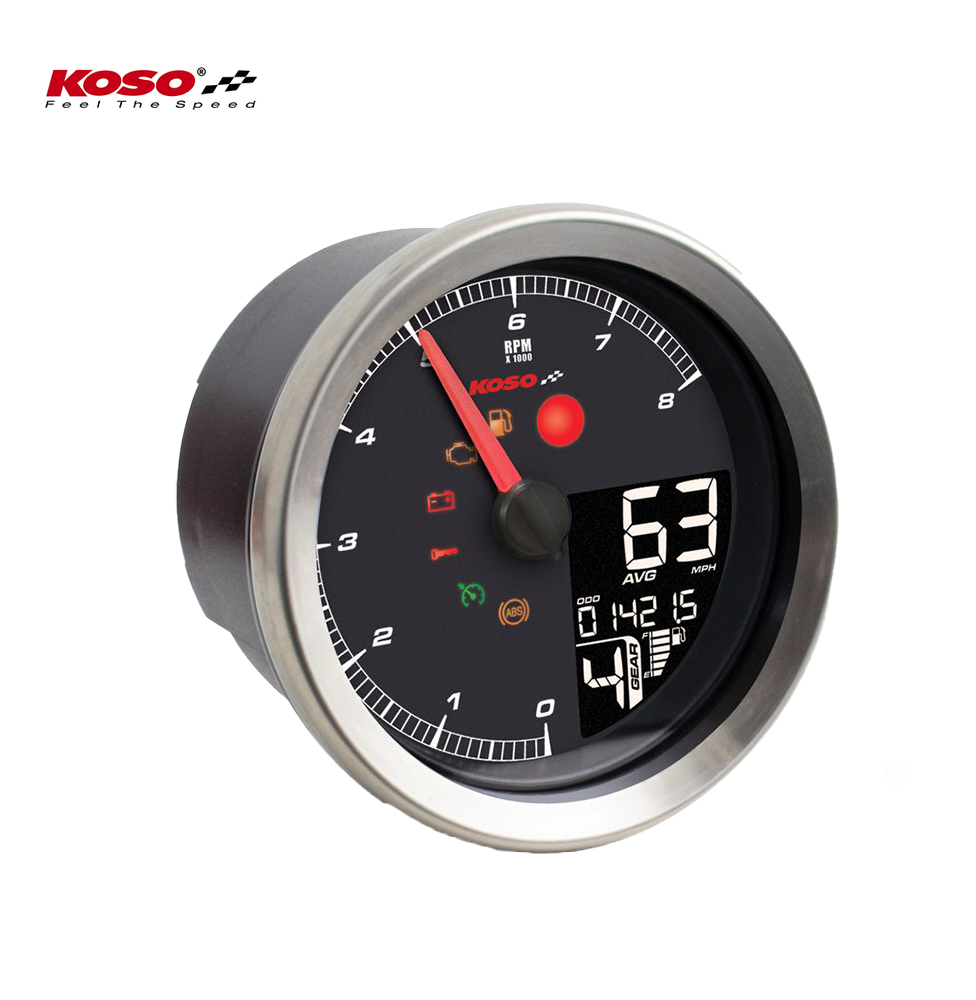

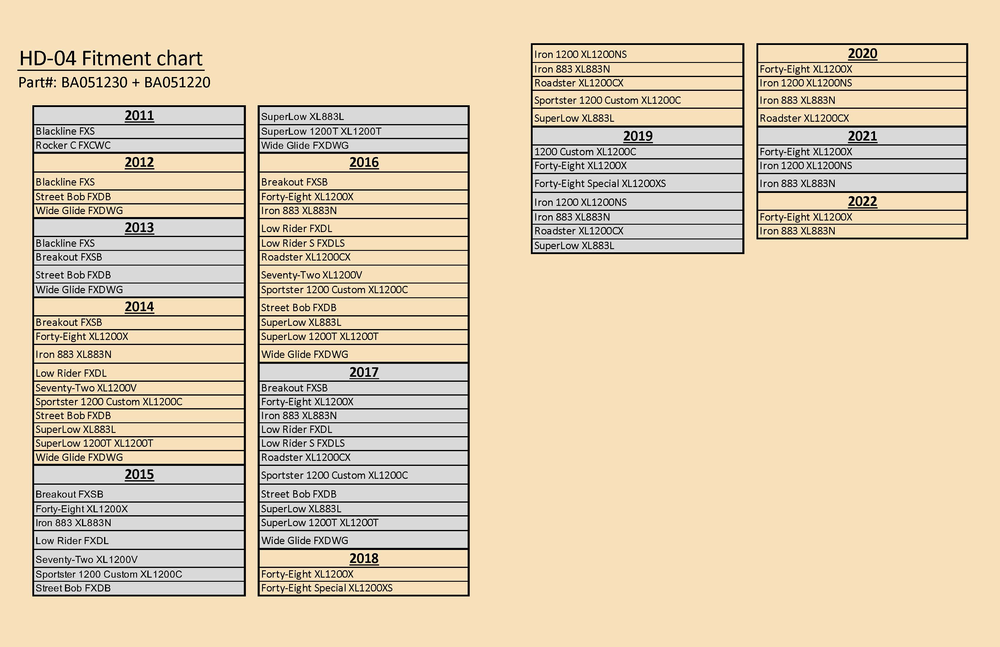

KOSO HD-01-04 Multifunction Meter for Harley-Davidson® (2014+ XL-883 & XL-1200, 2011+ Softail, 2012+ Dyna) - Silver Rim

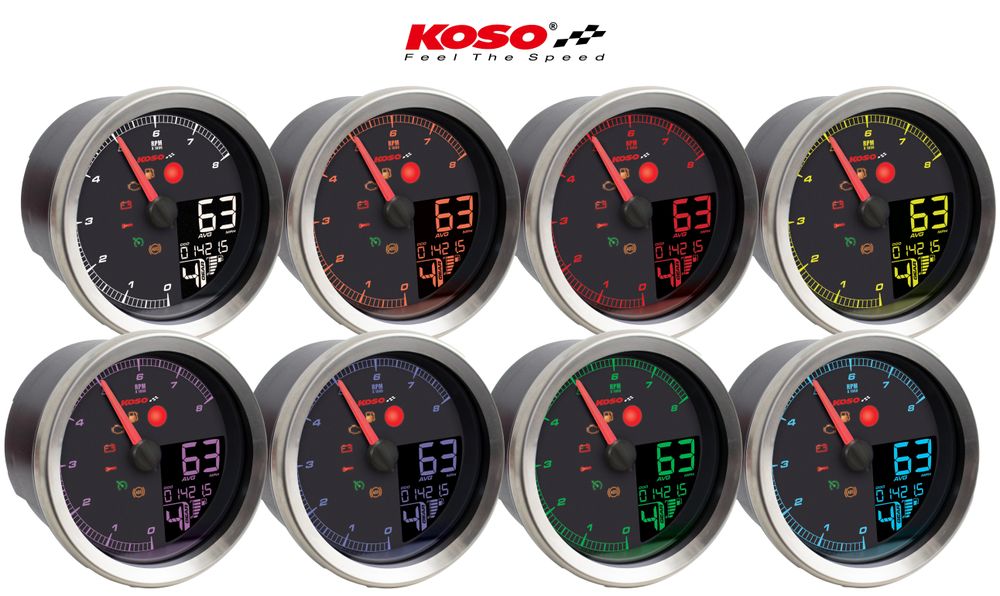

The KOSO HD-01-04 multifunction gauge offers a modern solution for Harley-Davidson® riders of newer models, including the XL-883 and XL-1200 from 2014 onwards, Softail models from 2011 onwards, and Dyna models from 2012 onwards. Featuring an 8-color LCD display that can be adjusted for optimal readability, it provides precise vehicle data and comprehensive monitoring of your motorcycle parameters.

Features and functions:

Trip odometer:

• Display: 0.000.0 ~ 9.999.9 km (miles)
• Unit: 0.1 km (miles)

Total odometer reading:

• Display: 000,000 ~ 999,999 km (miles)
• Unit: 1 km (miles)

Tachometer:

• Range: 0 ~ 8,000 RPM (revolutions per minute)

Engine speed warning light:

• Adjustment range: 2,000 ~ 8,000 RPM (revolutions per minute)
• Warning light: Lights up red when the set value is exceeded.
• Setting unit: 100 RPM (revolutions per minute)
• Mode: F-OFF (illuminated) / F-ON (flashing)

Speedometer:

• Display: 0 ~ 360 km/h (0 ~ 225 mph)
• Unit: 1 km/h (mph)

Tire circumference:

• Adjustment range: 50 ~ 210%
• Setting unit: 1%

Engine temperature:

• Temperature range: -40 ~ 215°C (-40 ~ 419°F)

Fuel gauge:

• Display: 6 fill level indicator levels
• Unit: 16.67%

Clock:

• Format: 12 / 24 hour format

Voltmeter:

• Range: 8 ~ 18 volts

Gear indicator:

• Display: N, 1, 2, 3, 4, 5, 6

Warning lights:

• Fuel (Yellow)
• Engine (Orange)
• Battery (Red)
• Anti-theft protection (Red)
• Cruise control (green)
• ABS (Red)

Technical details:

• Required voltage: DC 12V
• Standard: JIS D 0203

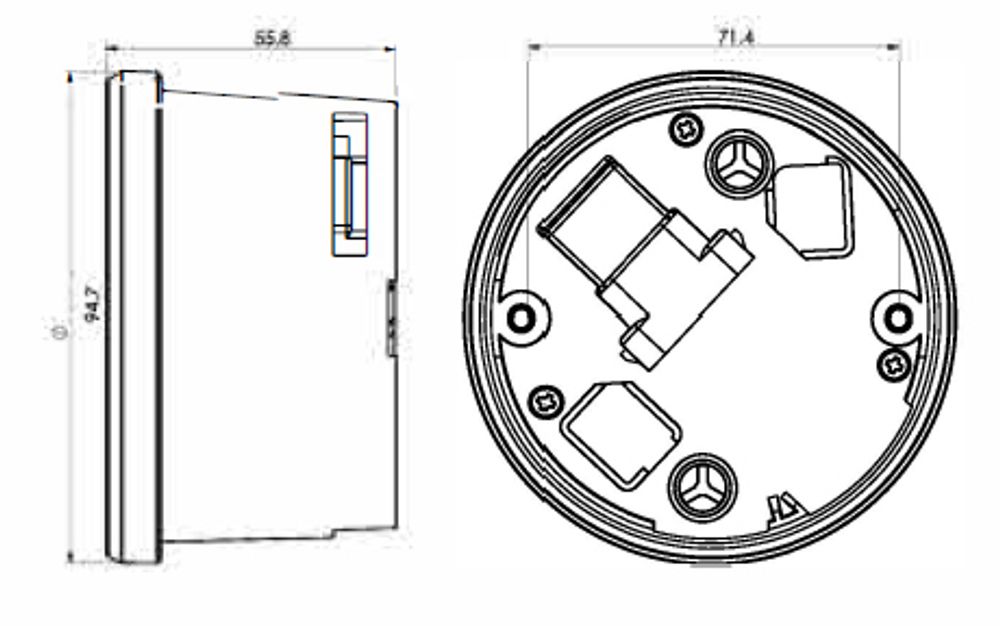

• Size: D94.7 x 55.8 mm
• Weight: 164 g

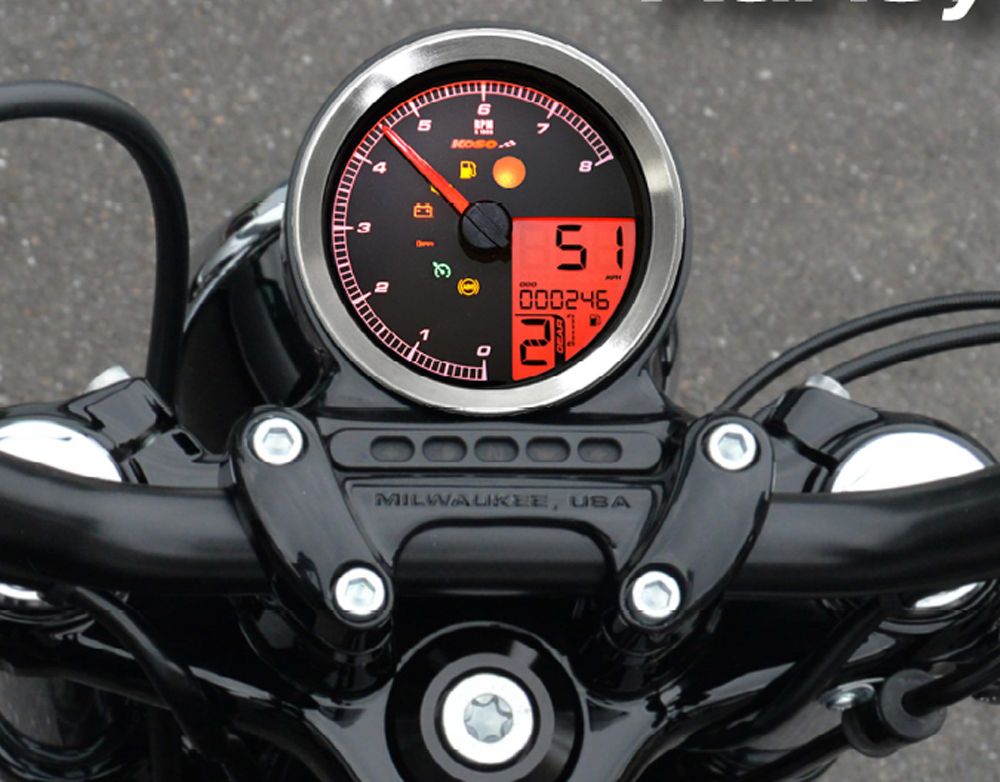

The KOSO HD-01-04 is an excellent choice for owners of 2014+ XL-883 & XL-1200 , 2011+ Softail , and 2012+ Dyna models who are looking for a modern, user-friendly gauge. With its wide range of functions, including a tachometer , fuel gauge , gear indicator , and engine temperature monitor , it is an essential accessory that will significantly enhance your riding experience.
