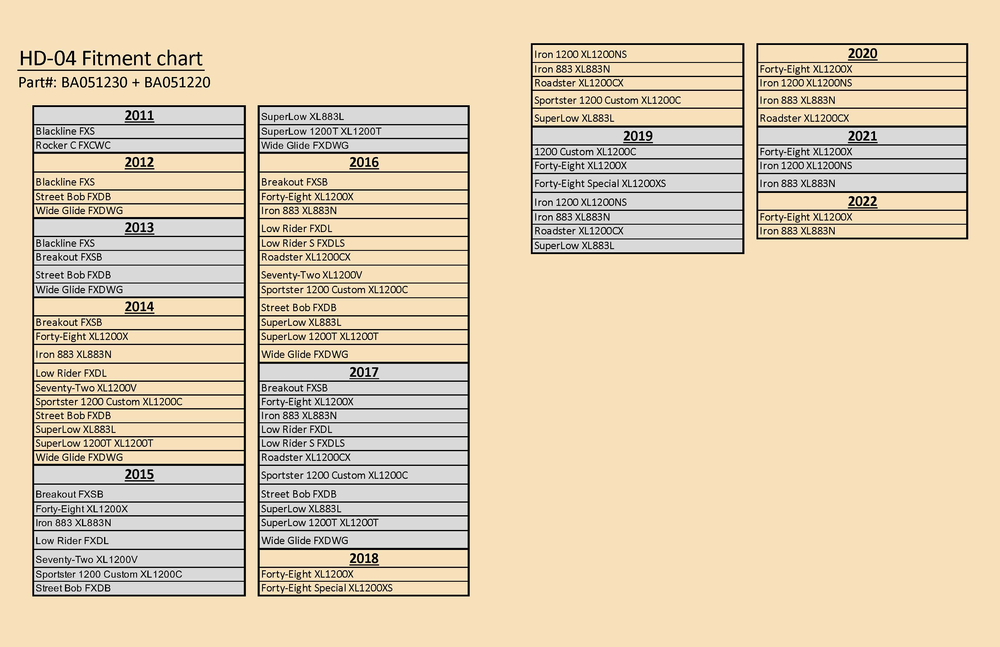

KOSO HD-01-04 for XL-883 & XL-1200 2014+ //Softail 2011+ // Dyna 2012+ black edge

Tachometer

Display: 0 ~ 8,000 RPM // rpm

Speed ​​warning light

Setting range: 2,000 ~ 8,000 RPM // rpm

Lights up red as soon as the set value is exceeded

Setting unit: 100 RPM // rpm

Setting range: F-OFF (lit), F-ON (flashing)

Speedometer

Display: 0~360 km/h (0~225 mph)
Setting unit: 1 km/h // (mph)

Total odometer

Display: 000000 ~ 999 999 km (miles)
Display unit: 1 km (miles)

Trip odometer

Display: 0 000.0 ~ 9 999.9 km (miles)
Display unit: 0.1 km (miles)

Tire circumference

Adjustment range: 50~210%
Setting unit: 1%

Engine temperature

Setting range: -40 ~ 215°C (-40 ~ 419°F)

Required voltage

DC 12V

Fuel gauge

Display: 6 level display levels
Display unit: 16.67%

Clock

Setting range: 12/24 hour format

Voltmeter

Display: 8 ~ 18 volts

default

JIS D 0203

Gear indicator

N, 1, 2, 3, 4, 5, 6

Indicator lights

·         Fuel (Yellow)

·         Engine (Orange)

·         Battery (Red)

·         Anti-theft protection (red)

·         Cruise control (green)

·         ABS (Red)

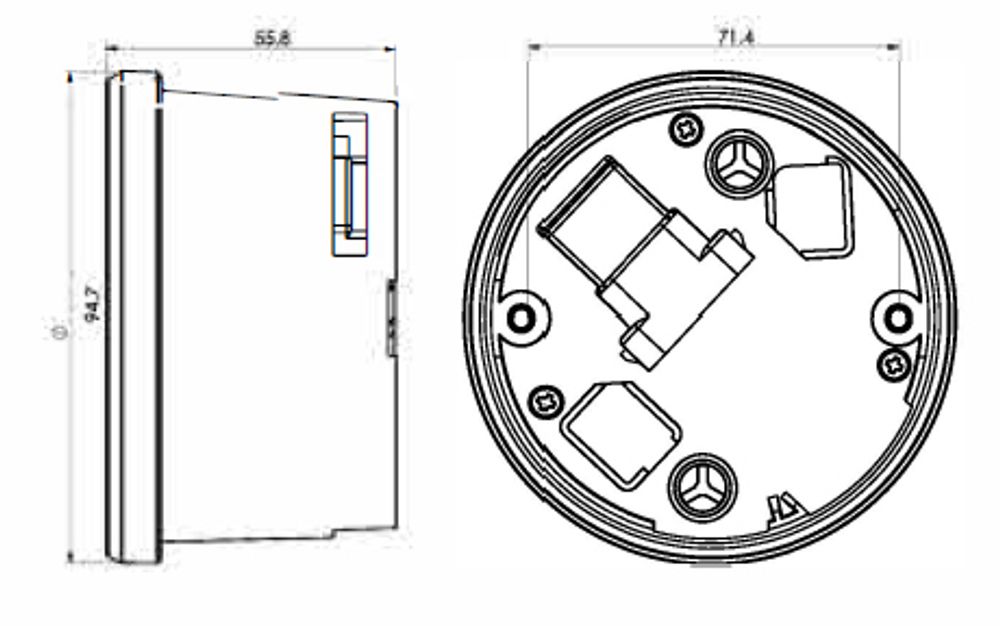

Size

D94.7 x 55.8mm

Weight

164g
