KOSO HD-01-04 for XL-883 & XL-1200 2004 - 2013 // Dyna 2004-2011 silver edge

KOSO HD-01-04 for Harley-Davidson® XL-883 & XL-1200 (2004 - 2013) and Dyna (2004 - 2011) - Silver Rim

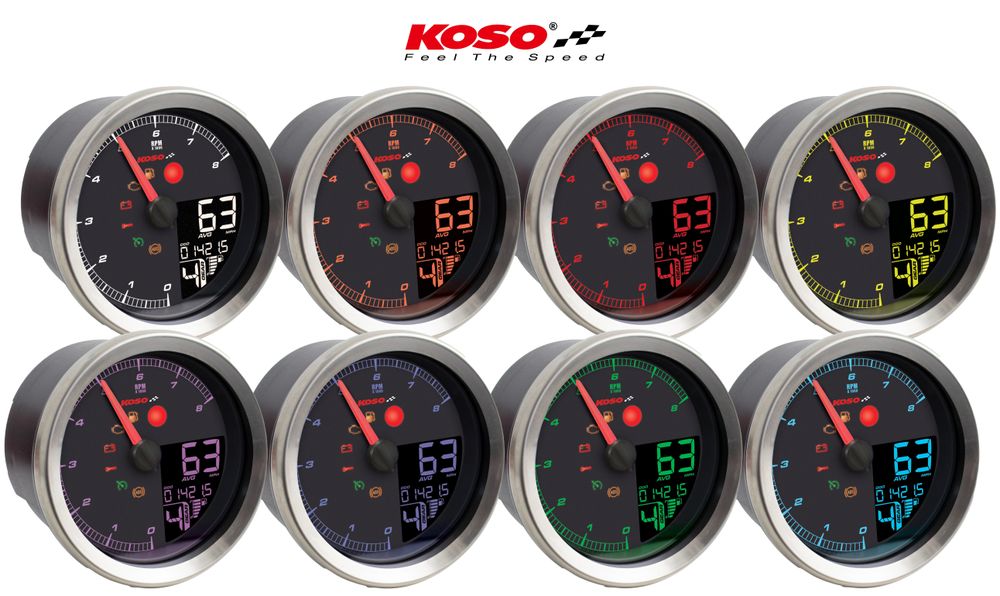

The KOSO HD-01-04 is a high-quality plug-and-play measuring device for Harley-Davidson® motorcycles, specifically designed for XL-883 and XL-1200 models from 2004-2013, as well as Dyna models from 2004-2011 . With its modern 8-color, switchable LCD display and precise stepper motor for fast response times, this measuring device delivers accurate, real-time data for a wide range of riding parameters.

Features and properties:

Tachometer:

• Display: 0 ~ 8,000 RPM (revolutions per minute)

Engine speed warning light:

• Adjustment range: 2,000 ~ 8,000 RPM (revolutions per minute)
• Warning light: Lights up red when the set value is exceeded.
• Setting unit: 100 RPM (revolutions per minute)
• Mode: F-OFF (illuminated) / F-ON (flashing)

Speedometer:

• Display: 0 ~ 360 km/h (0 ~ 225 mph)
• Unit: 1 km/h (mph)

Total odometer reading:

• Display: 000,000 ~ 999,999 km (miles)
• Unit: 1 km (miles)

Trip odometer:

• Display: 0.000.0 ~ 9.999.9 km (miles)
• Unit: 0.1 km (miles)

Tire circumference:

• Adjustment range: 50 ~ 210%
• Setting unit: 1%

Engine temperature:

• Setting range: -40 ~ 215°C (-40 ~ 419°F)

Fuel gauge:

• Display: 6 fill level indicator levels
• Unit: 16.67%

Clock:

• Format: 12 / 24 hour format

Voltmeter:

• Display: 8 ~ 18 volts

Gear indicator:

• Display: N, 1, 2, 3, 4, 5, 6

Warning lights:

• Engine (Orange)
• Anti-theft protection (Red)
• ABS (Red)

Technical details:

• Required voltage: DC 12V
• Standard: JIS D 0203

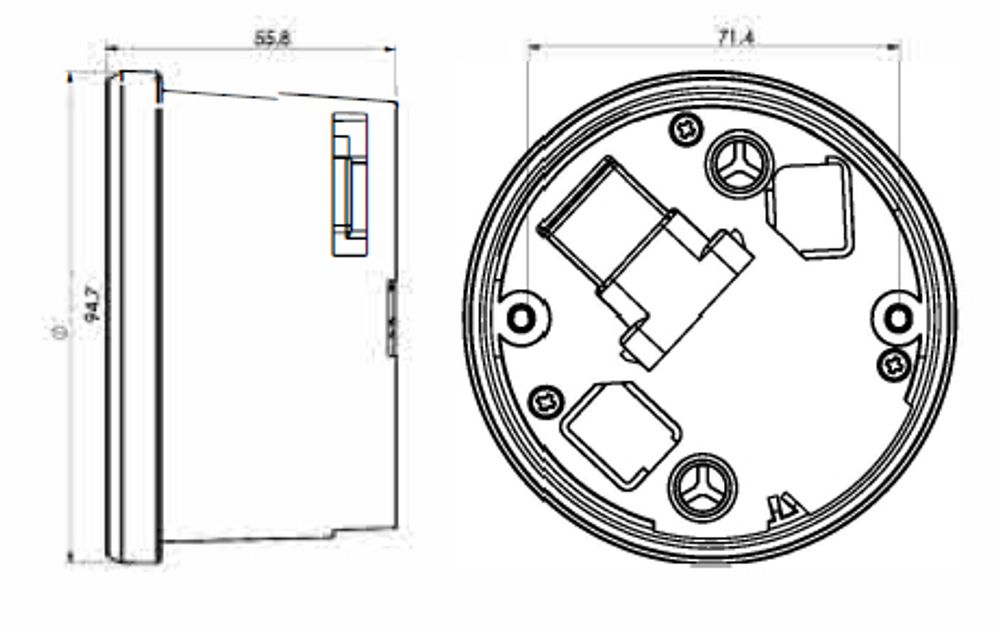

• Size: D94.7 x 55.8 mm
• Weight: 164 g

Compatibility:

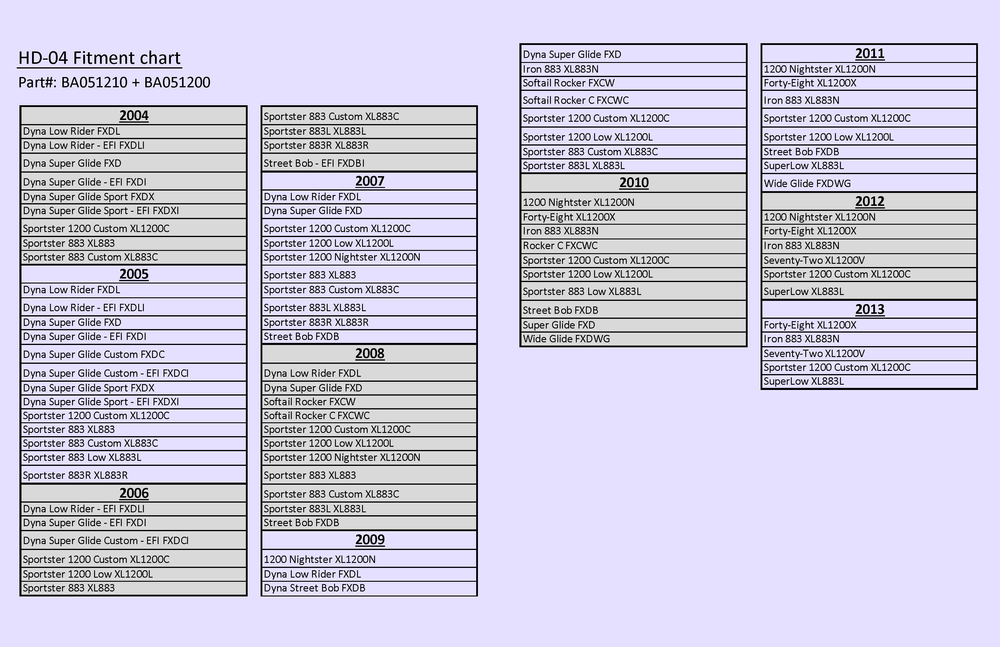

This measuring device is specifically designed for XL-883 and XL-1200 models from 2004 to 2013 and Dyna models from 2004 to 2011 that are equipped with a 3 3/8" stock meter speedometer bracket .

The KOSO HD-01-04 offers an excellent combination of modern design and functionality . With a tachometer , speedometer , fuel gauge , gear indicator , and many other features, it ensures you have all the essential vehicle data at a glance, making your rides safer and more enjoyable. Ideal for anyone looking to upgrade their Harley-Davidson® Sportster or Dyna with a modern and reliable display.
