KOSO tachometer/speedometer suitable for Yamaha XV950/Bolt/Yamaha SCR950 with chrome ring, plug and play with ABE/KBA approval

KOSO tachometer/speedometer suitable for Yamaha XV950/Bolt/Yamaha SCR950 with chrome ring, plug & play with ABE/KBA approval

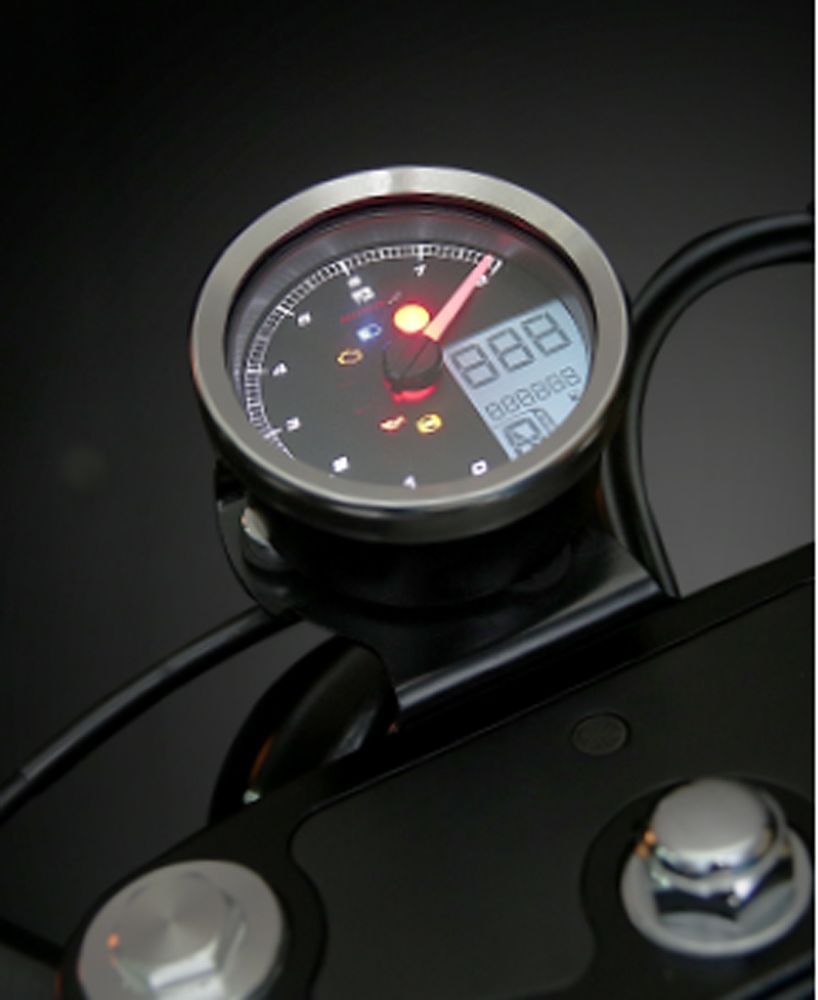

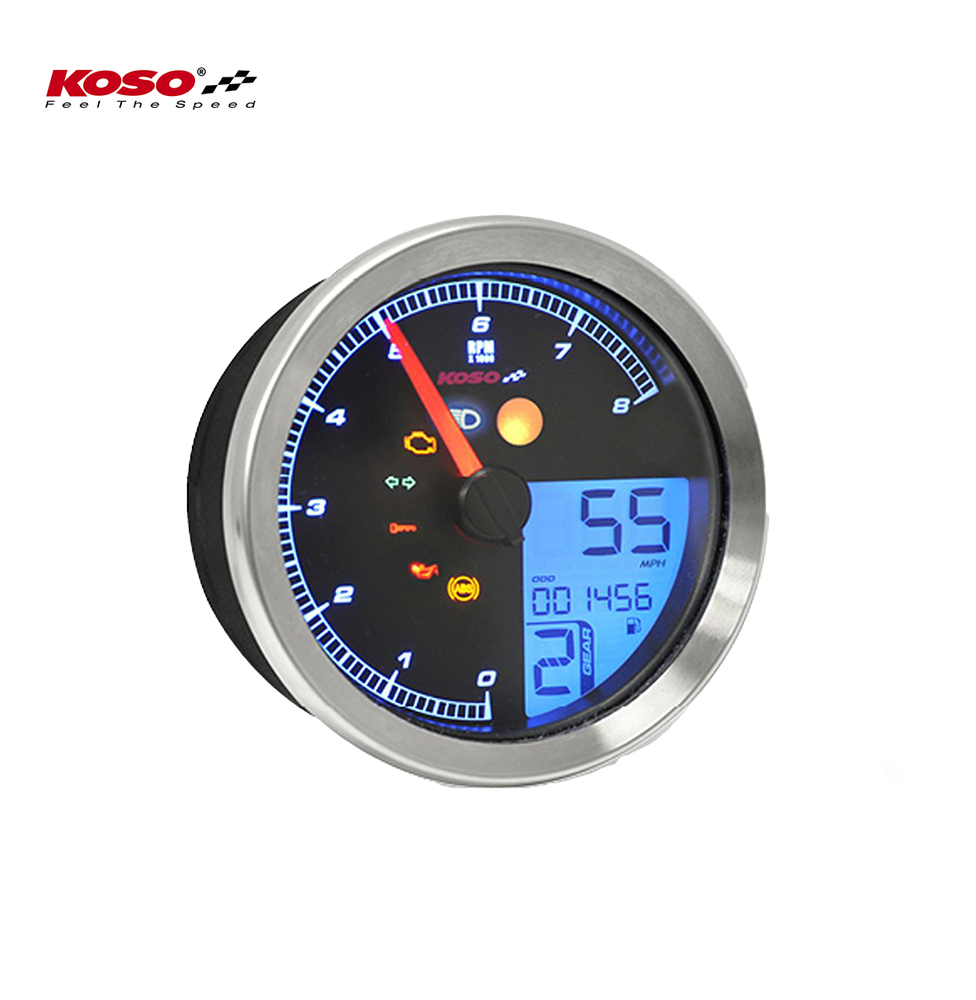

The KOSO tachometer/speedometer was specifically designed for the Yamaha XV950 (Bolt) and SCR950. Thanks to its plug-and-play design, it is easy to install and offers full compatibility with the original system. With a chrome ring and comprehensive functions such as speedometer, tachometer, gear indicator, and warning systems, it delivers all essential information in a modern, digital format.

Specifications

speedometer

• Range: 0 ~ 360 km/h (0 ~ 225 mph)

• Unit: 1 km/h (mph)

Speed ​​warning

• Setting range: 30 ~ 360 km/h (19 ~ 225 mph)

• Setting unit: 1 km/h (mph)

• Function: The warning light flashes when the limit is exceeded.

Maximum speed

• Range: 0 ~ 360 km/h (mph)

odometer

• Total: 0 ~ 999,999 km (miles)

• Trip A/B: 0 ~ 9,999.9 km (miles), unit 0.1 km (mile)

Oil change interval

• Setting range: Off / 500 ~ 16,000 km (300 ~ 10,000 miles)

• Step: 100 km (miles)

Fuel reserve

• Range: 0 ~ 9,999.9 km (miles)

Tire tread depth indicator

• Range: 50 ~ 200% (1% increments)

Gear indicator

• Display: –, N, 1, 2, 3, 4, 5

Tachometer

• Range: 0 ~ 8,000 RPM

• Unit: 100 RPM

Shift light

• Setting range: 1,000 ~ 8,000 RPM

thermometer

• Unit: °C or °F (switchable)

Water temperature

• Temperature range: -30 ~ 225°C (-22 ~ 437°F)

• Unit: 1°C (°F)

• Overheating warning: 60 ~ 225°C (140 ~ 437°F)

Warning indicators

• speed

• speed

• temperature

• Low voltage

• fuel

• Oil change

• Highest gear

• Modes: Glow (L), Slow Flash (S), Flash (F)

Voltage measurement

• Range: 8.0 ~ 18.0V

• Step: 0.1V

Clock

• Format: 12h / 24h

Backlight

• 5 levels, 20% per level

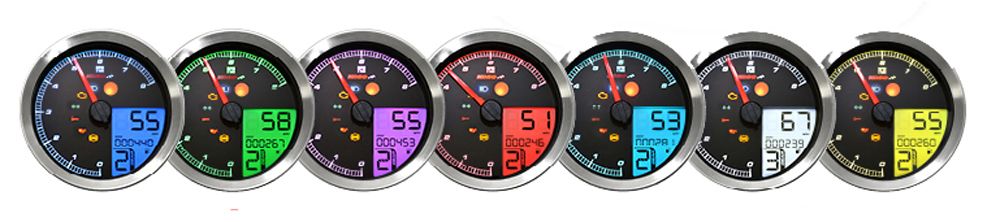

• Colors: Purple, Red, Yellow, Green, Light Blue, Blue, White

Technical details

• Operating voltage: DC 12V

• Standard: JIS D 0203

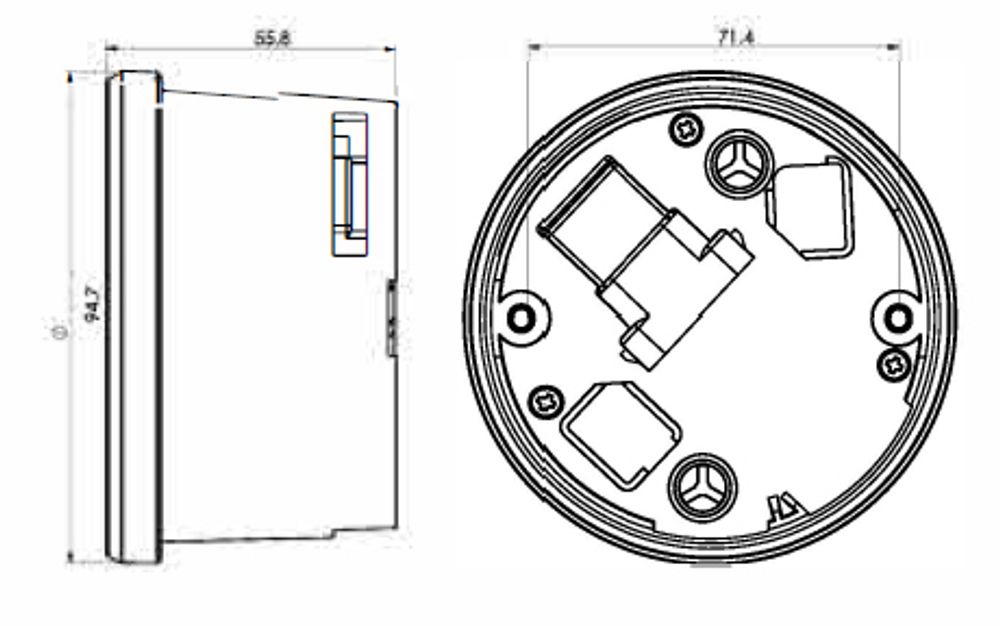

• Dimensions: 94.7 × 94.7 × 69.2 mm

• Weight: ±217 g

• ABS indicator: On/Off

Warning lights

• all-round light

• Motor

• oil

• High beam

• ABS

• Theft protection

• blinker

With ABE/KBA approval – approved for road use.

Scope of delivery

• LCD measuring device – 1×

• Mounting sleeve – 2×

• Cable ties – 1×

• M5 washer – 3×

• M5 mother – 3×
