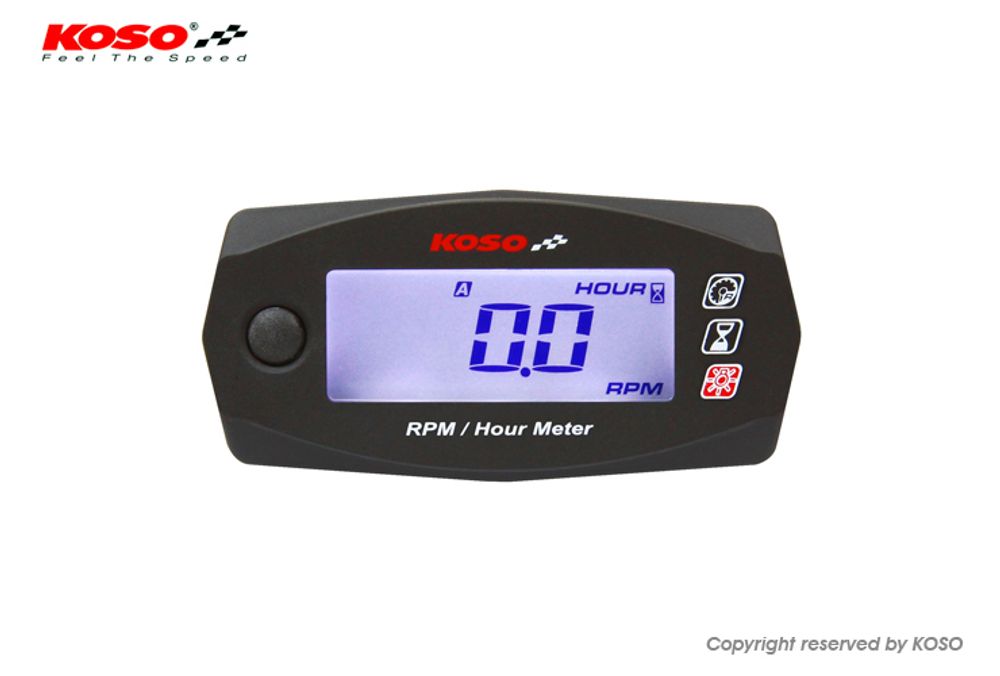

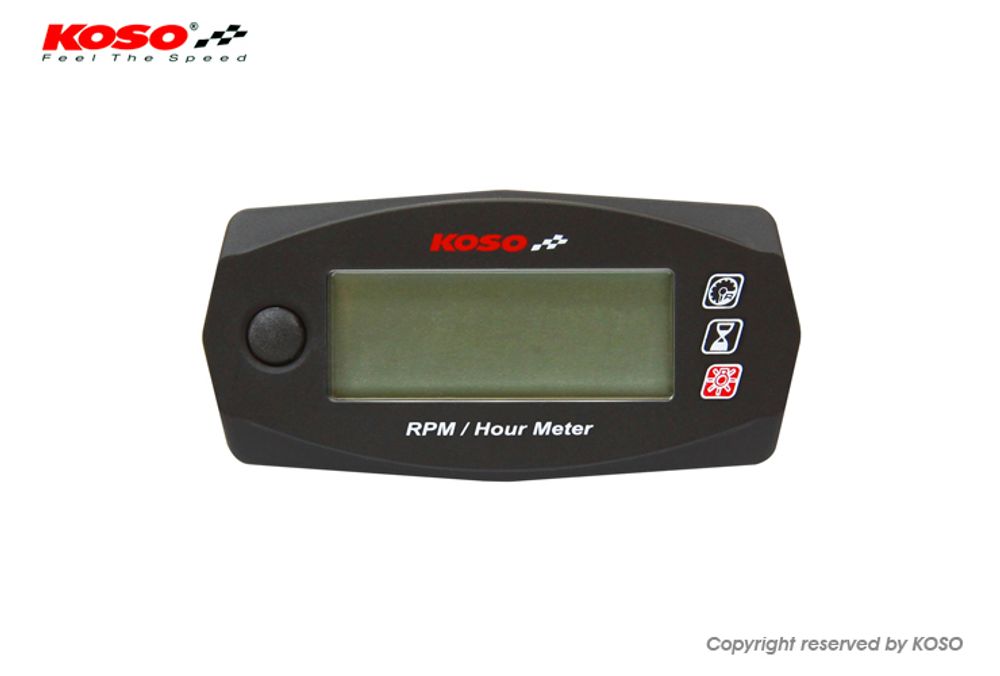

Koso RPM and operating time meter Mini 4

The Koso Mini 4 RPM and operating time meter is a practical and compact device that displays both the RPM and operating hours of your engine. It is ideal for all fuel-powered engines and offers a reliable solution for keeping track of operating time and current RPM at all times.

Technical details:

Tachometer:

• Display range: 0 – 15,000 rpm.
• Display unit: 100 rpm.
• Storage unit: 1 rpm (precise recording of the rotational speed).

Hour counter (total):

• Display range: 0 – 99,999 h.
• Display unit: 1 h.
• Storage unit: 1 s (shows the exact operating time).

Hour meter A/B (Resettable):

• Display range: 0 – 999.9 h.
• Display unit: 0.1 h (equivalent to 6 minutes).
• Storage unit: 1 second.
• Function: The counter starts working automatically after the ignition is switched on and stores the operating time from 1 second.

Battery and lifespan:

• Battery: CR2032 (button cell).
• Battery life: Approximately 1000 hours (about 180 days with 24-hour operation per day).

Automatic sleep mode:

• The device goes into sleep mode if no new signal is received for more than 30 seconds.

Other features:

• On-board voltage: +12V (standard for many motorcycles and vehicles).
• Sensor cable length: approx. 120 cm (for flexible installation).
• Operating temperature range: -10°C to +60°C (ideal for use in different climatic conditions).

Dimensions and weight:

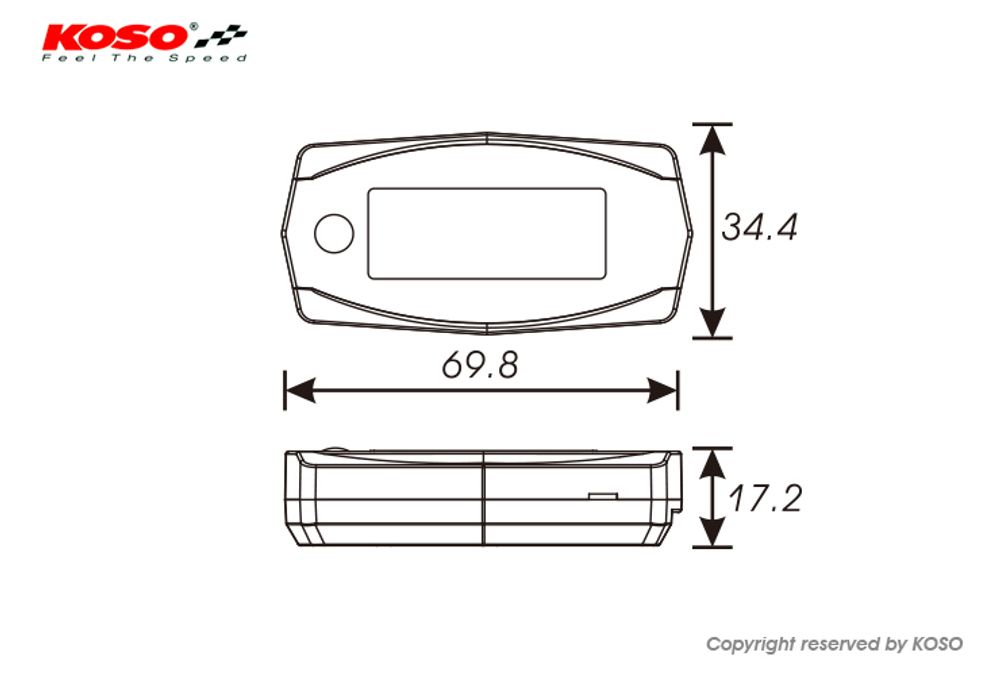

• Size: 69.8 x 34.4 x 17.2 mm .
• Weight: Compact and lightweight, ideal for installation in various locations within the vehicle.

The Koso Mini 4 tachometer and operating hours meter is an excellent choice for motorcyclists and vehicle owners who want to monitor both RPM and operating hours. With its compact size, ease of use, and convenient automatic sleep mode function, it's an essential tool for keeping track of your vehicle's condition and usage.

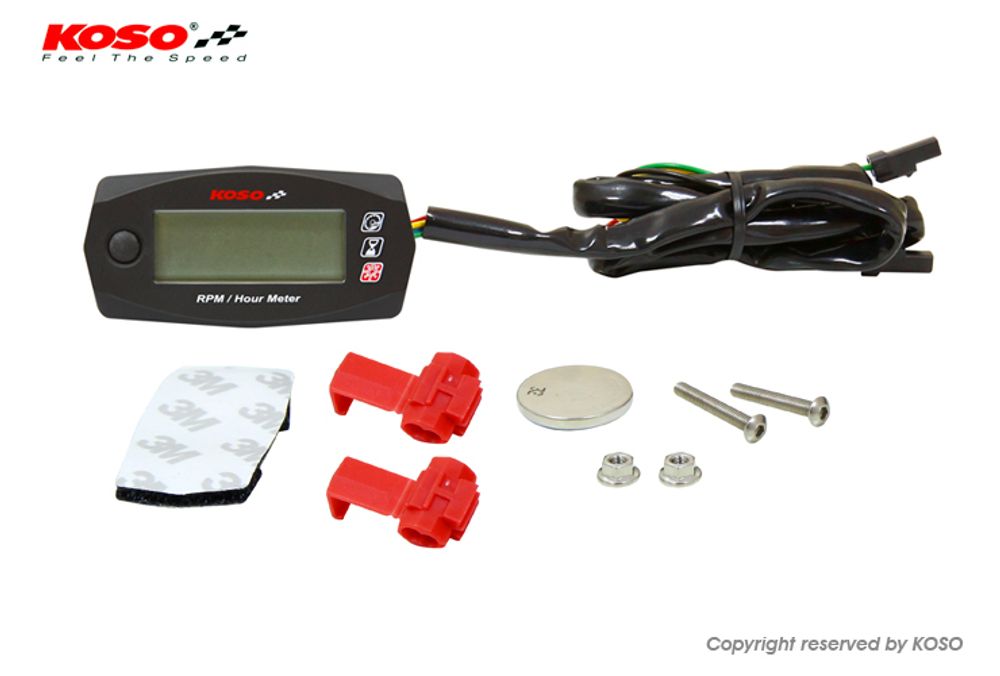

Table of contents:

• LCD counter – 1×

• Cover for meter – 1×

• Handlebar mounts – 2×

• Allen screw M3 × L20 – 2×

• M5 × P0.5 nut – 2×

• Battery – 1×

• Hook and loop fastener set – 1×
