Koso D80 TNT-05 speedometer/tachometer km/h, MPH ABE silver ring

Koso D80 TNT-05 speedometer/tachometer km/h, MPH – ABE, silver ring

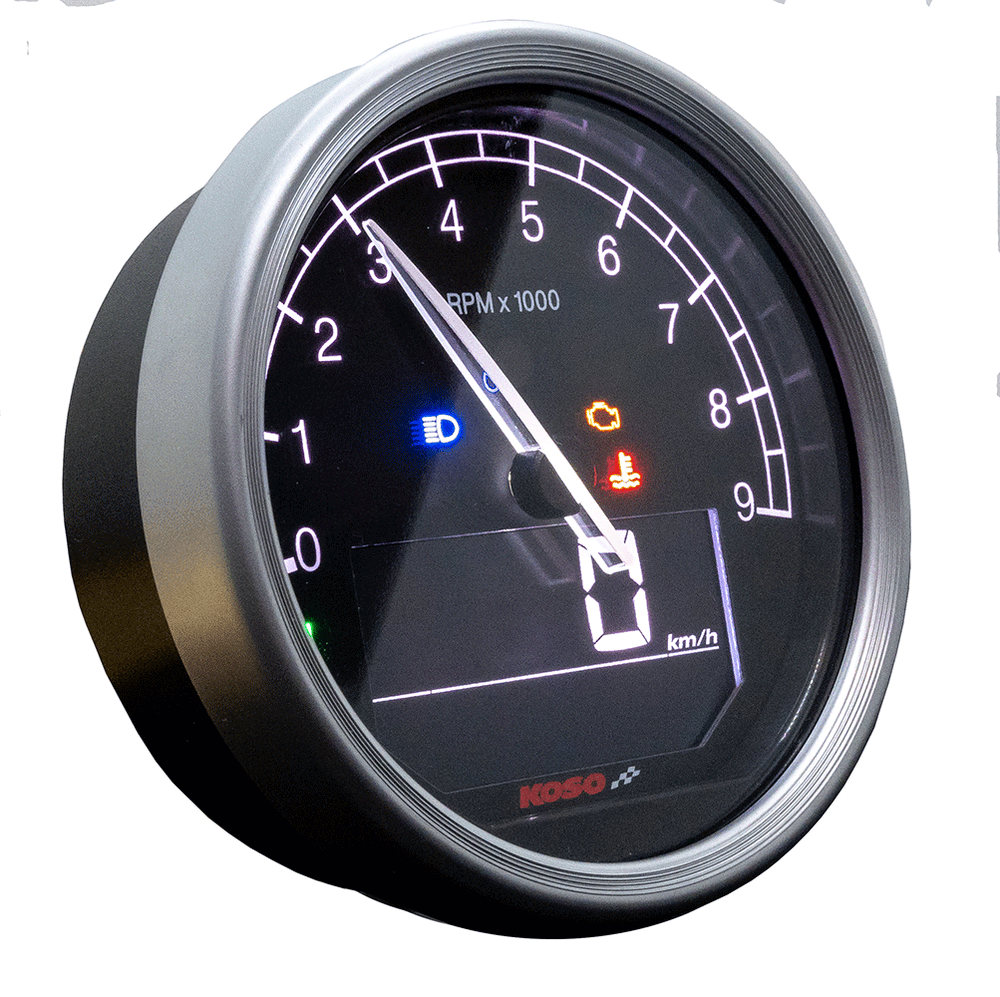

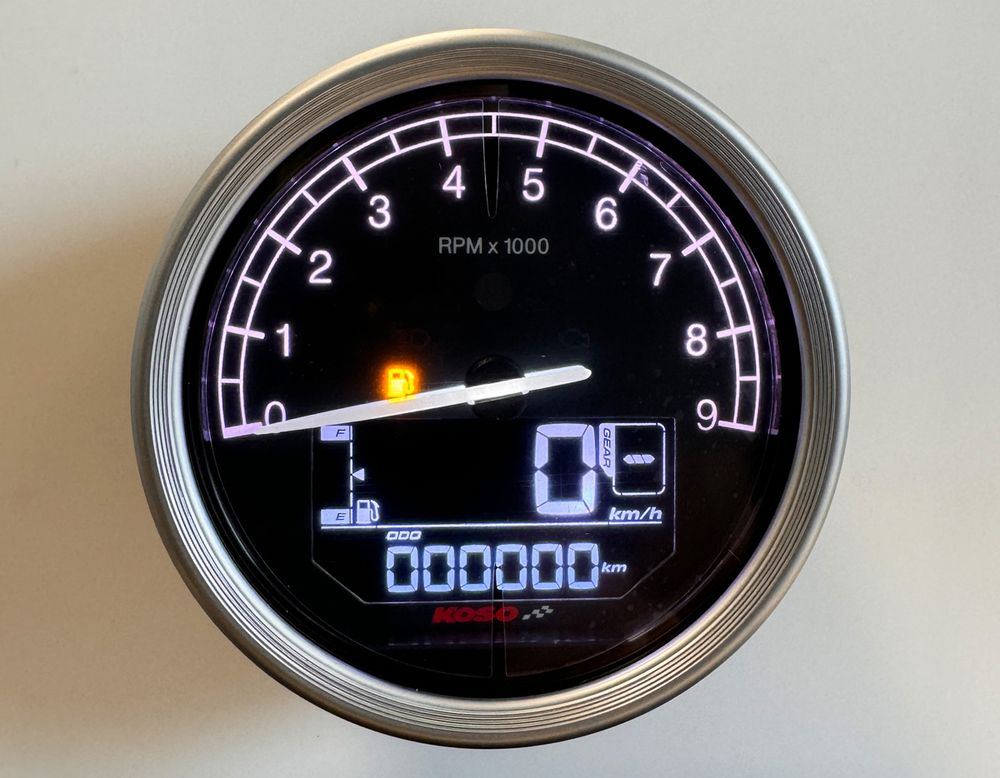

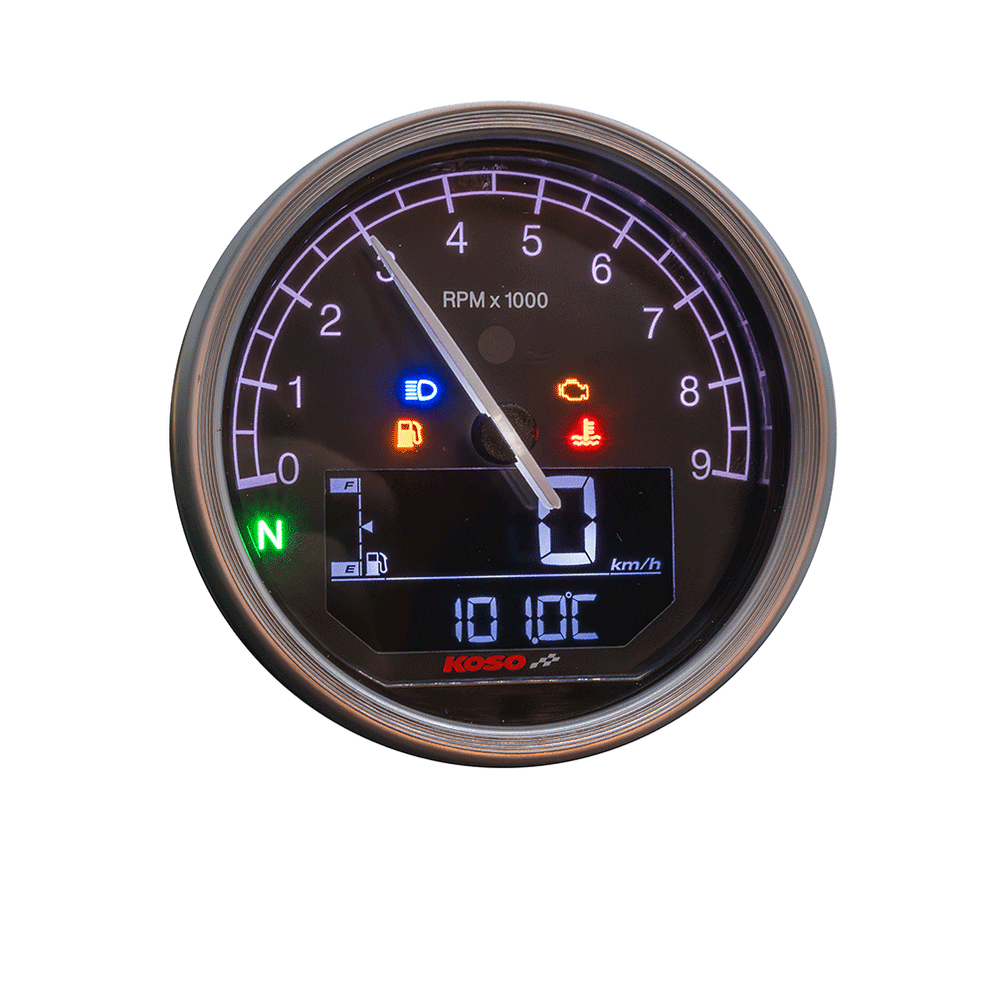

The Koso D80 TNT-05 speedometer/tachometer with a silver ring offers precise monitoring of vehicle data in a robust design. Equipped with ABE approval, it clearly displays speed, RPM, temperature, voltage, and other important values.

Main Features & Properties

• Speedometer : 0 ~ 360 km/h (0 ~ 225 MPH), switchable, unit 1 km/h (MPH)

• Speed ​​warning : Setting range 30 ~ 360 km/h (19 ~ 225 MPH), warning light illuminates when speed is exceeded.

• Maximum speed : 0 ~ 360 km/h (MPH)

• Odometer : 0 ~ 999,999 km (miles), unit 1 km (mile)

• Trip odometer A/B : 0 ~ 9,999.9 km (miles), unit 0.1 km (miles)

• Oil change interval : Off / 500 ~ 16,000 km (300 ~ 10,000 miles), unit 100 km (miles)

• Fuel gauge : Resistance settings 100, 250, 270, 510, 1200, SW, User; Display via 6 bars

• Gear indicator : –, N, 1–6

• Shift recommendation : Display –, N, 1–6, when exceeding the speed range

• Shift light : Adjustable 1,000 ~ 10,000 RPM

• Digital tachometer : 0 ~ 8,000 RPM, unit 100 RPM

• Thermometer : Switchable °C / °F

• Water thermometer : -30 ~ 225 °C (-22 ~ 437 °F), unit 1 °C (°F)

• Voltmeter : 8.0 ~ 18.0 V

• Clock : 12- or 24-hour format

• Warning types : Light (L), slow flashing (S), fast flashing (F)

• Low voltage indicator : Setting range 8.0 ~ 18.0 V, unit 0.1 V

• Background brightness : 1/5 (dark) ~ 5/5 (bright), in 20% increments

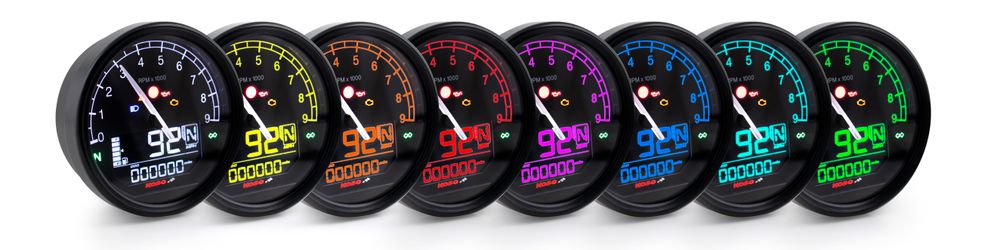

• Background colors : Purple, Red, Yellow, Green, Blue, Light Blue, White

• Warning lights : RPM warning light, warning light 1, warning light 2, neutral, turn signals, high beam, engine control light

Technical data

• Operating voltage: DC 12V

• Standard: JIS D 0203

• Dimensions: 94.7 × 94.7 × 69.2 mm

• Weight: ±165 g

• Rear casing diameter: approx. 80 mm

• Ring diameter: approx. 90 mm

• ABE/KBA: 91397

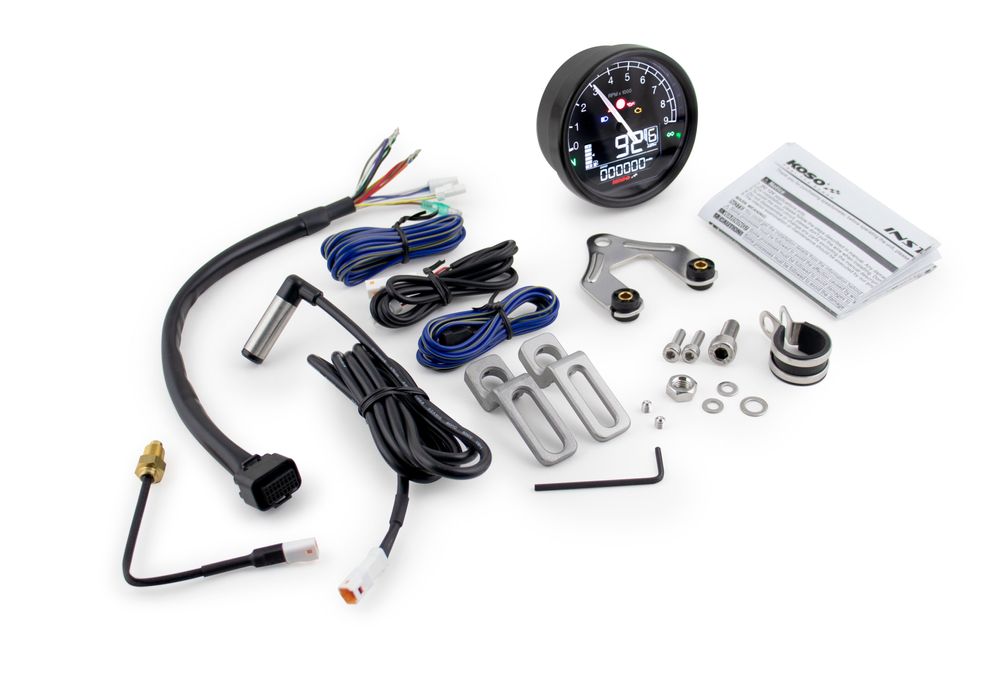

Table of Contents

• LCD measuring device – 1×

• Main wiring harness – 1×

• Active speed sensor – 1×

• Speed ​​cable type A – 1×

• Speed ​​cable type B – 1×

• Sensor cable set – 1×

• Temperature sensor – 1×

• Mounting bracket for speed sensor M8 / S-type – 1×

• Mounting bracket for speed sensor M10 / S-type – 1×

• Hex bolt M5 × 5 P0.8 – 2×

• 2.5 mm hex key – 1×

• Measuring device holder – 1×

• M5 washer – 2×

• Allen screw M5 × 16L – 1×

• Rubber strip – 1×

• Handlebar clamp – 1×

• Allen screw M8 × 20L – 1×

• Washer M8 – 1×

• Mother M8 × P1.25 – 1×

• Rubber cover – 2×
