Koso D80 TNT-05 speedometer/tachometer km/h, MPH, ABE approved, black ring

Koso D80 TNT-05 speedometer/tachometer km/h, MPH – ABE, black ring

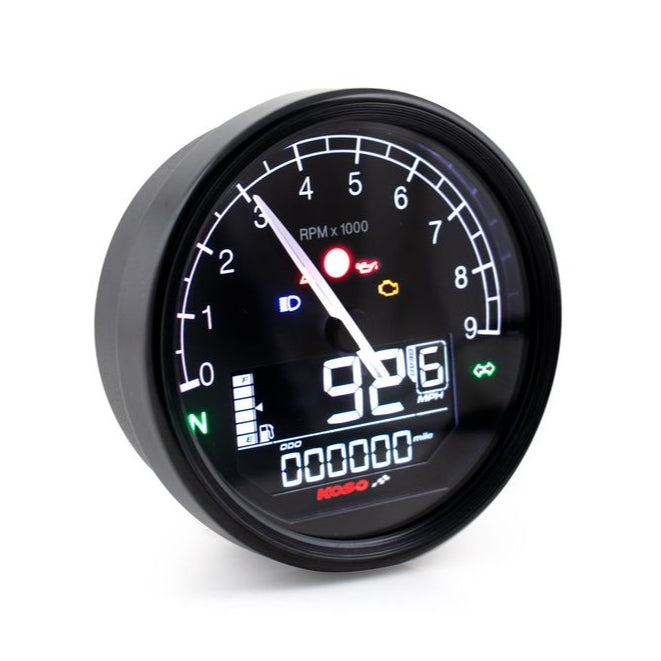

The Koso D80 TNT-05 speedometer/tachometer combines modern technology with a wide range of functions for precise monitoring of vehicle performance. Equipped with type approval (ABE), this instrument is versatile and offers clear displays for speed, RPM, temperature, voltage, and other important parameters.

Main Features & Properties

• Speedometer : 0 ~ 360 km/h (0 ~ 225 MPH), switchable, unit 1 km/h (MPH)

• Speed ​​warning : Adjustable 30 ~ 360 km/h (19 ~ 225 MPH), warning light illuminates when speed is exceeded.

• Maximum speed : 0 ~ 360 km/h (MPH)

• Odometer : 0 ~ 999,999 km (miles), unit 1 km (mile)

• Trip odometer A/B : 0 ~ 9,999.9 km (miles), unit 0.1 km (miles)

• Oil change interval : Off / 500 ~ 16,000 km (300 ~ 10,000 miles), unit 100 km (miles)

• Fuel gauge : Resistance 100, 250, 270, 510, 1200, SW, User; 6 bar display

• Gear indicator : –, N, 1–6

• Shift recommendation : Display N, 1–6, when exceeding the speed range

• Shift light : Adjustable 1,000 ~ 10,000 RPM

• Tachometer : 0 ~ 8,000 RPM, unit 100 RPM

• Thermometer : °C or °F (switchable)

• Water thermometer : -30 ~ 225 °C (-22 ~ 437 °F), unit 1 °C (°F)

• Voltmeter : 8.0 ~ 18.0 V

• Clock : 12- / 24-hour format

• Warnings : Adjustable to light (L), slow flashing (S), fast flashing (F)

• Low voltage indicator : Setting range 8.0 ~ 18.0 V, unit 0.1 V

• Background brightness : 1/5 (dark) ~ 5/5 (bright), in 20% increments

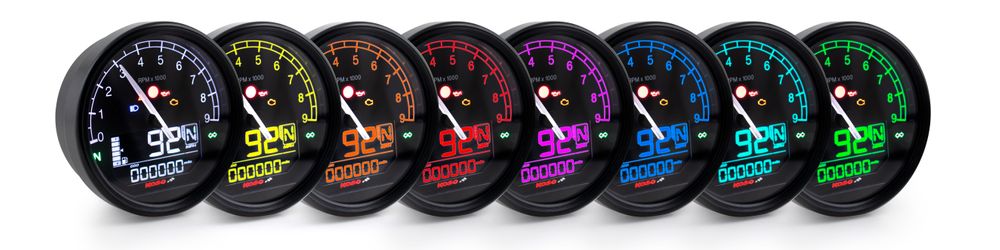

• Background colors : Purple, Red, Yellow, Green, Blue, Light Blue, White

• Warning lights : RPM warning light, warning light 1, warning light 2, neutral, turn signals, high beam, engine control light

Technical data

• Operating voltage: DC 12V

• Standard: JIS D 0203

• Dimensions: 94.7 × 94.7 × 69.2 mm

• Weight: ±165 g

• Rear casing diameter: approx. 80 mm

• Ring diameter: approx. 90 mm

• ABE/KBA: 91397

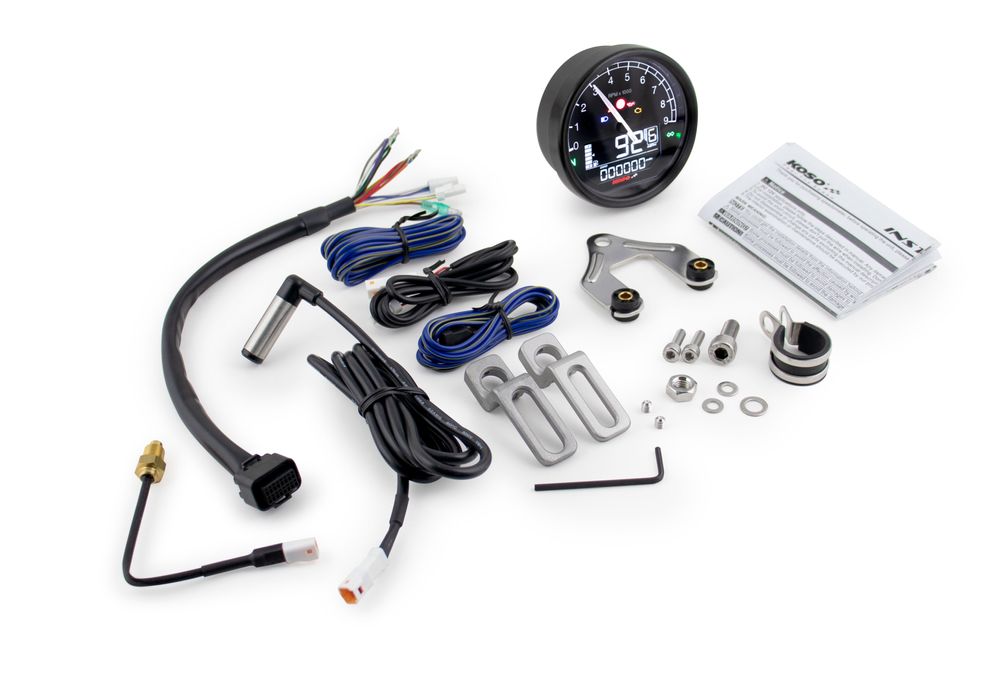

Table of Contents

• LCD measuring device – 1×

• Main wiring harness – 1×

• Active speed sensor – 1×

• Speed ​​cable type A – 1×

• Speed ​​cable type B – 1×

• Sensor cable set – 1×

• Temperature sensor – 1×

• Mounting bracket for speed sensor M8 / S-type – 1×

• Mounting bracket for speed sensor M10 / S-type – 1×

• Hex bolt M5 × 5 P0.8 – 2×

• 2.5 mm hex key – 1×

• Measuring device holder – 1×

• M5 washer – 2×

• Allen screw M5 × 16L – 1×

• Rubber strip – 1×

• Handlebar clamp – 1×

• Allen screw M8 × 20L – 1×

• Washer M8 – 1×

• Mother M8 × P1.25 – 1×

• Rubber cover – 2×
