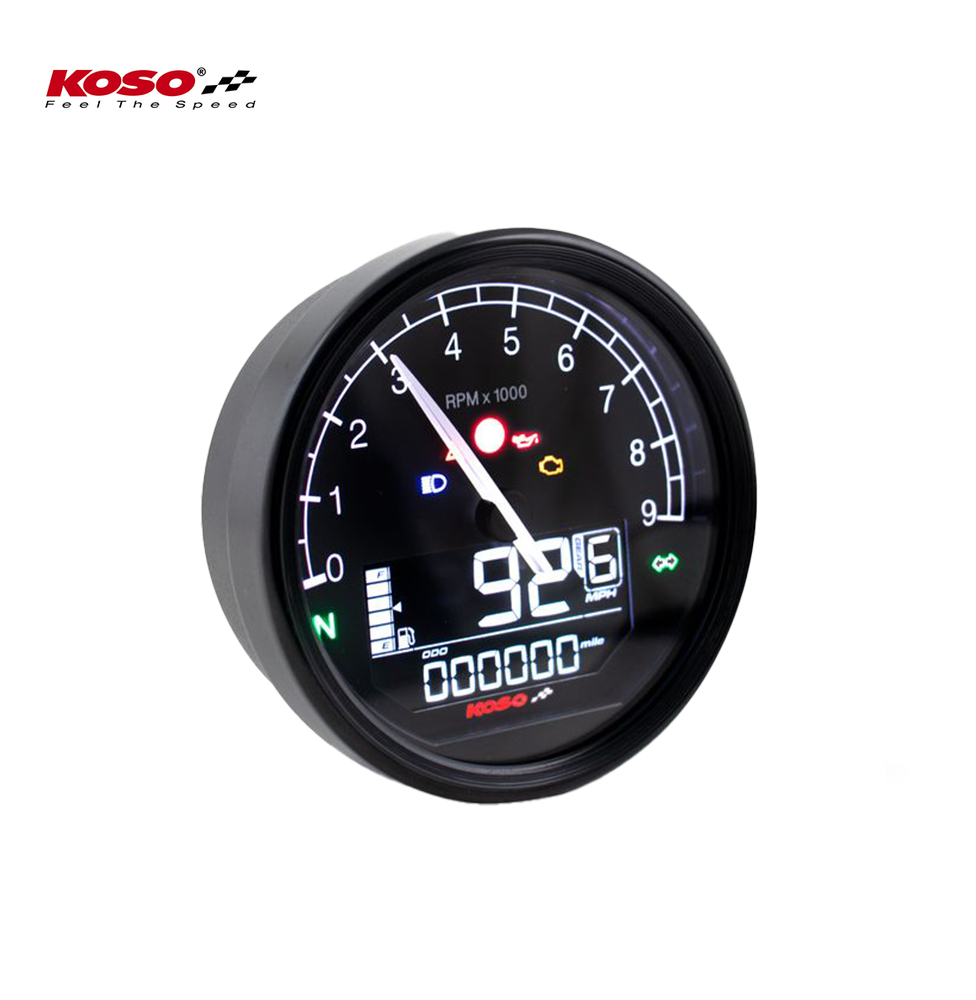

KOSO D80 suitable for Harley Davidson® TNT-05 speedometer / tachometer km/h, MPH ABE, black ring

Koso D80 for Harley-Davidson® TNT-05 speedometer / tachometer km/h, MPH – ABE

The Koso D80 TNT-05 speedometer/tachometer is specifically designed for Harley-Davidson® models. With its ABE approval, it offers precise measurements of speed, RPM, temperature, voltage, and other vehicle data.

Main Features & Properties

• Speedometer : 0 ~ 360 km/h (0 ~ 225 MPH), switchable, unit 1 km/h (MPH)

• Speed ​​warning : Setting range 30 ~ 360 km/h (19 ~ 225 MPH), warning light illuminates when speed is exceeded.

• Maximum speed : 0 ~ 360 km/h (MPH)

• Odometer : 0 ~ 999,999 km (miles), unit 1 km (mile)

• Trip odometer A/B : 0 ~ 9,999.9 km (miles), unit 0.1 km (mile)

• Oil change interval : Off / 500 ~ 16,000 km (300 ~ 10,000 miles), unit 100 km (miles)

• Fuel gauge : 100, 250, 270, 510, 1200, SW, User; Display via 6 bars

• Gear indicator : –, N, 1–6

• Shift recommendation : Display –, N, 1–6, as soon as the speed range is exceeded

• Shift light : Adjustment range 1,000 ~ 10,000 RPM

• Digital tachometer : 0 ~ 8,000 RPM, unit 100 RPM

• Thermometer : Switchable °C / °F

• Water thermometer : -30 ~ 225 °C (-22 ~ 437 °F), unit 1 °C (°F)

• Voltmeter : 8 ~ 18 V

• Clock : 12- or 24-hour format

• Warning types : Light (L), slow flashing (S), fast flashing (F)

• Low voltage indicator : Setting range 8.0 ~ 18.0 V, unit 0.1 V

• Background brightness : 1/5 (dark) ~ 5/5 (bright), in 20% increments

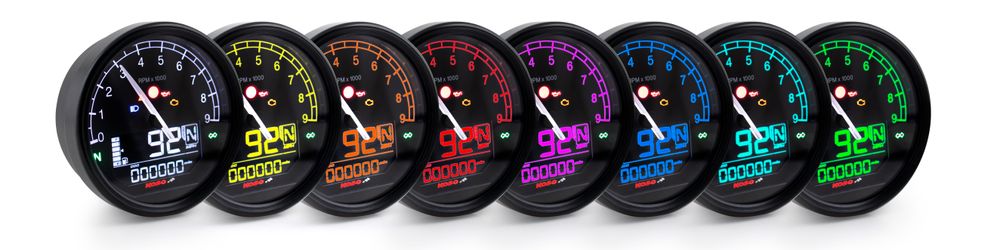

• Background colors : Purple, Red, Yellow, Green, Blue, Light Blue, White

• Warning lights : RPM warning light, warning light 1, warning light 2, neutral, turn signal indicator, high beam, engine control light

Technical data

• Operating voltage: DC 12V

• Standard: JIS D 0203

• Dimensions: 94.7 × 94.7 × 69.2 mm

• Weight: ±165 g

• ABE/KBA: 91397
