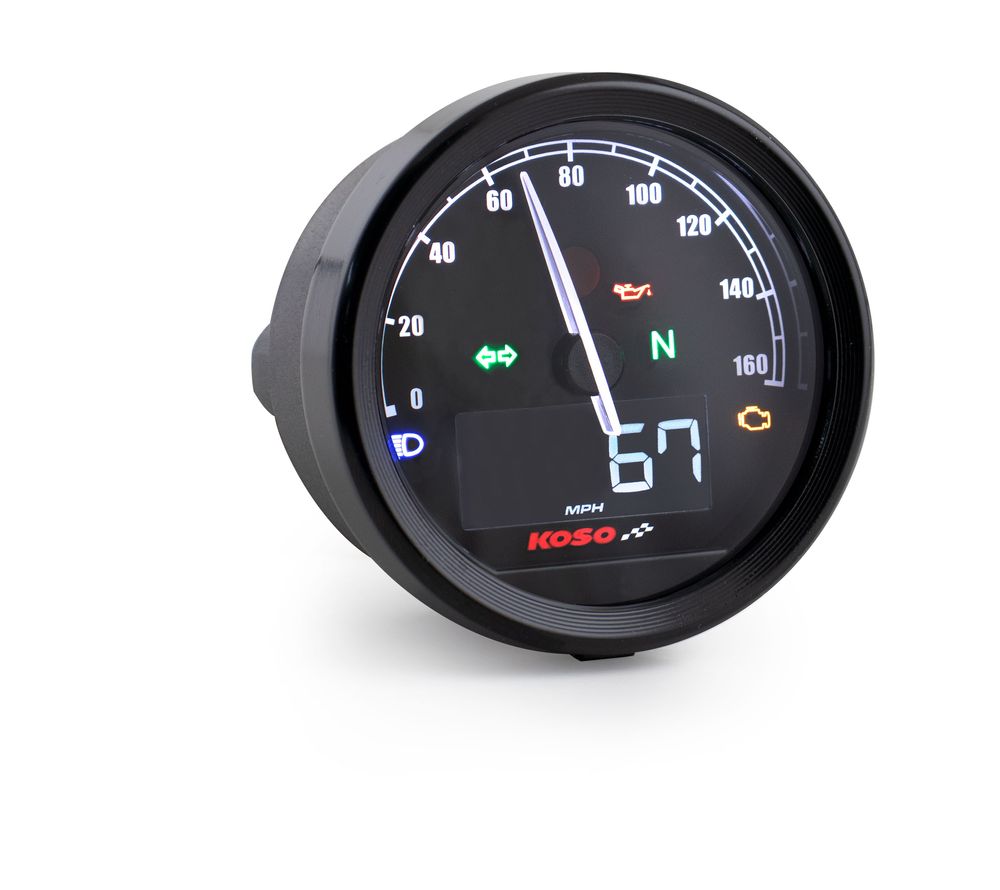

KOSO D60 TNT-05 speedometer up to 160 km/h, MPH ABE black ring

KOSO D60 TNT-05 speedometer up to 160 km/h, MPH ABE black ring

Speedometer display range: 0 ~ 160 km/h (MPH)
Display unit: 20 km/h (MPH) (large grid),
10 km/h (MPH) (small grid)

Speed ​​warning display range : 30~160 km/h (19~100 MPH),
When the set value is reached or exceeded, the
the warning light comes on.
Display unit: 1 km/h (MPH)

Max. Speed ​​Recording Display Range : 0~160 km/h (MPH)
can be manually reset to zero
Display unit: 1 km/h (MPH)

Odometer setting range: 0 ~ 99,999 km (mile)
Unit of measurement: 1 km (mile)

Trip odometer A,B display range: 0.0~9,999.9 km (mile)
can be manually reset to zero
Display unit: 0.1 km (mile)

Circumference adjustment range: 300~2,500 mm
Unit of setting: 1mm

Sensitive point setting range: 1~20 P
Unit of setting: 1 P

Temperature display range: 0.0~250.0 °C (32.0~482.0 °F)
Display unit: 0.1 °C (°F)

Overheat warning setting range: 60~250 °C (140~482 °F)
When the set value is reached or exceeded, the warning
the warning light comes on.
Setting unit: 1 °C (°F)

Max. temperature display range: 0.0~250.0 °C (32.0~482.0 °F)
Recording can be manually reset to zero
Display unit: 0.1 °C (°F)

Fuel gauge display range: 10 levels (100%)
Display unit: 1 level (10%)

Fuel gauge setting range: 100 Ω, 250 Ω, 270 Ω, 390 Ω,
Resistance (Ω) 510 Ω, 1200 Ω, Sw, Custom (learning mode), OFF

Low fuel level warning Setting range: 0~30%, when the setting value
If the limit is reached or exceeded, the warning light will light up
Unit of setting: 10%

Clock setting range: 00:00~23:59 (24H)
01:00~12:59 (12H)

Voltmeter display range : DC 8.0 ~ 18.0 V
Display unit: DC 0.1 V

Undervoltage warning setting range : DC 8.0~13.0 V, when the setting value
is reached or undercut, the warning light lights up
Unit: 0.1 V

Composite warning light setting range: low fuel (LFUEL), low voltage (VOLT),
Overheating(TEMP)
Setting range: Lit (L), Slow flashing (S), Fast flashing (F)
OUT OF

Backlight brightness adjustment range: 1/5 (darkest) ~ 5/5 (brightest)
Setting unit : 1/5 (20%)

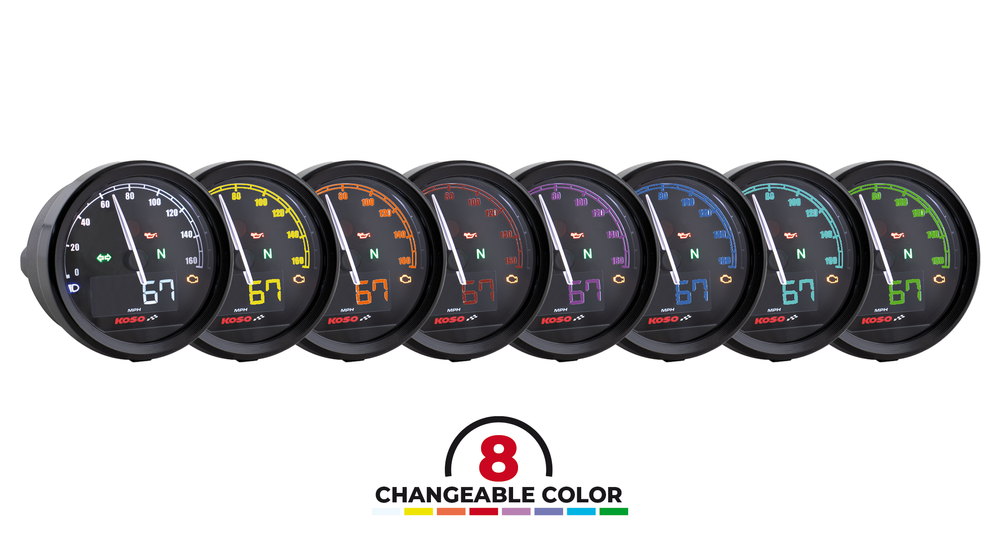

Backlight color adjustment range: white, red, orange, yellow, green,
blue, light blue, violet loop switch

Unit Speed ​​unit: km/h, MPH
Temperature unit: °C (Celsius) and °F (Fahrenheit)

Operating voltage DC 12V

Operating temperature -10~ +60 °C

Storage temperature -20~ +80 °C

Specification JIS D 0203(S2)

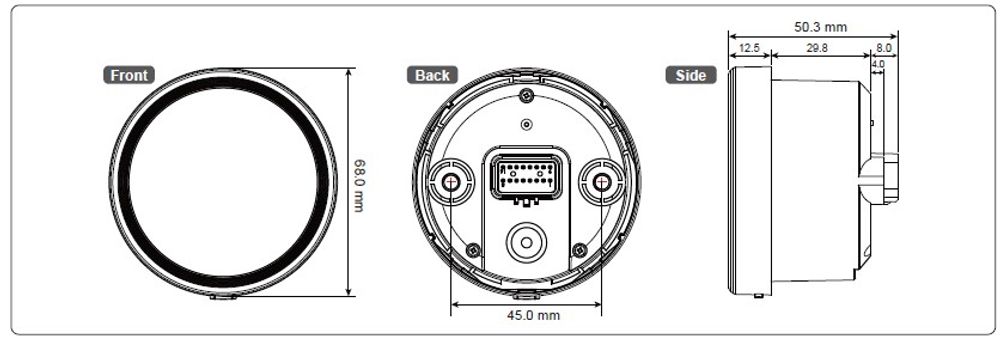

Measuring device size D 60 mm

Weight of the measuring device ? g

High beam indicator (blue)
Flashing light (green)
Composite warning light (red)
Speed ​​warning (red)
Engine oil warning light (red)
Neutral light (green)
Check Engine Light (Amber)

NOTE Design and specifications are subject to change without notice.
