KOSO D60 TNT-05 Tachometer -12000 RPM universal, black ring

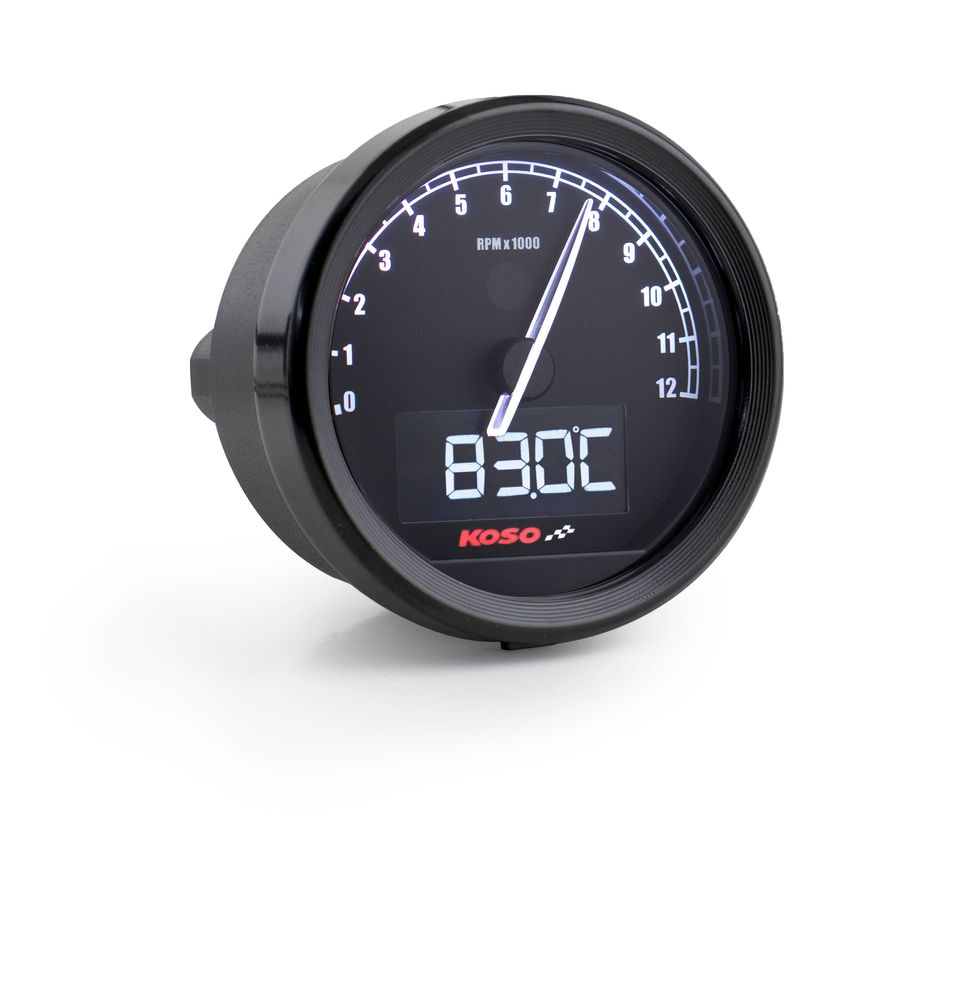

KOSO D60 TNT-05 Tachometer with black ring – 0 to 12,000 RPM

The KOSO D60 TNT-05 tachometer with black bezel is a precise measuring instrument for reliably monitoring engine speed. With comprehensive functions, warning systems, and adjustable backlighting, it offers a clear display and additional safety features for various vehicle types.

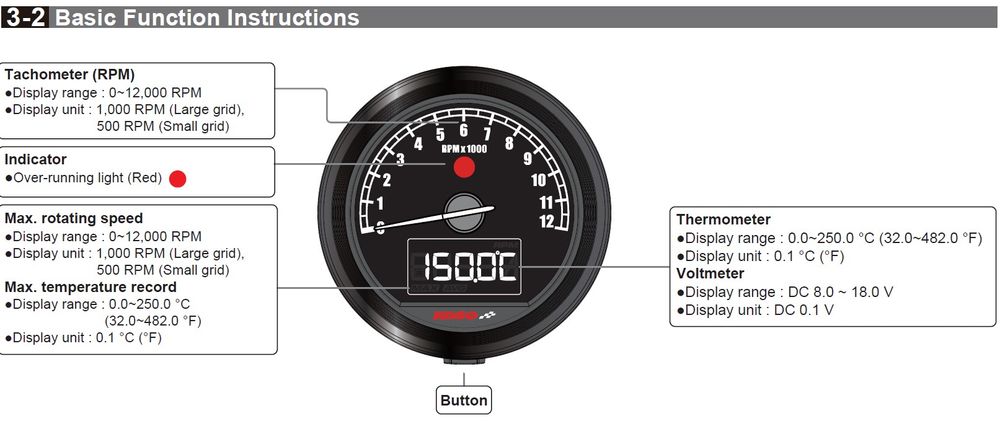

Main Features & Properties

• Tachometer with a display range of 0 to 12,000 RPM

• Pre-shift light (preset shift warning) from 1,000 to 11,000 RPM, adjustable in 100 RPM increments

• Shift Light (shift warning) adjustable from Pre-Shift Light +100 to 12,000 RPM, in 100 RPM increments.

• Maximum speed recording up to 12,000 RPM

• Adjustable RPM input signal range (P-0.5, 1 to 6)

• Adjustable input pulses: LO-ACT (negative) or HI-ACT (positive)

• Temperature display with overheating warning

• Voltage meter with undervoltage warning

• Adjustable backlight (brightness & color)

• Overflow light (red) as an additional warning indicator

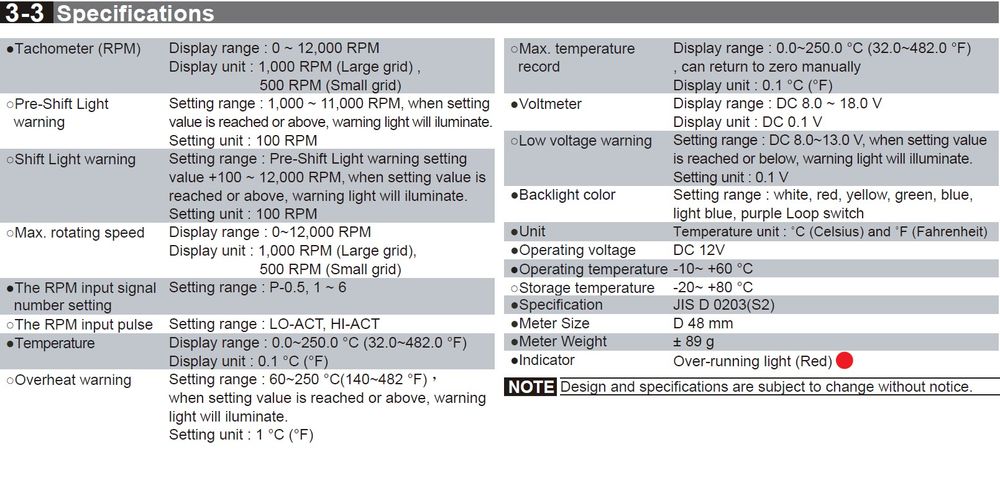

Technical data

• Tachometer:

  • Display range: 0 to 12,000 RPM

  • Raster: 1,000 RPM (large), 500 RPM (small)

• Pre-Shift Light:

  • Range: 1,000 to 11,000 RPM

  • Unit: 100 RPM

• Shift Light:

  • Range: Pre-Shift Light +100 to 12,000 RPM

  • Unit: 100 RPM

• Maximum speed:

  • Display range: 0 to 12,000 RPM

  • Raster: 1,000 RPM (large), 500 RPM (small)

• PRPM input signal:

  • Range: P-0.5, 1 to 6

• RPM input pulse:

  • Options: LO-ACT (negative), HI-ACT (positive)

• Temperature display:

  • Range: 0.0 to 250.0 °C (32.0 to 482.0 °F)

  • Maximum temperature: 0.0 to 250.0 °C (32.0 to 482.0 °F)

  • Overheating warning: 60 to 250 °C (140 to 482 °F)

• Voltage meter:

  • Range: DC 8.0 to 18.0 V

  • Unit: 0.1 V

• Low voltage warning:

  • Range: DC 8.0 to 13.0 V

  • Unit: 0.1 V

• Backlight:

  • Brightness: 1/5 (darkest) to 5/5 (brightest), steps: 20%

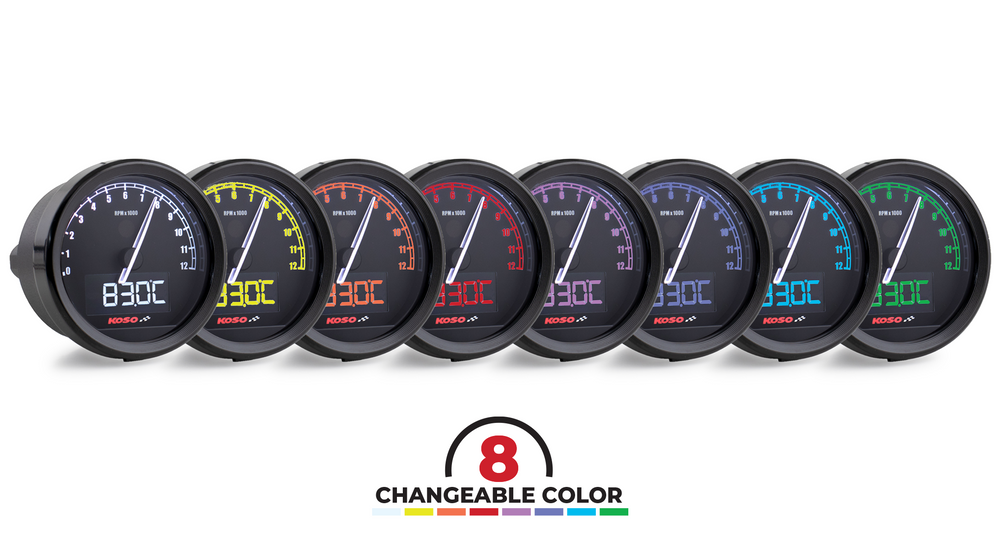

  • Colors: White, Red, Orange, Yellow, Green, Blue, Light Blue, Violet (loop switch)

• Operating voltage: DC 12V

• Operating temperature: -10 °C to +60 °C

• Storage temperature: -20 °C to +80 °C

• Standard: JIS D 0203 (S2)

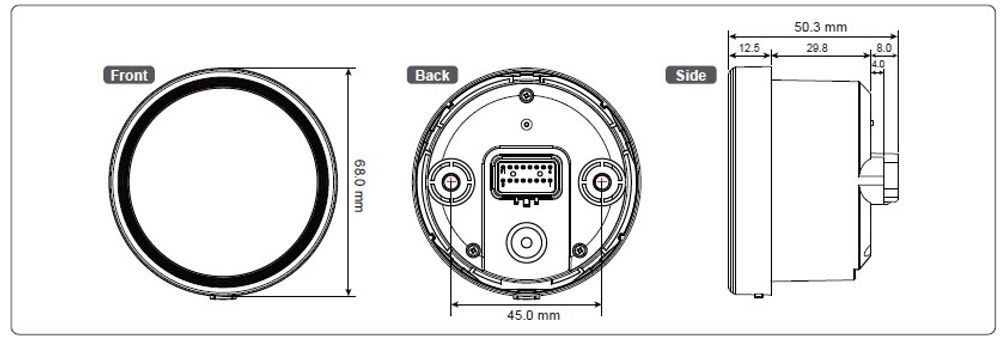

• Device size: 60 mm diameter

Note: Design and specifications are subject to change without notice.
