KOSO D60 suitable for Harley Davidson® TNT-05 speedometer up to 160 km/h, MPH ABE black ring

KOSO D60 TNT-05 speedometer for Harley-Davidson® – up to 160 km/h / MPH (with ABE)

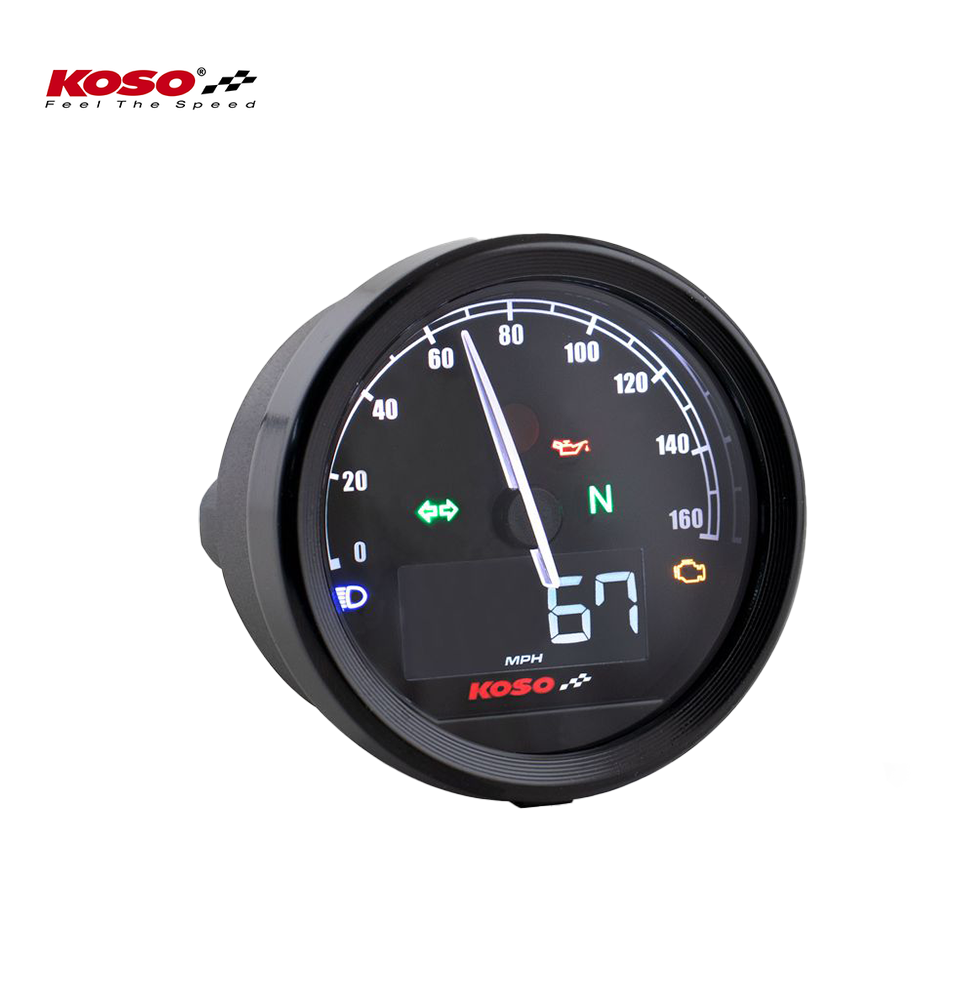

The KOSO D60 TNT-05 speedometer is a high-quality measuring device for Harley-Davidson® motorcycles. It combines precise speed and temperature measurement with versatile display and warning functions. Thanks to its ABE (German type approval), trouble-free use on public roads is guaranteed.

Main Features & Properties

• Speedometer with a display range of 0 ~ 160 km/h (MPH)

• Adjustable speed warning (30 ~ 160 km/h / 19 ~ 100 MPH)

• Odometer and trip odometer (A, B)

• Temperature display with overheating warning

• Fuel gauge with selectable resistance values ​​and low fuel warning function

• Voltage meter with undervoltage warning

• Clock in 12-hour or 24-hour format

• Adjustable backlight (brightness & color)

• Multiple combined warning lights for important vehicle parameters

Technical data

• Speedometer:

  • Display range: 0 ~ 160 km/h (MPH)

  • Unit: 20 km/h (large grid), 10 km/h (small grid)

• Speed ​​warning:

  • Range: 30 ~ 160 km/h (19 ~ 100 MPH)

  • Unit: 1 km/h (MPH)

• Maximum speed recording:

  • Range: 0 ~ 160 km/h (MPH)

  • Manual reset possible

• Odometer:

  • Range: 0 ~ 99,999 km (miles)

  • Unit: 1 km (mile)

• Trip odometer A, B:

  • Range: 0.0 ~ 9,999.9 km (miles)

  • Unit: 0.1 km (mile)

• Scope:

  • Range: 300 ~ 2,500 mm

  • Unit: 1 mm

• Sensitive point:

  • Range: 1 ~ 20 P

  • Unit: 1 point

• Temperature display:

  • Range: 0.0 ~ 250.0 °C (32.0 ~ 482.0 °F)

  • Unit: 0.1 °C (°F)

• Overheating warning:

  • Temperature range: 60 ~ 250 °C (140 ~ 482 °F)

  • Unit: 1 °C (°F)

• Maximum temperature recording:

  • Range: 0.0 ~ 250.0 °C (32.0 ~ 482.0 °F)

  • Manually resettable

• Fuel gauge:

  • 10 levels (100%)

  • Resistance options: 100Ω, 250Ω, 270Ω, 390Ω, 510Ω, 1200Ω, Sw, Custom (learning mode), OFF

  • Low fuel warning: 0 ~ 30% (increments: 10%)

• Clock:

  • 12-hour format: 01:00 ~ 12:59

  • 24-hour format: 00:00 ~ 23:59

• Voltage meter:

  • Range: DC 8.0 ~ 18.0 V

  • Unit: 0.1 V

• Low voltage warning:

  • Range: DC 8.0 ~ 13.0 V

  • Unit: 0.1 V

• Composite warning light:

  • Functions: Low fuel (LFUEL), low voltage (VOLT), overheating (TEMP)

  • Modes: On (L), Slow Flashing (S), Fast Flashing (F), Off

• Backlight:

  • Brightness: 1/5 (darkest) ~ 5/5 (brightest)

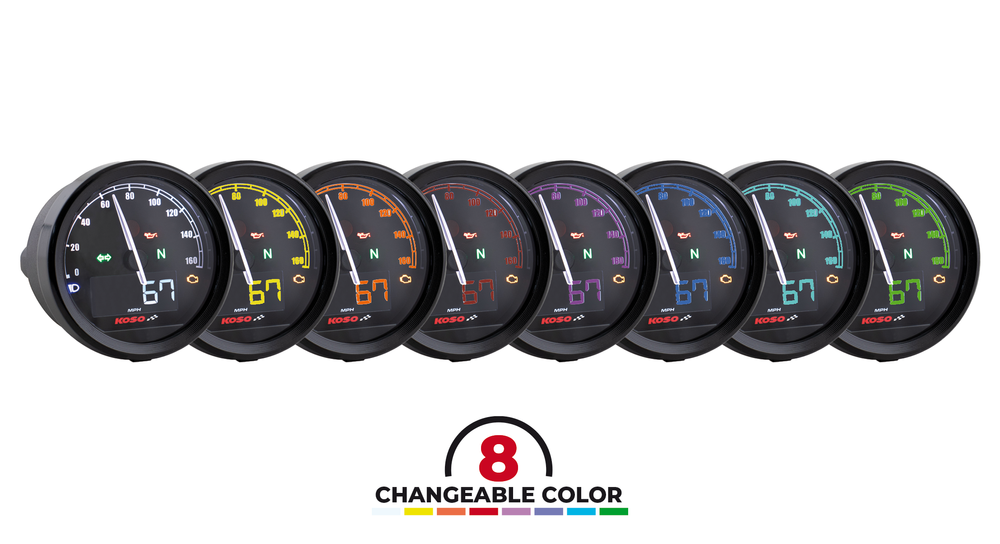

  • Colors: White, Red, Orange, Yellow, Green, Blue, Light Blue, Violet (loop switch)

• Units:

  • Speed: km/h, MPH

  • Temperature: °C, °F

• Operating conditions:

  • Operating voltage: DC 12V

  • Operating temperature: -10 ~ +60 °C

  • Storage temperature: -20 ~ +80 °C

• Specification: JIS D 0203 (S2)

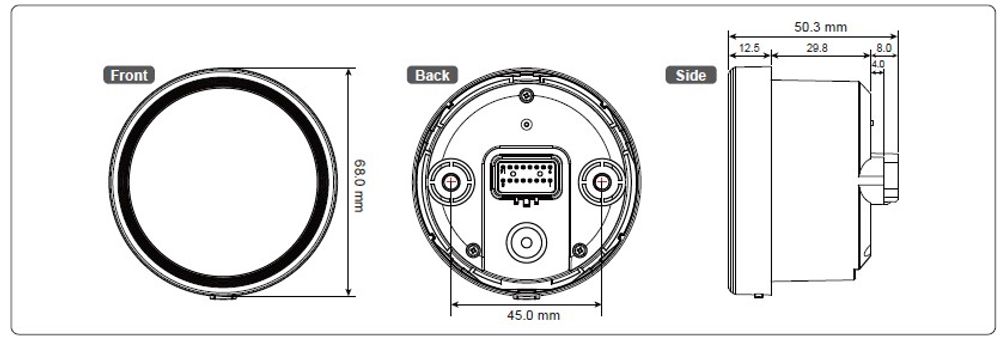

• Measuring device size: D 60 mm

Indicator lights

• High beam (blue)

• Flashing light (green)

• Composite warning light (red)

• Speed ​​warning (red)

• Engine oil warning light (red)

• Neutral light (green)

• Engine warning light (amber)

Note: Design and specifications are subject to change without notice.
