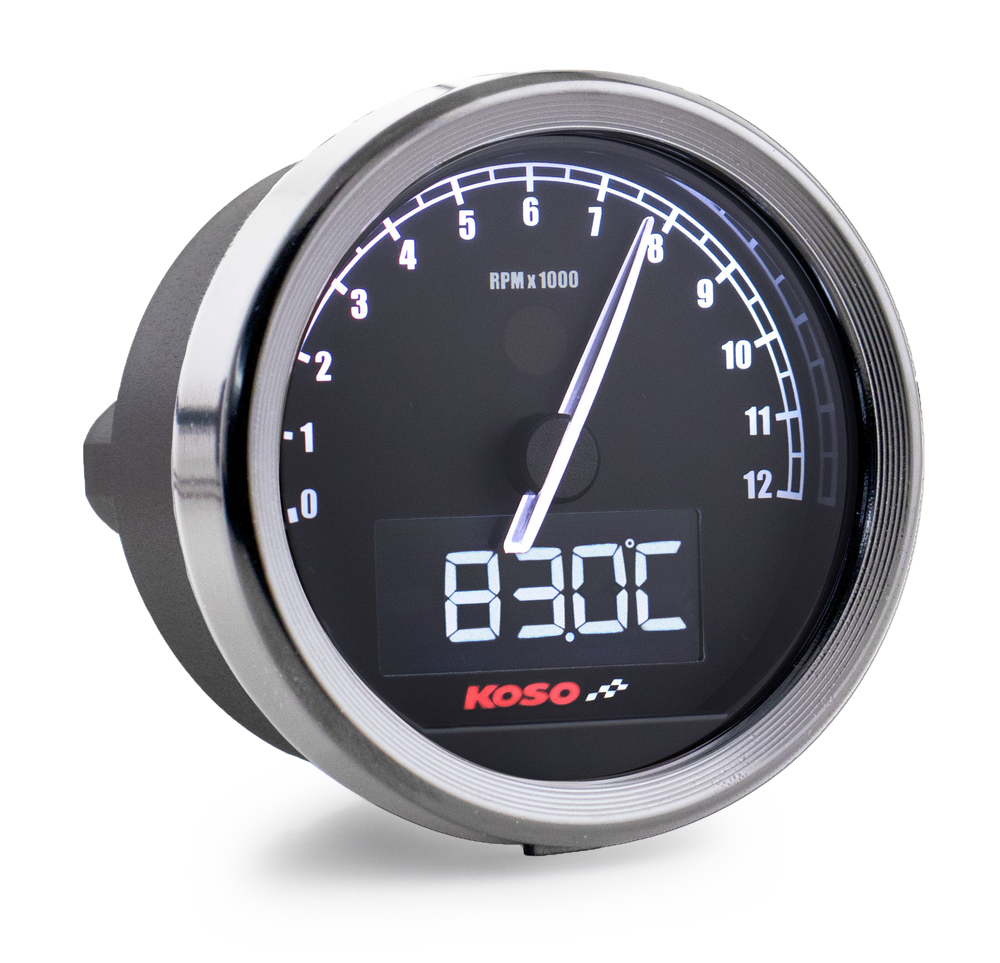

Koso D48 TNT-05 tachometer universal 12,000 RPM silver ring

Koso D48 TNT-05 tachometer universal 12,000 RPM silver ring

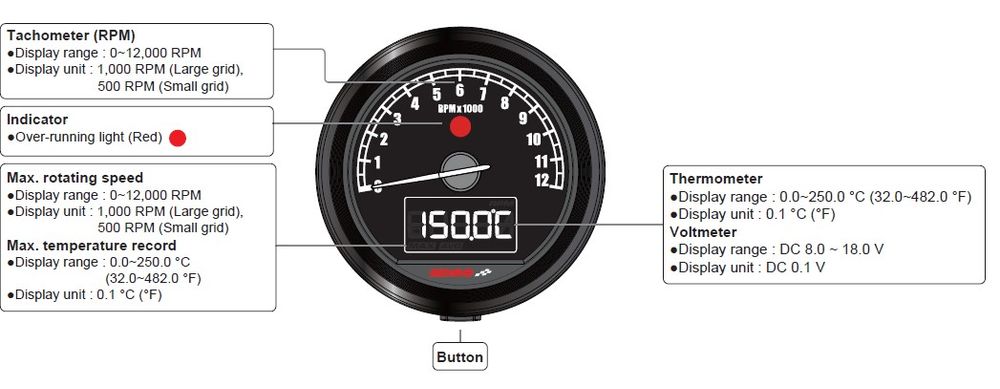

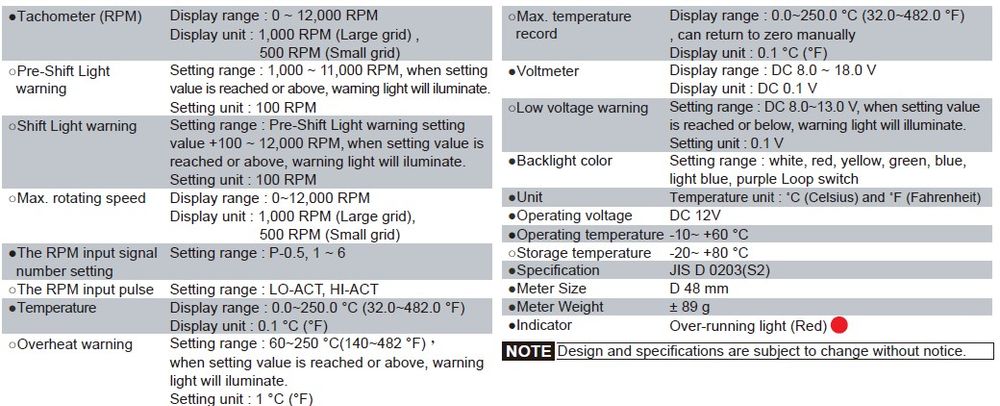

Tachometer (RPM) Display range: 0 ~ 12,000 RPM
Display unit: 1,000 RPM (large grid),
500 RPM (small grid)

Pre-Shift Light Adjustment Range : 1,000 ~ 11,000 RPM, when the set
If the warning value is reached or exceeded, the warning light lights up.
Setting unit: 100 RPM

Shift Light Warning Setting Range : Pre-Shift Light Warning Setting
Value + 100 ~ 12.00 RPM when the set value is reached
If this limit is reached or exceeded, the warning light comes on.
Unit of setting: 100 RPM

Maximum speed display range: 0 ~ 12,000 RPM
Display unit: 1,000 RPM (large grid),
500 RPM (small grid)

The PRPM input signal setting range: P-0.5, 1 ~ 6
Number setting

The RPM input pulse setting range: LO-ACT, HI-ACT

Temperature display range: 0.0~250.0 °C (32.0~482.0 °F)

Overheat warning setting range: 60~250 °C (140~482 °F)
When the set value is reached or exceeded, the warning
the warning light comes on.

Max. temperature display range: 0.0~250.0 °C (32.0~482.0 °F)
Recording can be manually reset to zero
Display unit: 0.1 °C (°F)

Voltmeter display range : DC 8.0 ~ 18.0 V
Display unit : DC 0.1VV

Undervoltage warning setting range : DC 8.0~13.0 V, when the setting value
is reached or undercut, the warning light lights up.
Unit of setting: 0.1 V

Backlight brightness adjustment range: 1/5(darkest)~5/5(brightest)
Unit of measurement: 1/5 (20%)

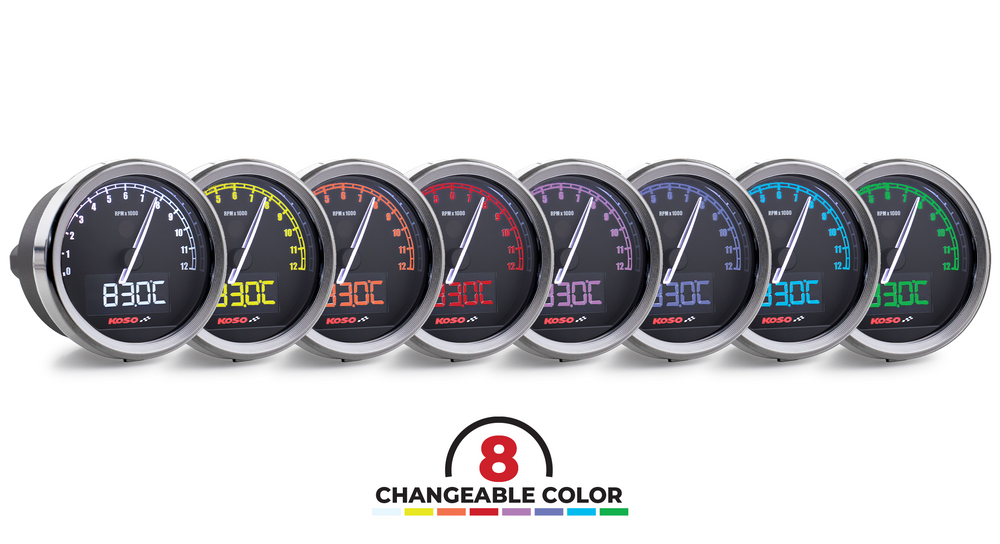

Backlight color adjustment range: white, red, orange, yellow, green,
blue, light blue, violet loop switch

Unit Temperature unit: °C (Celsius) and °F (Fahrenheit)

Operating voltage DC 12V

Operating temperature -10~ +60 °C

Storage temperature -20~ +80 °C

Specification JIS D 0203(S2)

Measuring device size D 48 mm

Weight of the measuring device 60g

Overflow indicator light (red)

NOTE Design and specifications are subject to change without notice.
