KOSO D48 TNT-05 Tachometer with black ring (0–12,000 RPM)

The KOSO D48 TNT-05 is a high-precision tachometer with a black bezel, specifically designed for reliable engine speed monitoring. With numerous functions, warning systems, and a compact design, it offers precise control and safety for a wide range of vehicles.

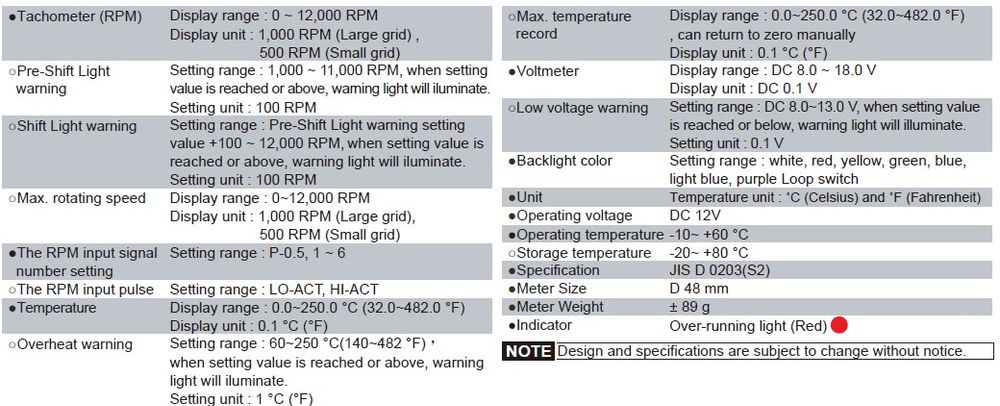

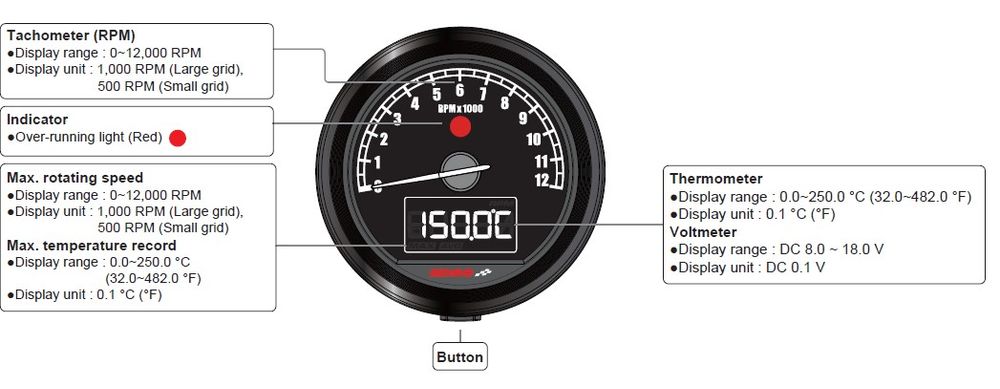

Main Features & Properties

• Tachometer 0 ~ 12,000 RPM

  • Large grid: 1,000 RPM

  • Small grid: 500 RPM

• Pre-Shift Light: Adjustable 1,000 ~ 11,000 RPM, warning light illuminates when exceeded.

• Shift Light: Adjustable pre-shift light +100 ~ 12,000 RPM, warning light when exceeded

• Maximum RPM recording range: 0 ~ 12,000 RPM, display in 1,000 RPM / 500 RPM increments.

• PRPM input signal: Adjustment range P-0.5, 1 ~ 6

• RPM input pulse: Adjustable LO-ACT (negative) or HI-ACT (positive)

• Temperature display 0.0 ~ 250.0 °C (32.0 ~ 482.0 °F)

• Overheating warning: Adjustable 60 ~ 250 °C (140 ~ 482 °F), warning light illuminates when temperature is exceeded.

• Maximum temperature recording 0.0 ~ 250.0 °C (32.0 ~ 482.0 °F)

• Voltmeter DC 8.0 ~ 18.0V

• Low voltage warning: Adjustable DC 8.0 ~ 13.0 V, warning light illuminates when voltage falls below the set level.

• Backlight: Brightness 1/5 ~ 5/5 (20% steps)

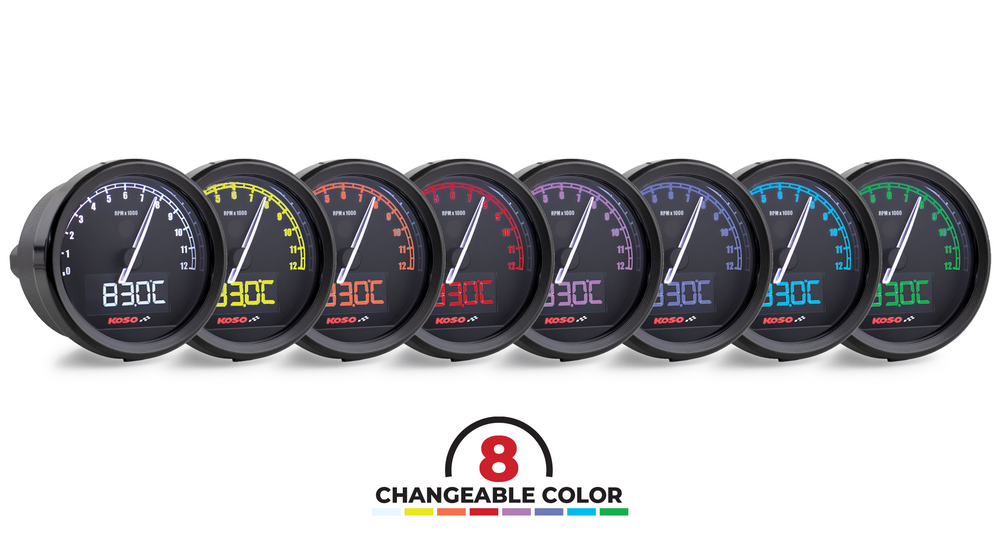

• Backlight colors: White, Red, Orange, Yellow, Green, Blue, Light Blue, Violet (loop switch)

• Overflow light (red) for additional warning information

Technical data

• Operating voltage: DC 12V

• Operating temperature: -10 ~ +60 °C

• Storage temperature: -20 ~ +80 °C

• Standard: JIS D 0203 (S2)

• Device size: Ø 48 mm

• Weight: 60 g

Note: Design and specifications are subject to change without notice.
