KOSO D48 suitable for Harley Davidson® TNT-05 speedometer 160 km/H mph ABE17

€184,45
€184,45
Tax included. Plus shipping. Shipping calculated at checkout.

Vendor : Koso Europe

Product Type :

Sku : BA086001

Add to wishlist
Sizechart

Lieferzeit 5-8 Tage*

*gilt für Lieferungen innerhalb Deutschlands, Lieferzeiten für andere Länder entnehmen Sie bitte der Schaltfläche "Zahlung und Versand"

Bitte beachten Sie unsere AGB.
Available documents:
Betriebserlaubnis ABE

KOSO D48 TNT-05 speedometer suitable for Harley-Davidson® – 160 km/h (MPH) ABE Black Ring

The KOSO D48 TNT-05 speedometer with black bezel is a high-quality measuring instrument specifically designed for Harley-Davidson® models. With precise readings, warning functions, and type approval, it offers reliable monitoring of key vehicle data.

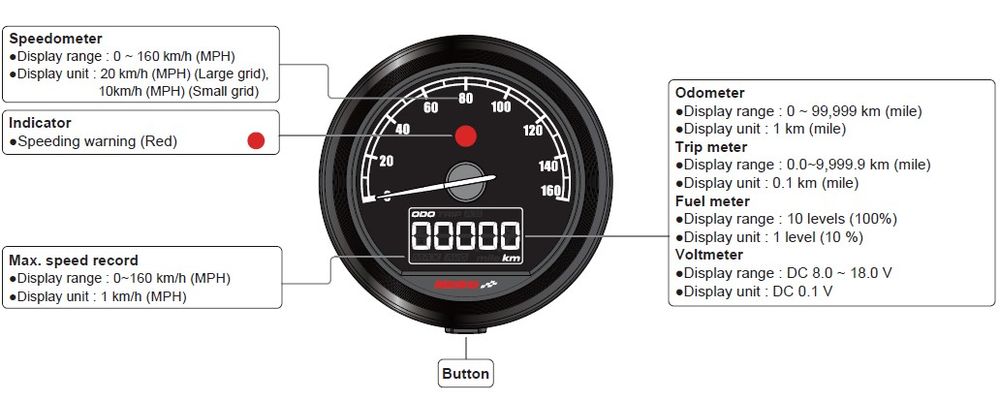

Main Features & Properties

  • Speedometer 0 ~ 160 km/h (MPH)

  • Large grid: 20 km/h (MPH), small grid: 10 km/h (MPH)

  • Adjustable speed warning 30 ~ 160 km/h (19 ~ 100 MPH), warning light illuminates when speed is exceeded.

  • Maximum speed recording up to 160 km/h (MPH), manually resettable

  • Odometer up to 99,999 km (miles)

  • Trip odometer A, B up to 9,999.9 km (miles), manually resettable

  • Adjustable tire circumference: 300 ~ 2,500 mm

  • Adjustable sensitivity point: 1 ~ 20 P

  • Fuel gauge with 10 levels (100%)

  • Fuel gauge resistance ranges: 100 Ω, 250 Ω, 270 Ω, 390 Ω, 510 Ω, 1200 Ω, Sw, Custom (learning mode), OFF

  • Low fuel warning: 0 ~ 30%

  • Clock in 24-hour or 12-hour format

  • Voltage meter DC 8.0 ~ 18.0 V with undervoltage warning (8.0 ~ 13.0 V)

  • Combined warning light for low fuel, low voltage and overheating

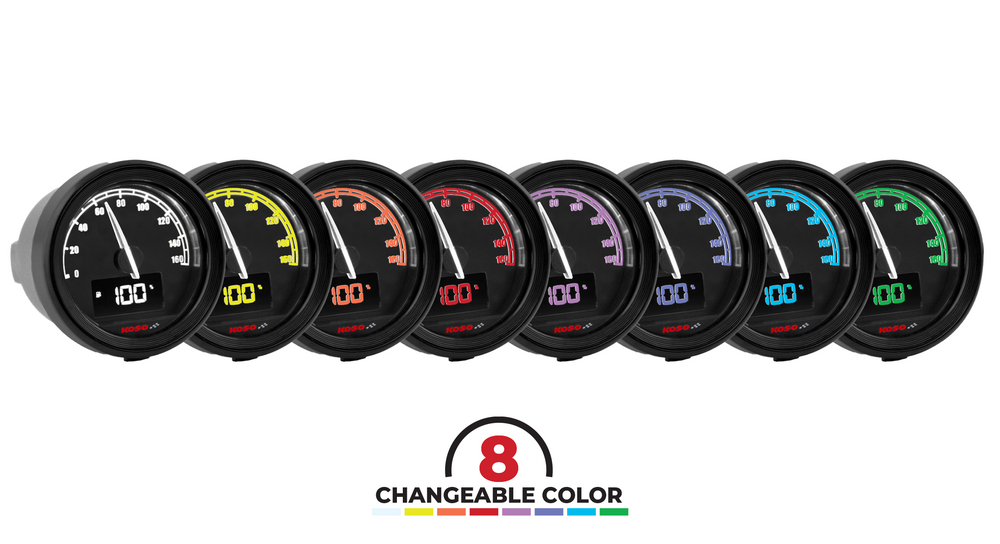

  • Adjustable backlight: brightness (1/5 to 5/5) and colors (white, red, orange, yellow, green, blue, light blue, violet)

  • Speed unit selectable: km/h, MPH

Technical data

  • Operating voltage: DC 12V

  • Operating temperature: -10 ~ +60 °C

  • Storage temperature: -20 ~ +80 °C

  • Specification: JIS D 0203 (S2)

  • Device size: D 60 mm

  • Weight: 60 g

Note: Design and specifications are subject to change without notice.
