KOSO D2 multifunctional meter suitable for HD Excavators 2014-2023

Koso D2 | Complete measuring instrument kit for Harley-Davidson® Baggers (2014–2023)

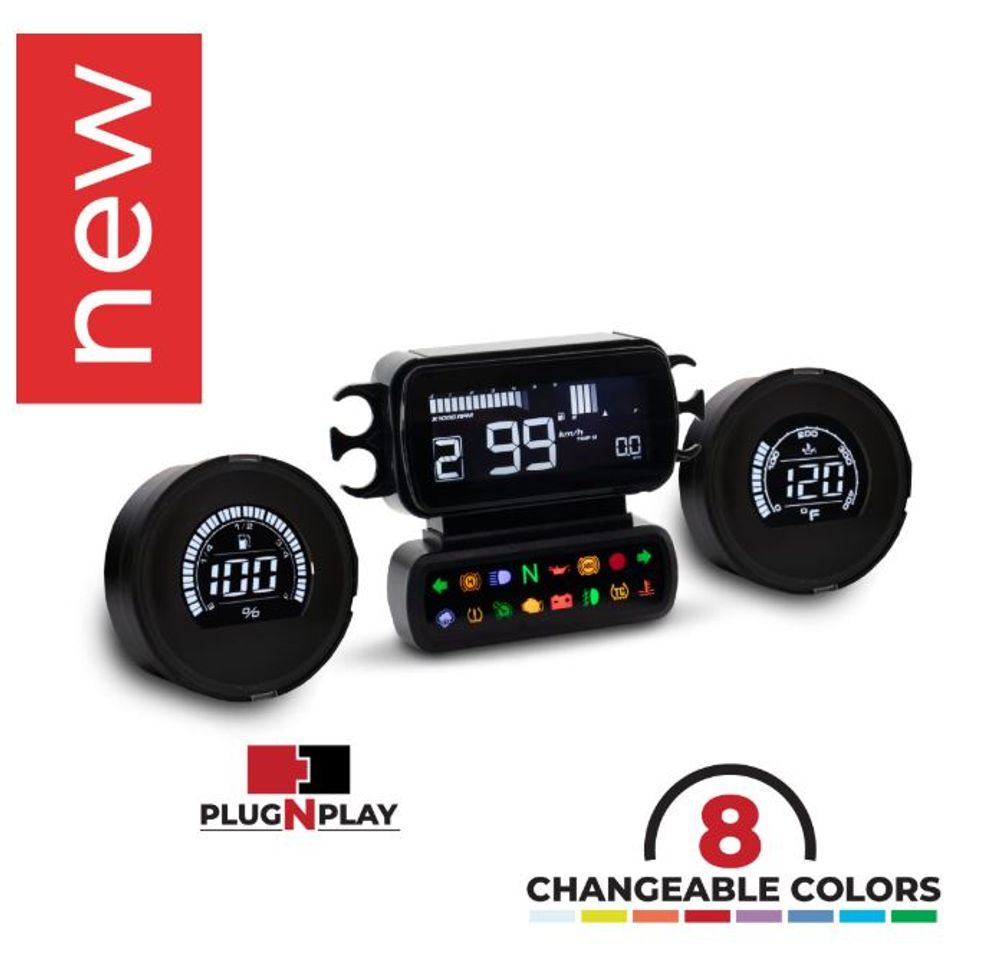

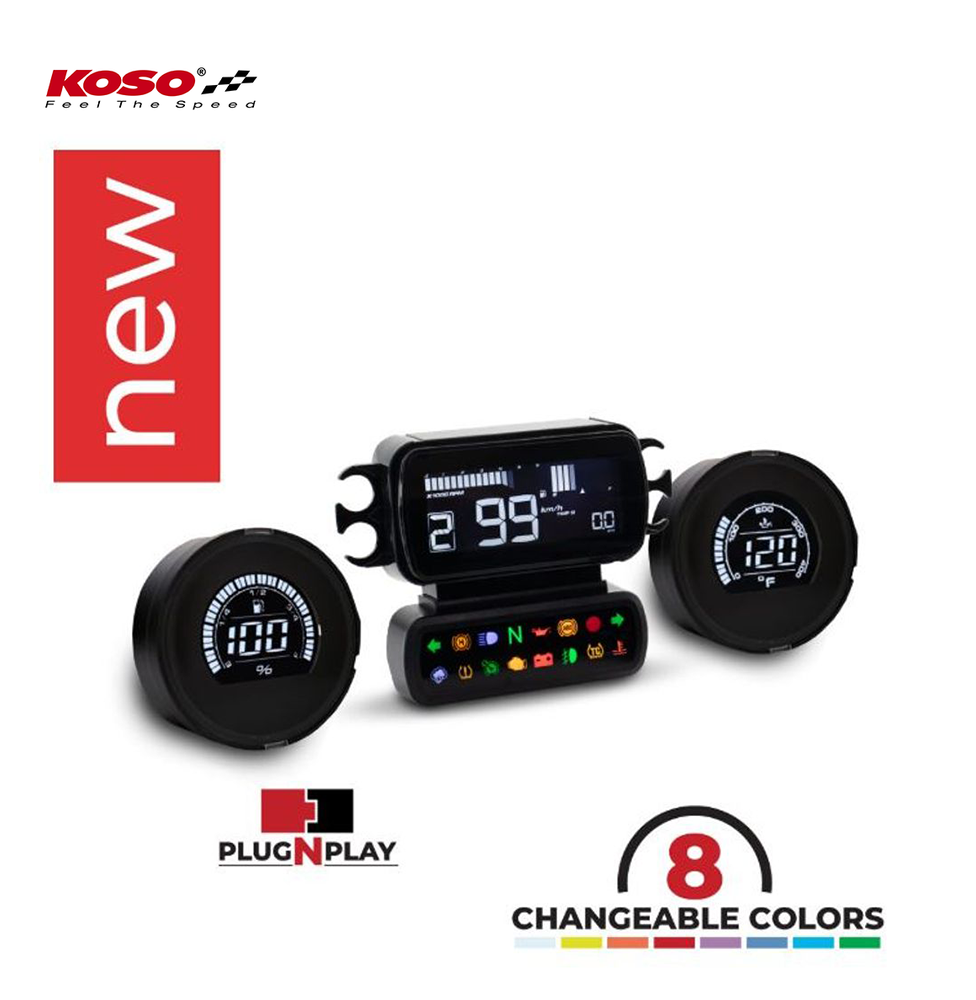

Upgrade your Harley-Davidson® Bagger with the complete Koso D2 gauge kit, combining functionality with modern design. This plug-and-play kit features an 8-color LCD display and provides all essential readings, including engine temperature, battery voltage, tire pressure, and gear indicator. A full system of warning lights ensures you always have a clear view of your motorcycle's performance and condition.

Thanks to seamless integration into the original wiring harness and full CAN bus compatibility, installation is simple and reliable. Perfect for excavator operators who want to optimize their driving experience and precisely monitor all vehicle parameters.

Notice

On CVO models, the Run/Stop switch must remain on to access the settings. Adjustments can then be made directly on the meter.

Main Features & Properties

• Speedometer: 0–199 km/h (0–124 mph), switchable, display interval <0.5 s

• Internal/external odometer: up to 999,999 km (miles)

• Trip Meter A/B: up to 9,999.9 km (miles)

• Tire circumference: 50–210% adjustable

• Tachometer: up to 10,000 rpm

• Shift light warning: 2,000–10,000 rpm, warning via flashing display (in 100 rpm increments)

• Engine temperature: -39 to 300 °C (-38 to 572 °F)

• Fuel gauge: 10 levels

• Voltmeter: 8–18 V

• Time: 12h/24h format

• Tire pressure (TPMS): up to 5.0 bar / 73 PSI (HI indicator if exceeded)

• Maintenance interval: OFF or 500–16,000 km (300–10,000 mi)

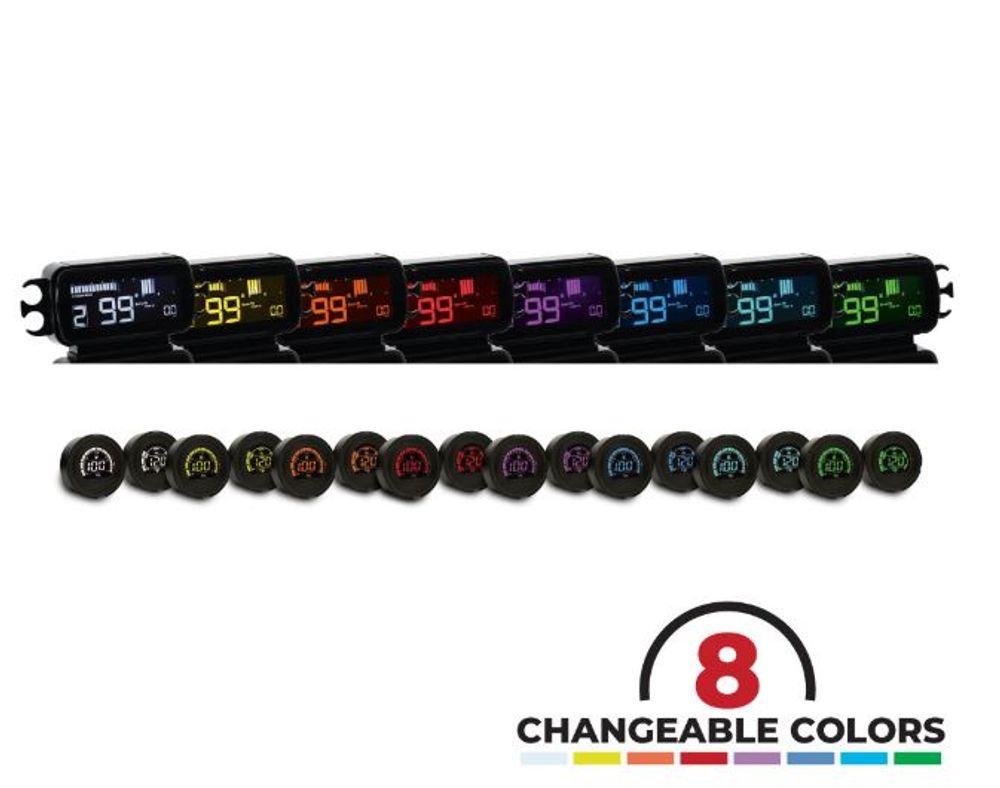

• Backlight: 8 colors, brightness adjustable (1/5–5/5)

Integrated indicator lights

Turn signals, water temperature, oil pressure, warning light, engine control, high beam, fog lights, voltage, traction control, cruise control, ABS, rain mode, vehicle hold function, fuel level, low tire pressure, safety light

Technical data

• Operating voltage: DC 12 V

• Operating temperature: -20 to +85 °C

• Storage temperature: -30 to +90 °C

• Standard: JIS D 0203 (S2)

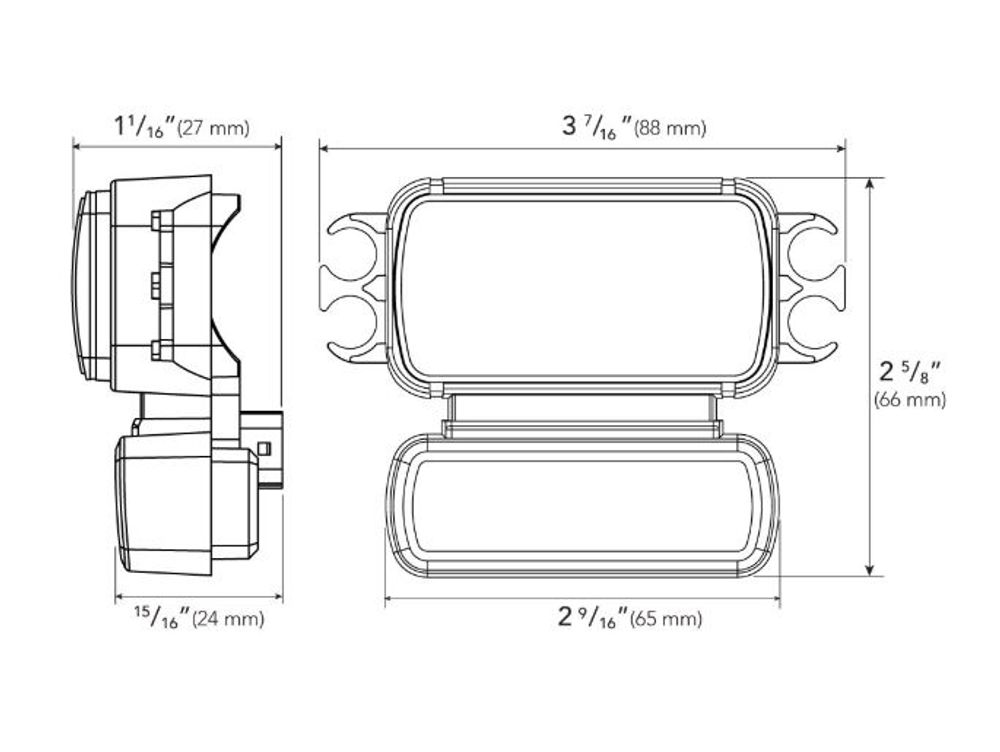

• Size: 88.2 × 67.0 × 35.2 mm

• Weight: approx. 70 g

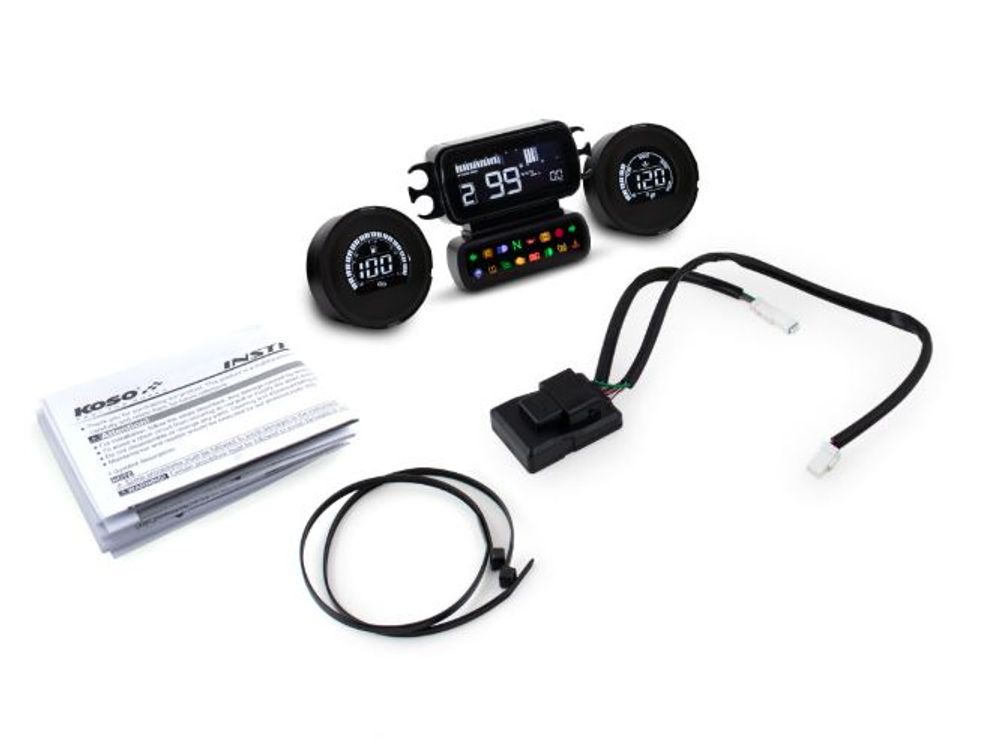

Table of Contents

• LCD instrument – ​​1×

• Fuel level indicator – 1×

• Oil temperature gauge – 1×

• Instrument adapter box – 1×

• Cable ties (4.6 × 300 mm) – 1×
