KOSO D2 multifunctional meter suitable for HD Excavators 2014-2023

Koso D2 | Multifunctional Meter for Harley-Davidson® Baggers (2014–2023)

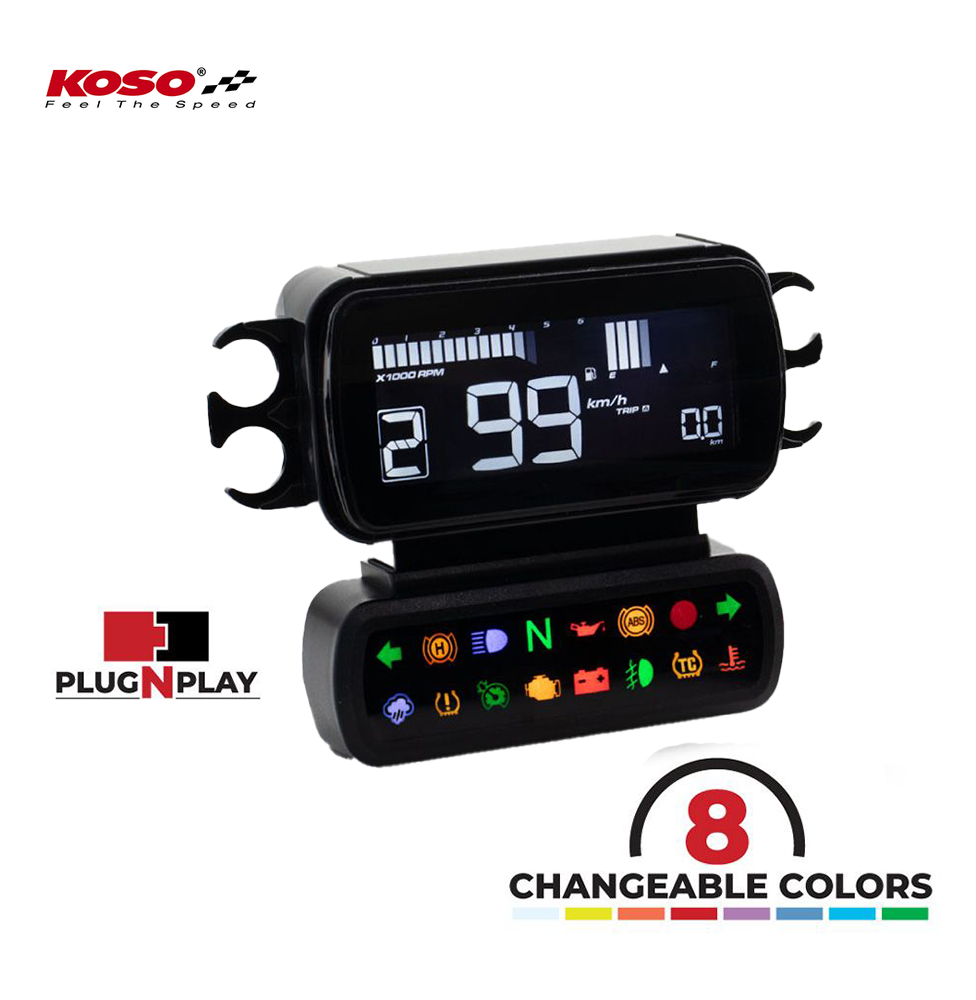

The Koso D2 multifunction meter is the perfect solution for Harley-Davidson® Baggers models from model years 2014 to 2023. With its 8-color, switchable LCD display, it offers a wide range of functions that enable precise and user-friendly monitoring of all important vehicle parameters.

The device combines a speedometer and tachometer in a single instrument, complemented by a gear indicator and a programmable shift light. Additional key functions such as engine temperature, battery voltage, tire pressure, and a complete warning light system ensure a reliable overview of the vehicle's status. Designed for plug-and-play installation into existing wiring harnesses, the D2 works directly with the CAN bus system.

compatibility

• Harley-Davidson® Excavator Models (2014-2023)

Notice

On CVO models, the start/stop switch must remain on to access the settings. The adjustment is made directly on the meter.

Main Features & Properties

• Speedometer: 0–199 km/h (0–124 mph), interval <0.5 s

• Odometer: internal/external up to 999,999 km (miles)

• Trip odometer A/B: up to 9,999.9 km (miles)

• Wheel circumference: 50–210% adjustable

• Tachometer: up to 10,000 RPM

• Shift light: 2,000–10,000 RPM, warning via red/white flashing display

• Engine temperature: -39 to 300 °C (-38 to 572 °F)

• Fuel gauge: 10 levels

• Voltmeter: 8–18 V

• Time: 12h/24h format

• Tire pressure (TPMS): up to 5.0 bar / 73 PSI (display for front and rear wheels if vehicle supports TPMS)

• Maintenance interval: OFF or 500–16,000 km (300–10,000 mi)

• Indicator lights: Turn signals, water temperature, oil pressure, headlights, engine check, high beam, fog lights, voltage, traction control, cruise control, ABS, rain mode, vehicle hold function, fuel level, tire pressure warning, safety lights

Technical data

• Operating temperature: -20 to +85 °C

• Storage temperature: -30 to +90 °C

• Operating voltage: DC 12 V

• Standard: JIS D 0203 (S2)

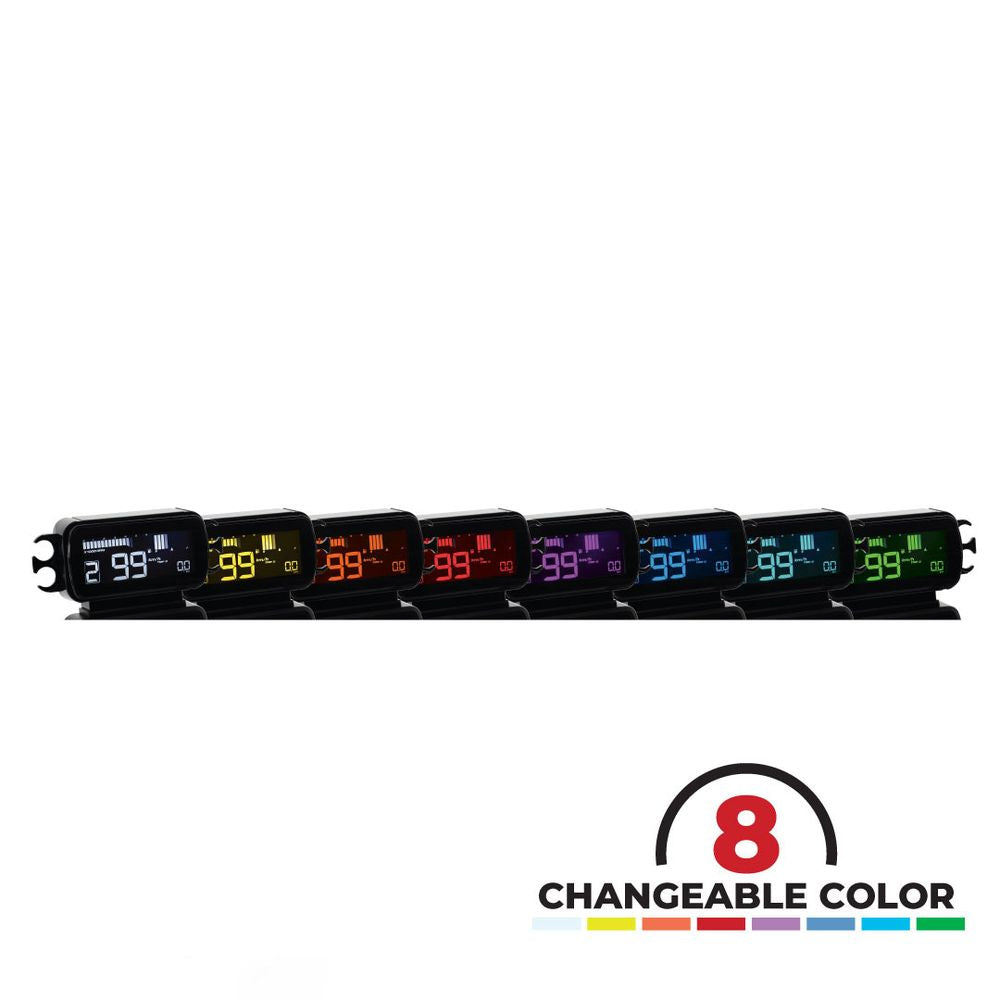

• Backlight: 8 colors, brightness in 5 levels (1/5–5/5)

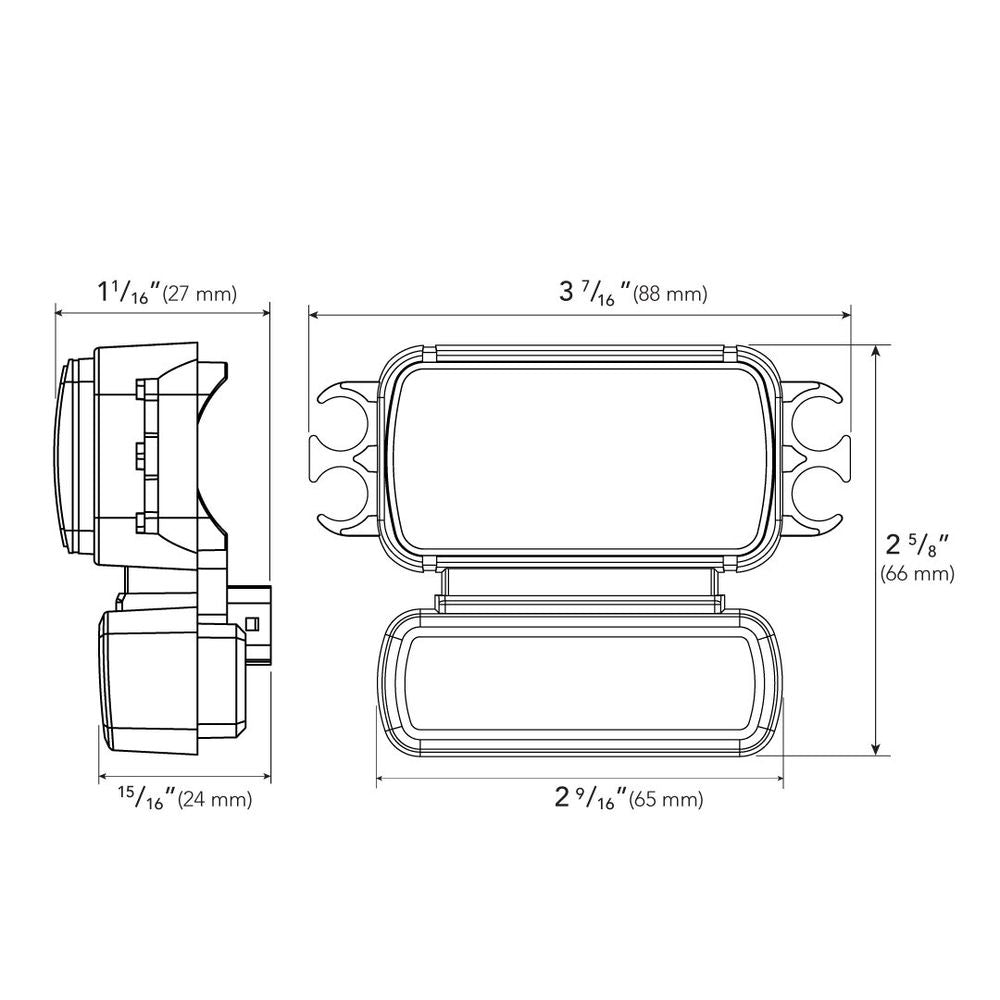

• Size: 88.2 × 67.0 × 35.2 mm

• Weight: approx. 70 g

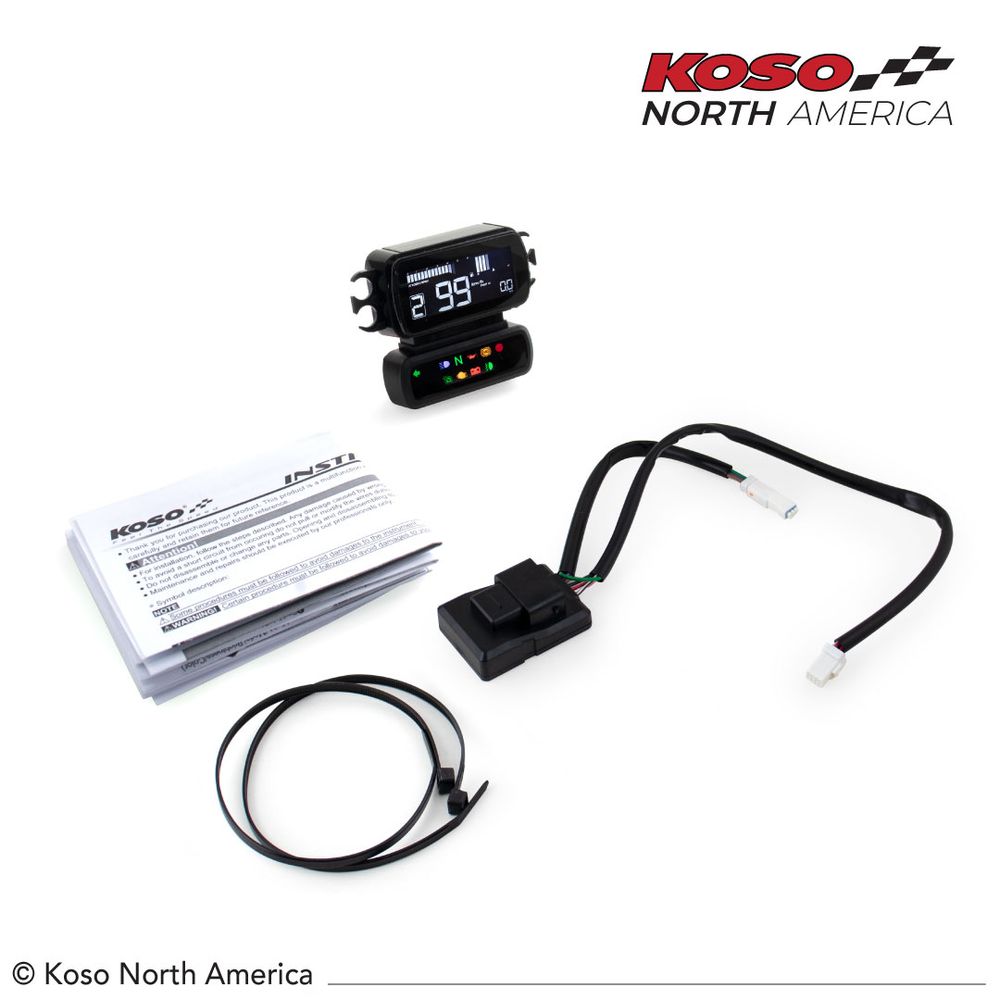

Table of Contents

• LCD measuring device – 1×

• Instrument adapter box – 1×

• Cable ties (4.6 × 300 mm) – 1×
