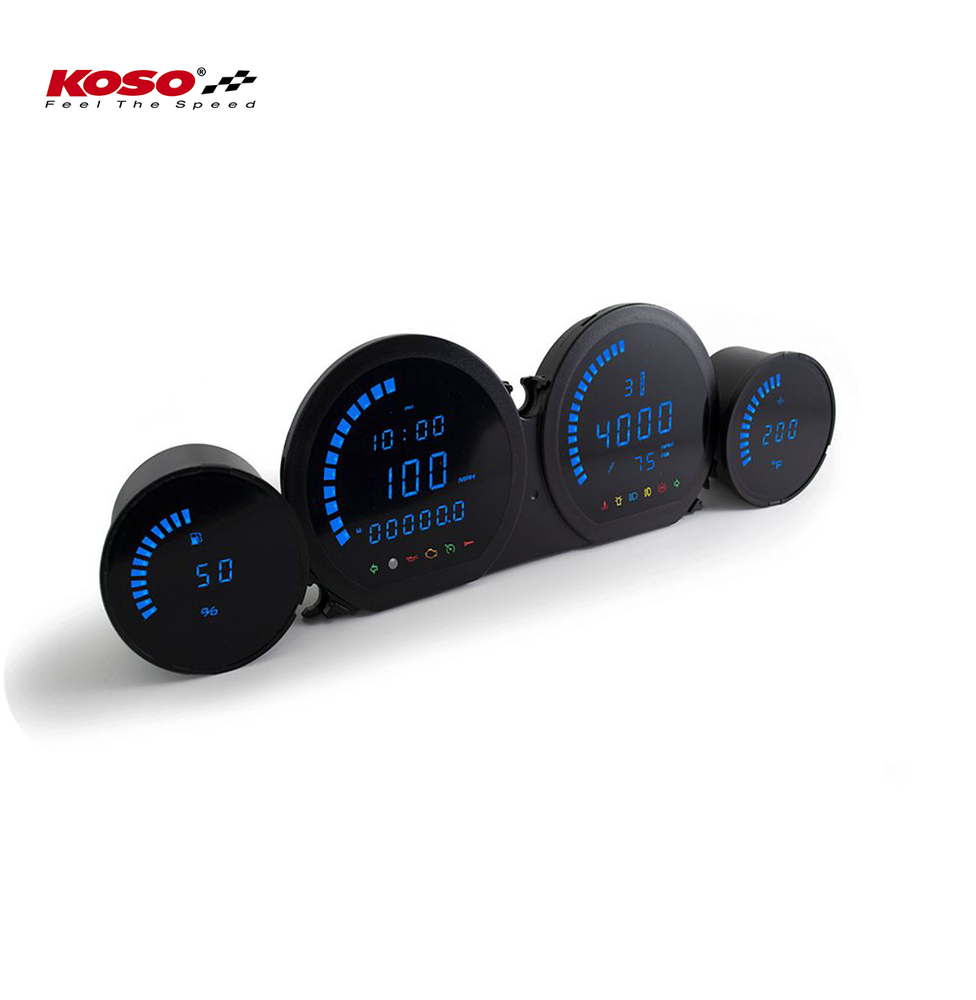

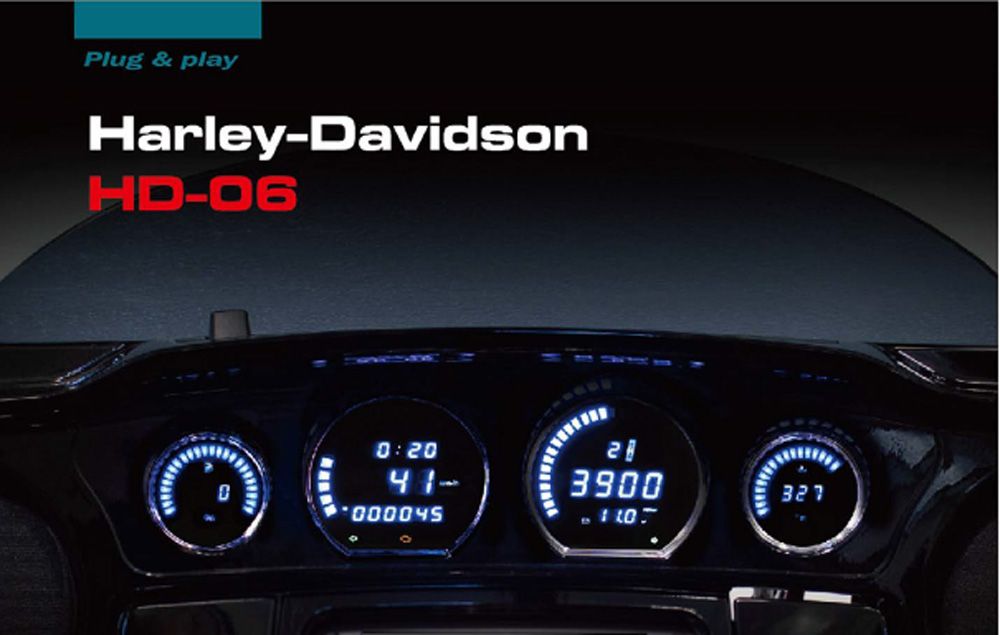

Our Plug & Play multifunctional speed and tachometer set is equipped with LED displays with adjustable brightness.

The displays provide you with basic information such as speed, rpm, gear indicator, total odometer and trip odometer.

They also include a clock and all necessary warning lights and are easy to connect and install on the motorcycle.

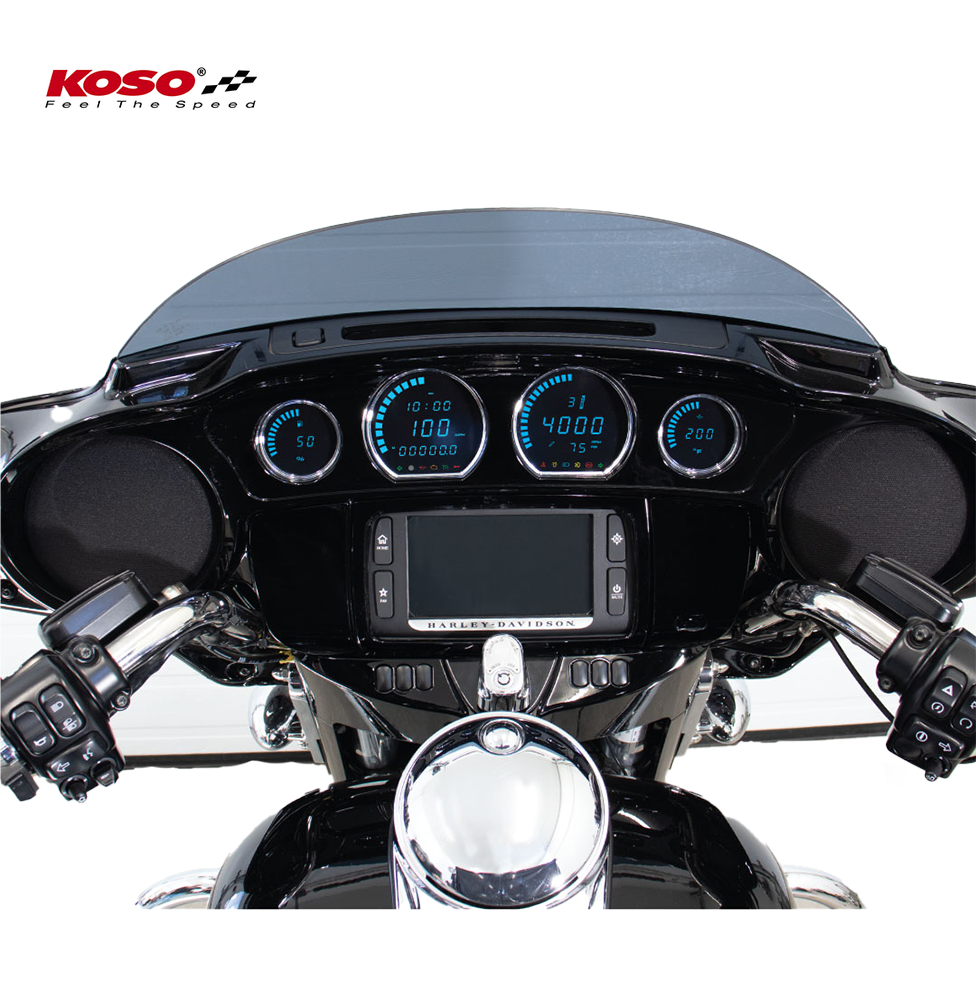

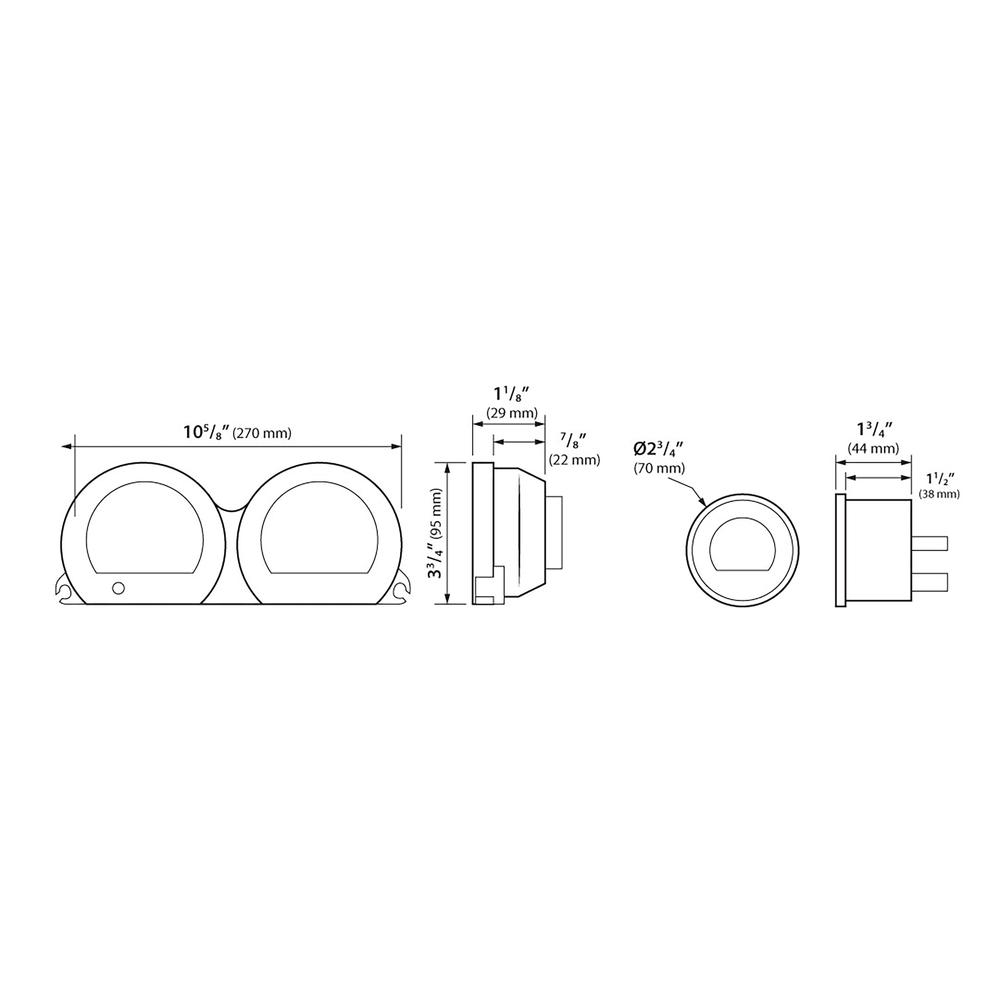

These displays are suitable for installation on all Harley-Davidson models FLHX, FLTC and FLTR from 2014 to 2020. Not suitable for 2021+ models and CVO

• Fits Harley‑Davidson® FLHX, FLTC &
  FLTR from 2014 to 2020
• Does not fit CVO models

Speedometer:

Display: 0 - 299km/h (0 – 199 mph) switchable

Display unit: 1 km/h (mph)

Display response time:

< 0.5 seconds

Speeding warning:

Adjustment range: 30 - 299 km/h (19 – 199 mph)

When the set range is reached or exceeded, the warning light lights up.

Setting unit: 1 km/h (mph)

Record of the highest speed ever driven:

Display: 0 - 299 km/h (0 - 199 miles)

Internal and external total odometer:

Display: 0 - 999,999 km (miles)

Display unit: 1km (miles)

Tire circumference:

Adjustment range: 50 - 210 %

Setting unit: 1%

Trip odometer AB:

Display: 0 - 9,999.9 km (miles)

Display unit: 0.1 km (miles)

Maintenance intervals:

Setting range: OFF, 500 - 16,000 km (300 - 10,000 miles), is displayed as soon as the set number of kilometers is exceeded.

Setting unit: 1 km (miles)

Gear indicator:

Display: OFF, N, P, R, 1, 2, 3, 4, 5, 6

Speedometer:

Display: 0 - 9,990 rpm

Display unit: 10 rpm

Speed ​​shift flash:

Display: 2,000 - 8,000 rpm

The warning light flashes as soon as the set value is reached (exceeded).

Setting unit: 100 rpm

Recording of the highest speed ever driven:

Display: 0 - 8,000 rpm

Display unit: 100 rpm

Engine temperature:

Setting range: - 40 – 300°C (- 40 – 572°F)

Fuel gauge:

Setting range: HD standard / customer-specific

Low fuel warning:

Setting range: HD Standard – LCD flashes as a warning when the fuel resistance is greater than 211 ohms and goes out when the resistance is less than 187 ohms.

Custom – LCD flashes when level is less than 20% and turns off when level is higher than 30%.

Tank volume:

Setting range: OFF / 1.0 – 9.9 US gallons

Average consumption:

Setting range: OFF // L/100km // km/L // MPG (US spec.) // MPG (UK spec.)

RANGE / Fuel reserve:

Display: 0 - 9,999 km (6,249 miles)

Display unit: 1 km (miles)

RANGE / Fuel reserve warning:

Display indication: LCD displays “LO RNG” and flashes as a warning when RANGE / remaining range is less than 16 km (10 miles).

Clock :

Setting range: 12/24 hour format

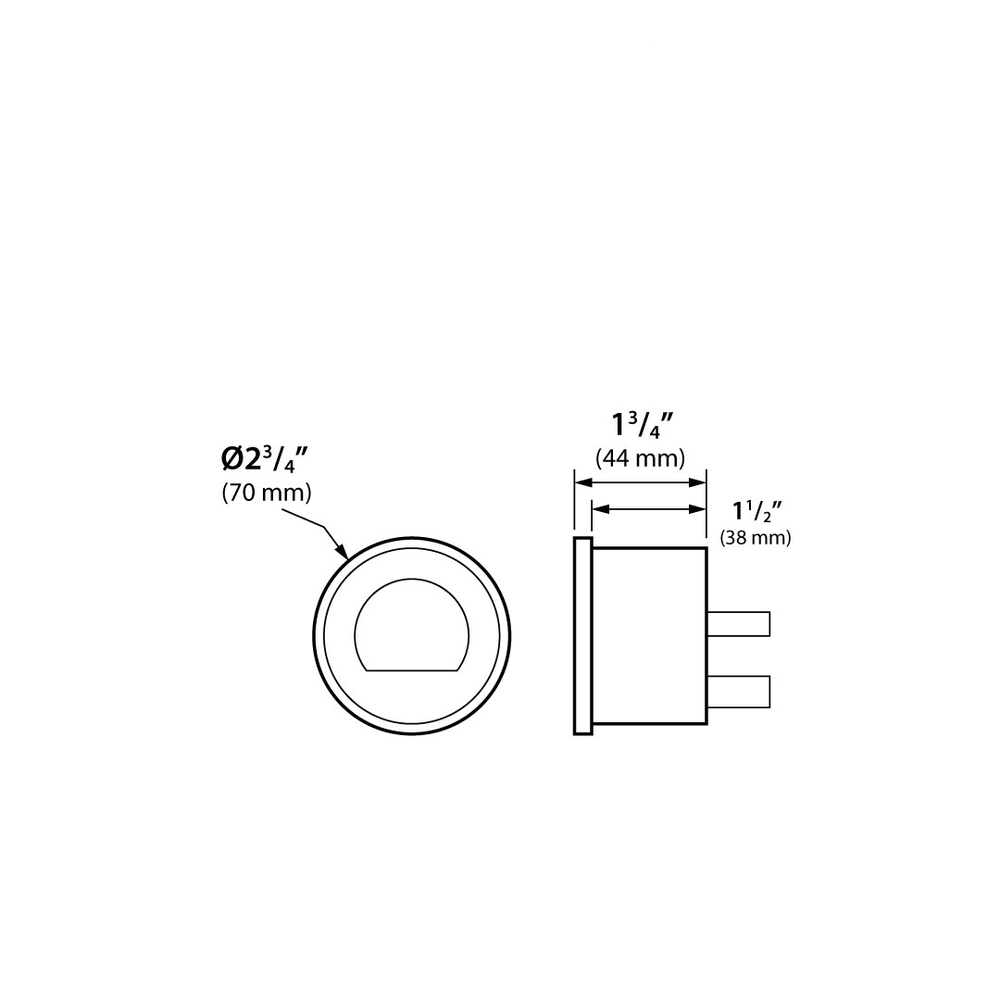

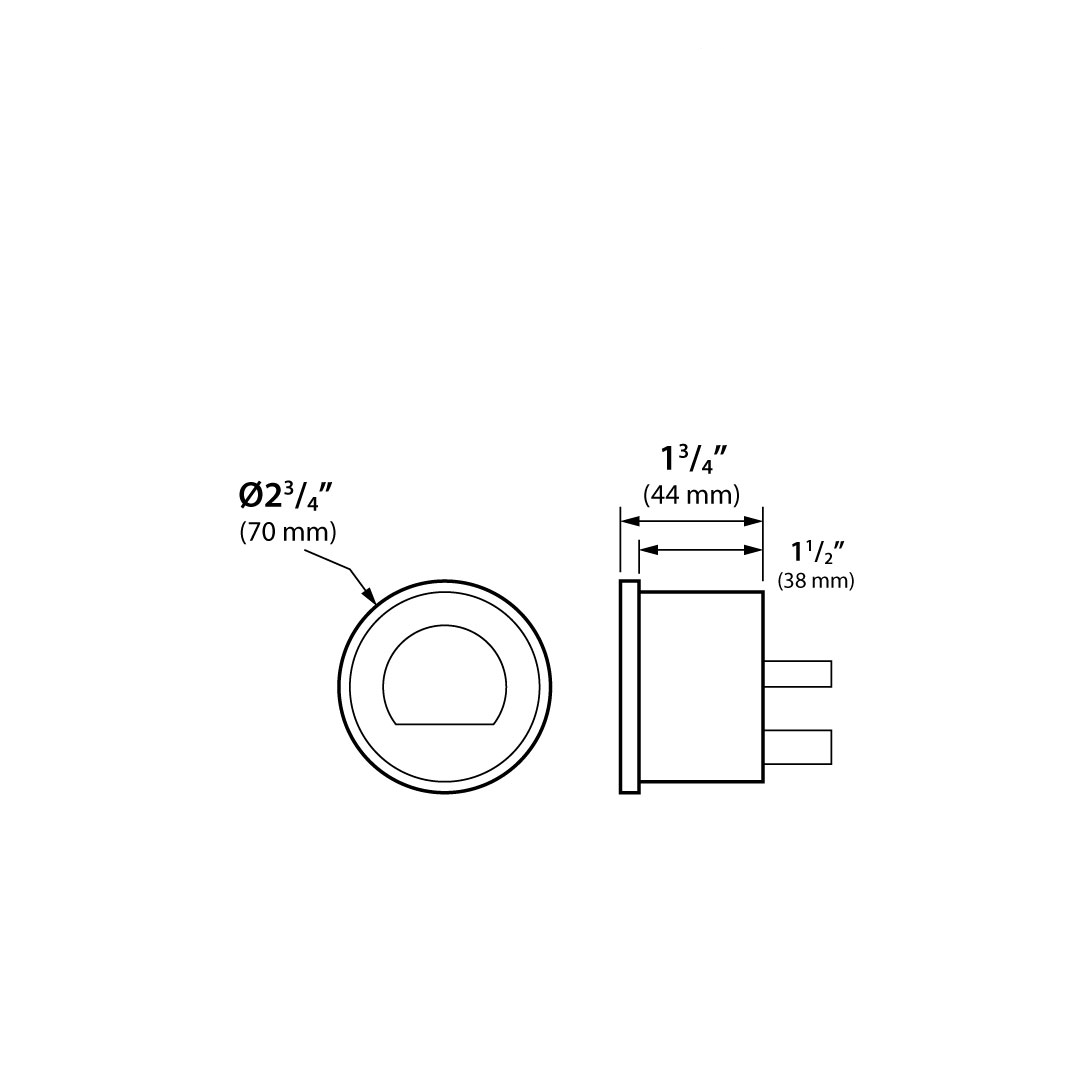

Oil temperature:

Display: 0 – 400 °F (32 - 248°C)

Display unit: 1°C (°F)

Record of the highest oil temperature ever measured:

Display: 0 – 400°F (32 - 248°C)

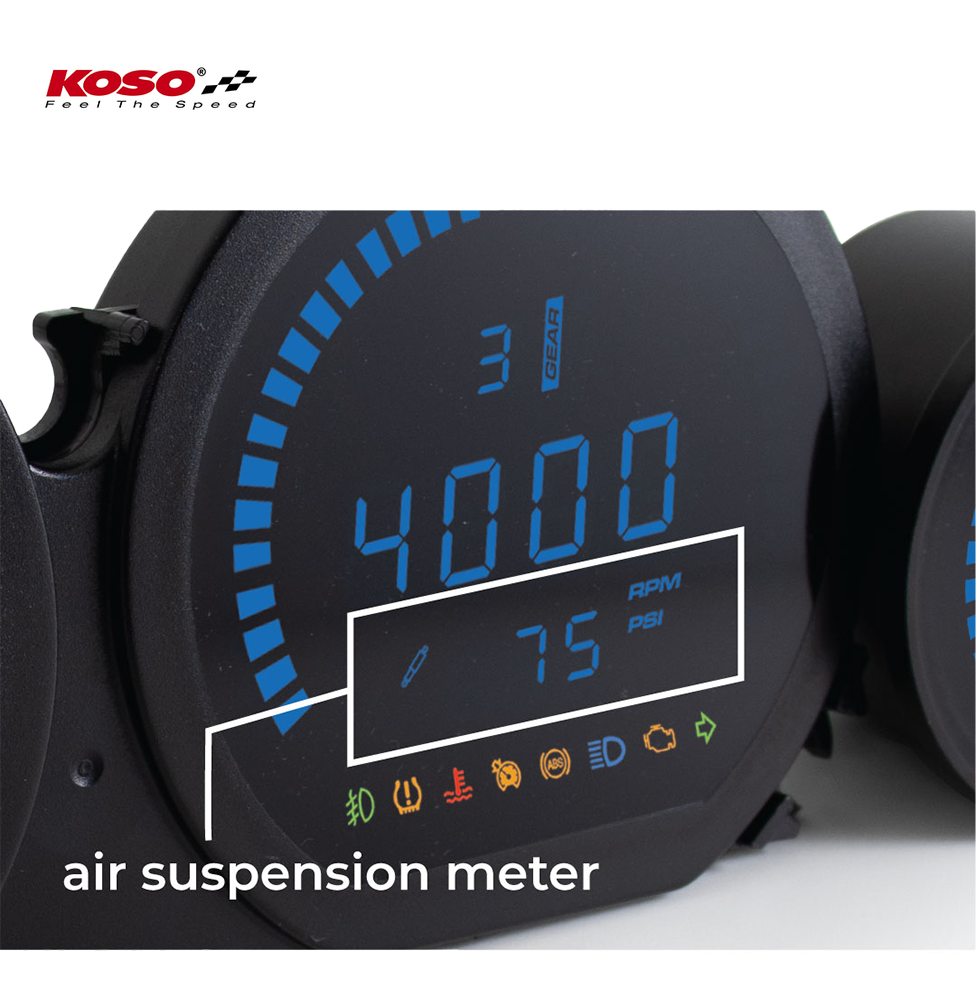

Air pressure gauge:

Display: Display - - - if no sensor is installed, 0 – 150 PSI

Display unit: 1 PSI

Air pressure gauge calibration:

Calibration range: 0 – 25 PSI +/- 1 PSI

Calibration unit: 1 PSI

Default value: 0 PSI

Background brightness:

Adjustment range: 1/5 (darkest) – 5/5 (brightest)

Required voltage:

DC12V

Working temperature range of the displays:

-10 - + 60°C

Specifications:

JIS D0203 (S2)

Weight:

Tachometer and speedometer = 286 grams

Oil temperature indicator = 81 grams

Fuel level indicator = 81 grams

Indicator lights:

Indicator right + left (green)

Photometric detection

Oil (Red)

Check engine light (yellow)

Cruise control (orange/green)

Anti-theft device (red)

Water temperature (blue)

Warning light (orange/green)

High beam (Blue)

Fog light (green)

ABS (Yellow)
