HD-05 Meter for Harley Davidson (2014+ models) black rim

Koso HD-05 Meter for Harley-Davidson® (2014+ models) – Black Base

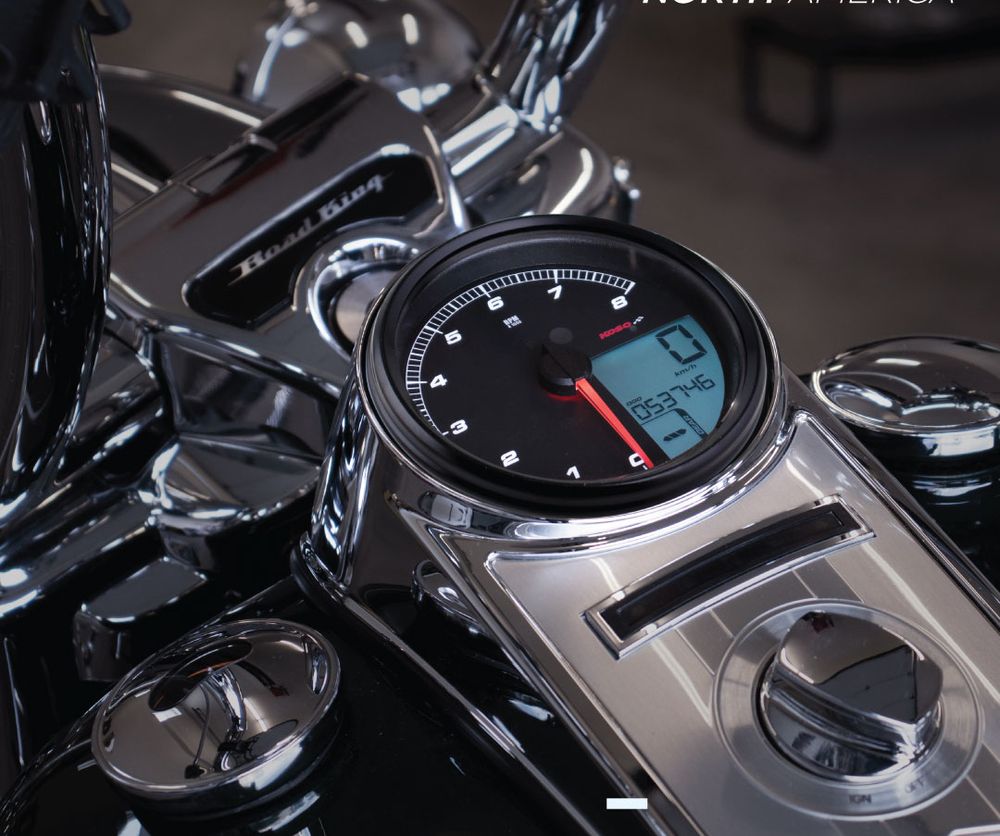

The Koso HD-05 Meter is a plug-and-play solution for Harley-Davidson® models from 2011 onwards. It combines a speedometer and tachometer in one unit and also offers a gear indicator, engine temperature gauge, battery voltage, and average fuel consumption display. The device interacts directly with the motorcycle's CAN bus system and is installed using the existing wiring harness.

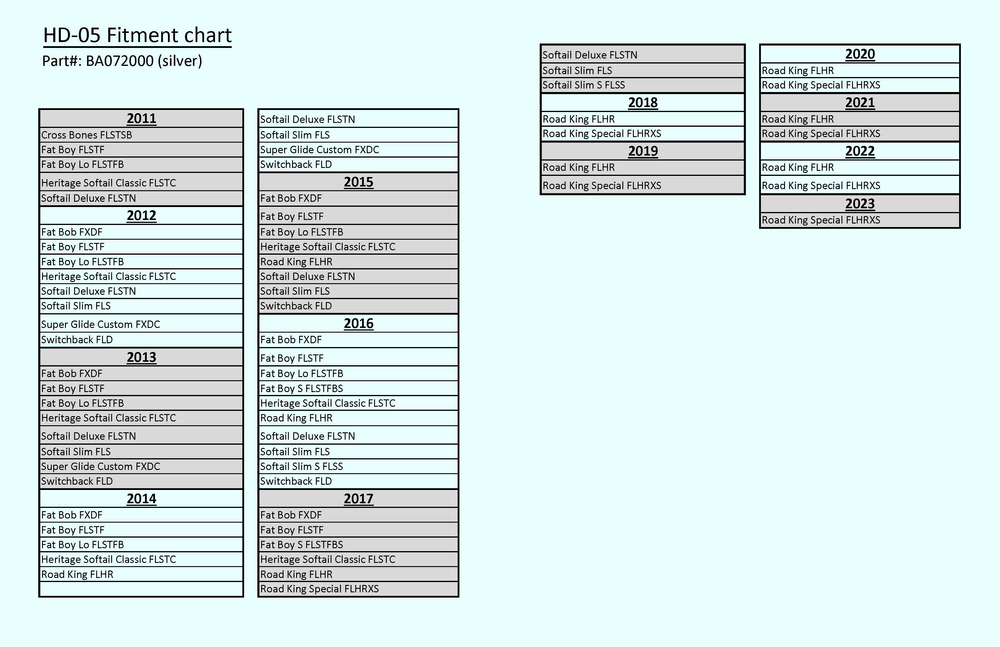

Compatibility:

• Dyna models from 2012 onwards

• Softail models from 2011 onwards

• Road King models from 2014 onwards
  Not compatible with models featuring traction control

Characteristics:

• Speedometer: 0 ~ 225 MPH (0 ~ 360 km/h), unit 1 MPH or km/h, delay < 0.5 s

• Odometer: 0 ~ 999,999 miles (km), resets to 0 after reaching maximum value

• Trip odometer A/B: 0 ~ 9,999.9 miles (km), unit 0.1, resets to 0 after reaching maximum value

• Wheel circumference: 50 ~ 210%, unit 1%

• Gear indicator: Off / N / 1 ~ 6

• Tachometer: 0 ~ 8,000 RPM

• RPM limiter light: 2,000 ~ 8,000 RPM, Modes: Light on / Flash

• Motor temperature: 40~419°F (40~215°C)

• Fuel gauge: 6 fill levels, tank capacity 1 ~ 9.9 US gallons

• Average fuel consumption: OFF / L/100 km / km/L / MPG (US) / MPG (UK)

• Clock: 12H / 24H format

• Voltmeter: DC 8 ~ 18 V

• Brightness: 1/5 ~ 5/5

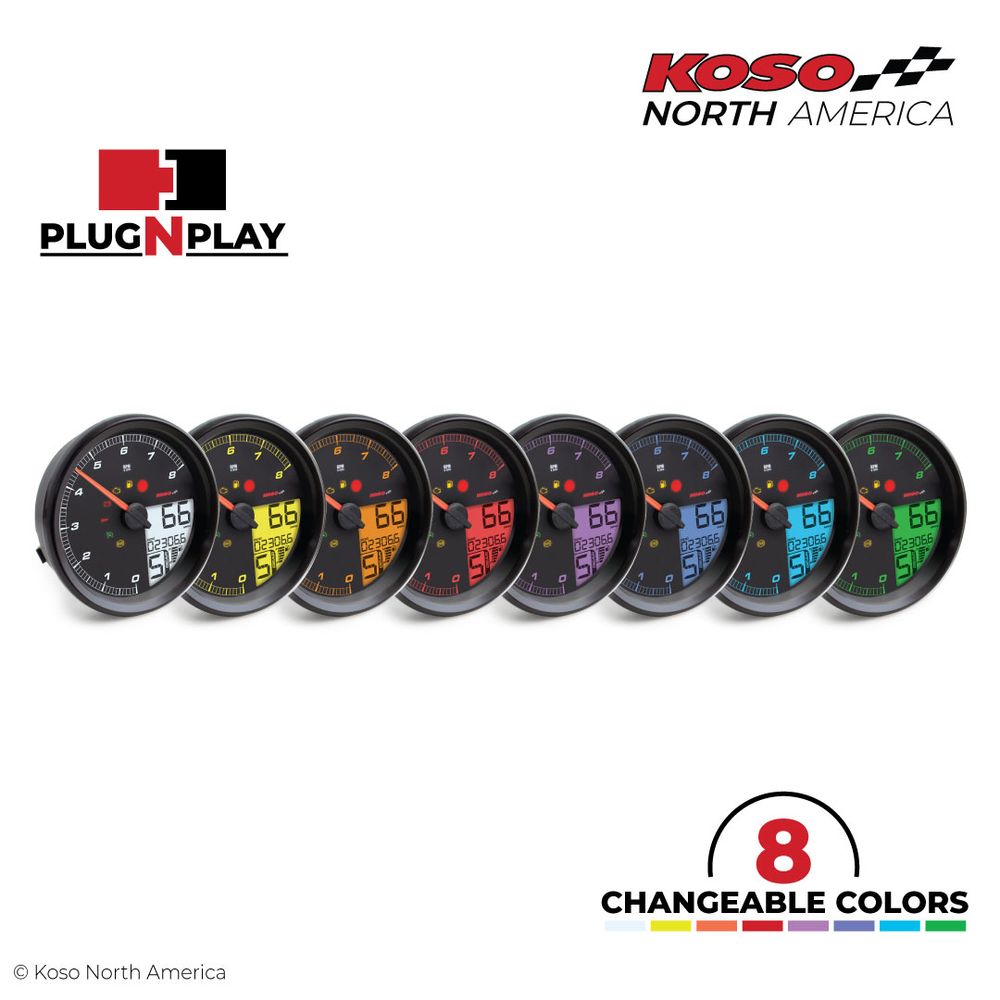

• Background colors: Red / Orange / Yellow / Green / Blue / Indigo / Purple / White

• Maintenance interval: Off / 300 ~ 10,000 miles (500 ~ 16,000 km), automatic reminder

• Fuel reserve: 0 ~ 9,999 miles (km), "LO RNG" indicator at < 10 miles (16 km)

Warning lights:
RPM warning light, reserve light, engine control light, voltage, anti-theft device, cruise control, ABS

Technical data:

• Temperature range: 14 ~ 140 °F (10 ~ 60 °C)

• Operating voltage: DC 12 V

• Standard: JIS D 0203 S2

• Size: Ø 117 x 45 mm (4 5/8” x 1 3/4”)

• Weight: 208.5 g (7.36 oz)
