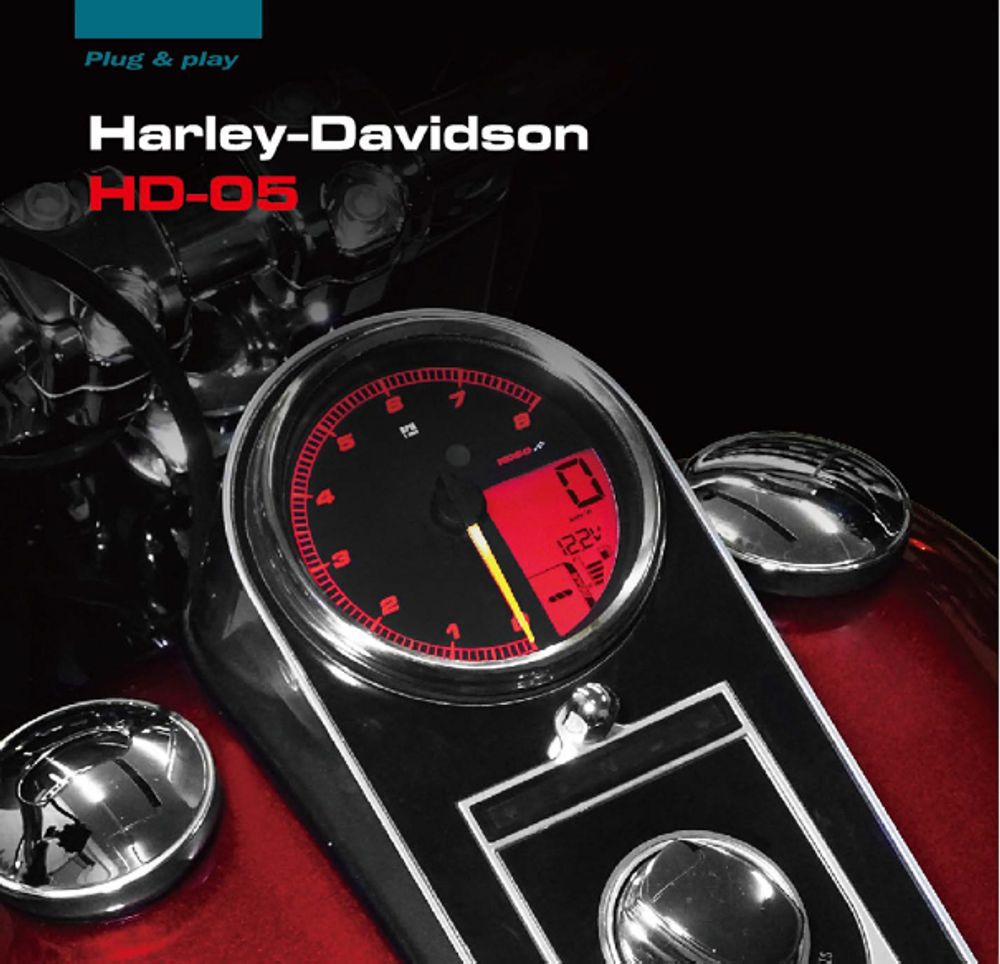

HD-05 Meter for Harley Davidson (2014+ Models)

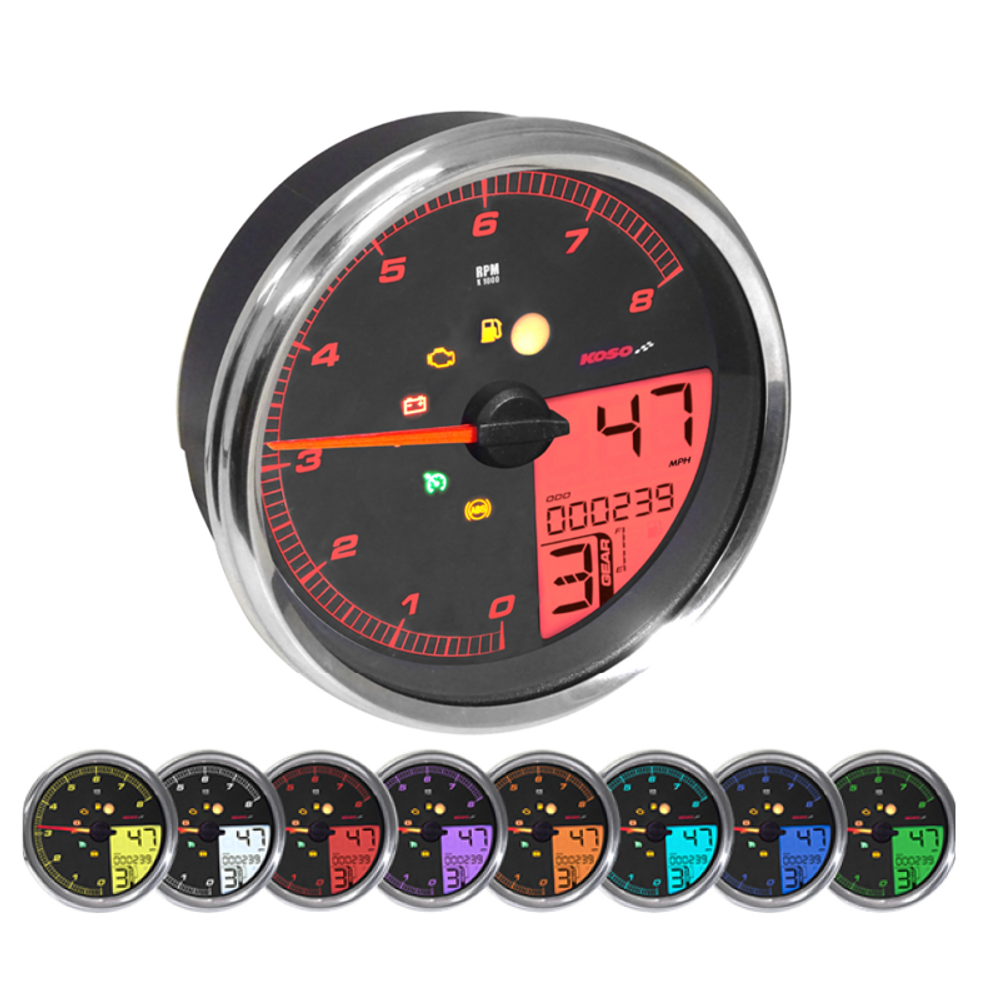

The new PLUG&PLAY HD-05 series for 4 ½” (=11.43cm) Harley-Davidson® models with an attached tank contains a speedometer and tachometer in one. In addition, the color of the backlight can be changed and contains a gear indicator. The meter provides real measurements such as engine temperature, battery voltage, average fuel efficiency and a complete system of metrics to monitor your motorcycle's vital parameters. This PLUG&PLAY set fits exactly with the existing wiring harness and interacts directly with the CANBUS system of your motorcycle.

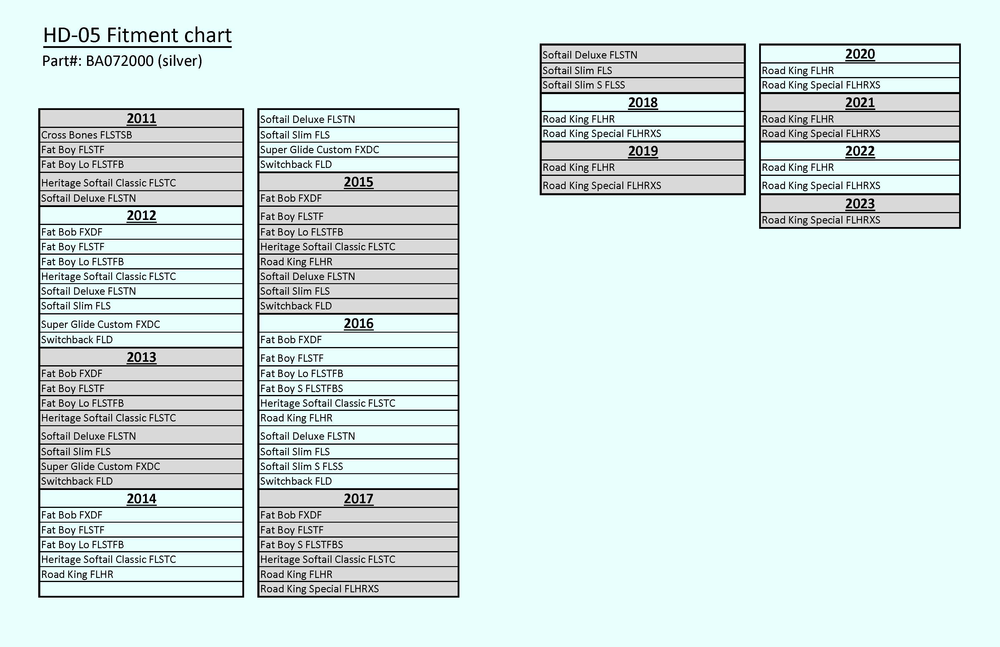

Suitable for:

Dyna models from 2012

Softail models from 2011

Road King models from 2014

Characteristics:

Speed ​​display

Display: 0 ~ 225 MPH (0 ~ 360 km/h)

Display unit: 1 MPH or km/h (adjustable)

Delay: < 0.5 seconds

Odometer

Display: 0 ~ 999.999 miles (km), if this value is exceeded, the speedometer jumps back to 0

Display unit: 1 mile (km)

Trip odometer A/B

Display: 0 ~ 9,999.9 miles (km), if this value is exceeded, the speedometer jumps back to 0

Display unit: 0.1 mile (km)

Wheel circumference

Adjustment range: 50~210%

Setting unit: 1%

Gear indicator

Display indication: Off / N / 1 ~ 6

Tachometer

Display reading: 0 ~ 8,000 RPM

Speed ​​limit light

Adjustment range: 2,000 ~ 8,000 RPM

Warning light flashes as soon as the programmed maximum speed range has been exceeded

Setting unit: 100 RPM

Warning mode when the maximum speed is exceeded

Setting range: • Light on (F/OFF) • Flash (F/ON) Motor temperature

Setting range: 40 ~ 419°F (40 ~ 215°C)

Fuel gauge

Display: 6 filling levels

Tank volume

Setting range: OFF / 1 ~ 9.9 US gallons (approx. 37 liters)

Average consumption

Display: OFF / L/100 km / km/L / MPG (US spec) / MPG (UK spec)

Clock

Setting range: 12 / 24 H format

Voltmeter

Display indication: DC 8~18V

Brightness of the background

Setting range: 1/5 (darkest value) / 5/5 (brightest value)

Background colors

Adjustment range: Red/Orange/Yellow/Green/Blue/Indigo/Purple/White

Maintenance intervals

Setting range: Off / 300 ~ 10,000 miles (500 ~ 16,000 km)

Automatic maintenance reminder according to the set maintenance interval

Setting unit: 100 miles (km)

Fuel reserve

Display reading: 0 ~ 9.999 miles (km)

If the range is less than 10 miles (16 km), the following warning will appear on the display: LO RNG

Indicator lights

Speed ​​warning light

Reserve light

Check engine light

volt

Anti-theft protection

Cruise control

SECTION

Temperature effective range 14 ~ 140°F (10 ~ 60°C)

Required voltage DC 12 V

Tacho standard JIS D 0203 S2

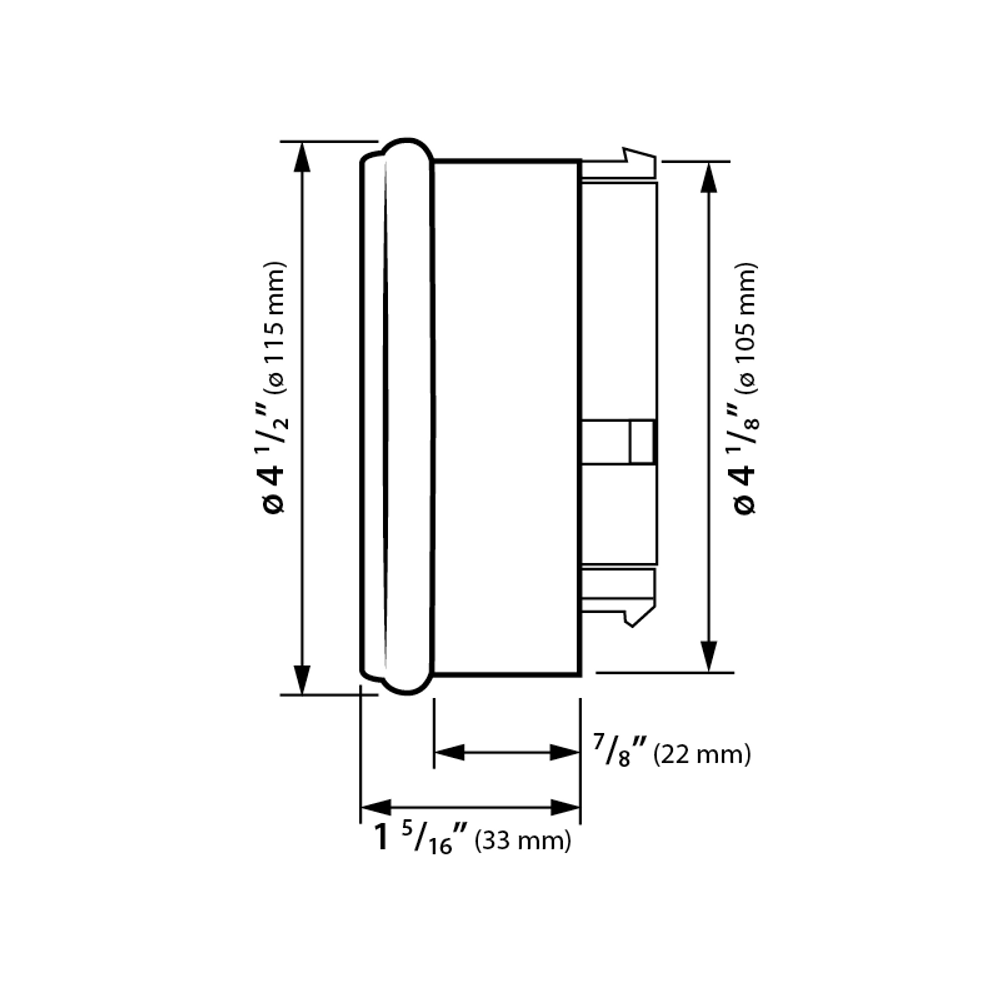

Size (D x W) Ø 45/8 x 13/4” (Ø 117 x 45 mm)

Weight 7.36 oz (208.5 g)
