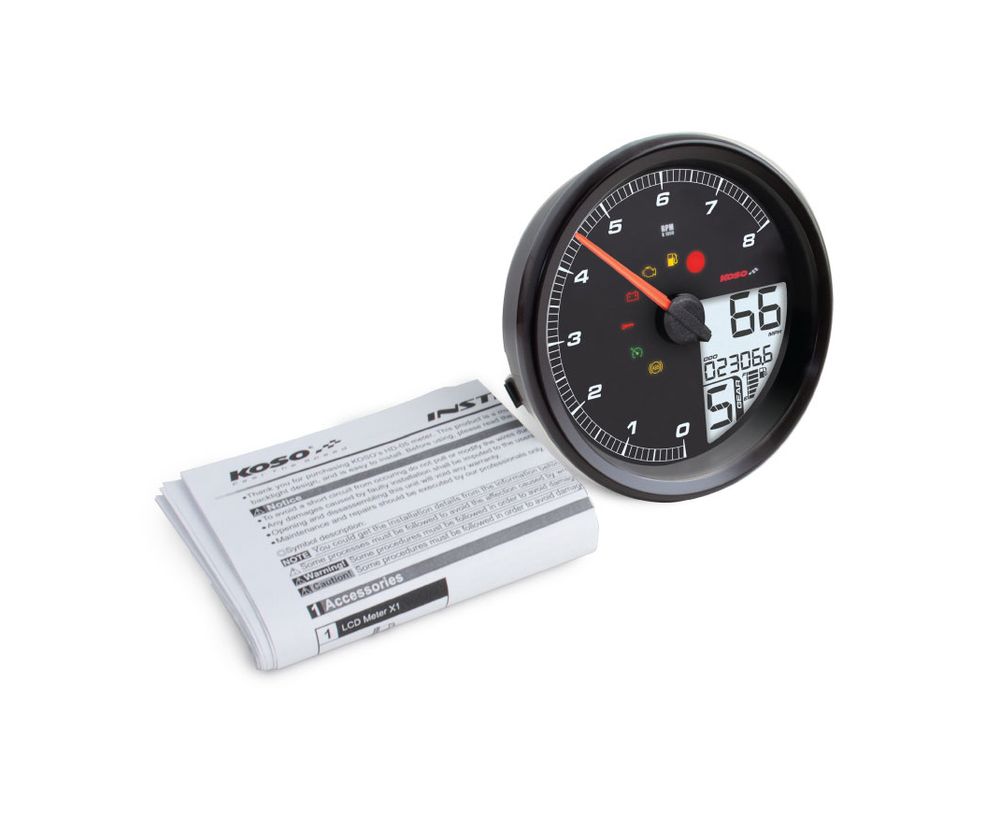

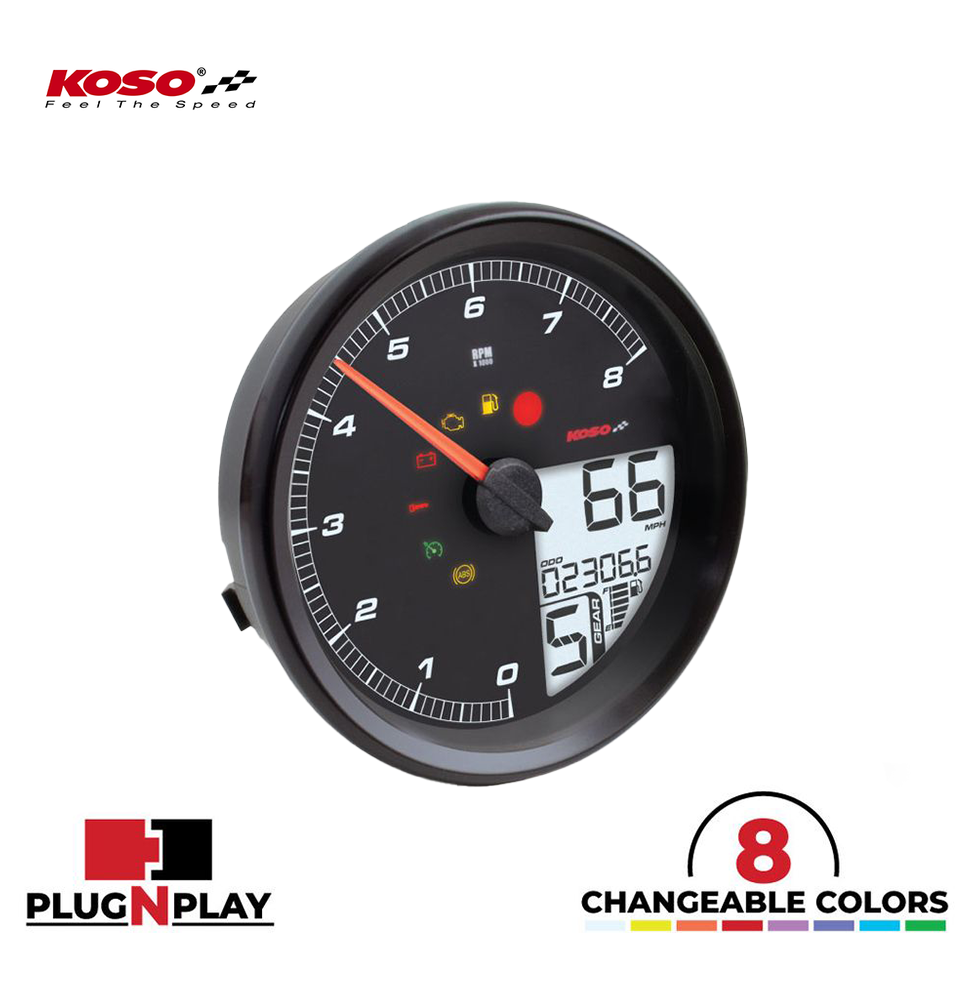

HD-05 Meter for Harley Davidson (2004 - 2013 models) black rim

HD-05 Meter for Harley Davidson (2004 - 2013 models) with black rim

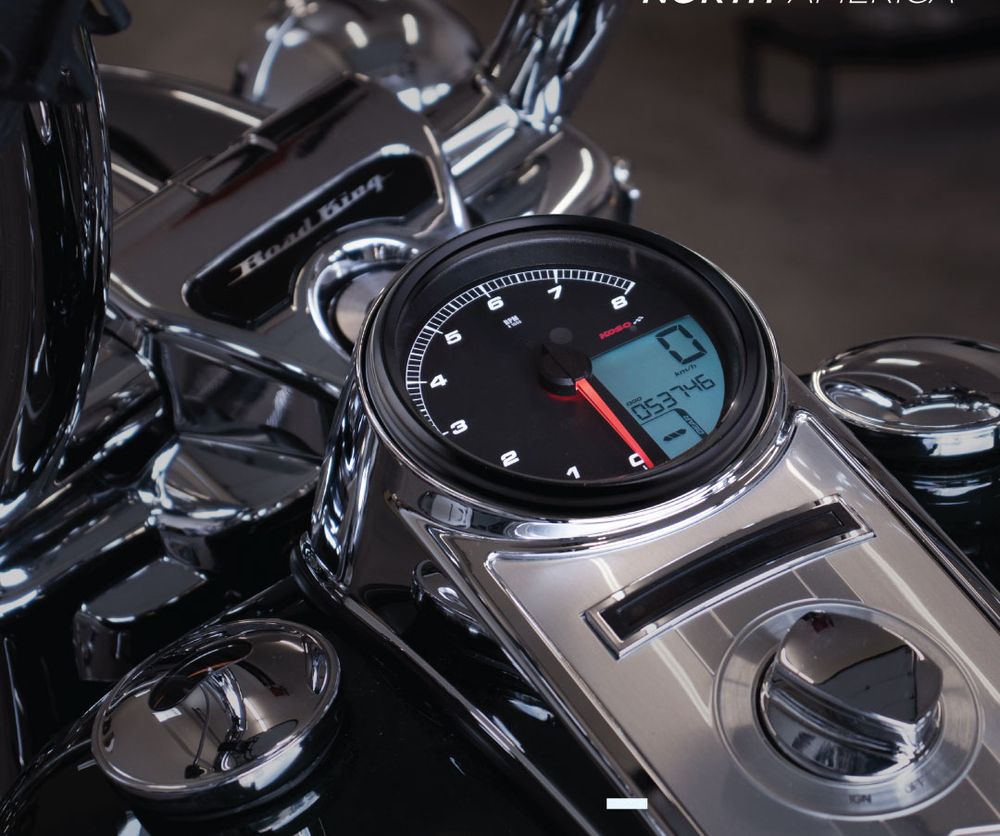

The HD-05 Meter for Harley-Davidson models from 2004 to 2013 is a sophisticated plug-and-play solution that combines a speedometer and tachometer in a single unit. This plug-and-play set fits seamlessly into the existing wiring harness and interacts directly with your motorcycle's CAN bus system. This gauge series is perfect for riders who value precise monitoring of their vehicle data while also appreciating a modern design . It is especially suitable for Harley-Davidson® motorcycles with a top-mounted tank .

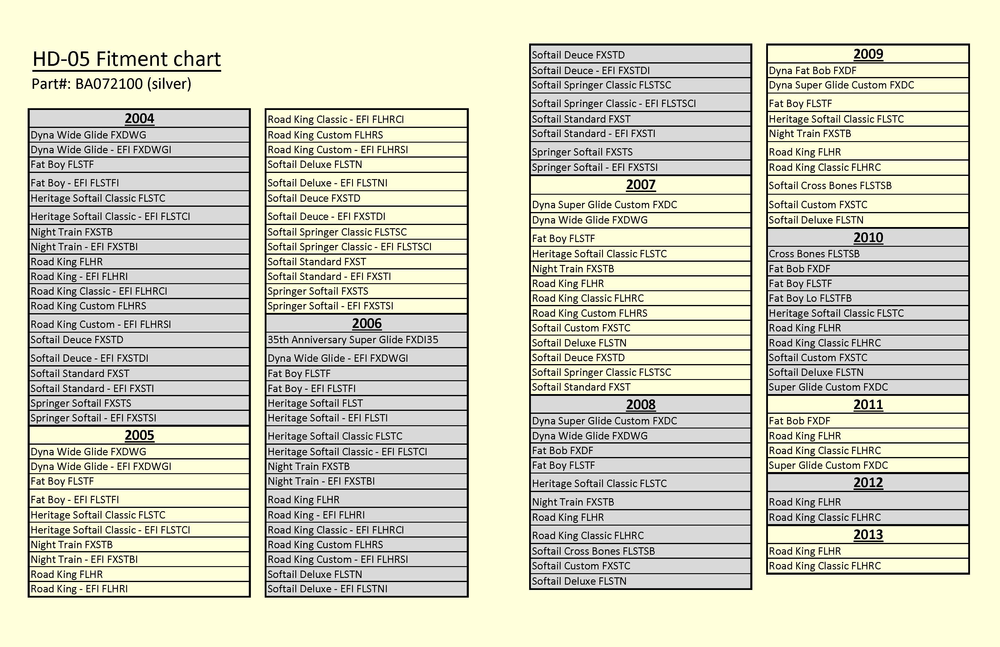

Compatibility:

• Dyna models (2004 - 2011)
• Softail models (2004 - 2010)
• Road King models (2004 - 2013)
• Not compatible with vehicles equipped with traction control .

Features and functions:

Speedometer:

• Range: 0 ~ 225 MPH (0 ~ 360 km/h) (adjustable)
• Unit: 1 MPH or km/h (adjustable)
• Delay: < 0.5 seconds

Odometer:

• Range: 0 ~ 999,999 miles (km), resets to zero when exceeded.
• Unit: 1 mile (km)

Trip odometer A/B:

• Range: 0 ~ 9,999.9 miles (km), resets to zero when exceeded.
• Unit: 0.1 mile (km)

Wheel circumference (adjustable):

• Range: 50 ~ 210%
• Unit: 1%

Gear indicator:

• Display: Off / N / 1 ~ 6

Tachometer:

• Range: 0 ~ 8,000 RPM

rev limiter light:

• Range: 2,000 ~ 8,000 RPM
• The warning light flashes when the set maximum speed range is exceeded.
• Unit: 100 RPM

Warning mode when the maximum engine speed is exceeded:

• Setting range: Light on (F/OFF) / Flash (F/ON)

Engine temperature:

• Temperature range: 40 ~ 419 °F (40 ~ 215 °C)

Fuel gauge:

• Display: 6 fill levels

Tank volume:

• Range: OFF / 1 ~ 9.9 US gallons (approx. 37 liters)

Average consumption:

• Display: OFF / L/100 km / km/L / MPG (US spec) / MPG (UK spec)

Clock:

• Format: 12 / 24 hours

Voltmeter:

• Range: DC 8 ~ 18 V

Background brightness:

• Adjustment range: 1/5 (darkest value) to 5/5 (brightest value)

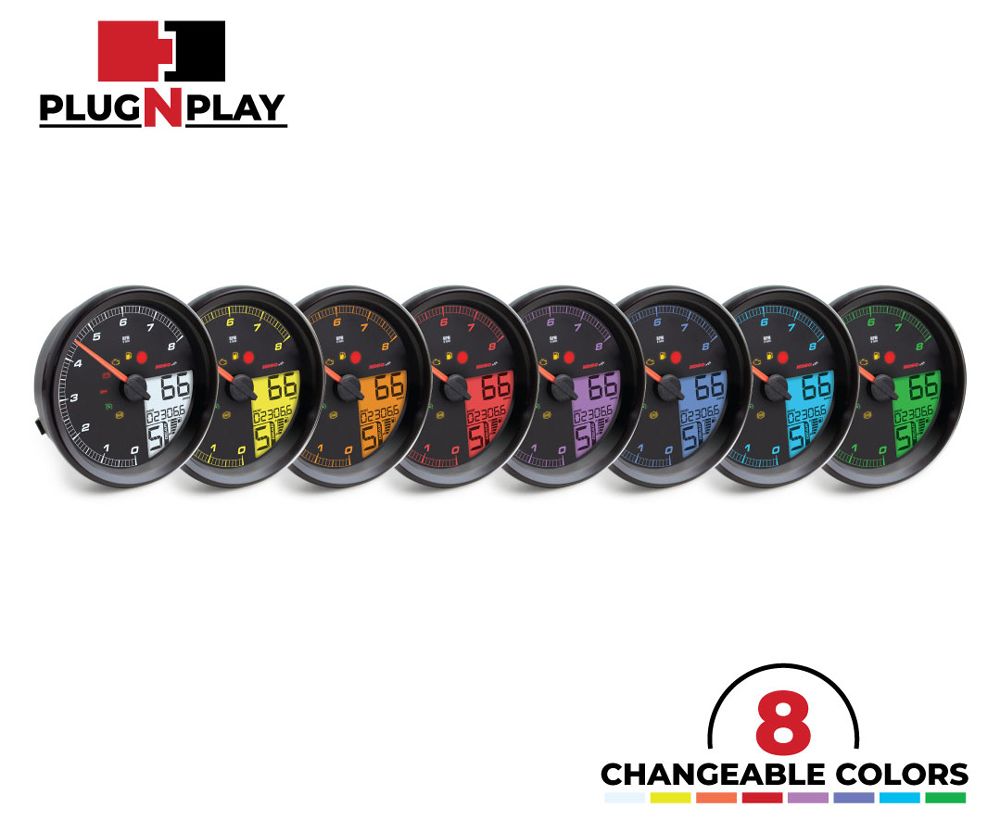

Background colors:

• Adjustable range: Red / Orange / Yellow / Green / Blue / Indigo / Purple / White

Maintenance intervals:

• Setting range: Off / 300 ~ 10,000 miles (500 ~ 16,000 km)
• Automatic maintenance reminder according to the set interval
• Unit: 100 miles (km)

Fuel reserve:

• Display: 0 ~ 9.999 miles (km)
• Warning: If the range is less than 10 miles (16 km), "LO RNG" will appear on the display.

Warning lights:

• RPM warning light
• reserve light
• Engine warning light
• volt
• Anti-theft device
• Cruise control
• ABS

Temperature range:

• Temperature range: 14 ~ 140 °F (10 ~ 60 °C)

Required voltage:

• DC 12 V

Speedometer standard:

• JIS D 0203 S2

Size:

• Diameter x Depth: Ø 45/8 x 13/4” (Ø 117 x 45 mm)

Weight:

• Weight: 7.36 oz (208.5 g)

The HD-05 Meter for Harley-Davidson® motorcycles from 2004-2013 offers a high-quality and user-friendly solution for monitoring essential vehicle data. With interchangeable backlighting , a gear indicator , and practical features such as engine temperature , battery voltage , and average fuel consumption , riders have everything they need to know to operate their motorcycle efficiently and safely. Its simple plug-and-play installation makes it an ideal choice for any Harley owner.
