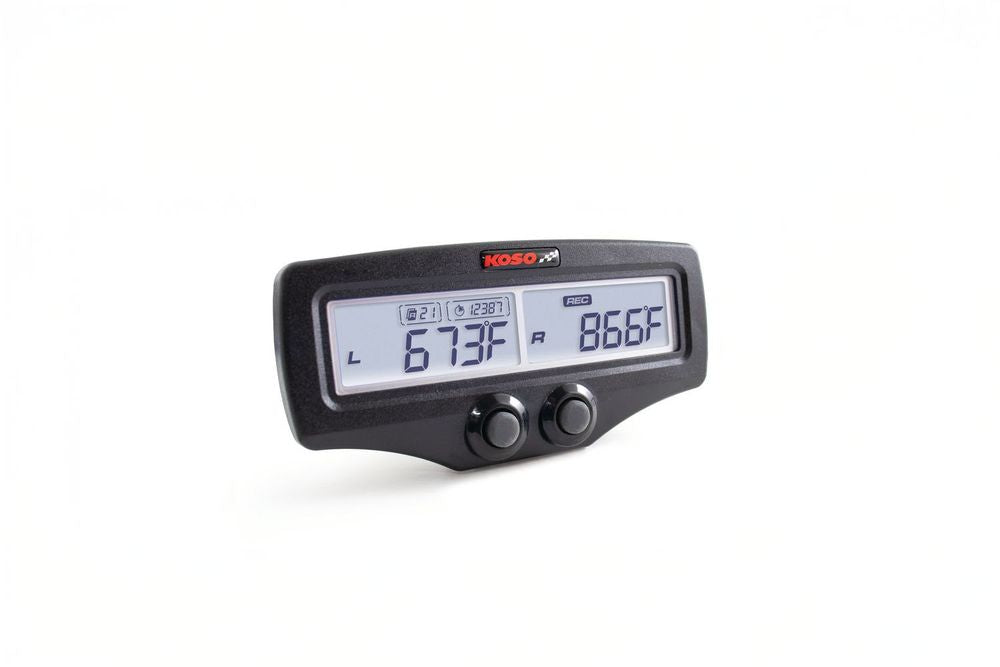

EGT-02 EVO | Dual exhaust gas temperature data logger

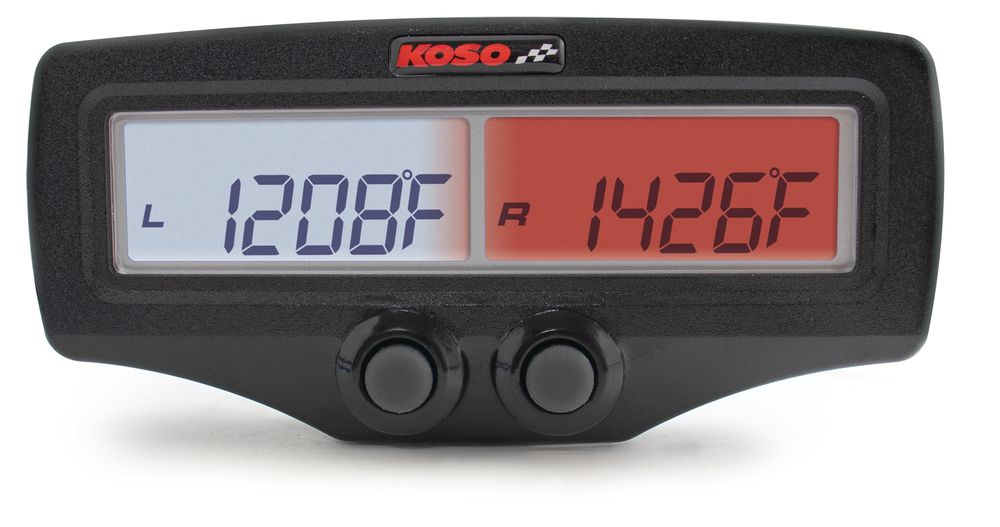

The EGT-02 EVO is an advanced version of Koso 's proven dual exhaust gas temperature gauge. It enables more precise engine tuning, records up to 50 runs , and provides early warnings of potential problems with a maximum temperature warning of up to 2,100 °F (1,200 °C) . Critical conditions are immediately visible thanks to the red flashing screen indicator .

Technical specifications:

1. Digital exhaust gas temperature (EGT) measurement

• Measuring range: 250 ~ 2,100 °F (100 ~ 1,200 °C)
• Display unit: 1 °F or 1 °C (switchable)

2. Warning in case of excessively high exhaust gas temperature

• Setting range: 392 ~ 2,100 °F (200 ~ 1,200 °C)
• Unit: 1 °F (1 °C)

3. Maximum stored exhaust gas temperature

• Measuring range: 250 ~ 2,100 °F (100 ~ 1,200 °C)
• Unit: 1 °F (1 °C)

4. Voltmeter

• Measuring range: DC 0.8 ~ 18 V
• Unit: 0.1 V

5. Voltmeter warning

• Low voltage: DC 8.0 ~ 13.0 V
• High voltage: DC 13.0 ~ 16.0 V

6. Backlight brightness

• Adjustable in 5 levels ( 1/5 = darkest, 5/5 = brightest)

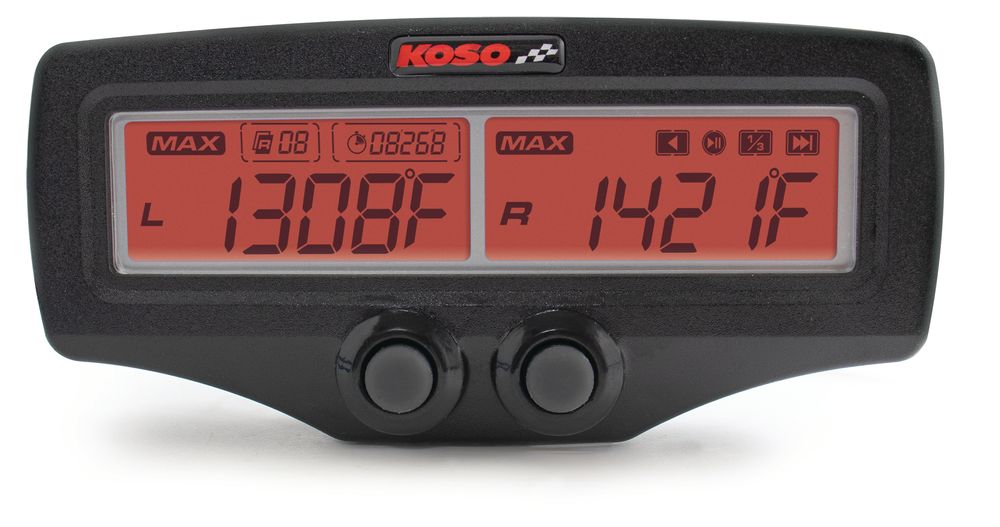

7. Recording & Playback Mode

• Maximum number of recorded trips: 50 runs
• Maximum recording time: 99'59''99 seconds (~3.18 hours)
• Playback speed:
  • 1x Play/Pause
  • 3x Play/Pause
  • 1/3x Play/Pause
  • 1x Return/Pause

8. Temperature ranges

• Maximum temperature range: 250 ~ 2,100 °F (100 ~ 1,200 °C)
• Effective operating temperature range: 14 ~ 140 °F (-10 ~ 60 °C)

9. Voltage & Power Supply

• Effective voltage: AC/DC 12 V

10. Sensors

• Standard temperature sensor: EGT Standard (28-CKTYPE9)
• Fast response sensor: EGT Fast Response (28-CKTYPEX)

Advantages & Features of the EGT-02 EVO:

• Early warning of overheating: Protects the engine from damage caused by excessively high temperatures.
• Up to 50 saved rides: Ideal for race analysis or long-term monitoring.
• Customizable warning systems: Individual settings for speed and voltage.
• Red flashing indicator: Clearly visible alarm indicator for critical values.
• Precise voltage measurement: Warns of excessively low or high battery voltage.
• Backlight in 5 levels: Clear display in all lighting conditions.
• Compatible with 12V systems: Perfect for motorcycles, ATVs or racing vehicles.

The Koso EGT-02 EVO is a state-of-the-art exhaust gas temperature gauge with data logger that monitors not only temperature but also voltage and stores data for up to 50 trips . With customizable alerts, detailed temperature measurement , and a user-friendly playback function , it's a powerful tool for optimizing engine performance and preventing damage . Ideal for motorsport, tuning, or professional applications!

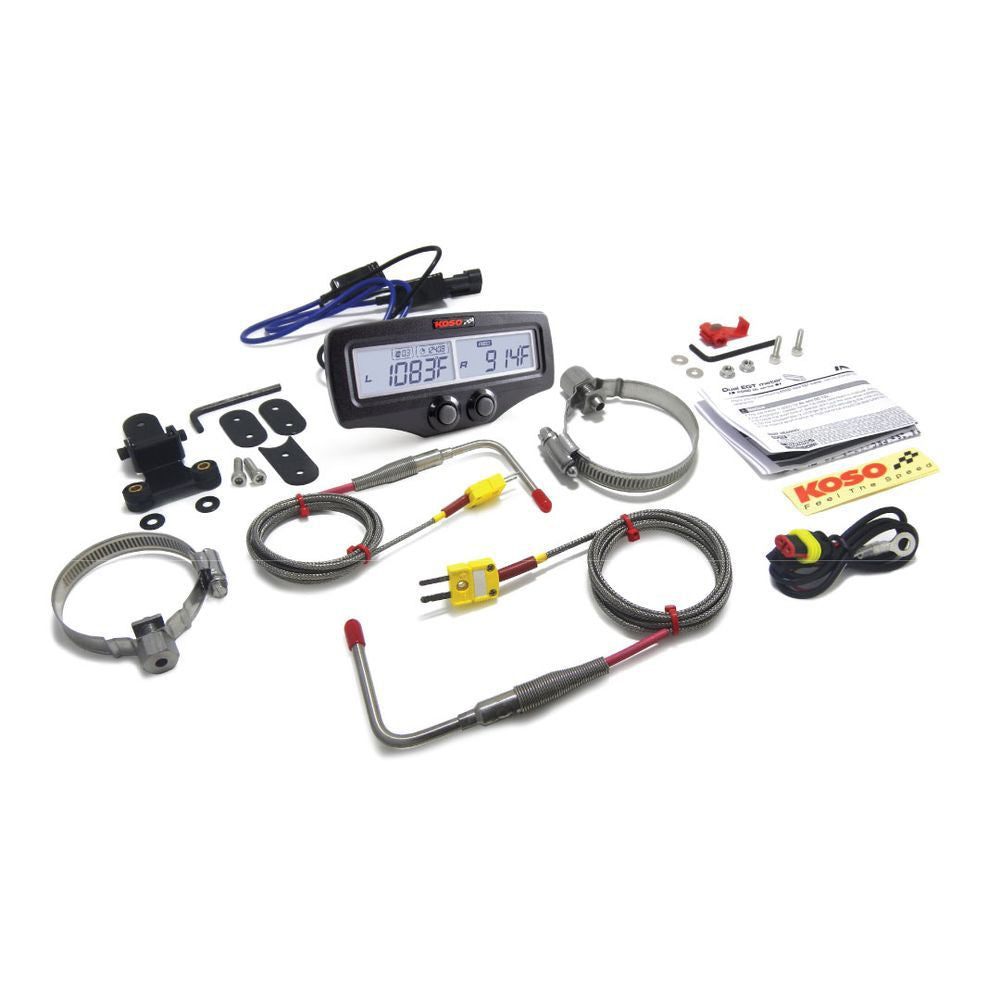

Table of contents:

• LCD measuring device – 1×

• Power cable – 1×

• Exhaust clamp – 2×

• EGT temperature sensor – 2×

• Intermediate connector – 1×

• Mounting bracket for measuring device – 1×

• Rubber (A) – 1×

• Rubber (B) – 1×

• Steel plate – 1×

• M4 × 14L screw – 2×

• M5 × 18L screw – 2×

• M4 washer (A) – 2×

• M5 washer (B) – 2×

• M4 × P0.8 nut – 2×

• Allen key M3 – 1×

• Allen key M4 – 1×
