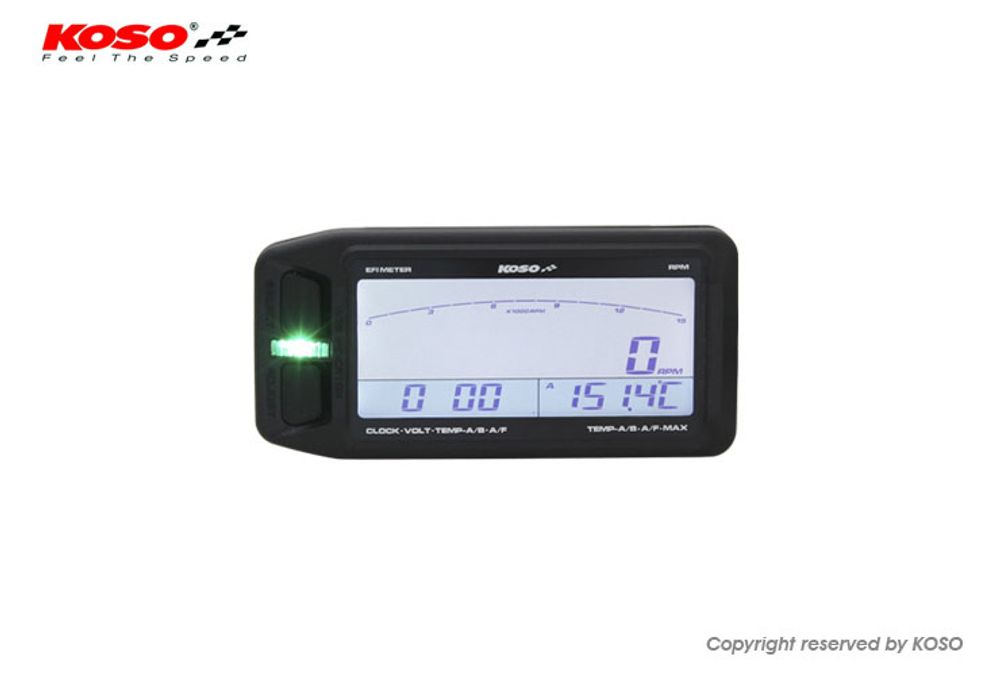

At customers' request, we developed this useful EFi meter, which has 2 temperature values and an optional air/fuel ratio function. This instrument has large numbers and a new display that makes it very easy to read all the displays even at high speed. The adjustable scale 10000, 15000 or 20000 RPM allows this gauge to be adapted to almost any type of engine. In addition to its RPM and 2 temperature measurements, this meter also features a voltmeter and a clock. There is a programmable shift light and temperature warning lights to help you monitor your engine .
Optionally you can connect an O2 sensor, which helps with adjusting the engine. To do this you have to forego a temperature range!
Optional: o2 sensor and connection cable! order separately.
Tool!
Digital speedometer
| Display range: 0~20000RPM Display unit: 100 RPM |
|
| Speedometer - level (60 segment bargraph) |
Display range: 0 ~ 000 10/15 000/20 000 RPM Display range: 0 ~ 10,000 RPM Display range: 0 ~ 15,000 RPM Display range: 0 ~ 20,000 RPM |
| Display internal | <0.5 seconds |
| Shift light | Setting range: 5,000 ~ 20,000 RPM Setting unit: 100 RPM |
| MAX RPM record | Display range: 0 ~ 10,000 / 15,000 / 20,000 RPM |
| Stroke/piston adjustment (for RPM) |
2 - stroke: 1, 2, 3, 4, 6 pistons Stop 4: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons |
| Thermometer A/B | Display range: 0~250ºC or 32~482ºF Display unit: 0.1°C or °F, °C & °F for alternative |
| Display internal | <0.5 seconds |
| Temperature alarm | Setting range: 60~250ºC or 140~482ºF Setting unit: 1°C or °F |
| Top temperature recording | Display range: 0~250ºC or 32~482ºF |
| A/F ratio | Display range: 12.1~16.8 Display unit: 0.1 |
| Voltmeter | Display range: DC 8 ~ 18.0V Display unit: DC 0.1V |
| Clock | 24 hours |
| On-board voltage | DC 12V |
| Battery type (LCD display) |
CR2032 |
| Effective temperature range | -10~60°C (14~140°F) |
| Meter standard | JIS D 0203 S2 |
| Meter size (WxLxH) | 87.5 x 42 x 20.8mm |
| meter weight | ±72g |
| Colors |
|
