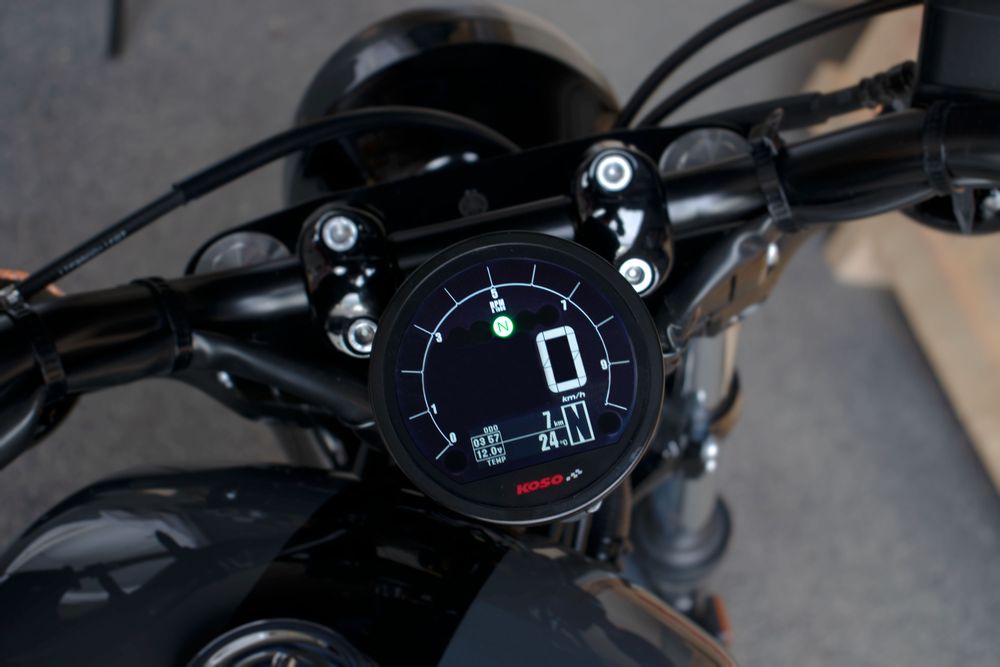

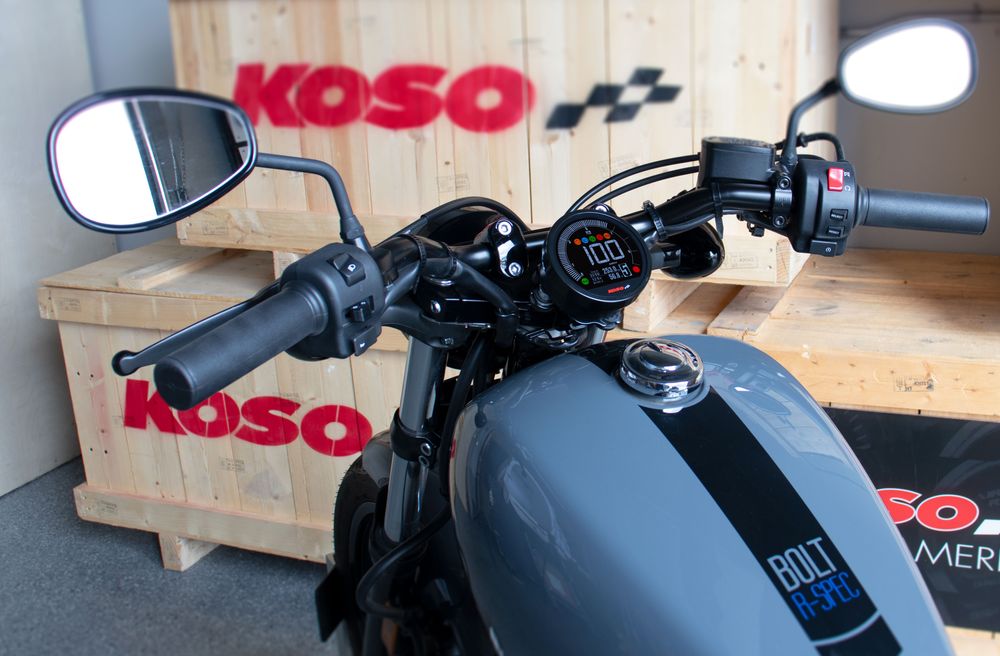

DL-04 suitable for Yamaha Bolt

DL-04 compatible with Yamaha® Bolt

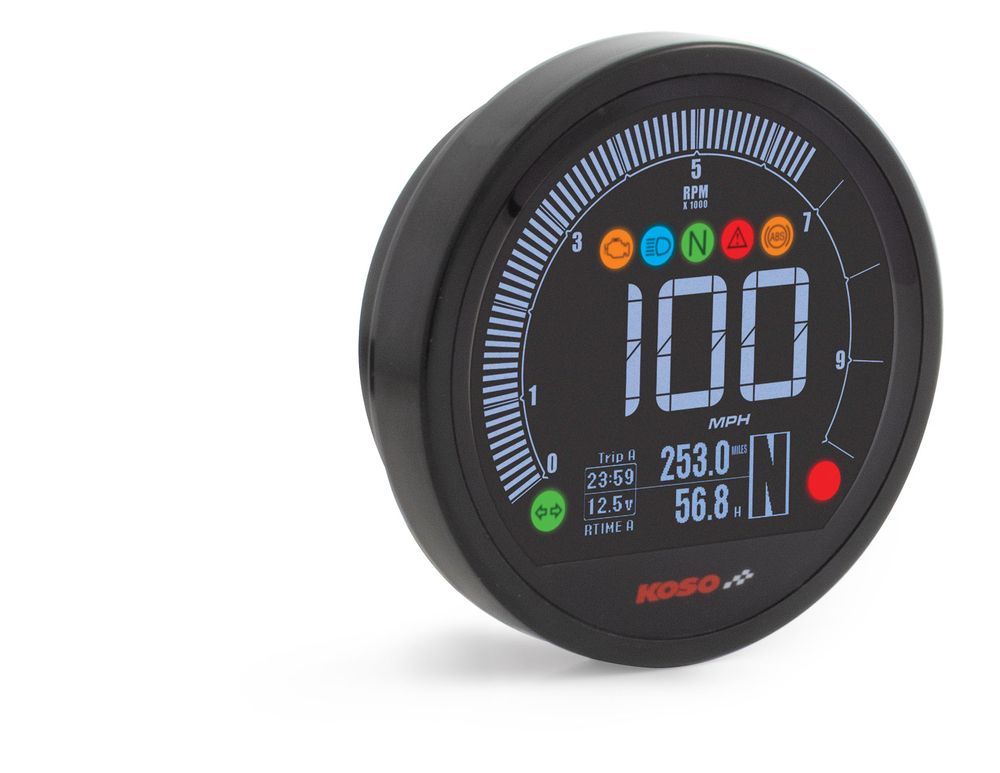

Specifications

speedometer

• Display range: 0 ~ 225 MPH (0 ~ 360 km/h)

• Unit: 1 MPH or 1 km/h (switchable)

• Speed ​​warning setting: 0 ~ 225 MPH (0 ~ 360 km/h) – Display flashes, warning signal illuminates

• Maximum speed recording: 0 ~ 225 MPH (0 ~ 360 km/h), manually resettable

odometer

• Range: 0 ~ 99,999 miles (km)

• Unit: 1 mile (km)

Trip odometer A/B

• Range: 0 ~ 9,999.9 miles (km)

• Manual reset possible

• Unit: 0.1 miles (km)

Engine oil maintenance (Trip O)

• Range: OFF, -999 ~ 16,000 km (-999 ~ 10,000 miles)

• Manually resettable

Engine oil maintenance warning

• Range: OFF, 500 ~ 16,000 km (300 ~ 10,000 miles)

• Display flashes, warning signal illuminates

Trip odometer F

• Range: 0 ~ 9,999.9 miles (km)

• Manual reset possible

• Unit: 0.1 miles (km)

Percentage of tires

• Range: 50 ~ 200 %

• Unit: 1%

Gear indicator

• Range: N, 1 ~ 5

• Max. gear recording: N, 1 ~ 5, manually resettable

Tachometer

• Range: 0 ~ 10,000 rpm

• Unit: 1,000 rpm (large grid) / 111 rpm (small grid)

• Shift light warning: 1,000 ~ 10,000 rpm, warning signal illuminates

• Maximum speed recording: 0 ~ 10,000 rpm, manually resettable

temperature

• Temperature range: -22 ~ 437 °F (-30 ~ 225 °C)

• Unit: 1°C (1°F)

• Overheating warning: 140 ~ 437 °F (60 ~ 225 °C), display flashes, warning light illuminates

• Maximum temperature recording: -22 ~ 437 °F (-30 ~ 225 °C), manually resettable

fuel meter

• Settings: ON, OFF, warning for unusual value

Clock

• Format: 12H or 24H

Voltage meter

• Range: DC 8.0 ~ 18.0 V

• Unit: 0.1 V

• Low voltage warning: 8.0 V ~ 13 V, display flickers after >5 s, warning signal illuminates

Backlight

• Setting range: 1-5 (brightest level)

• Unit: 1/5 (20%)

Units

• Speed: km/h or MPH

• Temperature: °C or °F

Operating conditions

• Operating voltage: DC 12V

• Operating temperature: -10 ~ +60 °C

• Storage temperature: -20 ~ +80 °C

• Standard: JIS D 0203 (S2)

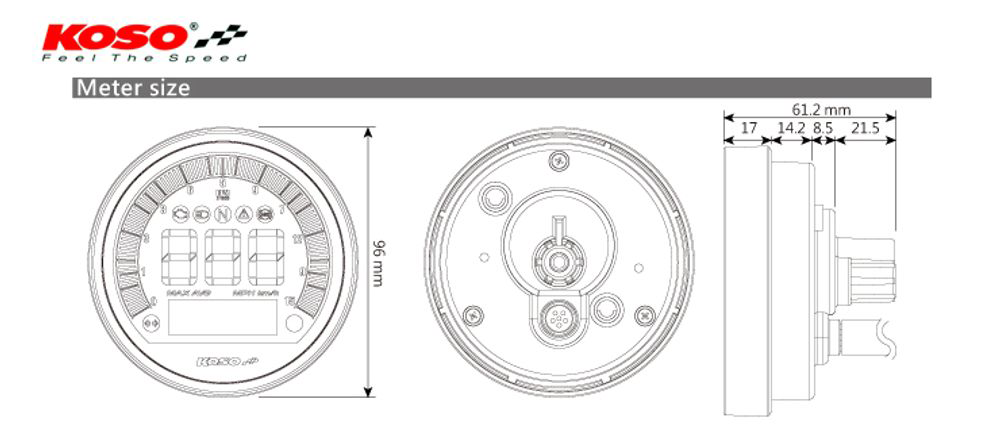

Dimensions & Weight

• Diameter: 96 mm

• Weight: approx. 184 g

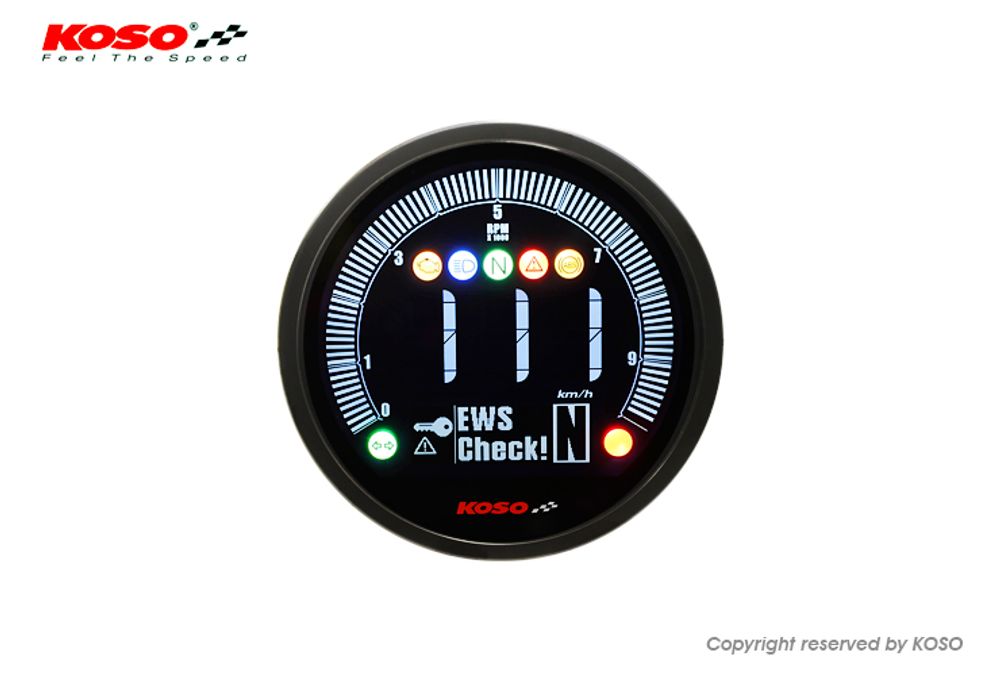

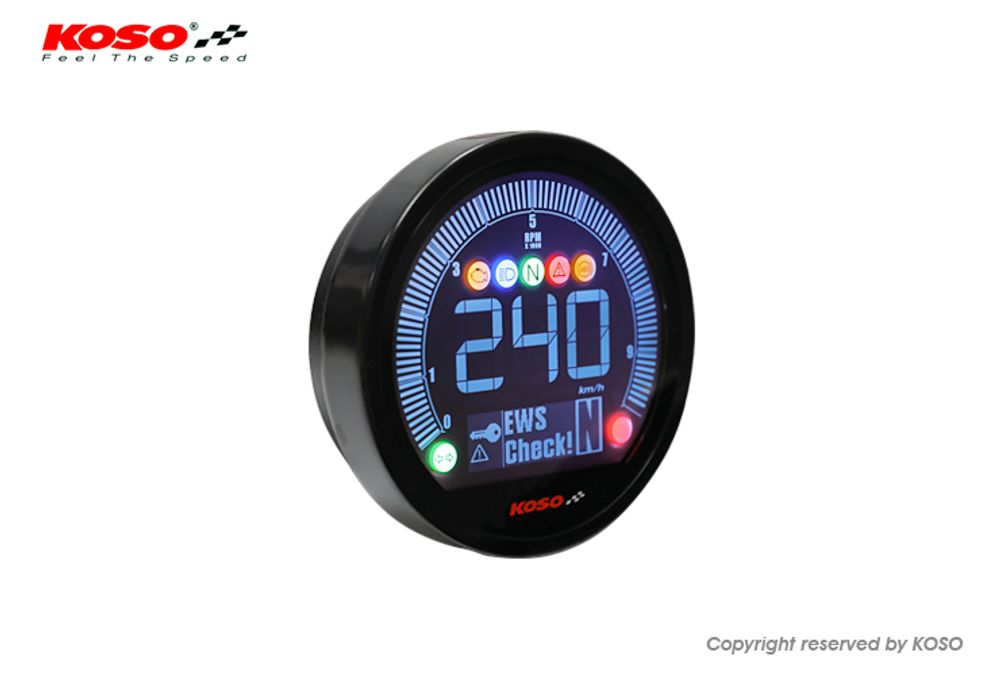

Indicator lights

• Check engine (amber-colored)

• High beam (blue)

• Neutral (green)

• Warning (red)

• ABS (amber-colored)

• Turn signal (green)

• Anti-theft (red)

Table of contents:

• LCD display – 1×

• Socket – 1×

• Washer M5 – 3×

• Screw M5×20L – 1×

• Screw M5×12L – 2×

Note: Yamaha® is a registered trademark of Yamaha Corporation.
