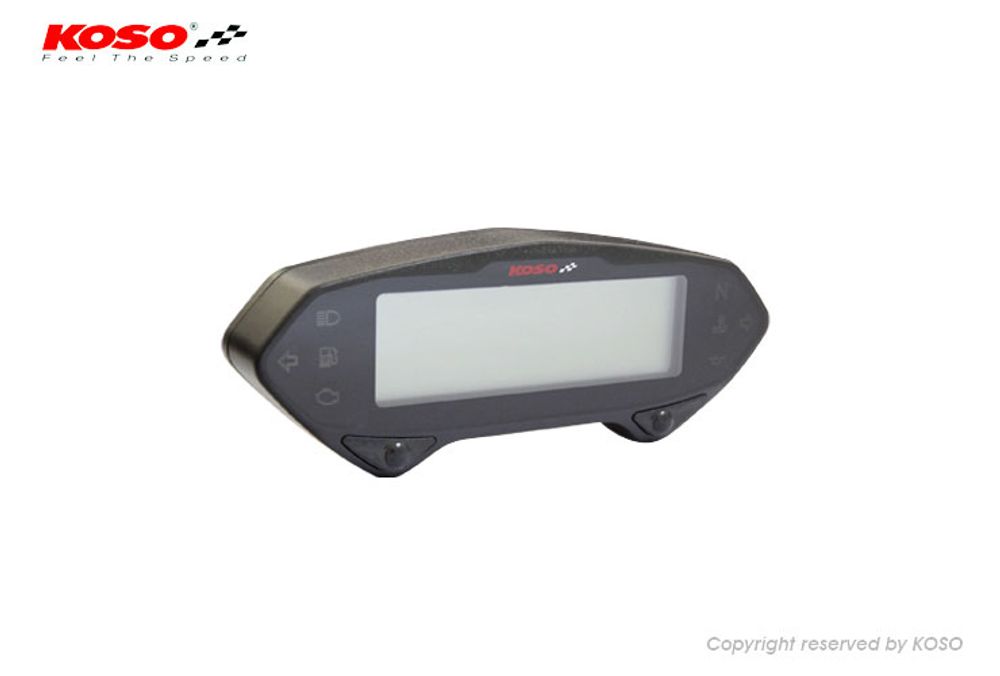

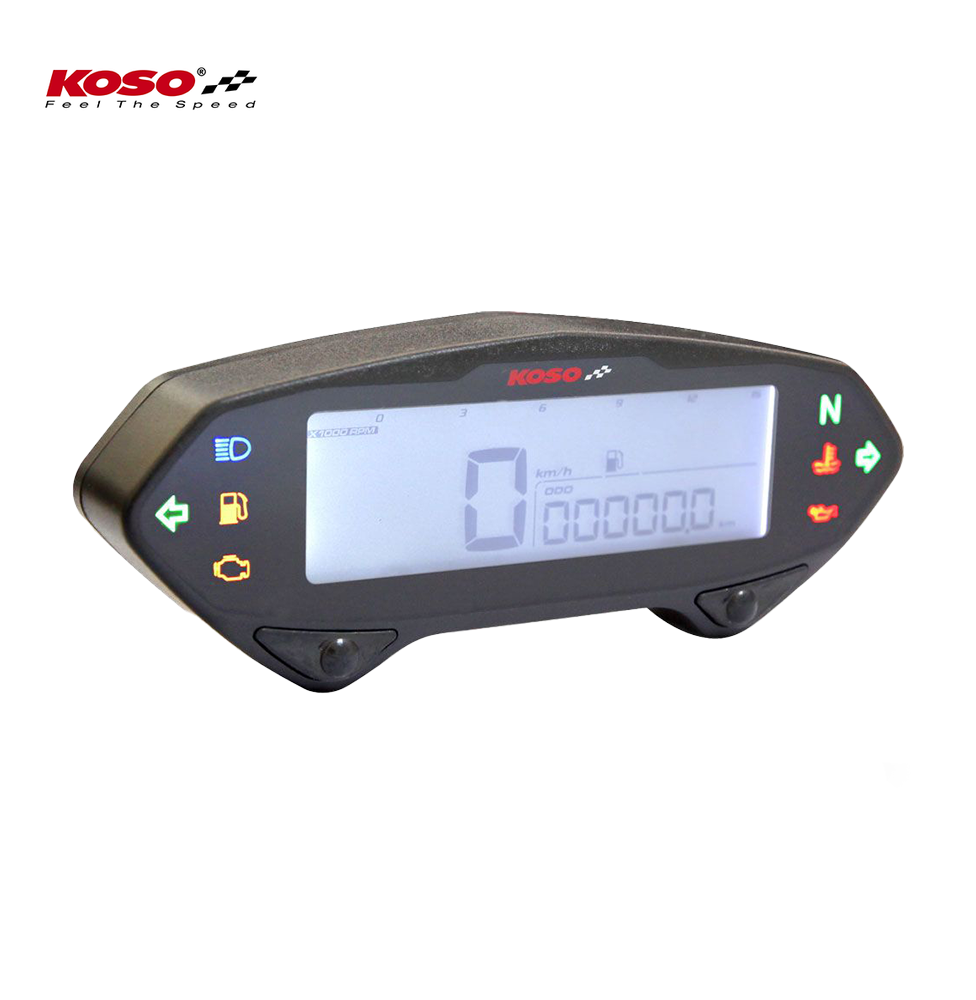

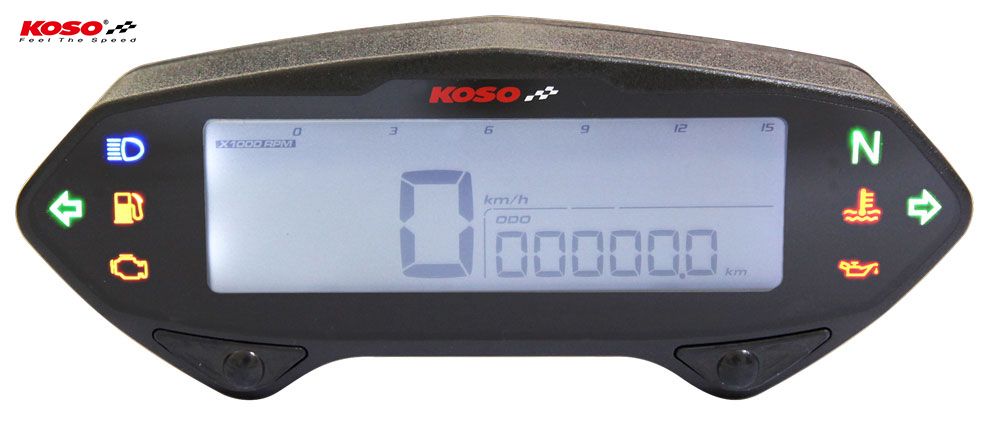

DB01RN speedometer with tachometer, with E-mark with ABE

Koso DB-01RN Speedometer – Modern and versatile for off-road & motorcycles

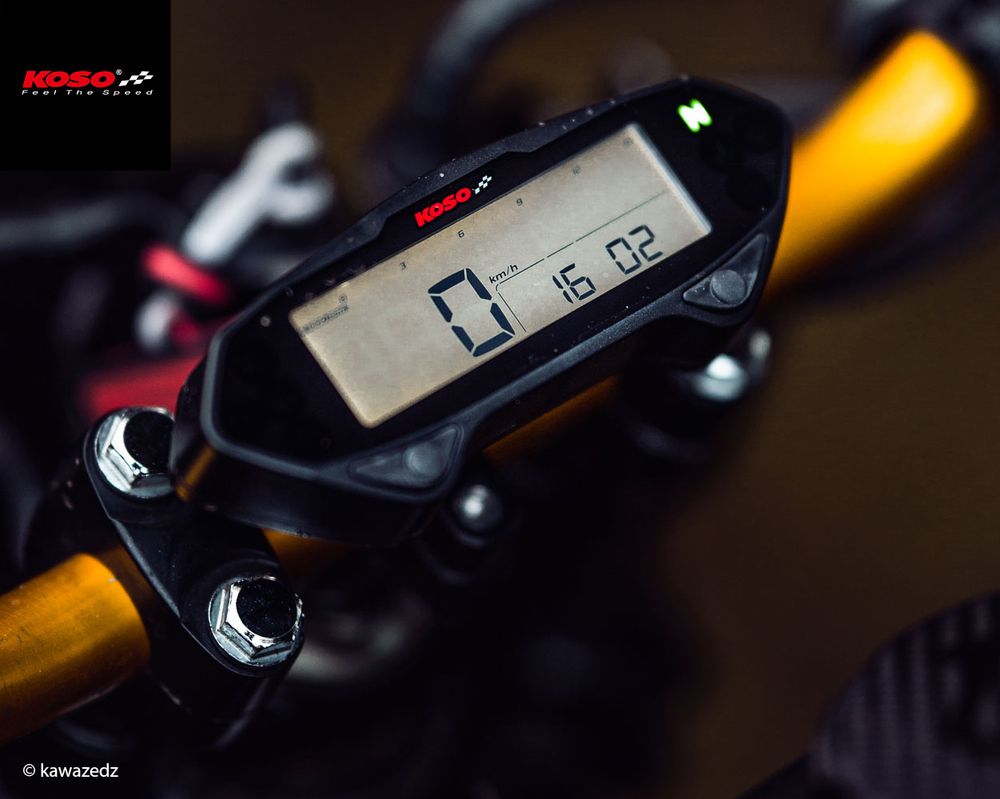

The Koso DB-01RN speedometer is the improved version of the successful DB-01R and DB-01R+ series. With a modern, compact design and a clear, easy-to-read display, this speedometer provides excellent visibility of all essential riding data, ideal for off-road enthusiasts and all types of motorcycles and ATVs. The unit is E-marked and specifically designed as a handlebar-mounted speedometer , making it perfectly suited for off-road use.

Technical Features & Functions

Speedometer & Speed

• Display range: 0 - 360 km/h (0 - 225 MPH)
• Trip Meter A/B: 0.0 - 999.9 km (miles), resets automatically after 999.9 km (miles)
• Odometer: 00000.0 - 99999.9 km (miles), reset after 99999.9 km (miles)
• Top speed recording: 30 - 360 km/h (19 - 225 MPH)

Tachometer

• Display range: 0 - 15,000 rpm
• Display unit: 10 rpm
• Speed ​​range:
  • 0 - 10,000 rpm
  • 0 - 12,000 rpm
  • 0 - 15,000 rpm

Tire circumference adjustment

• Adjustment range: 300 - 2,500 mm
• Sensor points: 1 - 20

Voltmeter

• Adjustment range: DC 8.0V - 16.0V

Level indicator

• Setting range: 100 ohm, 250 ohm, 270 ohm, 510 ohm, 1200 ohm, user
• Level indicator in level 10: Level 10
• Warning settings: The symbol flashes when the fuel level falls below the set value.
  • Warning setting range: 10% - 50% (depending on fuel level)
  • Backlight: White, 5-level dimmable

Operating timer

• Total operating time: 0.0 - 99,999.9 h (Unit: 0.1 h)
• Operating time A/B: 0.0 - 9,999.9 h (Unit: 0.1 h)

Oil change interval

• Adjustment range: 8000 - 900 km
• Odometer: Automatically counts down as the mileage increases. From 0 km, the light flashes and counts down to -999 km.
• Unit: Metric and Imperial

Clock

• Format: Setting range 12h / 24h
• Time setting: 0:00 - 23:59 (24h) or 1:00 - 12:59 (AM/PM, 12h)

Dimensions & Design

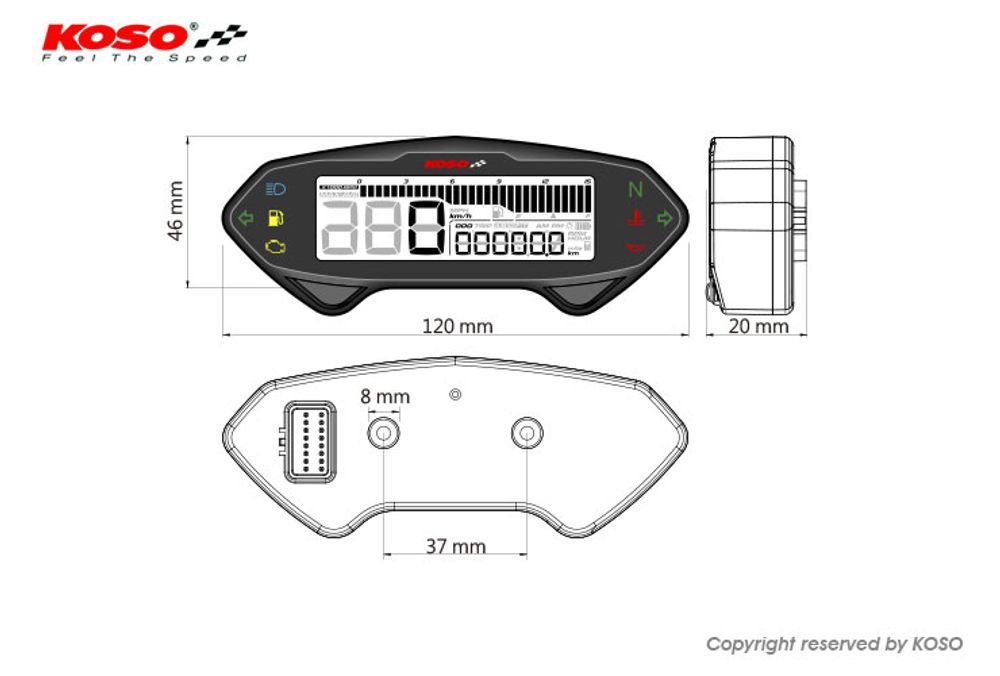

• Dimensions: 120mm x 20mm x 50mm (W x D x H)
• Design: Compact, modern and lightweight, specifically for off-road and motorcycles

Additional features

• Active sensor: The speedometer comes with an active sensor, so no magnetic installation is necessary.
• E-approved: The device meets European approval requirements and is approved for use in road traffic.

The Koso DB-01RN speedometer is the perfect companion for off-road adventures and sporty motorcycle rides. With a clear, easy-to-read display and numerous functions, such as a top speed recorder , tachometer , and fuel gauge , this device is a true all-rounder for motorcyclists and ATV enthusiasts. Furthermore, its E-mark certification makes it suitable for road use, making the DB-01RN an excellent choice for any vehicle.

Table of contents:

• Measuring device – 1×

• Main wiring harness – 1×

• Speed ​​cable (Type A) – 1×

• Speed ​​cable (Type B) – 1×

• Active speed sensor – 1×

• Mounting bracket for speed sensor M8 / S-type – 1×

• Mounting bracket for speed sensor M10 / S-type – 1×

• Hex bolt M5 × 5L mm – 2×

• 4 mm hex key – 1×

• 3 mm hex key – 1×

• 2 mm hex key – 1×

• Screw M5 × 12L – 2×

• Screw M4 × 10L – 2×

• Washer M4 – 2×

• Measuring device holder – 1×
