DB-03 racing cockpit, speed, rpm, ABE, with gear indicator

KOSO DB-03R Racing Cockpit Speedometer with Gear Indicator – Perfect Control for Street Motorcycles

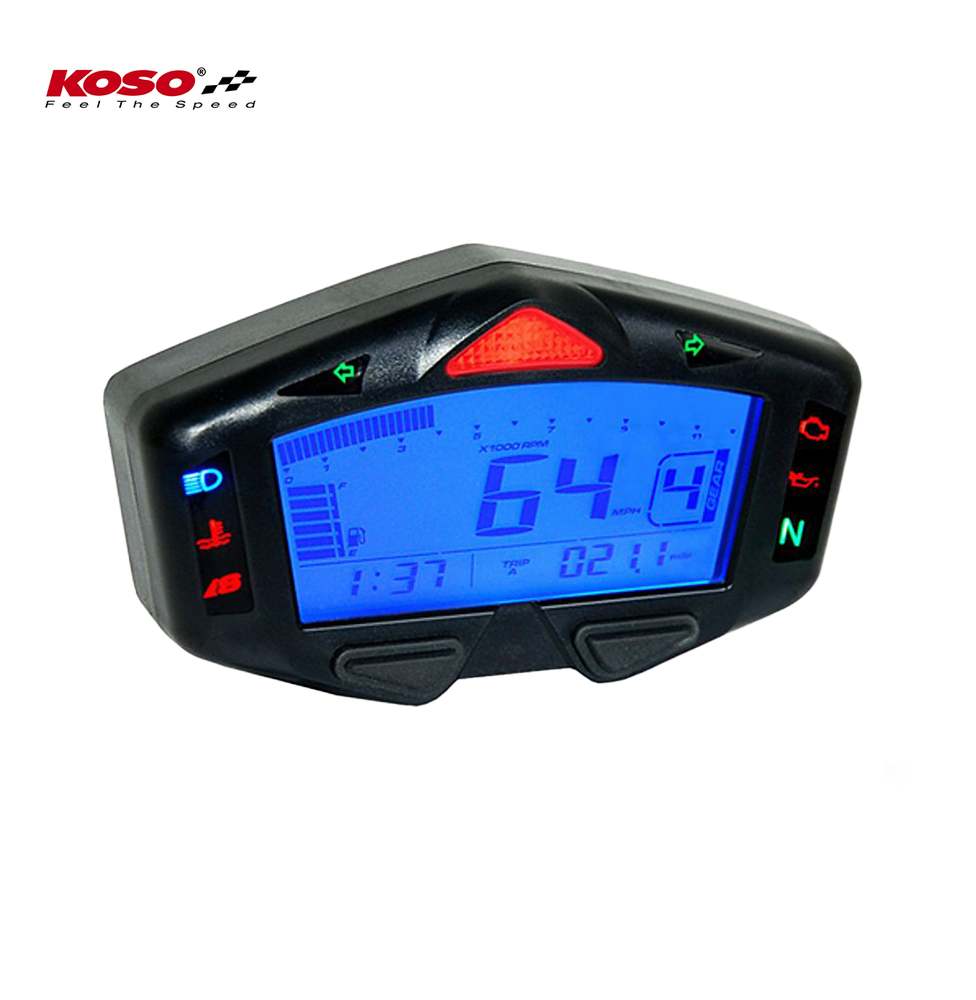

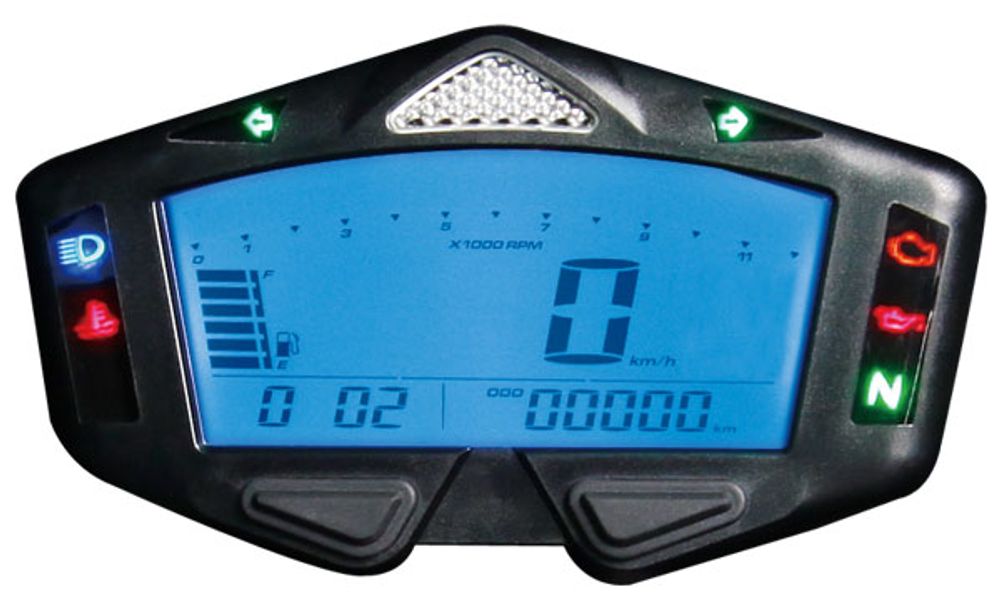

The KOSO DB-03R speedometer is the ideal instrument for street motorcycles, offering clear readability day and night thanks to its blue backlight . It combines precise measurements with practical features such as an integrated gear indicator and shift light , allowing the rider to shift into the right gear at the right moment. It is particularly suitable for road use , where speed, RPM, temperature, and more need to be monitored.

Key features of the KOSO DB-03R speedometer

Speedometer and odometer

• Speed: 0 - 360 km/h (0 - 225 MPH)
  • Unit: km/h or MPH
  • Reaction time: < 0.5 seconds
• Odometer: 0 - 99,999 km (miles)
  • Automatic reset after 99,999 km (miles)
  • Unit: 100 m
• Trip odometer: 0 - 999.9 km (miles)
  • Automatic reset after 999.9 km (miles)
  • Unit: 0.1 km (mile)

Tachometer

• Speed ​​range: 0 - 10,000 / 0 - 12,000 / 0 - 15,000 rpm
  • Unit: 10,000 rpm - each level corresponds to 166 rpm (10,000 rpm), 200 rpm (12,000 rpm), 250 rpm (15,000 rpm)
• Maximum speed input: 0 - 10,000 / 12,000 / 15,000 rpm
• Shift light: Adjustment range: 1,000 - 15,000 rpm
  • Warning light flashes when the limit is exceeded.
  • Input signal: 0.5 to 6 pulses
  • Input: HI (CDI), Lo (Contact)

thermometer

• Water temperature range: 0.0 - 250.0°C (32.0 - 482.0°F)
  • Unit: 0.1°C (°F)
• Temperature warning: 60 - 250°C (140 - 482°F)
  • Maximum temperature: 0 - 250°C (32 - 482°F)

Fuel level

• Display area: 6 levels
  • Each level corresponds to 16.6% fuel level

Additional functions

• Clock: 24-hour format
• Voltage meter: DC 8 - 18 V
  • Warning at voltage below 11.5 V or above 15.5 V

Backlight and brightness

• Adjustable brightness: 1-5 (dark to bright)
• Backlight colors: Blue, Orange, Light Purple

Sensors

• Speed ​​sensor: Passive sensor (BF019005)
• Gear indicator: N, 1, 2, 3, 4, 5, 6, 7, 8, 9 (Automatic gear indicator)

Warning lights

• Neutral: Green
• High beam: Blue
• Turn signal: Green
• Engine warning light: Amber
• Oil lamp: Red
• Temperature warning light: Red
• Shift light: Red, Yellow

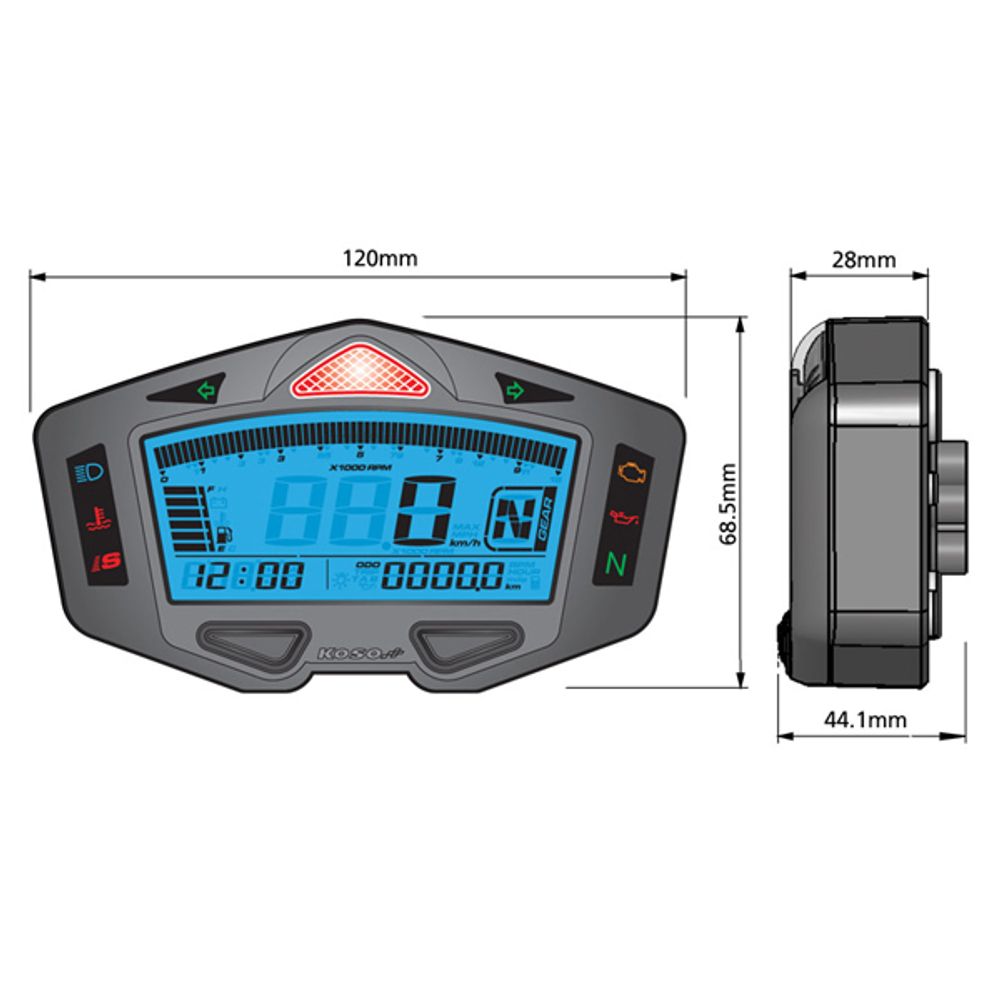

Dimensions and weight

• Dimensions: 120 x 68.5 x 44.1 mm
• Weight: Approx. 127.3 g

Operating parameters

• Effective voltage: DC 12V
• Operating temperature: -10°C to +60°C (14°F - 140°F)
• Standard: JIS D 0203 S2

The KOSO DB-03R Racing Cockpit speedometer is a comprehensive solution for street motorcycles, offering a wide range of functions to assist the rider both on the road and during vehicle maintenance. With its integrated gear indicator , shift light , and precise measurements of speed , RPM , temperature , and fuel level , this instrument is an essential tool for any motorcyclist who wants to maintain complete control on the road.

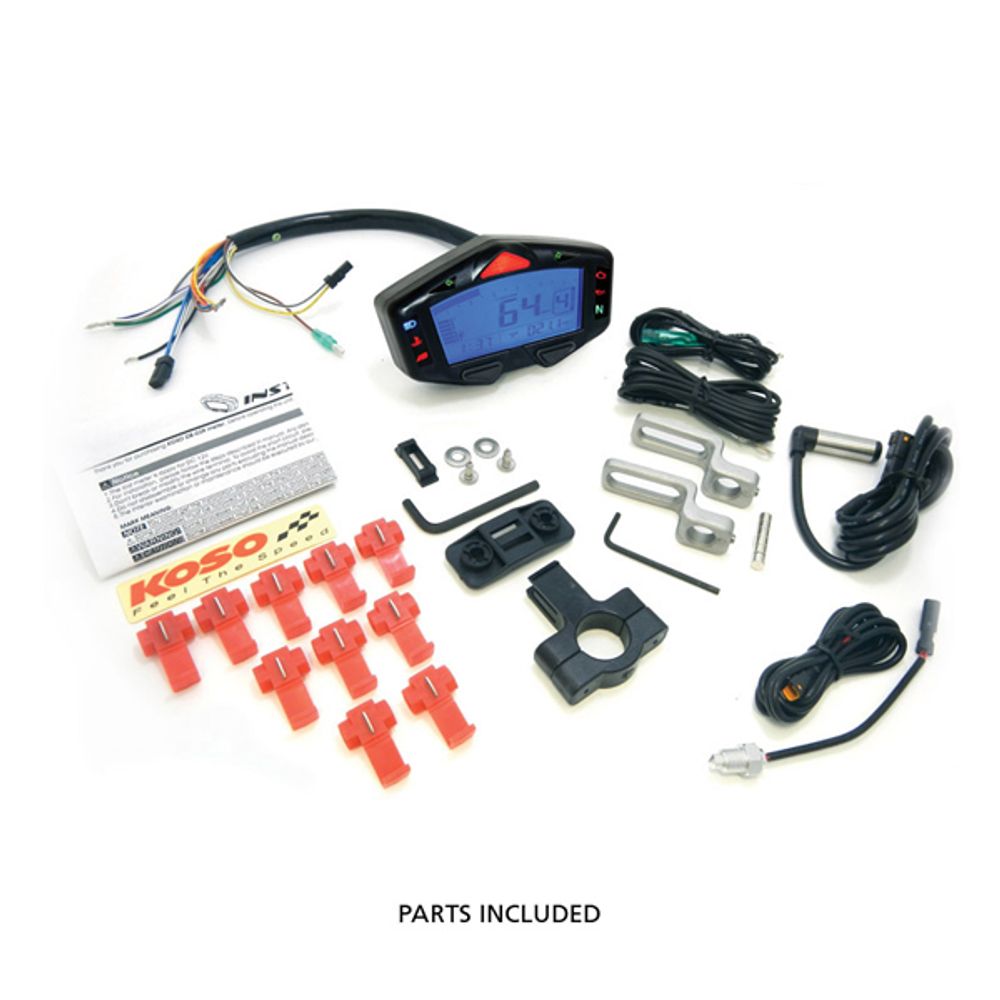

Table of contents:

• LCD – 1×

• Wiring harness – 1×

• RPM CABLE (TYPE A) – 1×

• RPM WIRE (TYPE B) – 1×

• Temperature sensor cable set – 1×

• 6PT 1/8 Water Temperature Sensor – 1×

• Speed ​​sensor – 1×

• D6 × 5L mm Magnet – 6×

• Mounting bracket for speed sensor type M8 / S – 1×

• Mounting bracket for speed sensor type M10 / S – 1×

• M5 × 5L Hex bolt – 2×

• 12.5 mm Allen key – 1×

• 4 mm Allen key – 1×

• Meter holder – 1×

• M5 sealing ring – 2×

• M4 × 10L screw – 2×

• Middle connection – 10×

• M5 × 12L screw – 2×

• Bracket – 1×
