DB-02R 12V version ABE

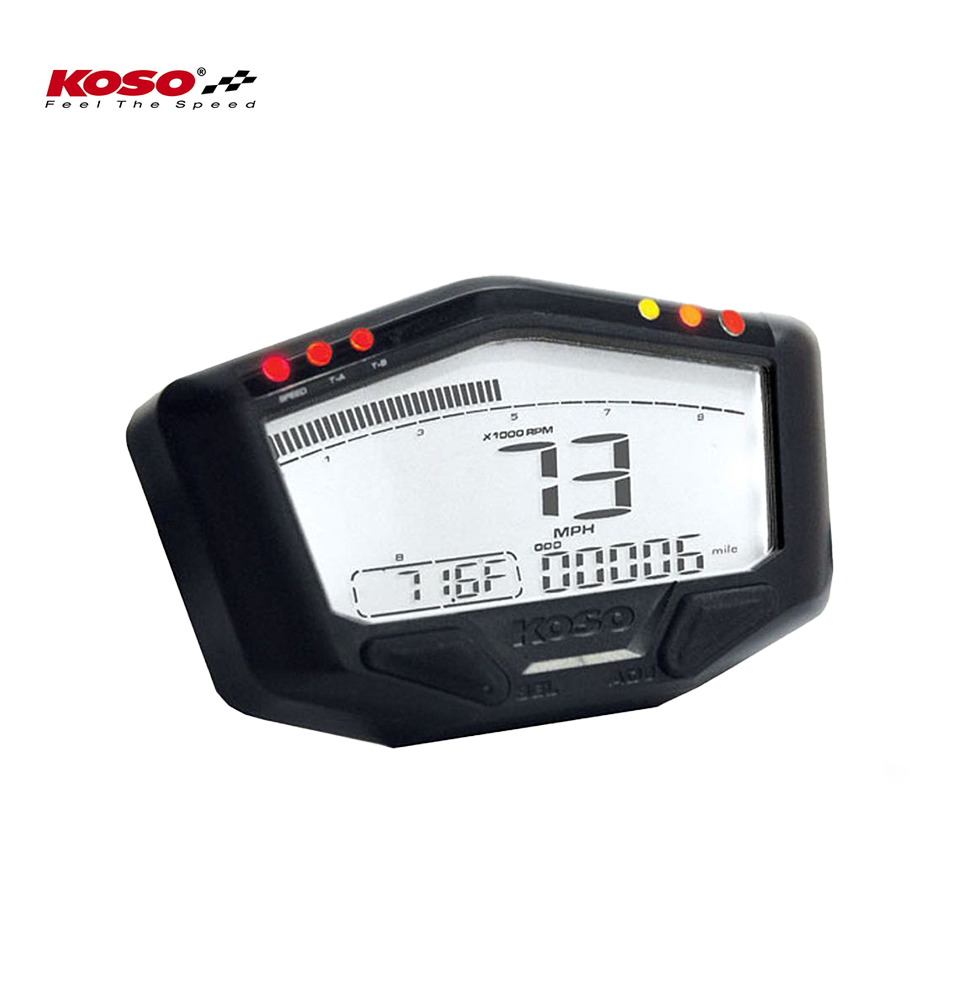

KOSO DB-02R (12V version) speedometer with power test – For optimal performance and control

The KOSO DB-02R is a highly advanced speedometer specifically designed for vehicles with an internal battery. Thanks to its elegant white backlighting, the display remains clearly legible even during nighttime rides. With features such as a customizable bar-graph tachometer and a power test mode, the DB-02R is an excellent choice for motorcyclists and ATV riders who demand the highest levels of performance and control.

Key features of the KOSO DB-02R speedometer (12V version)

Speedometer

• Range: 0 - 360 km/h (0 - 225 MPH)
• Sampling frequency: < 0.5 seconds
• Maximum speed recording: 0 - 360 km/h (MPH)

odometer

• Total odometer reading: 0 - 99,999 km (miles)
  • Automatic reset after 99,999 km (miles)
  • Unit: 1 km (mile)
• Trip odometer A/B: 0 - 999.9 km (miles)
  • Automatic reset after 999.9 km (miles)
  • Unit: 0.1 km (mile)

Tachometer

• Digital tachometer: range up to 20,000 rpm
  • Unit: 10 rpm
• Bar tachometer:
  • 10,000 rpm: 166 rpm per segment
  • 15,000 rpm: 250 rpm per segment
  • 20,000 rpm: 333 rpm per segment
• Maximum speed input: 0 - 20,000 rpm
• Speed ​​input pulse: 0.5, 1, 1.5, 2, 2.5, 3, 4, 5, 6 pulses
• Shift lights:
  • Main switch light: 5000 - 20,000 rpm
  • Pre-light A/B: 500 - 5000 rpm

Temperature measurement

• Thermometer: Range 0 - 250 °C (32 - 482 °F)
  • Unit: 0.1°C (°F)
• Temperature alarm: 60°C - 250°C (140°F - 482°F)
  • Unit: 1°C (°F)
• Maximum temperature range: 0 - 250°C (32°F - 482°F)

Fuel gauge and warning

• Fuel gauge: 0 - 100%
  • For fuel level sensors: 100 ohms; 510 ohms
• Fuel warning: Setting range: 10% - 50%
  • Setting unit: 10%

Voltmeter

• Range: DC 0 - 18.0V
  • Unit: DC 0.1V

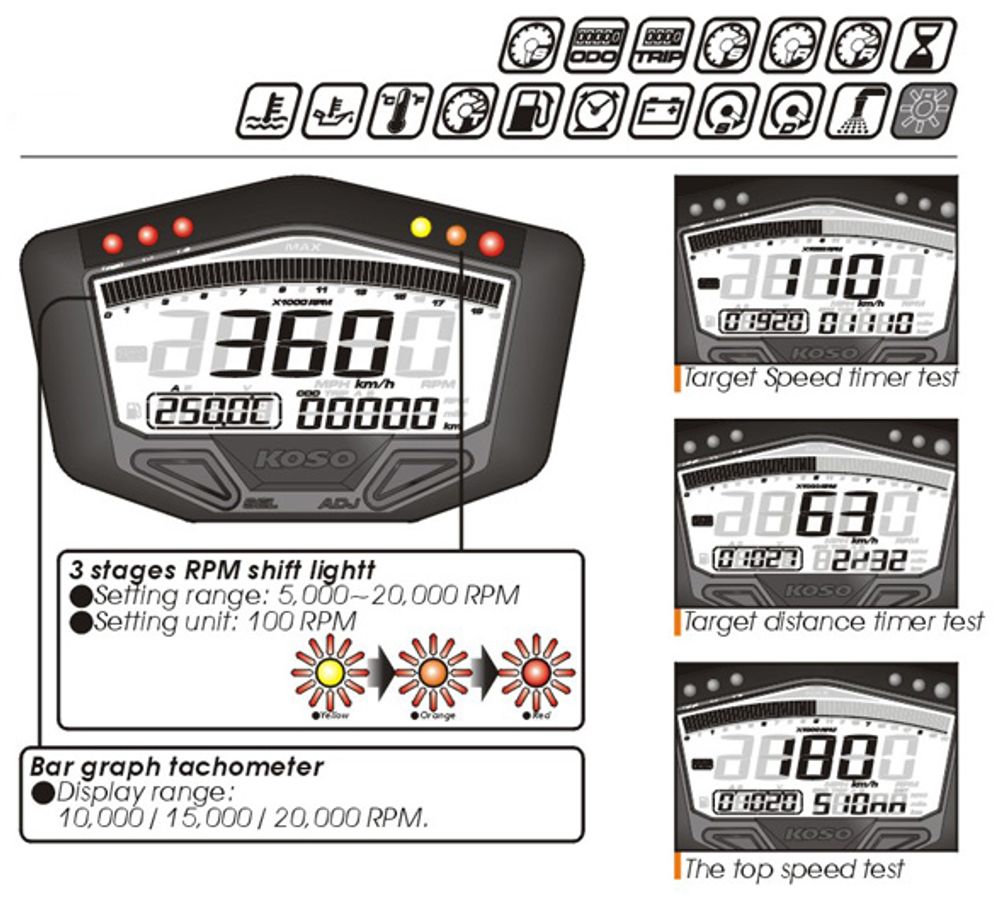

Power test functions

• Power test target speed timer:
  • Range: 30 - 360 km/h (20 - 225 MPH)
  • Unit: 5 km/h (MPH)
• Power test distance timer:
  • Range: 1/32 - 30/32 mile (50 - 1,500m)
  • Unit: 1/32 mile (50m)
• Top speed timer:
  • Speed: 0 - 360 km/h (0 - 225 MPH)
  • Distance: 0 - 999 m (0 - 3,280 ft)
  • Speed: 0 - 20,000 rpm
  • Stopwatch: 0 - 9'59"99 seconds

Additional functions

• Speed ​​limit warning light: Range 30 - 360 km/h (19 - 225 MPH)
• Wheel circumference: Adjustment range: 300 - 2500 mm (Unit: 1 mm)
• Runtime meter: Range: 0 - 999.9 hours
• Brightness: Adjustment range: 1-5 (dark to bright)
• Power supply: DC 12V
• Operating temperature: -10°C to +60°C
• Device standard: JIS D 0203 S2

Dimensions and weight

• Dimensions: 100 x 60 x 20 mm
• Weight: Approx. 200 g

Lights

• Speed ​​limit: Red
• Temperature alarm: Red
• Pre-light A: Yellow
• Pre-light B: Orange
• Main switch light: Red

The KOSO DB-02R (12V version) is a state-of-the-art speedometer for motorcycle and ATV riders who value precise measurements , high adaptability , and special features like the power test . With features such as customizable RPM measurement , temperature monitoring , and a low fuel warning system , the DB-02R provides a comprehensive overview of vehicle data, helping you optimize your setup and improve your riding style. Whether you want to test performance or monitor your riding parameters, this speedometer delivers everything you need.

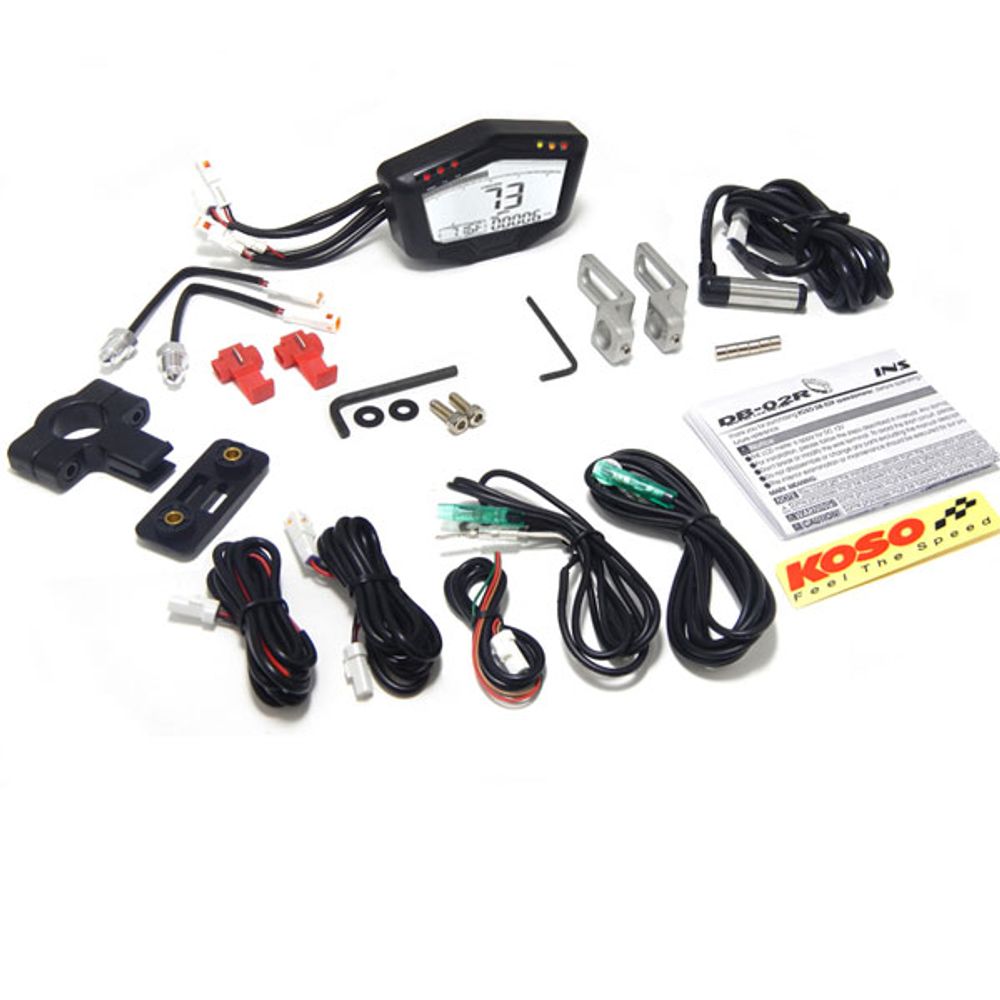

Table of contents:

• LCD measuring device – 1×

• Power cable – 1×

• Speed ​​cable set (Type A) – 1×

• Speed ​​cable set (Type C) – 1×

• Temperature sensor cable set – 2×

• PT 1/8 Water Temperature Sensor – 2×

• Reed switch speed sensor – 1×

• Magnet D6 × 5L mm – 1×

• Cable clamp – 2×

• Mounting bracket for speed sensor M8/S type – 1×

• Mounting bracket for speed sensor M10/S type – 1×

• M5×5L Hex Socket Screw – 2×

• Battery – 1×

• 2.5 mm hex key – 1×

• 4 mm hex key – 1×

• Measuring device holder – 1×

• M5 washer – 2×

• M5×15L screw – 2×
