DB-02 (battery version) without ABE

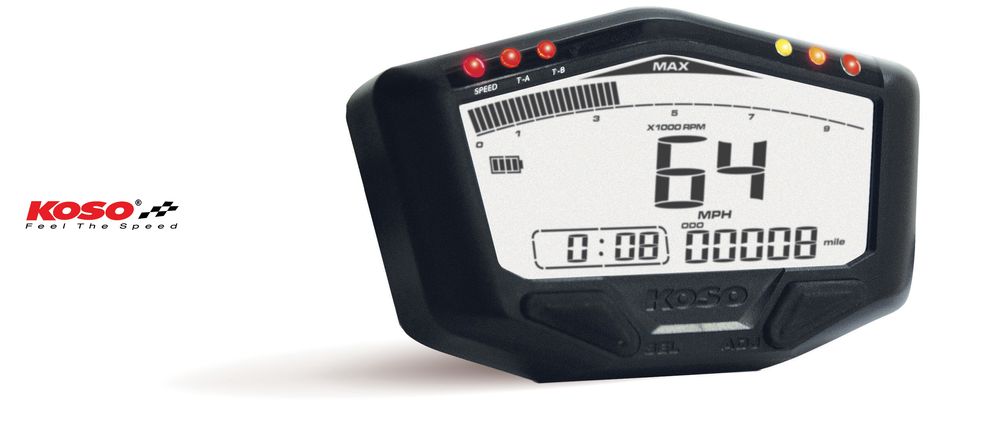

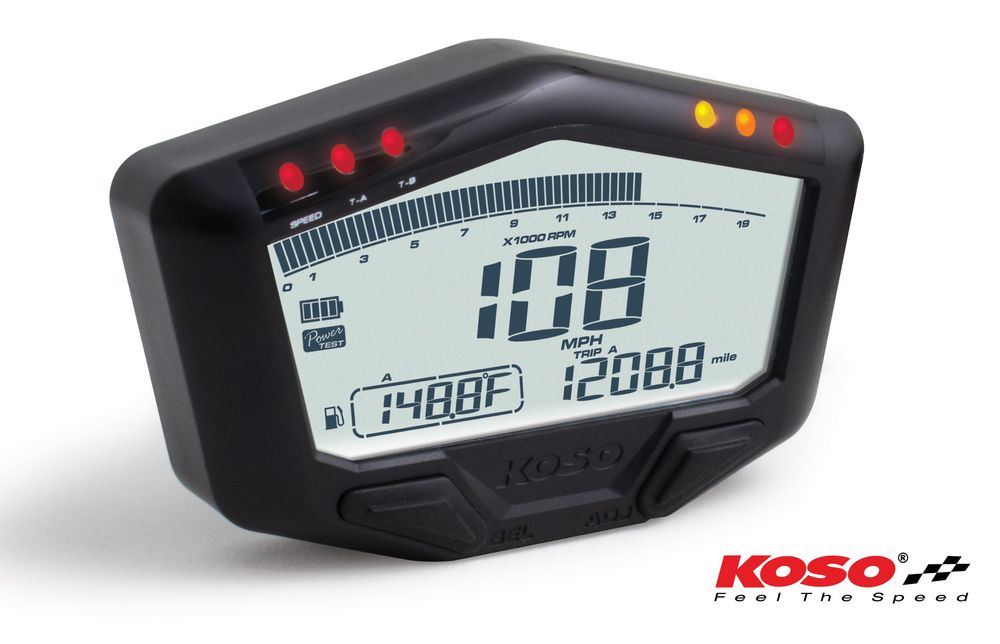

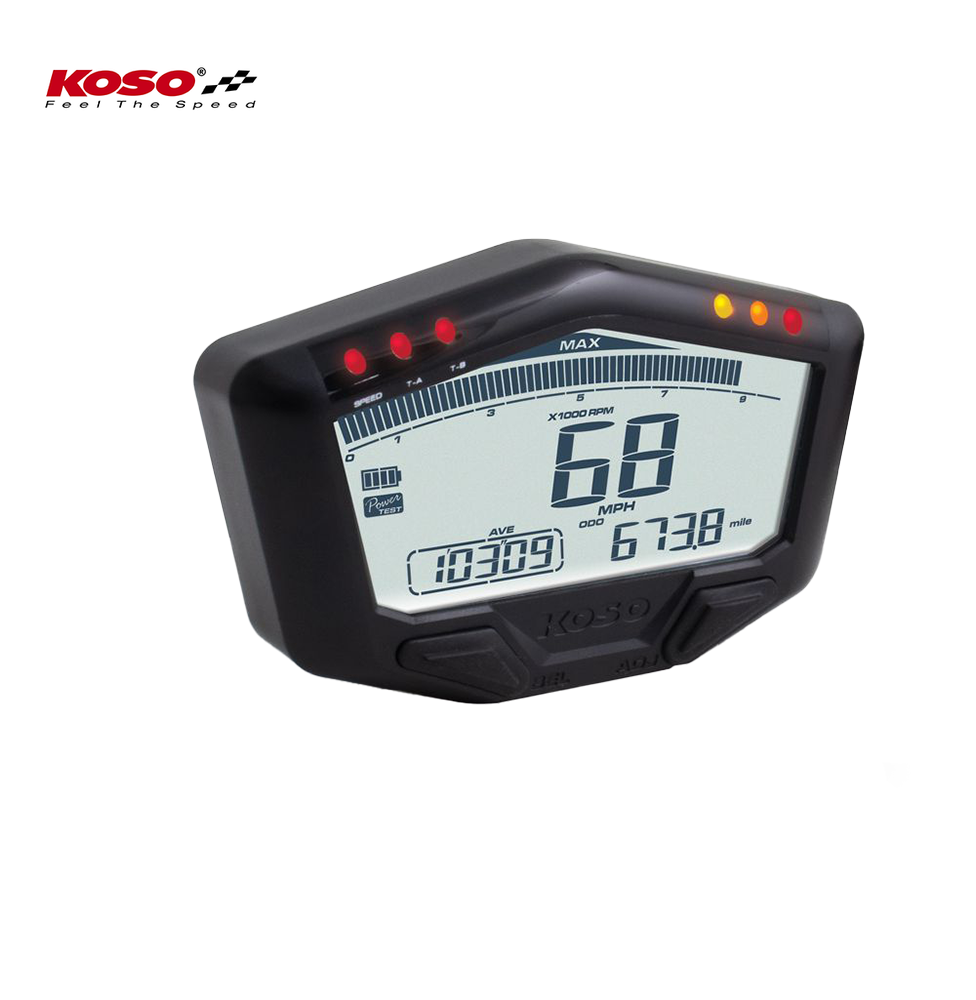

KOSO DB-02 Speedometer – Compact and versatile for off-road vehicles

The KOSO DB-02 speedometer was specifically designed for off-road vehicles such as ATVs and motorcycles without their own battery . With its innovative design and a wide range of functions, it is ideal for riders who need a reliable and flexible instrument to monitor their vehicle data both on and off-road.

Main features of the DB-02 speedometer

Speedometer & Odometer

• Speed ​​range: 0 - 360 km/h (0 - 225 MPH)
• Total odometer: 0 - 99,999 km (miles) with automatic reset after 99,999 km (miles)
• Trip odometer A/B: 0 - 999.9 km (miles), with automatic reset
• Speed ​​limit warning light: Setting range: 30 - 360 km/h (19 - 225 MPH)
• Maximum speed recording: 0 - 360 km/h (MPH)
• Wheel circumference setting: 300 - 2500 mm (1 mm increments), Sensor points: up to 6 sensors

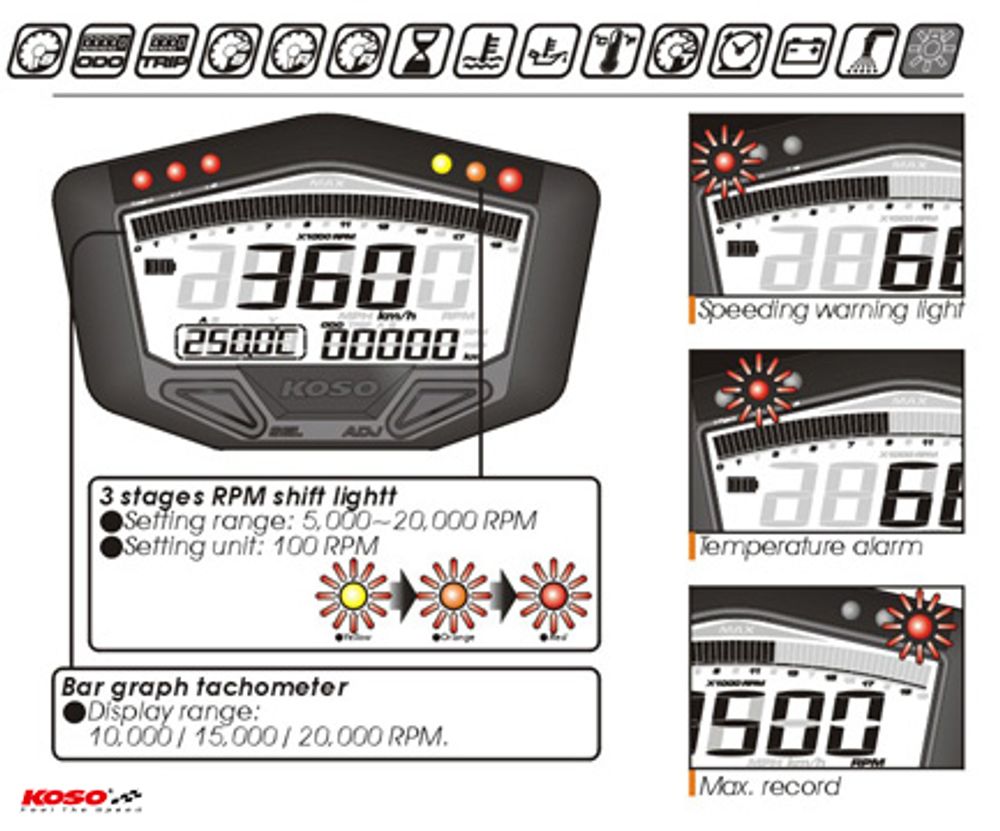

Tachometer

• Digital tachometer: 0 - 20,000 rpm, display unit: 10 rpm
• 60-segment bar tachometer:
  • 10,000 rpm / 166 rpm per segment
  • 15,000 rpm / 250 rpm per segment
  • 20,000 rpm / 333 rpm per segment
• Main switch light: Adjustment range: 5,000 - 20,000 rpm (Unit: 100 rpm)
• Pre-light A/B: Adjustment range: 500 - 5,000 rpm
• Maximum speed input: 0 - 20,000 rpm
• Speed ​​input pulse: Adjustment range: 0.5 - 6 (depending on motor type)

Temperature & Voltage

• Thermometer A/B: 0 - 250°C (32 - 482°F), Display unit: 0.1°C (°F)
• Temperature alarm A/B: Range 60°C - 250°C (140°F - 482°F), alarm in case of overtemperature
• Maximum temperature range: 0 - 250°C (32°F - 482°F)
• Voltmeter: 0 - 18.0V, Unit: 0.1V

Additional functions

• Runtime counter: 0 - 999.9 hours
• Backlight: DC 12V
• Battery type: CR2032, with a lifespan of approximately 220 hours.
• Operating temperature: -10°C to +60°C

Warning lights

• Speed ​​limit warning light: Red
• Temperature alarm: Red
• Pre-light A: Yellow
• Pre-light B: Orange
• Main switch light: Red

Dimensions and weight

• Size: 100 x 60 x 20 mm
• Weight: Approx. 200 g

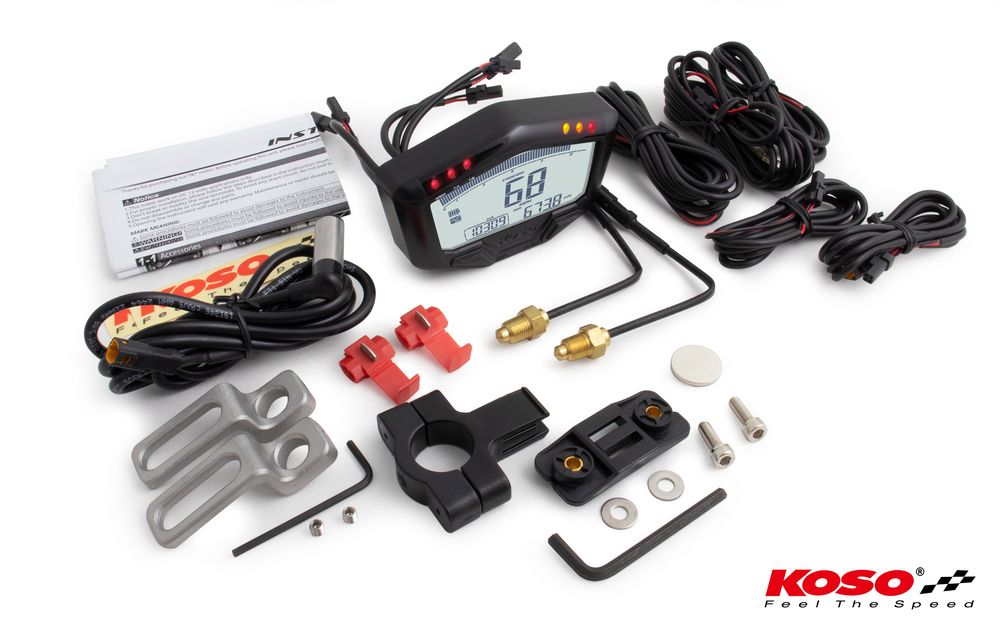

Table of contents:

• LCD measuring device – 1×

• Power cable – 1×

• Speed ​​cable set (Type A) – 1×

• Speed ​​cable set (Type B) – 1×

• Temperature sensor cable set – 2×

• PT 1/8 Water Temperature Sensor – 2×

• Reed switch speed sensor – 1×

• Magnet D6 × 5L mm – 1×

• Cable clamp – 2×

• Mounting bracket for speed sensor M8 / S-type – 1×

• Mounting bracket for speed sensor M10 / S-type – 1×

• M5 × 5L Hex Socket Screw – 2×

• Battery – 1×

• 2.5 mm wrench – 1×

• 4 mm wrench – 1×

• Measuring device holder – 1×

• Washer M5 – 2×

• Screw M5 × 15L – 2×
