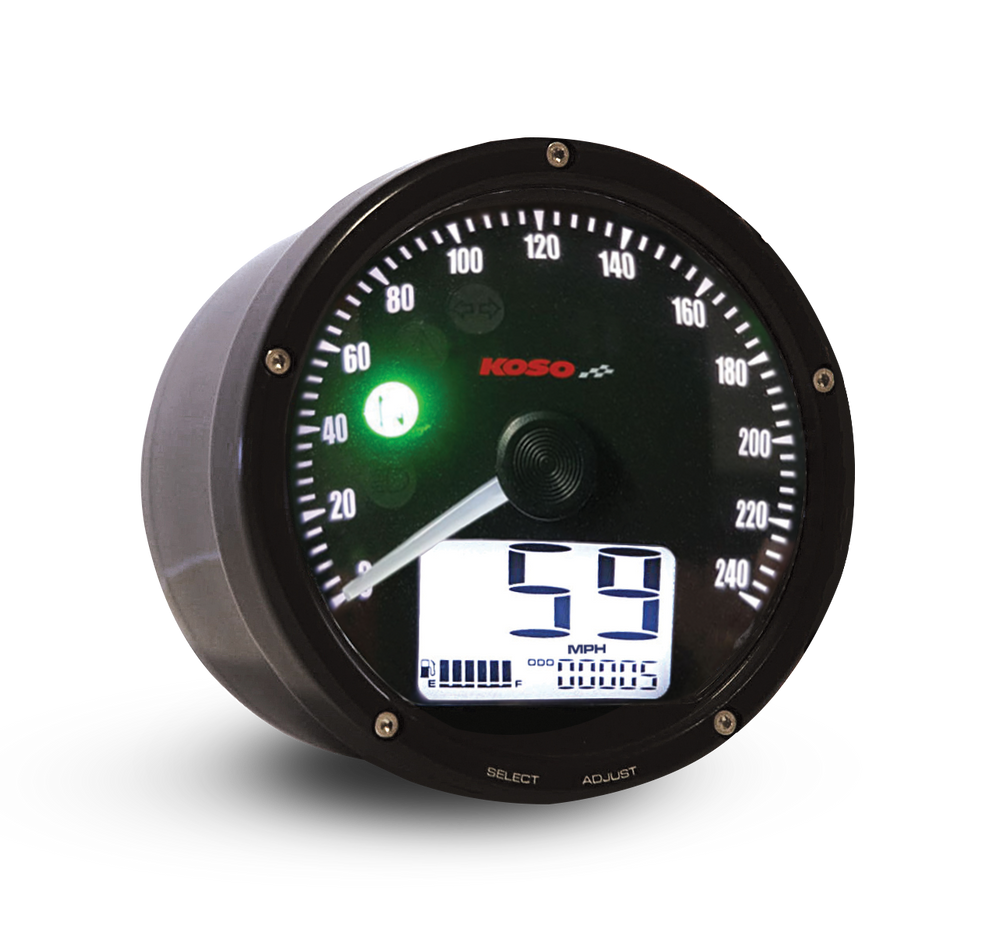

KOSO D75 speedometer with black dial, black surface and black bezel (0-240 km/h or MPH)

The KOSO D75 speedometer, with its black dial and bezel, not only offers precise readings but also complements modern vehicle designs. Featuring an adjustable scale for 0-240 km/h or MPH, this model is ideal for vehicles with higher speed ranges.

Main functions:

• Speedometer:

  • Display range: 0 - 240 km/h or MPH (depending on setting)
  • Response time: < 0.5 seconds, for fast and precise measurements.

• Wheel circumference setting:

  • Adjustment range: 300 - 2500 mm, for various tire sizes.
  • Setting unit: 1 mm
  • Sensor points: 6, to measure the exact speed for different wheel sizes.

• Backlight brightness:

  • Adjustable in 5 different levels , each with 20% brightness .

Further technical details:

• Effective voltage: DC 9 - 12 V, which makes it compatible with most vehicles.
• Operating temperature: -10°C to +60°C, ideal for a wide variety of environments.
• Standard: JIS D 0203 S2 (Japanese Industrial Standard).

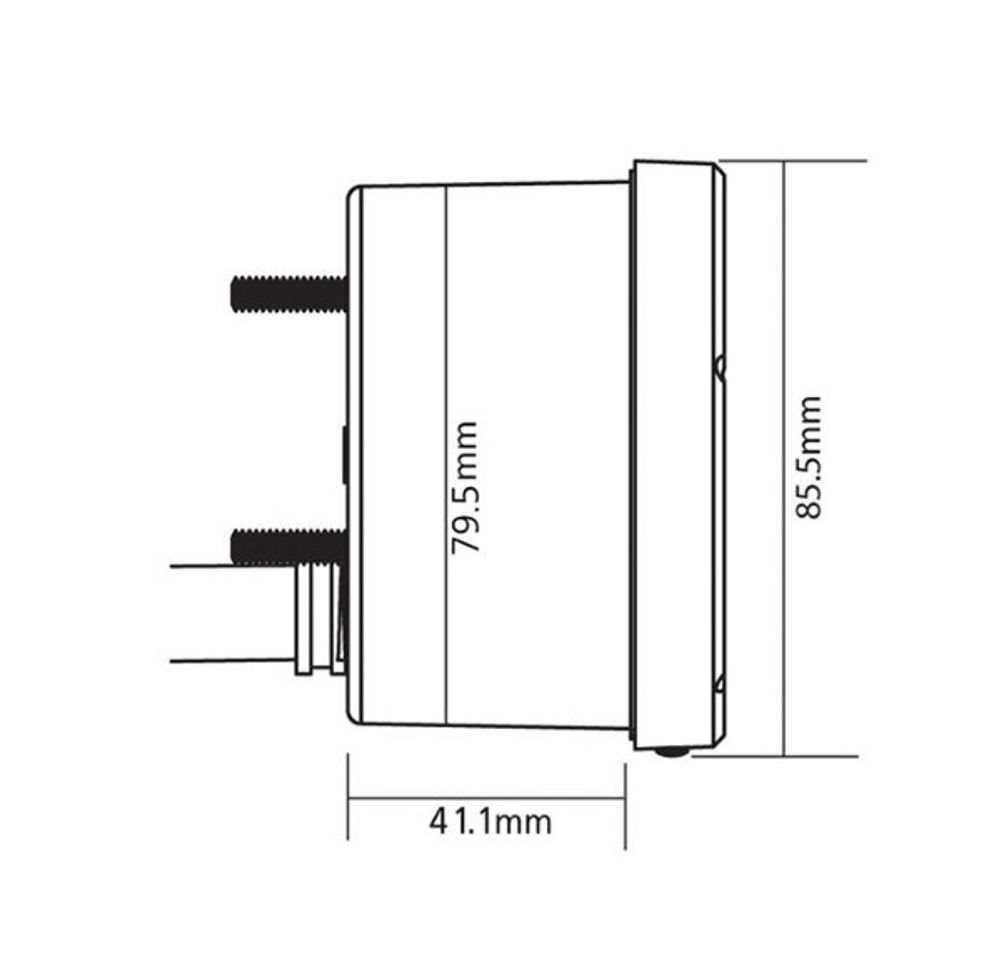

Dimensions and weight:

• Dimensions: Compact size (details on the exact size are not specified, but it fits most vehicles).
• Weight: Approx. 127.3 g , making it a lightweight, easy-to-install device.

The KOSO D75 speedometer offers precise speed measurement for vehicles, capable of displaying both km/h and mph . With adjustable wheel circumference and backlight brightness , the D75 is not only functional but also customizable. Its fast response time and wide operating temperature range make it a reliable instrument under diverse conditions. Ideal for vehicle modifications, as the device complies with the JIS D 0203 S2 standard.

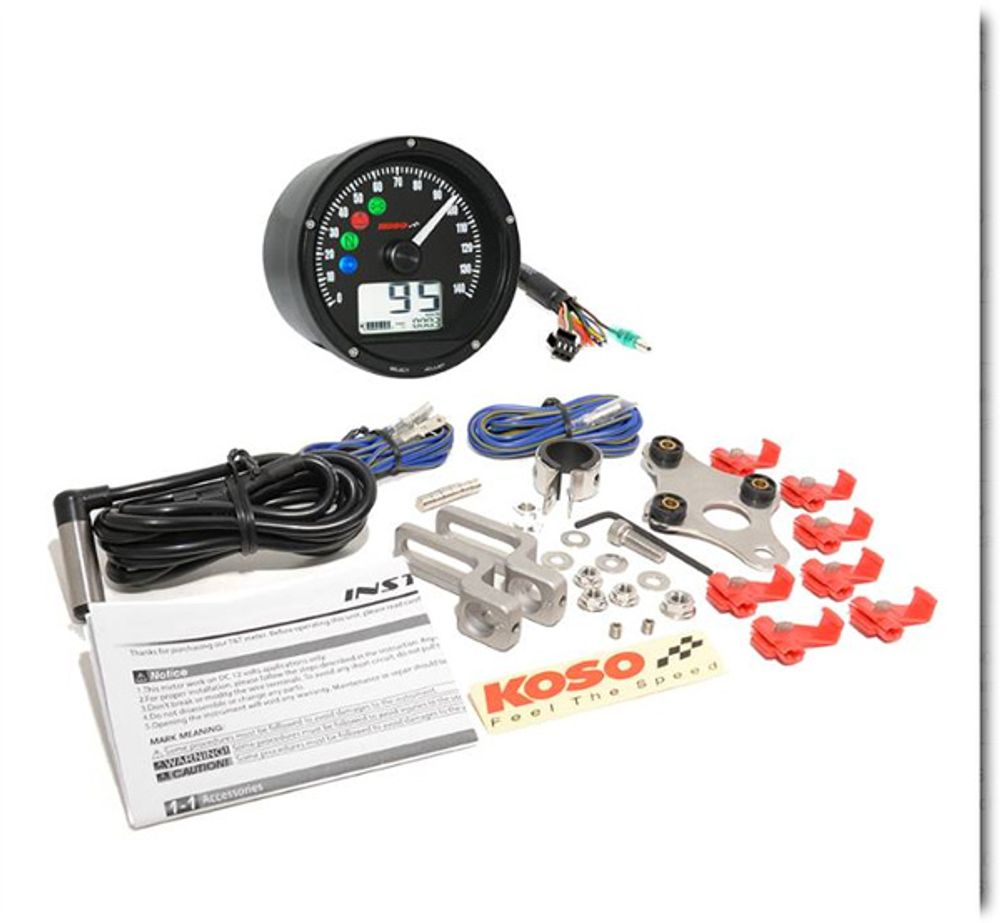

Table of contents:

• Measuring device – 1×

• Speed ​​sensor – 1×

• Mounting bracket for speed sensor M8 / S-type – 1×

• Mounting bracket for speed sensor M10 / S-type – 1×

• Hex bolt M5 × 5L mm – 2×

• Magnet D6 × 5L mm – 6×

• 2.5 mm Allen key – 1×

• Measuring device holder – 1×

• Handlebar clamp – 1×

• Rubber – 1×

• Allen screw M6 × 18L – 1×

• Mother M5 × P0.8 – 3×

• Mother M6 × P1.0 – 1×

• M5 washer – 3×

• M6 washer – 1×

• Aluminum bushing M6 – 1×

• Mid-way connector – 8×
