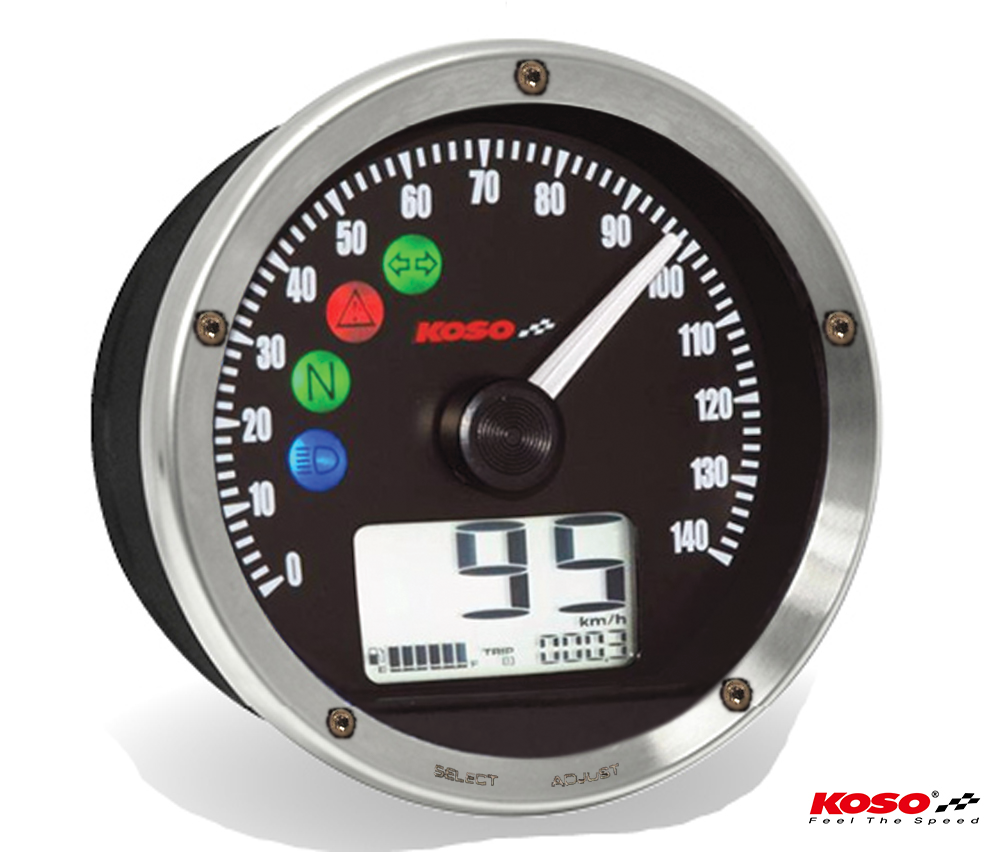

KOSO D75 speedometer with black dial, black surface and chrome bezel (0-140 km/h or MPH)

The KOSO D75 speedometer combines classic design with modern technology and is specifically designed for vehicles that require an elegant, functional instrument. With its chrome bezel and black dial, it offers not only precise readings but also an attractive look that complements many vehicle types. The speedometer has ABE/KBA approval, meaning it can be easily registered in Germany.

Main functions:

• Speedometer:

  • Display range: 0 - 140 km/h (MPH), depending on the setting
  • Response time: < 0.5 seconds

• Wheel circumference setting:

  • Adjustment range: 300 - 2500 mm
  • Setting unit: 1 mm
  • Sensor points: 6, for precise measurements

• Backlight brightness:

  • Adjustable in 5 different levels , each with 20% brightness .

Further technical details:

• Effective voltage: DC 9 - 12 V
• Operating temperature: -10°C to +60°C
• Standard: JIS D 0203 S2 (Japanese Industrial Standard)

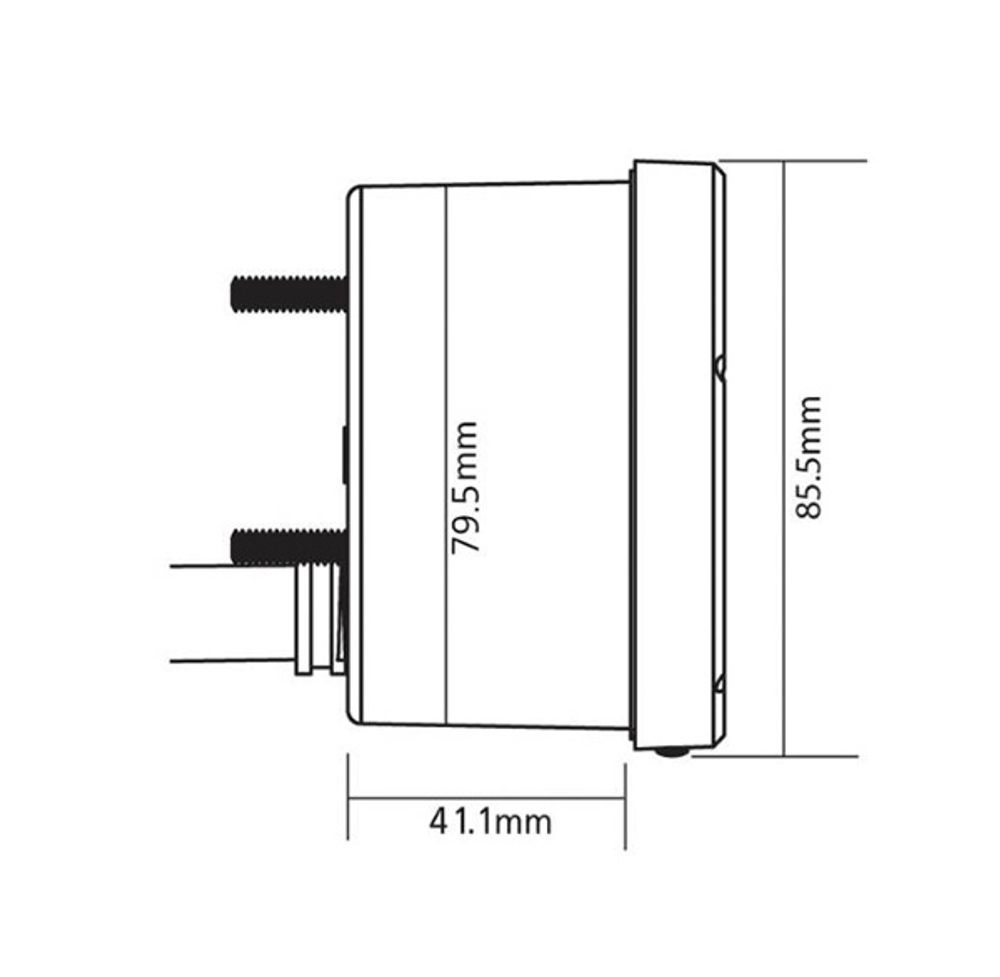

Dimensions and weight:

• Dimensions: Compact size for easy installation (details on exact size not specified)
• Weight: Approx. 127.3 g , making it a lightweight instrument that can be easily integrated into the cockpit.

The KOSO D75 speedometer is a great choice for vehicle owners who want precise speed readings in a well-designed device. With an adjustable speedometer range (km/h or MPH) , fast response time , and adjustable backlighting , the D75 meets all the requirements of a modern speedometer. The KBA number and ABE certification guarantee that the device can be legally installed in Germany, making it an excellent choice for vehicle modifications.

Table of contents:

• Measuring device – 1×

• Speed ​​sensor – 1×

• Mounting bracket for speed sensor M8 / S-type – 1×

• Mounting bracket for speed sensor M10 / S-type – 1×

• Hex bolt M5 × 5L – 2×

• Magnet D6 × 5L mm – 6×

• 2.5 mm Allen key – 1×

• Measuring device holder – 1×

• Handlebar clamp – 1×

• Rubber – 1×

• Allen screw M6 × 18L – 1×

• Mother M5 × P0.8 – 3×

• Mother M6 × P1.0 – 1×

• M5 washer – 3×

• M6 washer – 1×

• M6 aluminum bushing – 1×

• Mid-way connector – 8×
