D64 DL-03SR Speedometer & Tachometer + Signal Lights (LCD Display) with ABE/KBA approval, black

D64 DL-03SR Speedometer & Tachometer + Indicator Lights | LCD Display | ABE/KBA Approved | Black

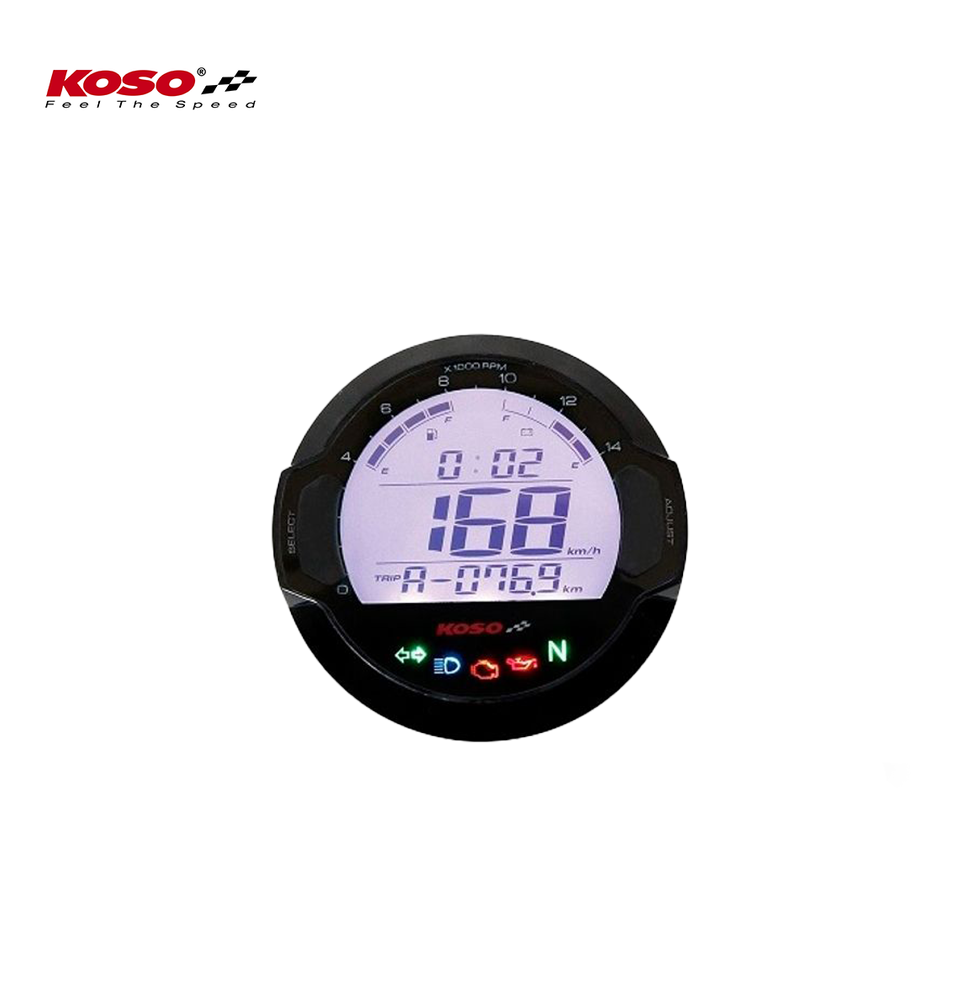

The D64 DL-03SR is a compact multi-function cockpit that combines a speedometer, tachometer, fuel gauge, voltmeter, and indicator lights in one device. With ABE and KBA approval, it is registration-free in Germany and offers a reliable solution for motorcycles, ATVs, and scooters.

Main Features & Properties

• speedometer
  Display range: 0 – 360 km/h (0 – 223 MPH)
  Unit: km/h or mph (switchable)

• Total odometer (odometer)
  Display range: 0 – 99,999.9 km (miles)
  Automatic reset after 99,999.9 km (miles)

• Trip odometer (Trip A/B)
  Display range: 0 – 999.9 km (miles)

• Wheel circumference adjustment
  Adjustment range: 300 – 2,500 mm
  Unit: 1 mm / Pulses: 1 – 60

• Tachometer
  Display range: 0 – 15,000 rpm
  Unit: 1 segment = 1,000 rpm
  Display type: LCD

• Fuel gauge
  Display range: 4 levels

• Digital voltmeter
  Range: DC 5 – 28 V

• Clock
  Display format: 24 hours

• Signal lights
  Turn signal (green)
  Neutral (Green)
  Oil (Red)
  High beam (blue)
  EOBD (Yellow)

• Special functions
  Learning mode for fuel gauge (100/250/510/1200 ohms or custom)
  Critical fuel warning indicated by flashing symbol

Technical data

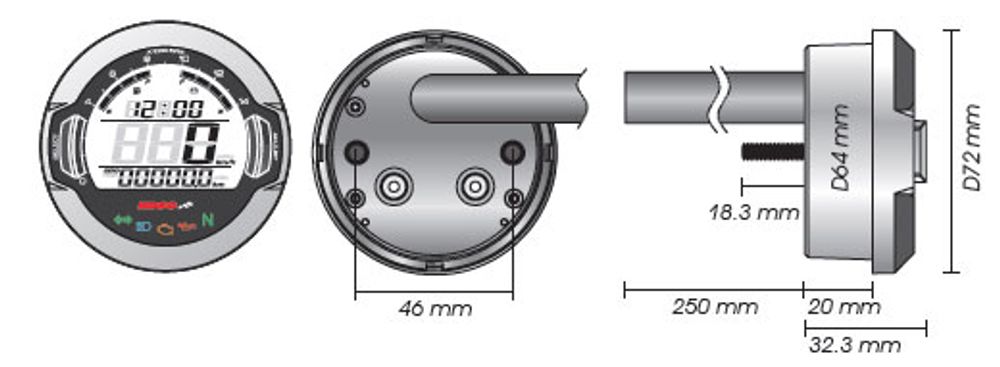

• Size: 70 × 35 × 50 mm

• Installation diameter: 50 mm

Table of Contents

• Instrument – ​​1×

• Passive speed sensor – 1×

• Magnet D6 × 5L mm – 6×

• Speed ​​control wire set (Type A) – 1×

• Speed ​​control wire set (Type B) – 1×

• Center connection – 11×

• Speed ​​sensor bracket M8/S type – 1×

• Speed ​​sensor bracket M10/S type – 1×

• Hex bolt M5 × 5L mm – 2×

• 2.5 mm hex key – 1×

• Instrument holder V-type – 1×

• Handlebar clamp – 1×

• Rubber – 1×

• Screw M6 × 18L – 1×

• Mother M5 × P0.8 – 2×

• Washer M5 – 2×

• Washer M6 – 1×

• Aluminum bushing – 1×
