D64 DL-03SR Speedometer & Tachometer + Signal Lights (LCD Display) with ABE/KBA silver

€147,56
€147,56
Tax included. Plus shipping. Shipping calculated at checkout.

Vendor : Koso Europe

Product Type :

Sku : BB642W10

Add to wishlist
Sizechart

Lieferzeit 5-8 Tage*

*gilt für Lieferungen innerhalb Deutschlands, Lieferzeiten für andere Länder entnehmen Sie bitte der Schaltfläche "Zahlung und Versand"

Bitte beachten Sie unsere AGB.
Available documents:
Betriebserlaubnis ABE

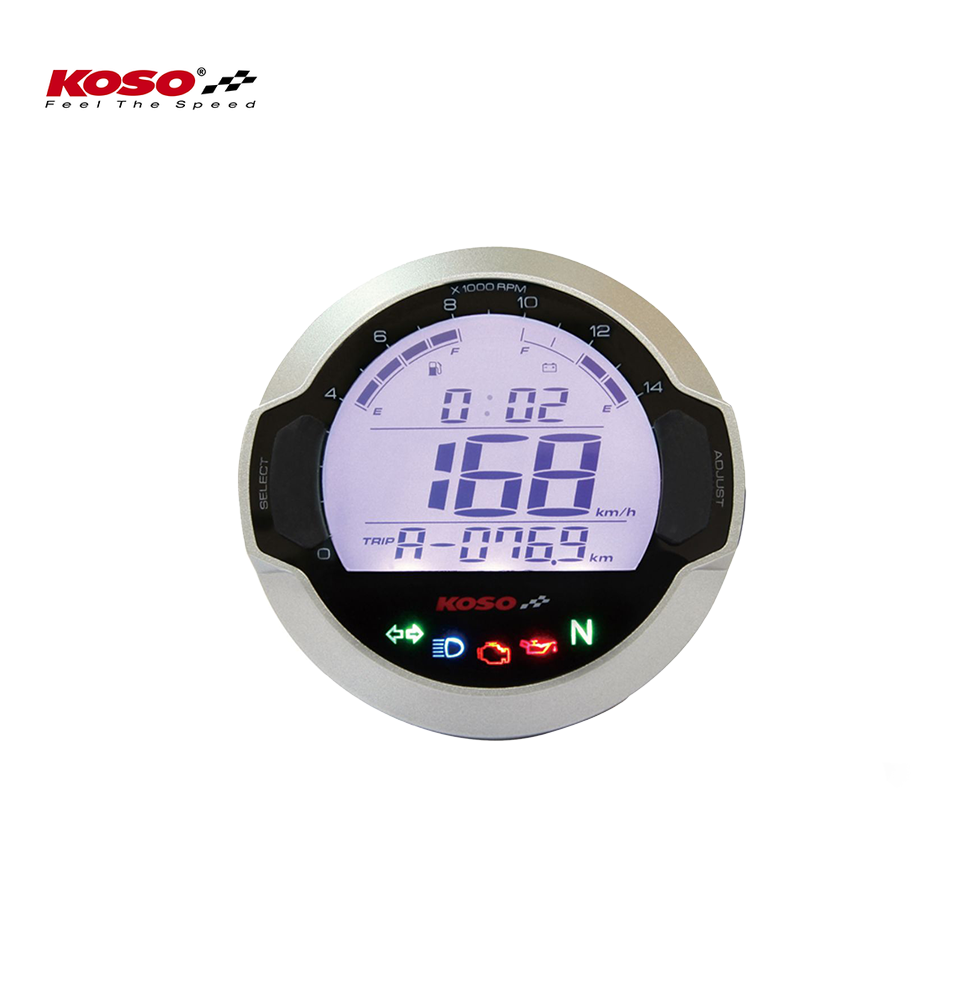

KOSO D64 DL-03SR Speedometer & Tachometer | LCD Display | ABE/KBA Approved | Silver

The KOSO D64 DL-03SR is a multifunctional instrument cluster that combines a speedometer, tachometer, and other vehicle gauges in one compact unit. Featuring an LCD display, integrated indicator lights, and ABE/KBA approval, it offers clear readability and easy installation.

Main Features & Properties

  • speedometer
    Display range: 0 – 360 km/h (0 – 223 MPH)

  • Total odometer (odometer)
    Display range: 0 – 99,999.9 km (miles)
    Automatic reset after 99,999.9 km (miles)

  • Trip odometer (Trip A/B)
    Display range: 0 – 999.9 km (miles)

  • Wheel circumference adjustment
    Adjustment range: 300 – 2500 mm
    Unit: 1 mm
    Impulses: 1 – 60

  • Tachometer
    Display range: 0 – 15,000 rpm
    Unit: 1 segment = 1,000 rpm

  • Fuel gauge
    Display range: 4 levels

  • Clock
    Format: 24 hours

  • Digital voltmeter
    Display range: DC 5 V – 28 V

  • Signal lights
    Turn signal (green)
    Neutral (Green)
    Oil (Red)
    High beam (blue)
    EOBD (Orange)

  • Fuel warning
    Flashing symbol indicates low fuel level in RPM mode

  • Adjustable fuel gauge
    Supported resistances: 100 / 250 / 510 / 1200 ohms or learning mode

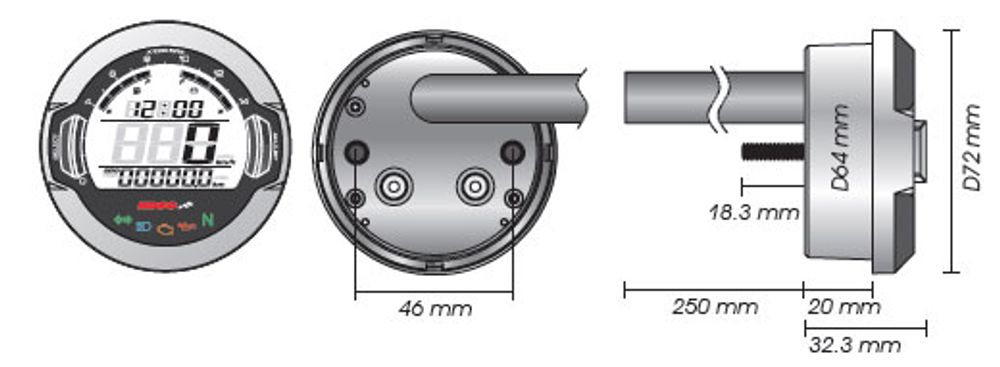

Technical data

  • Size: 70 × 35 × 50 mm

  • Installation diameter: 50 mm

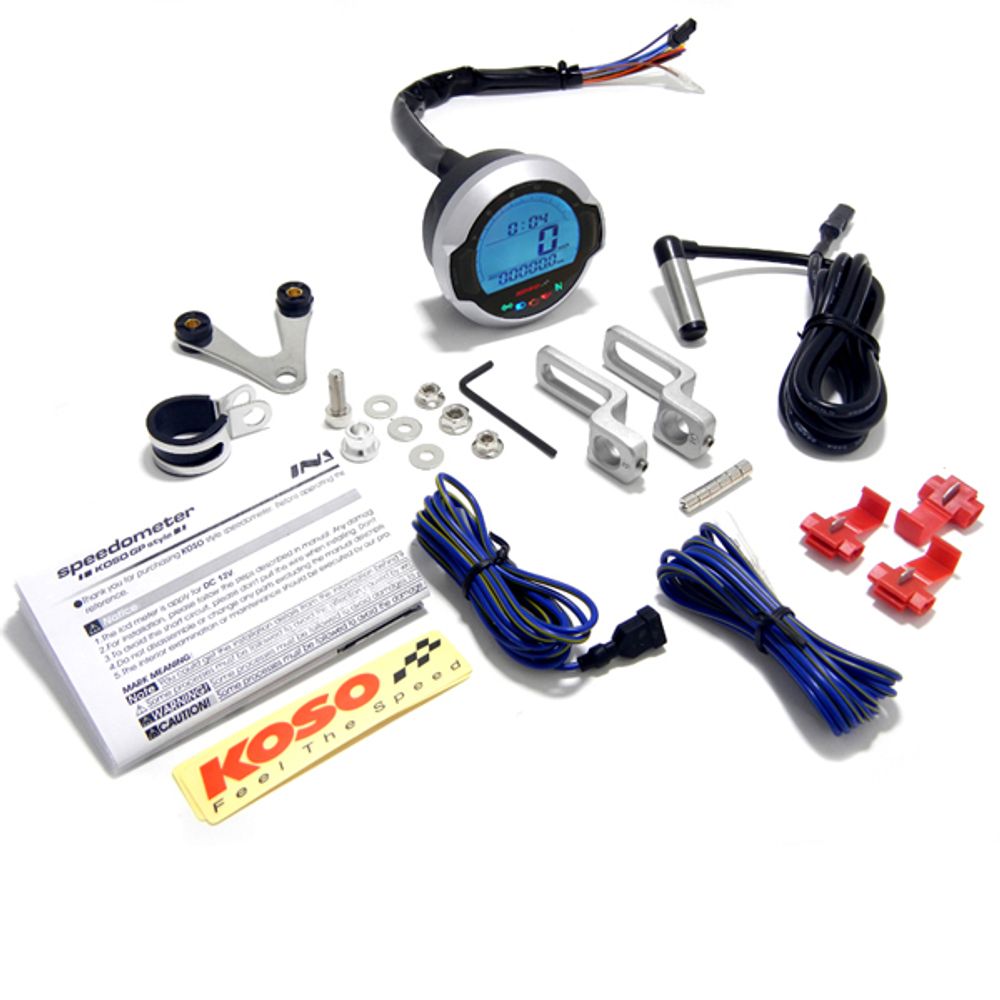

Table of Contents

  • Instrument – ​​1×

  • Passive speed sensor – 1×

  • Magnet D6 × 5L mm – 6×

  • Speed ​​control wire set (Type A) – 1×

  • Speed ​​control wire set (Type B) – 1×

  • Center connection – 11×

  • Speed ​​sensor bracket M8/S type – 1×

  • Speed ​​sensor bracket M10/S type – 1×

  • Hex bolt M5 × 5L mm – 2×

  • 2.5 mm hex key – 1×

  • Instrument holder V-type – 1×

  • Handlebar clamp – 1×

  • Rubber – 1×

  • Screw M6 × 18L – 1×

  • Mother M5 × P0.8 – 2×

  • Washer M5 – 2×

  • Washer M6 – 1×

  • Aluminum bushing – 1×
