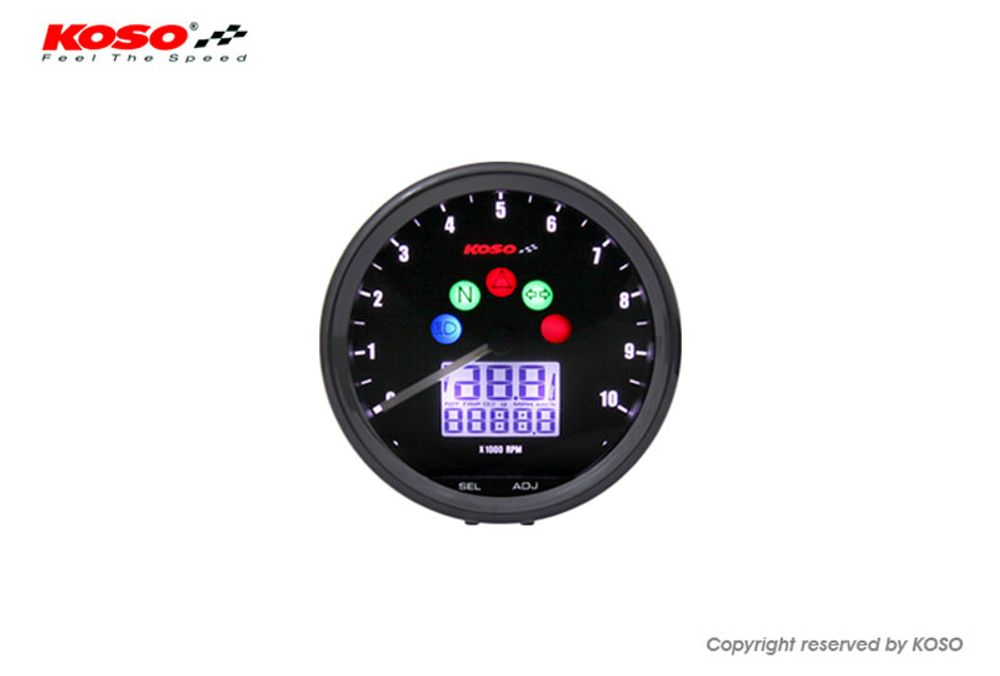

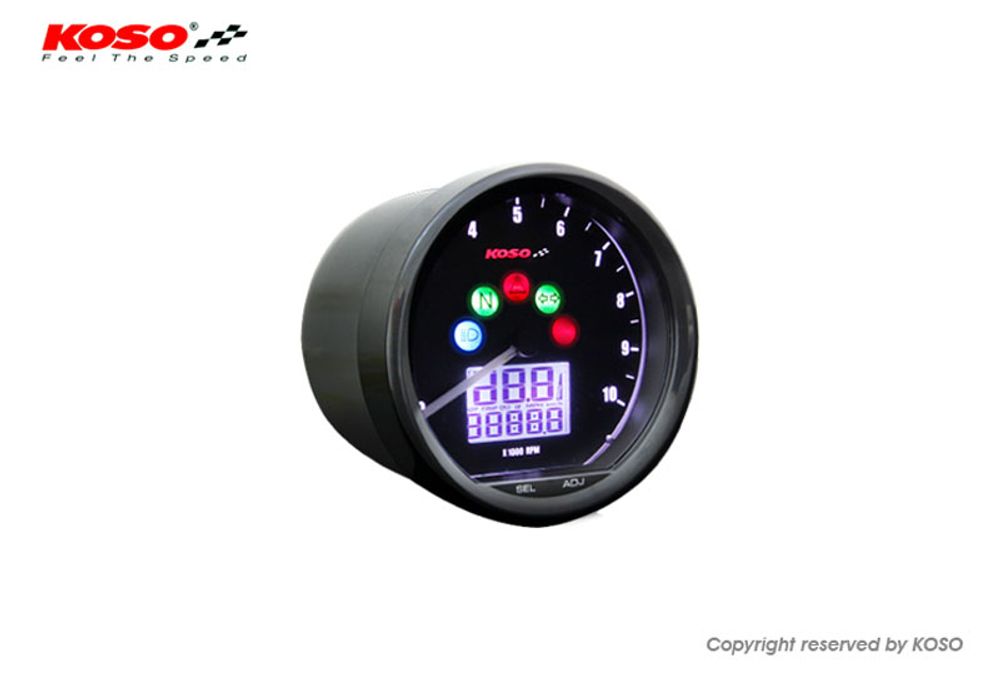

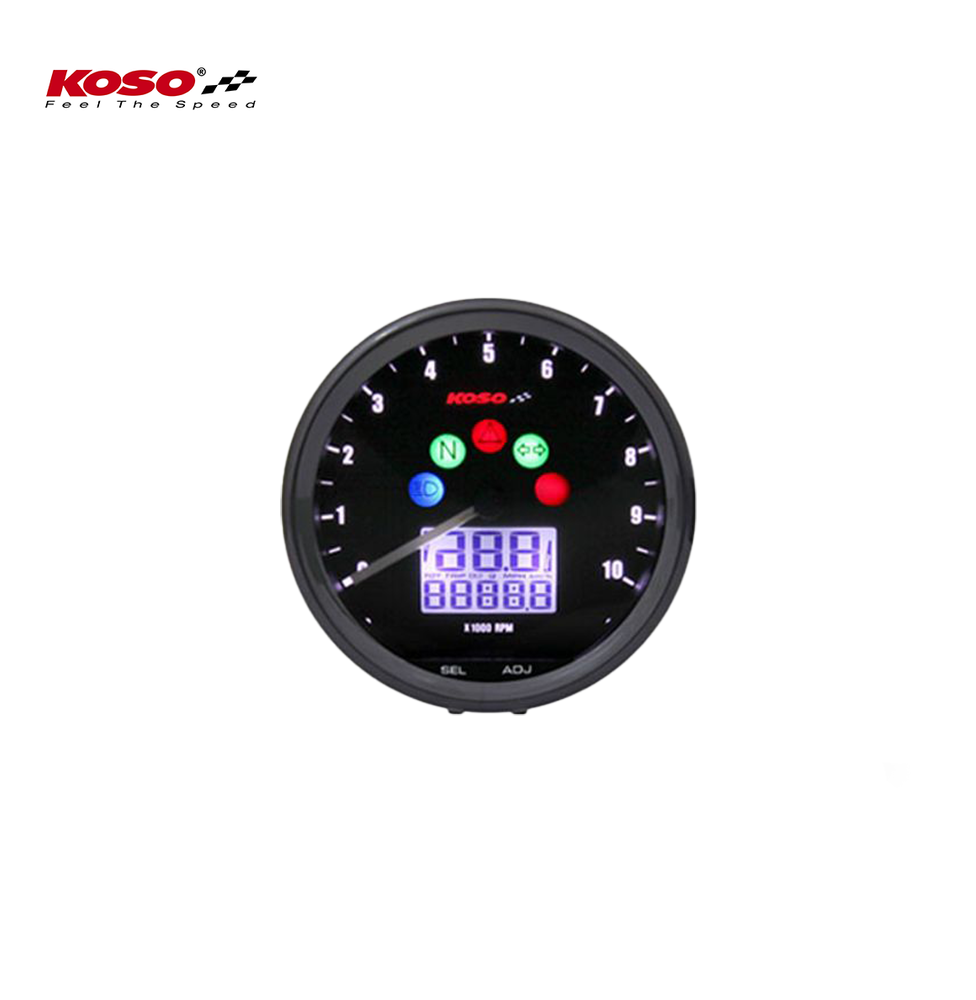

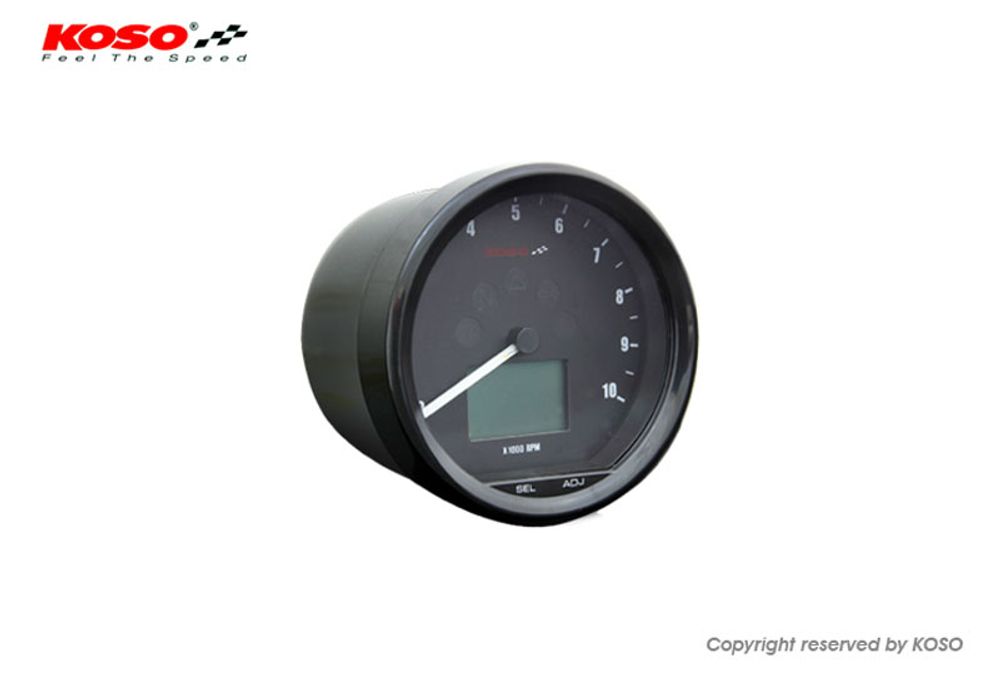

KOSO D64 Custom Style Multimeter Tachometer

The KOSO D64 Custom Style Multimeter is a multifunctional device perfectly suited for café racers and custom projects. It offers a variety of useful functions and is equipped with a stepper motor to ensure fast and precise response. The D64 is available in black and includes all necessary accessories.

Main functions:

• Speedometer:

  • Display range: 0 - 360 km/h (0 - 225 MPH)
  • Display unit: km/h or MPH
  • Sampling frequency: < 0.5 seconds

• Odometer (odometer):

  • Display range: 0 - 99.999 km (miles)
  • Reset: Automatically after 0-99,999 km (miles)
  • Display unit: 1 km (miles)

• Trip odometer (A/B):

  • Display range: 0 - 999.9 km (miles)
  • Reset: Automatically after 0-999.9 km (miles)
  • Display unit: 0.1 km (miles)

• Tire circumference setting:

  • Setting unit: 1 mm
  • Sensor points: 6

• Tachometer (RPM):

  • Display range: 0 - 10,000 rpm

• Shift light:

  • Setting range: 8,000 - 10,000 rpm
  • Unit: 100 rpm
  • Warning (shift light):
    • Light on (F-OFF)
    • Flash (F-ON)

• Speed ​​signal setting:

  • Setting range: 0.5, 1 - 24
  • Speed ​​pulse:
    • HI-Act (Positive)
    • Lo-Act (Negative)

• Fuel gauge:

  • Display range: 6 levels (each level corresponds to 16.6%)
  • Settings: 100 Ohm, 250 Ohm, 510 Ohm, 1200 Ohm, SW, User

• Clock:

  • Setting range: 24 hours

• Backlight brightness:

  • Adjustment range: 1 - 5 (dark to light)
  • Unit of adjustment: Each level corresponds to 20%

• Tension:

  • Effective voltage: DC 12 V
  • Effective temperature range: -10°C to +60°C (14 ~ 140°F)

Additional features:

• Lighting of the functional lights:
  • Turn signal (green)
  • Warning light (red)
  • Neutral (Green)
  • High beam (blue)

Technical data:

• Standard: JIS D 0203 S2
• Dimensions (W x L x H): 68.33 x 64.55 x 54.03 mm
• Weight: ± 127.3 g
• Included sensor: Passive speed sensor: BF019005

The KOSO D64 Custom Style Multimeter is an excellent device for anyone looking to equip their café racer or other custom projects with a powerful and precise speedometer. It offers a wide range of functions, including a tachometer , shift light , fuel gauge , and adjustable backlighting . The stepper motor ensures a fast and smooth display response. With its modern technology and practical features, it is ideal for discerning motorcyclists and vehicle enthusiasts.

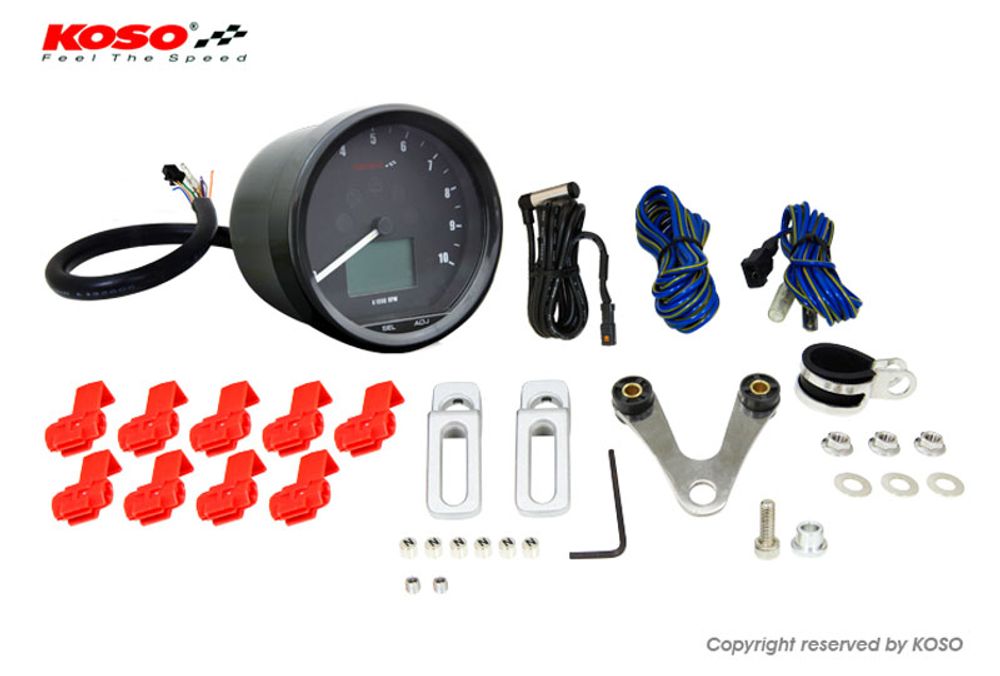

Table of contents:

• LCD tachometer – 1×

• Passive speed sensor – 1×

• Speedometer cable set – 1×

• Mounting bracket for speed sensor type M8/S – 1×

• Mounting bracket for speed sensor type M10/S – 1×

• Hex bolt – 2×

• Magnet D6 × 5L mm – 6×

• 2.5 mm Allen key – 1×

• Voltmeter mounting bracket – 1×

• Handlebar clamp – 1×

• Rubber part – 1×

• Screw M6 × 10L – 1×

• Mother M5 P0.8 – 3×

• Mother M6 P1.0 – 1×

• Washer M5 – 3×

• Washer M6 – 1×

• Aluminum bushing – 1×

• Terminal block – 9×
