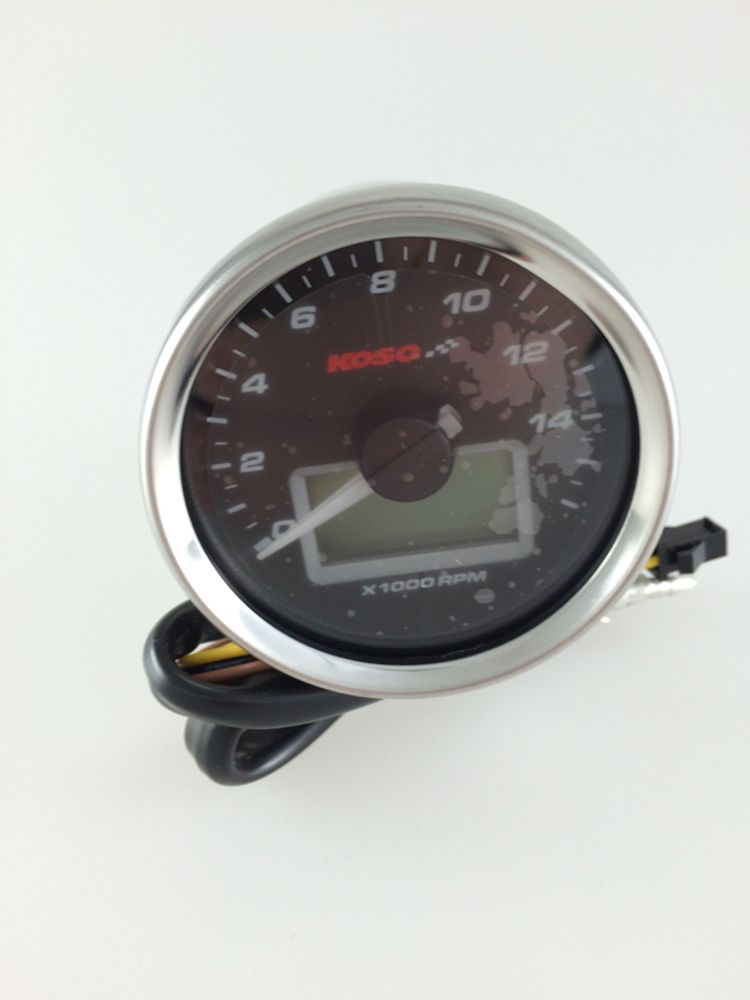

To ensure the stability of the needle even under high vibrations, stepper motors were used in all pointer instruments. When you start the ignition, the auto scan function carries out a self-test. The tachometer display shows up to 16,000 rpm and is very easy to read even at night thanks to the illuminated needle. The settings can also be adjusted so that the meter can be used for vehicles with CDI ignition. The temperature measurement gives you information about the condition of your engine.
Tachometer
|
Display range: 0 - 16,000 rpm |
Display unit: 100 rpm |
|
Frequency of tapping
|
< 0.5 seconds
|
Number of strokes and pistons
|
2-stroke: 1, 2, 3, 4 pistons
|
4-stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons |
|
Temperature display
|
Display range: 0 - 150°C (32 - 302°F)
|
Display unit: 0.1°F, degrees in full display e.g. 25.0 |
