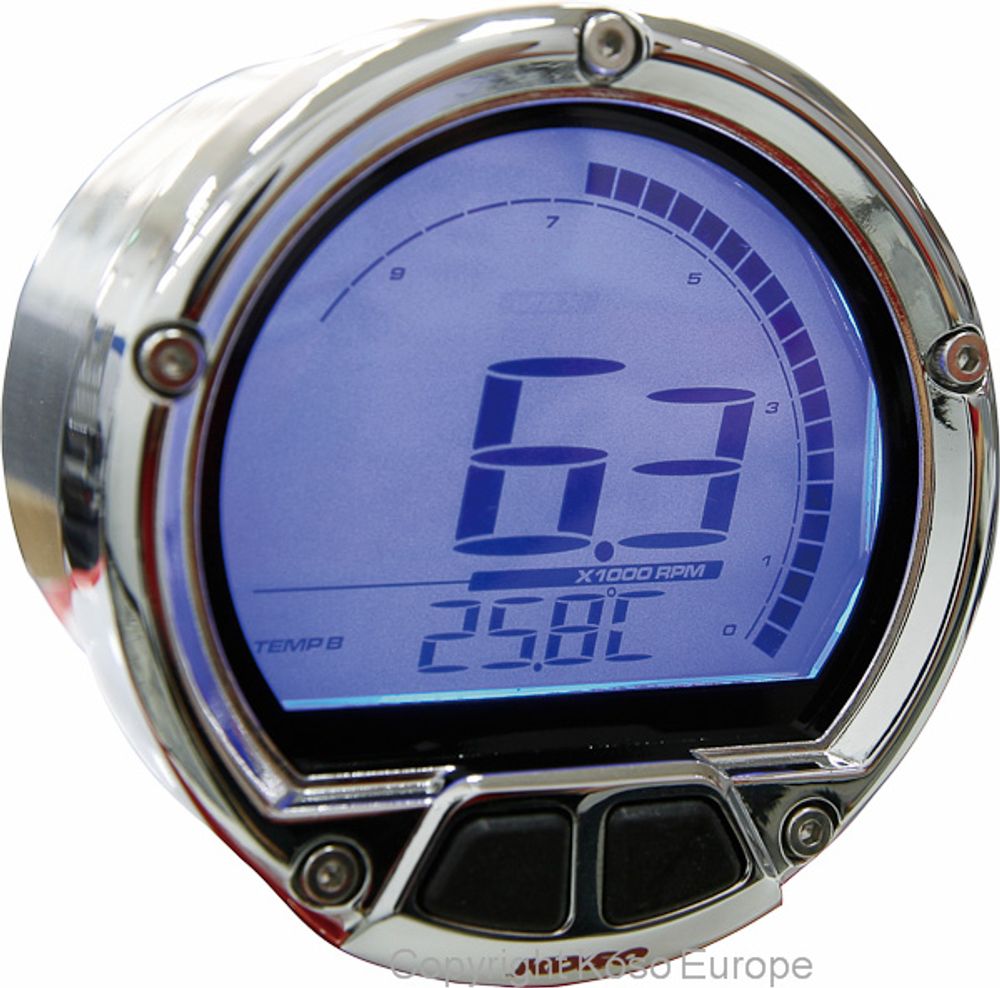

D55 DL-02R tachometer/thermometer (LCD display, max 250 degrees C, max 20000 rpm)

KOSO D55 DL-02R Tachometer/Thermometer (LCD Display, max. 250°C, max. 20,000 rpm)

The KOSO D55 DL-02R is a multifunctional device that functions as both a tachometer and a thermometer . It offers precise measurement of engine speed and temperature and is ideal for applications requiring accurate monitoring of vehicle performance.

Main functions:

• Tachometer (RPM):

  • Display range: 0 to 20,000 rpm.
  • Display unit: 100 rpm.
  • Sampling frequency: < 0.5 seconds.
  • Graphic display: The rotational speed is displayed clockwise.
  • Alternative options:
    • 0 to 10,000 rpm (30 graphic segments, display unit: 333 rpm per segment).
    • 0 to 15,000 rpm (60 graphic segments, display unit: 500 rpm per segment).
    • 0 to 20,000 rpm (60 graphic segments, display unit: 666 rpm per segment).

• Cylinder settings:

  • 2-stroke: 1, 2, 3, 4 pistons.
  • 4-stroke: 1, 2, 3, 4, 5, 6, 8, 10, 12 pistons.

• Thermometer:

  • Display range: 0 to 250°C (32 to 482°F).
  • Display unit: 0.1°C (or °F).

• Clock:

  • Format: 24-hour clock display.

Technical details:

• Operating voltage: DC 12V.
• Operating temperature: -10°C to +60°C.
• Standard: JIS D 0203 S2.
• Dimensions: D55 mm x 48.4 mm.

The KOSO D55 DL-02R is a versatile and precise instrument optimized for both RPM measurement and temperature monitoring . With its clear LCD display , graphical readout , and adjustable cylinder modes, it's an excellent device for vehicles requiring detailed performance monitoring. In addition to RPM warnings and a temperature gauge , it also features a clock for timekeeping and is easy to use thanks to its intuitive settings.

It is an excellent choice for users looking for a precise and versatile device suitable for both motorcycles and cars in demanding applications.
