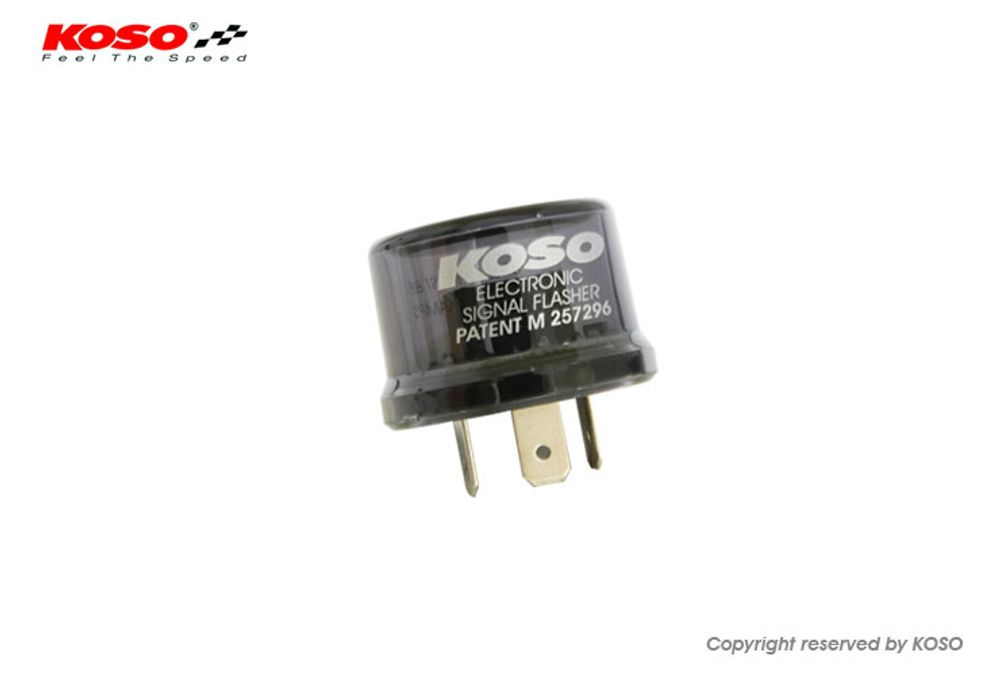

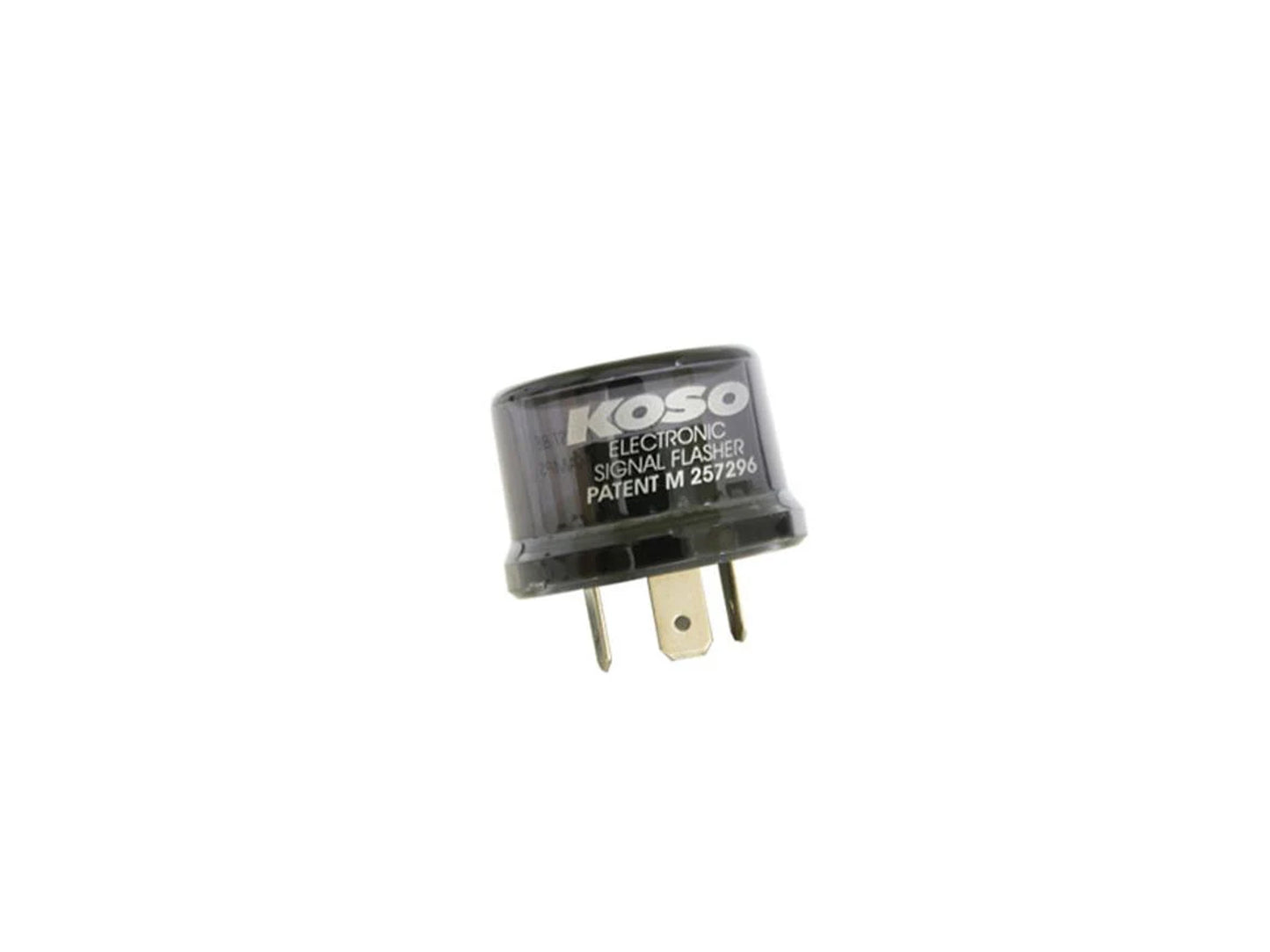

KOSO Digital indicator relay with defect detection

€31,36
€31,36
Tax included. Plus shipping. Shipping calculated at checkout.

Vendor : Koso Europe

Product Type :

Sku : KD006040

Add to wishlist
Sizechart

Lieferzeit 5-8 Tage*

*gilt für Lieferungen innerhalb Deutschlands, Lieferzeiten für andere Länder entnehmen Sie bitte der Schaltfläche "Zahlung und Versand"

Bitte beachten Sie unsere AGB.

Universal flasher relay can be used for LED indicators or with a combination of standard and LED indicators. With defect detection, i.e. if one indicator fails, the flashing frequency of the indicator that is still intact increases.

Characteristics:
  • Voltage: 12 V
  • Load range: 1 - 80 watts
Occupancy:
  • 49 P = Battery input, (12V +)
  • 31G = Ground (-), (GND)
  • 49a L = Light (to indicator switch)
Connection to the relay:
  • Black to P (Power Supply 49)
  • Brown (49a) L (Signal)
  • Green on 31(-) (GND)
For vehicles with 3-way connector and 2 pin assignment (49, 49a):
  • Green (separate) to GND (31) and to ground
For vehicles with 3-way connector and 3 pin assignment (49, 49a, 31):
  • Use green (adapter plug)
Dimensions:
  • Diameter: 37mm
  • Height: 25mm
Scope of delivery:
  • 1 x flasher relay
  • 1 x ground cable
  • 1 x adapter cable Honda/Kawasaki/Yamaha
  • 1 x rubber holder
