RX5 TFT suitable for BMW® R 1200 GS 2013-2017

RX5 TFT suitable for BMW® 1200 GS 2013–2017

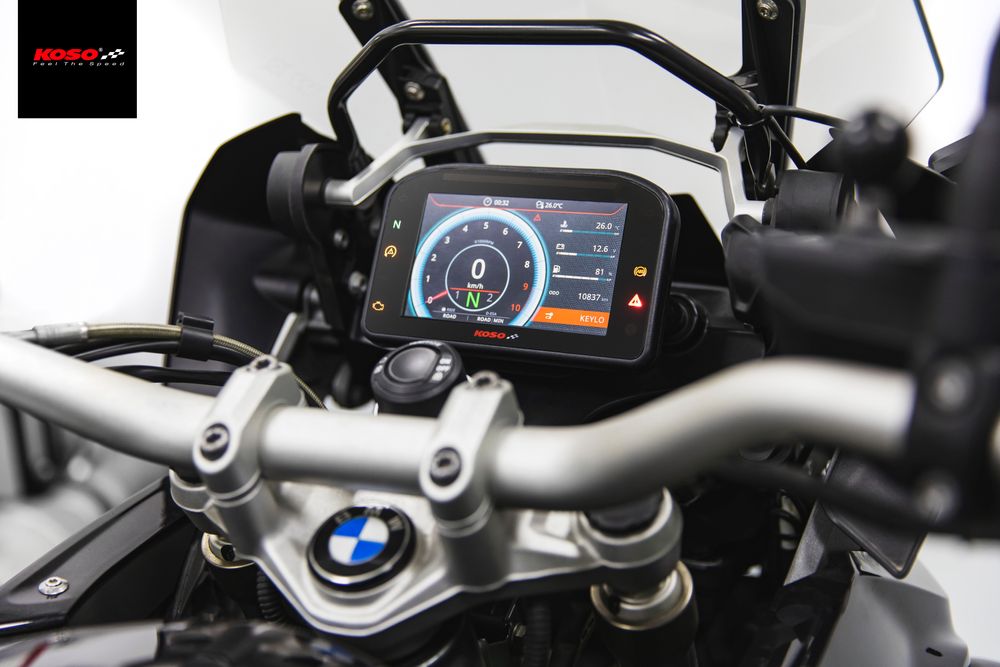

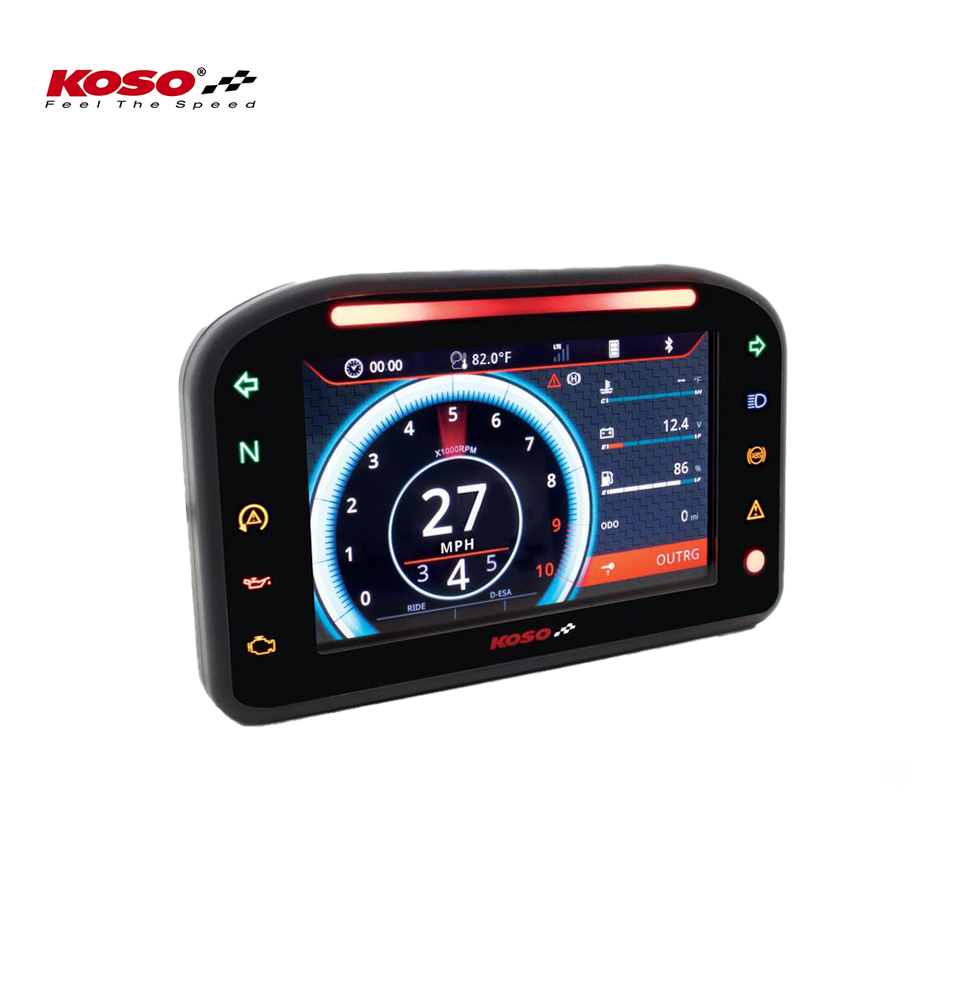

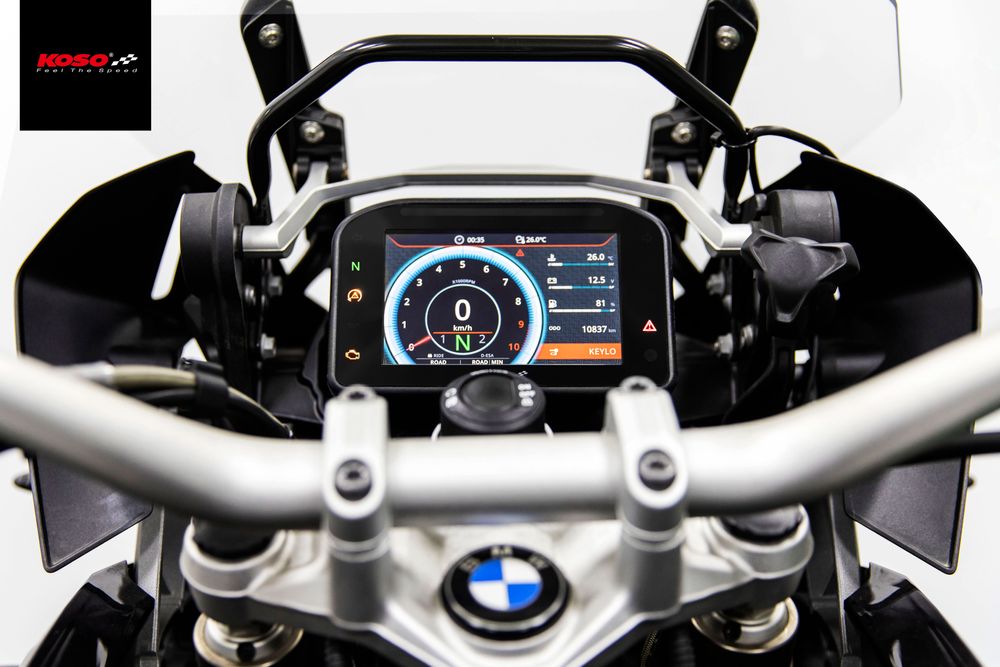

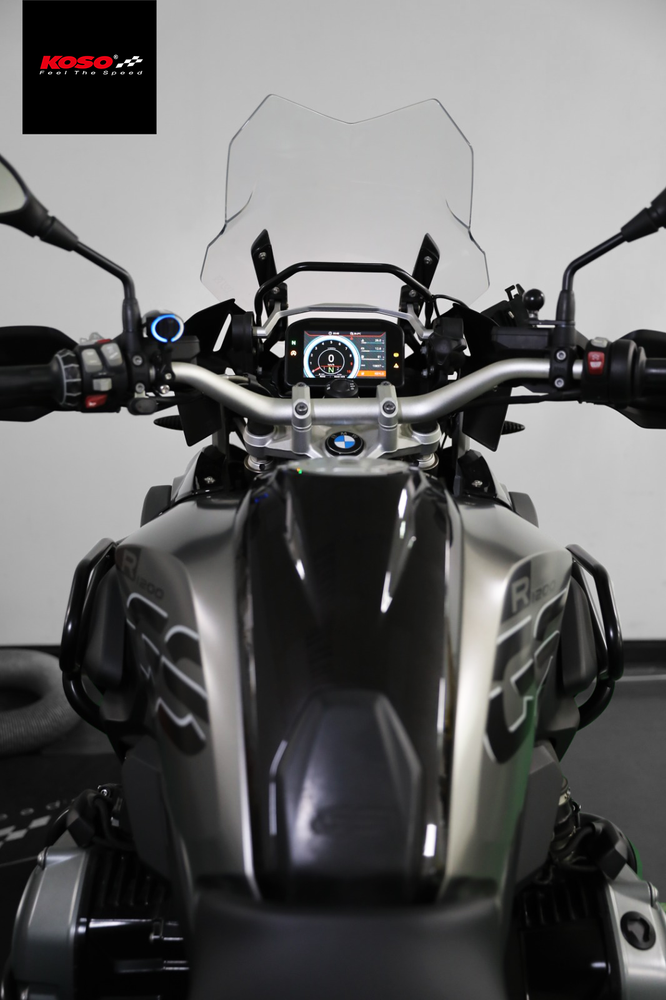

The RX5 with TFT display is a plug-and-play measuring device compatible with the BMW®* R1200GS. Easy to install, the RX5 features a wide screen for enhanced usability and a stylish look for your motorcycle. Connect your mobile phone via Bluetooth® to view incoming calls, navigation information, arrival time, and much more on the RX5's display. With speedometer, odometer, trip meter, hour meter, fuel gauge, voltage, clock, stopwatch, and 10 indicator lights, the RX5 provides all the essential information about your ride and your motorcycle.

Specifications
(R = area, U = unit)

speedometer

• R: 0 ~ 225 MPH (0 ~ 360 km/h)

• U: 1 MPH or km/h

Odometer (internal and external)

• R: 0 ~ 999,999 miles (km)

• U: 1 mile (km)

Trip odometer 1, 2

• R: 0 ~ 9,999.9 miles (km)

• U: 0.1 miles (km)

Lap time

• R: 0 ~ 99.999 h, then back to 0

• U: 0.1 h

Oil maintenance

• R: 300 ~ 10,000 miles (500 ~ 16,000 km) to -999 km (miles)

• U: 1 mile (km)

• Automatic reduction

• Warning: Text turns red at 0 or less

Oil Maintenance 1, 2

• R: 300 ~ 10,000 miles (500 ~ 16,000 km) to -999 km (miles)

• U: 1 mile (km)

• Automatic reduction

• Warning: Text turns red at 0 or less

Maximum speed record

• R: 0 ~ 225 MPH (0 ~ 360 km/h)

• U: 1 MPH or km/h

Gear indicator

• R: N, 1 ~ 6

Max. gear indicator

• R: N, 1 ~ 6

Tachometer

• R: 0 ~ 10,000 rpm

Switch light

• R: 2,000 ~ 10,000 rpm

• U: 100 rpm

Max. RPM

• R: 0 ~ 10,000 RPM

Air temperature

• R: -39.0 ~ 188.0°F (-39.5 ~ 87.0°C)

• U: 0.1 °F (°C)

Fuel gauge

• R: 0 ~ 100%

• U: 1%

Driving mode

• R: RAIN, ROAD, DYNA, ENDURO, ENDURO PRO, DYNA PRO

Clock

• R: 12 H or 24 H format

Voltmeter

• R: DC 8.0 ~ 18.0 V

• U: DC 0.1 V

Low voltage warning

• R: DC 8.0 ~ 13.0 V

• U: DC 0.1 V

High voltage warning

• R: DC 13.1 ~ 18.0 V

• U: DC 0.1 V

Tire pressure

• R: 0.0 ~ 3.5 bar (0 ~ 50 psi, 0 ~ 344 kPa, 0.0 ~ 3.5 kg/cm²)

• U: 0.1 bar (1 psi, 1 kPa, 0.1 kg/cm²)

Heated grips

• R: OFF, 50%, 100%

Bluetooth connection status

• R: Steady (connected), OFF (not connected)

mobile phone battery

• R: 3 bars

Incoming call

• D: Name or number, “…” if > 12 characters, “No Caller ID” if no name is provided

Estimated arrival time

• R: 00:00 ~ 23:59 (24H), 1:00 ~ 12:59 (12H)

• Note: Android supported, iOS not supported

Estimated turning opportunity

• R: 0 ~ 999 m, 1 ~ 999 km (0 ~ 528 ft, 0.1 ~ 999.9 miles)

• U: 1 m, 1 km (1 ft, 0.1 miles)

• Note: Android supported, iOS not supported

Push notification

• R: Name or content on one line, no display if the limit is exceeded

• Note: iOS supported, Android not.

Color backlight

• R: Auto, Day mode, Night mode

Indicator lights

• Left turn signal, Neutral, Check engine, ASC, Engine oil warning, Right turn signal, Tachometer light, High beam, General warning, ABS

Effective temperature range

• -20 ~ 85 °C (-4 ~ 185 °F)

Storage temperature range

• -30 ~ 90 °C (-22 ~ 194 °F)

Operating voltage

• DC 12V

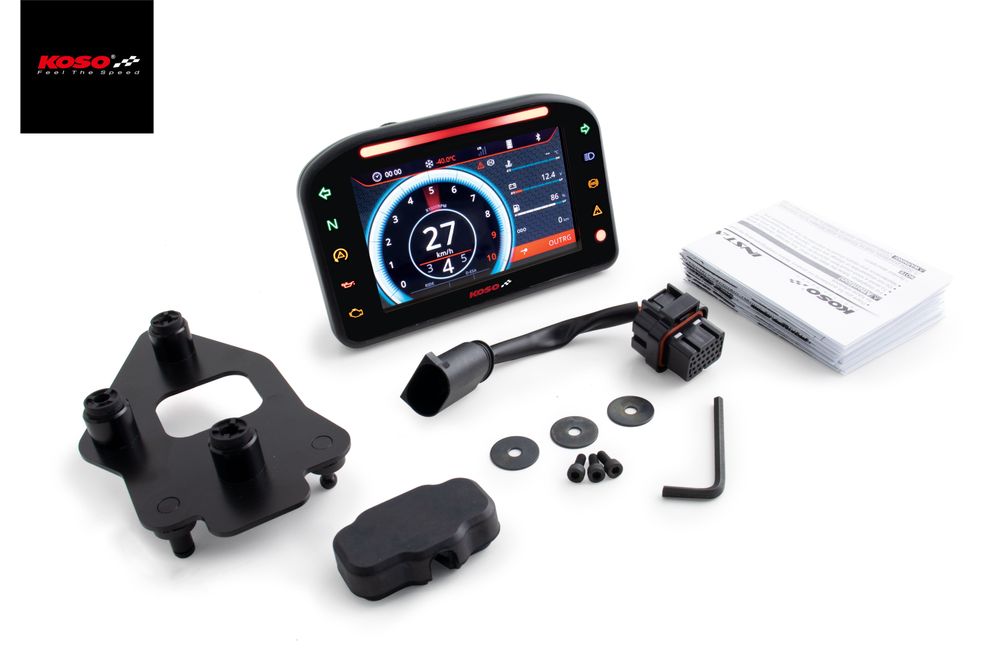

Table of contents:

• LCD measuring device – 1×

• Wiring harness for measuring device – 1×

• Measuring device holder – 1×

• Washer M4 – 3×

• Screw M4 × 10L – 3×

• 4 mm hex key – 1×

• Exit protection – 1×

* Registered trademark of Bayerische Motoren Werke AG
