Koso RX4 suitable for Yamaha MT-07 (2021-) ®

Koso RX4 compatible with Yamaha MT-07 (2021–)®

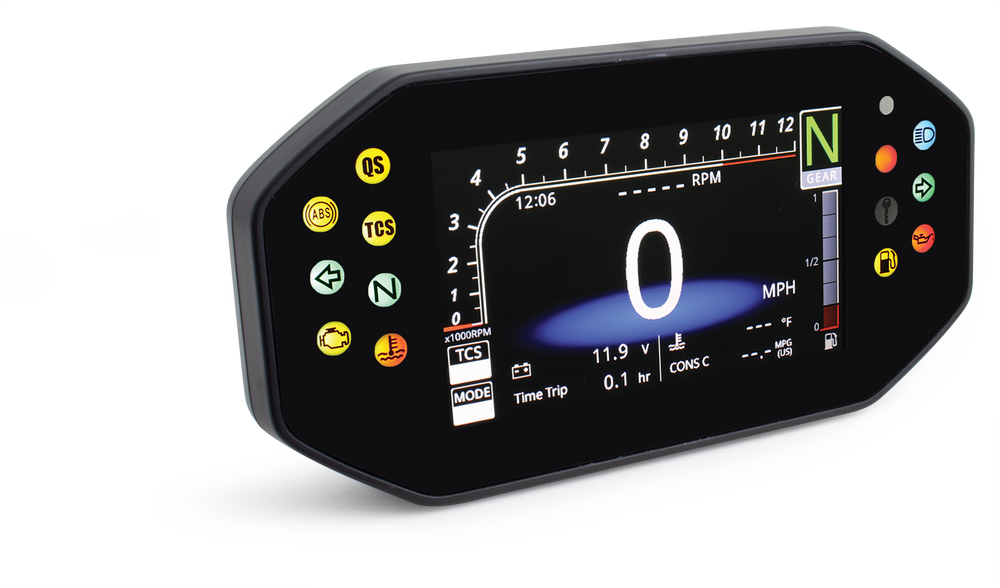

The Koso RX4, compatible with Yamaha MT-07 (2021–)®, impresses with its modern design, color-customizable LCD display and extensive features.

The device offers basic displays such as speedometer, tachometer, clock, mobile phone battery status, Bluetooth connection, fuel gauge, gear indicator, trip odometer, current and average fuel consumption, voltage meter, driving time and driving mode.

In addition, various control and warning lights are integrated, including ABS lamp, engine lamp, engine oil lamp, QS quick shift signal, TCS tracking control signal, neutral lamp, refrigerant temperature warning lamp, tachometer shift light, IMMO anti-theft lamp, low fuel warning, high beam and turn signal indicators.

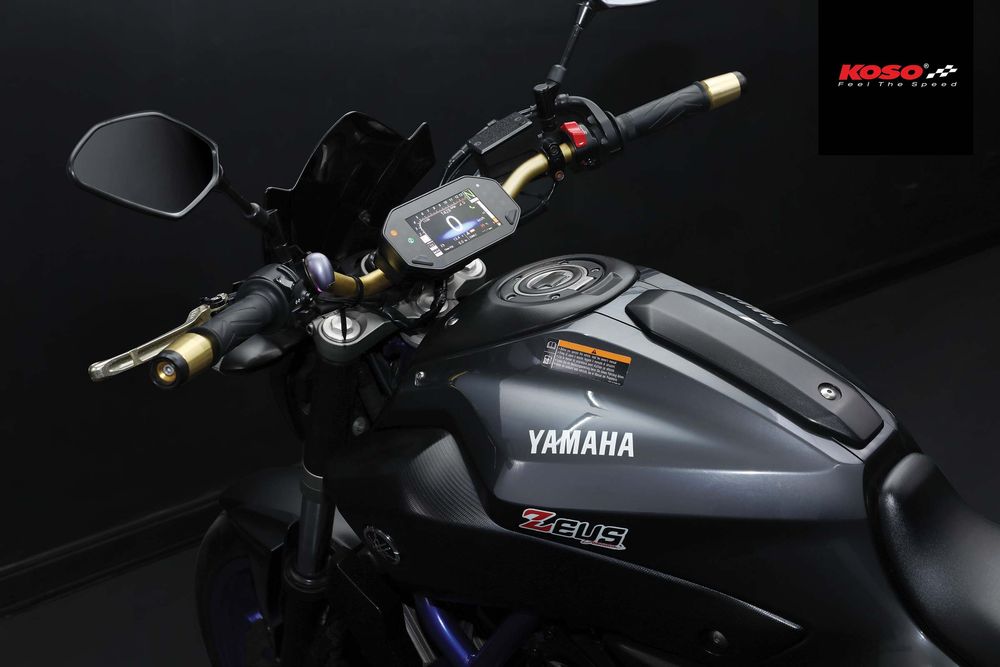

The RX4 is a fully functional plug-and-play multi-function device that ensures precise and reliable monitoring of all relevant vehicle data for the Yamaha MT-07®.

registered trademark of Yamaha Corporation

Technical data

speedometer

• Range: 0 ~ 360 km/h (0 ~ 225 MPH)

• Unit: 1 km/h (MPH), switchable

odometer

• Range: 0 ~ 999.999 km (miles), reset to zero if exceeded

• Unit: 1 km (miles)

Trip odometer 1, 2

• Range: 0.0 to 9,999.9 km (miles), manually resettable

• Unit: 0.1 km (miles)

Low fuel consumption

• Range: 0 ~ 999 km (miles)

• Unit: 1 km (miles)

Engine oil maintenance

• Setting range: 500 ~ 16,000 km (300 ~ 10,000 miles), automatic reduction

• Unit: 1 km (miles)

• Warning: Display changes to red at ≤ 0 km (miles).

Maintenance mileage 1, 2

• Setting range: 500 ~ 16,000 km (300 ~ 10,000 miles), automatic reduction

• Unit: 1 km (miles)

• Warning: Display changes to red at ≤ 0 km (miles).

Recording maximum speed

• Range: 0 ~ 360 km/h (0 ~ 225 MPH)

Gear indicator

• Area: –, N, 1 ~ 6

Recording max. gear

• Area: –, N, 1 ~ 6

Tachometer

• Range: 0 ~ 12,000 rpm (MT-07)

Gearshift light warning

• Range: 1,000 ~ 12,000 rpm

• Display: Continuous, flashing, or BAR warning

• Adjustment increments: 1,000 rpm (large grid), 500 rpm (small grid)

Max. speed

• Range: 0 ~ 12,000 rpm (MT-07)

Air temperature

• Temperature range: -10 ~ 100 °C (14 ~ 212 °F)

• Unit: 1 °C (°F)

• Warning: LO < -10 °C, HI > 100 °C, display flashes red

Refrigerant temperature

• Temperature range: 0 ~ 250 °C (32 ~ 482 °F)

• Max. recording: 0 ~ 250 °C (32 ~ 482 °F)

• Warning: LO < 39 °C (102 °F), HI > 117 °C (234 °F), indicator flashes red

• Unit: °C / °F switchable

Fuel gauge

• Range: 6 levels (16.6% each)

• Warning: at 1 bar or less

Current consumption

• Fuel consumption range: 0 ~ 40.0 km/l, 2.5 ~ 99.9 l/100 km, 0 ~ 99.9 MPG (US/GB)

• Unit: 0.1

Average consumption

• Fuel consumption range: 0 ~ 40.0 km/l, 2.5 ~ 99.9 l/100 km, 0 ~ 99.9 MPG (US/GB)

• Unit: 0.1

Clock

• Formats: 24h (00:00 ~ 23:59) / 12h (1:00 ~ 12:59)

Travel time / cumulative time

• Range: 0 ~ 999.9 h

• Unit: 0.1 h

Voltage meter

• Range: 8.0 ~ 18.0 V DC

• Low voltage warning: < 13.0 V, indicator flashing red

• High voltage warning: > 13.1 V, indicator flashing red

• Unit: 0.1 V

Target speed

• Range: 0 ~ 360 km/h (0 ~ 225 MPH)

finish line

• Range: 50 ~ 1,500 m (1/32 ~ 30/32 miles)

Maximum speed / distance / time

• Speed: 0 ~ 360 km/h (0 ~ 225 MPH)

• Distance: 0 ~ 999 m (0 ~ 3,280 ft)

• Time: 0 ~ 9:59'99

Bluetooth connection

• Status: connected / disconnected

• iOS: from version 5.0 onwards

• Android: from version 9 onwards

Smartphone features

• Phone battery: 3 bars

• Call notification: Name/Number (up to 12 characters)

• Online calls (LINE, WeChat, WhatsApp): iOS supported, Android not.

• Music information: Song title (15 characters), artist (18 characters), duration & time (iOS only)

• Info push notification: Name (4 characters), Content (17 characters), iOS only

Driving modes

• Display: STD, A, B

TCS display

• Display: 1, 2, OFF

ECO indicator

• Display: On / Off

Backlight

• Colors: Blue, Green, Orange, White

Operation

• Voltage: 12 V DC

• Temperature: -20 ~ 85 °C

• Storage temperature: -30 ~ 90 °C

• Standard: JIS D 0203 (S2)

• Size: 170 × 86.2 × 42.5 mm

• Weight: approx. 244 g

Indicator lights

• ABS (yellow)

• Engine (yellow)

• Engine oil (red)

• QS signal (green)

• TCS (amber-colored)

• Neutral (green)

• Coolant warning (red)

• Shift light (red)

• REAL ESTATE (red)

• Fuel warning (amber)

• High beam (blue)

• Left/right turn signal (green)
