KOSO HD-03 | 4pcs LCD Kit (8 Interchangeable Colors) | suitable for Harley-Davidson® 2014-2023

HD-03 | 4 pieces LCD kit (red & blue) | suitable for Harley-Davidson®

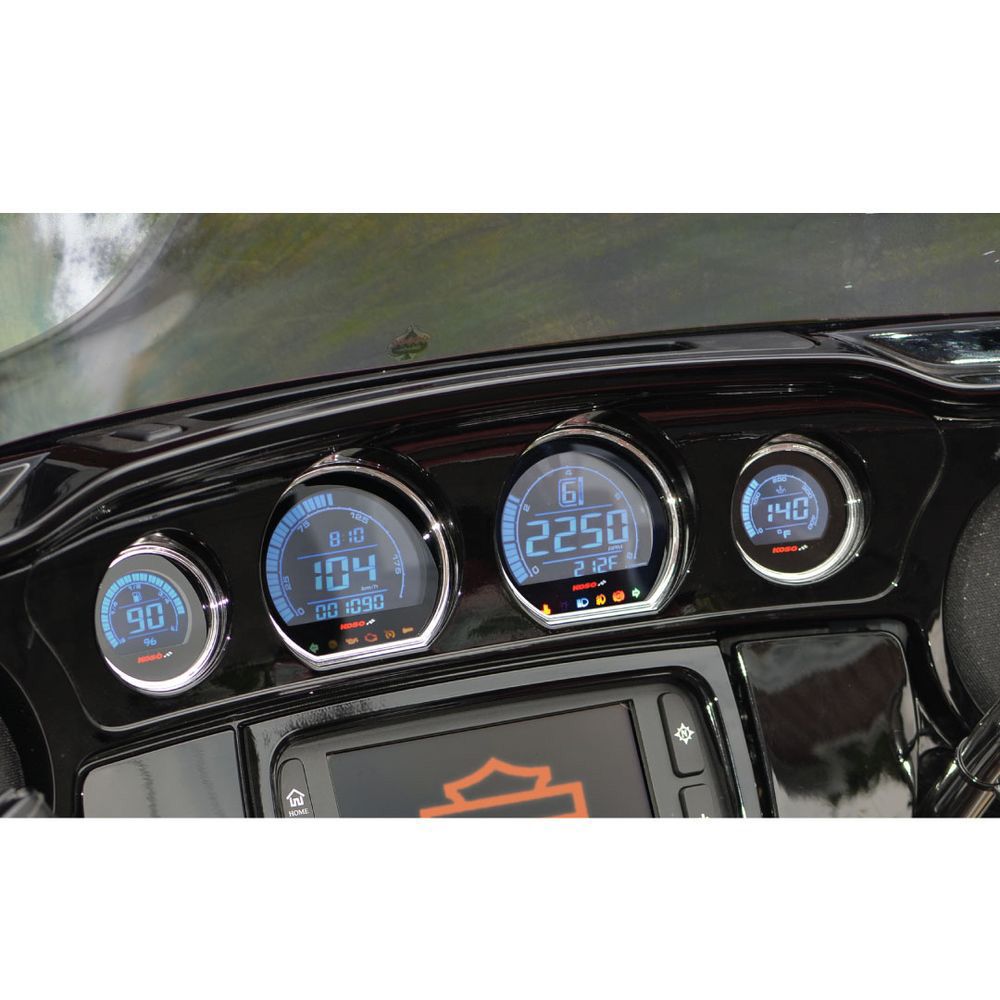

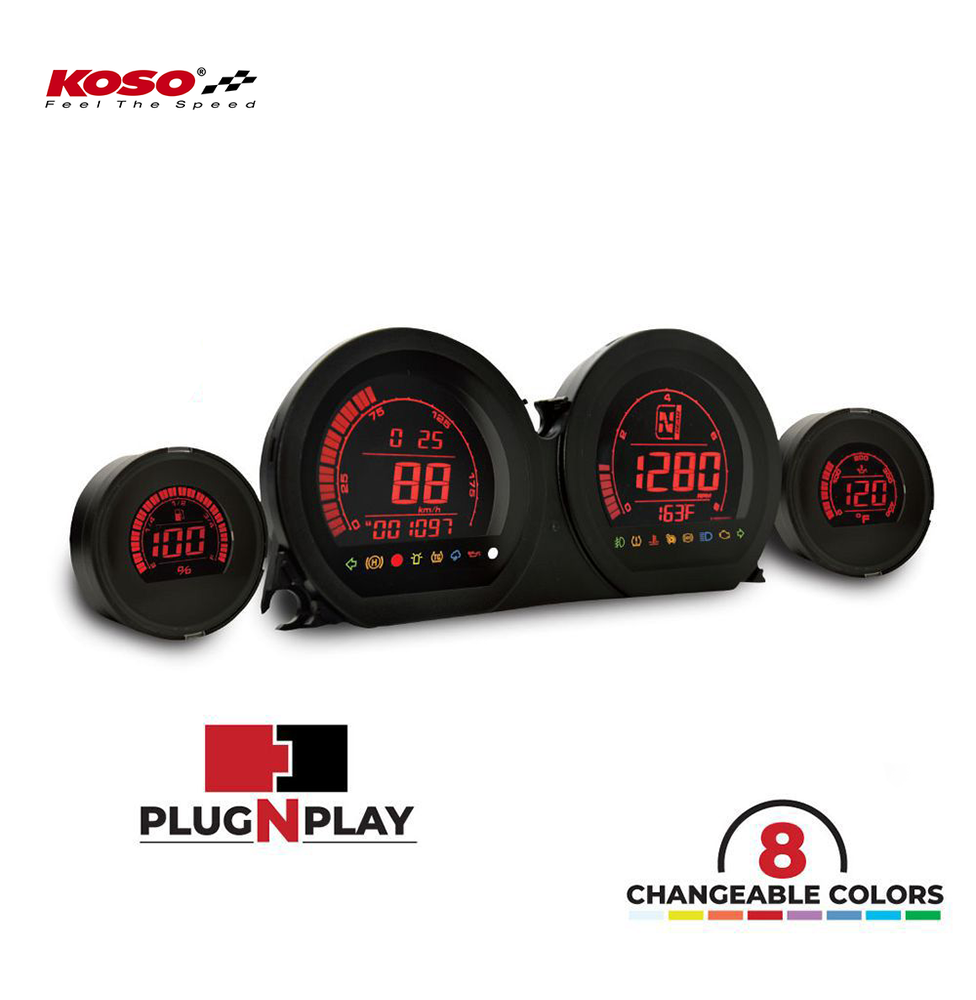

After the positive reviews we received from Harley enthusiasts, we decided to release the updated Bagger Meter Kit for the 2014 to 2023 Touring models. This plug & play kit from Koso is now available to easily replace the stock meters! There is no need to drill holes or rewire the meters, they fit directly into the OEM dashboard and connectors. This kit features an 8 color LCD display for a customized look to fit your motorcycle. The HD-03 kit includes a multifunction speedometer, tachometer, oil temperature gauge and fuel level gauge. If you want to enhance the look of your Harley, Koso has the plug & play solution for you!

Specifications
(R=Range U=Unit)

Tachometer
R: 0 ~ 9,990 RPM | U: 10 RPM
RPM shift light
R: 2,000 ~ 8,000 RPM
Warning lights on > value
Maximum speed
R: 0 ~ 9,990 RPM | U: 100 RPM
Speedometer
R: 0 ~ 199 MPH (0 ~ 299 km/h)
U: 1 MPH or km/h (alternative)
Warning when speeding is exceeded
R: 19 ~ 199 MPH (30 ~ 299 km/h)
Warning lights light up ≥ value
Maximum speed recording
R: 0 ~ 199 MPH (0 ~ 299 km/h)
Odometer
R: 0 ~ 999,999 miles (km) | U: 1 mile (km)
Trip odometer A/B
R: 0 ~ 9,999.9 miles (km) | U: 0.1 mile (km)
Mileage maintenance
R: Off / 300 ~ 10,000 miles
(500 ~ 16,000 km) ~ -999 miles
U: 100 miles (km)
Engine temperature
R: -40 ~ 572°F (-40 ~ 400°C) |
Fuel gauge
R: 0 ~ 100%
Fuel warning setting
1-HD standard
Flashing LCD at > 211 Ω
LCD off when < 187 Ω
2-HD Customize
Flashing LCD display at < 20%
LCD off when > 30%
Fuel tank volume
Out / 1 ~ 9.9 US gallons
Average fuel consumption
AUS / MPG (US spec) / MPG (UK spec) L/ 100 km / km/L
Remaining mileage
LO RNG is displayed at < 10 miles (16 km).
U: 1 mile (km)

Oil temperature gauge
R: 32~248°F (0~400°C) | U: 1 °F or °C (old)

Max. oil temperature recording
R: 32~248°F (0~400°C)

Clock
R: 12H or 24H format

Voltmeter
R: DC 8~18V

Brightness of the digits
R: 1/5 (darkest) ~ 5/5 (lightest)

Flashing lights
Turn Signal / Water Temperature / Oil Pressure / Photometric Measurement / Warning Light / Check Engine / High Beam / Fog Light / Volt / Traction Control / Cruise Control / ABS / Rain Mode / Vehicle Holding Control / Fuel Level / Low Tire Pressure / Security Light
Gear indicator
OFF, N, P, R, 1, 2, 3, 4, 5, 6
Effective temperature range
14~140°F (-10~60°C)
Effective tension
DC 12V
Backlight color

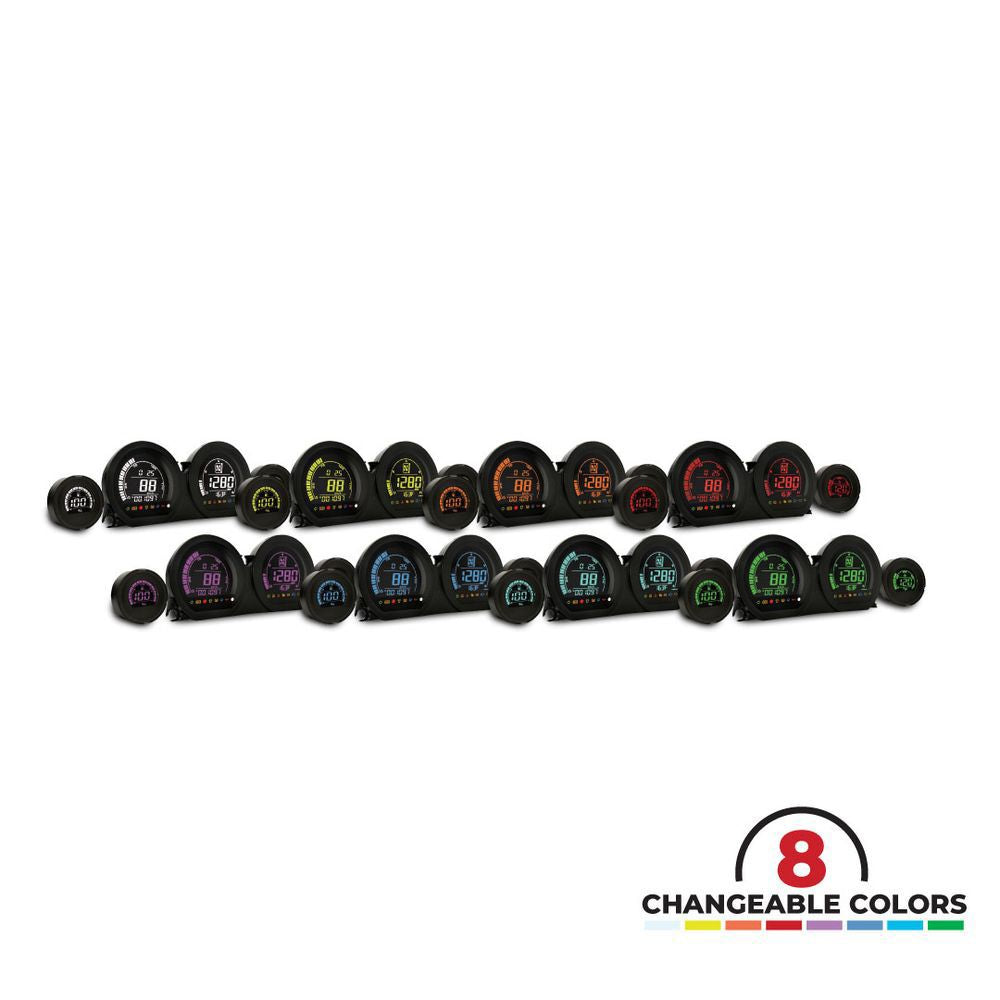

Setting range: white, yellow, orange, red, purple, blue, light blue, green
Does not fit CVO models

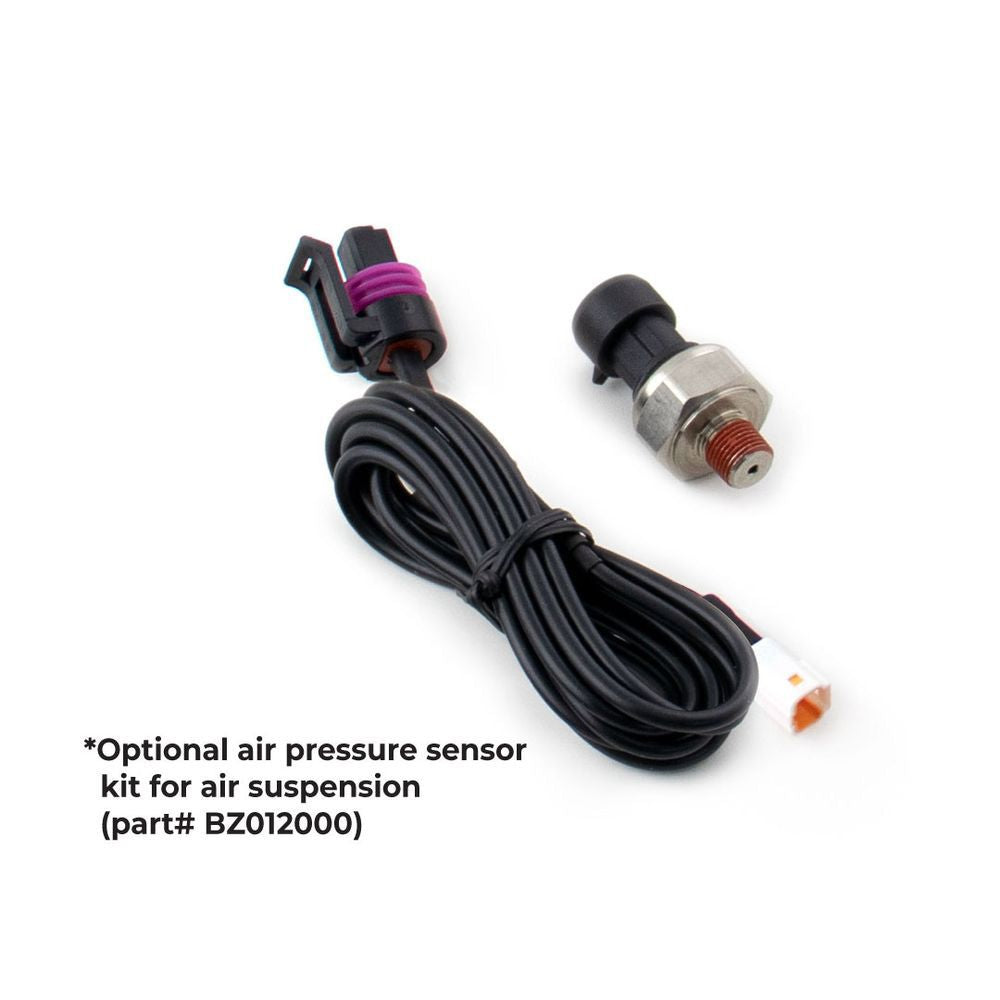

Optional air pressure sensor kit for air suspension:

Part BZ012000 (180CM)
