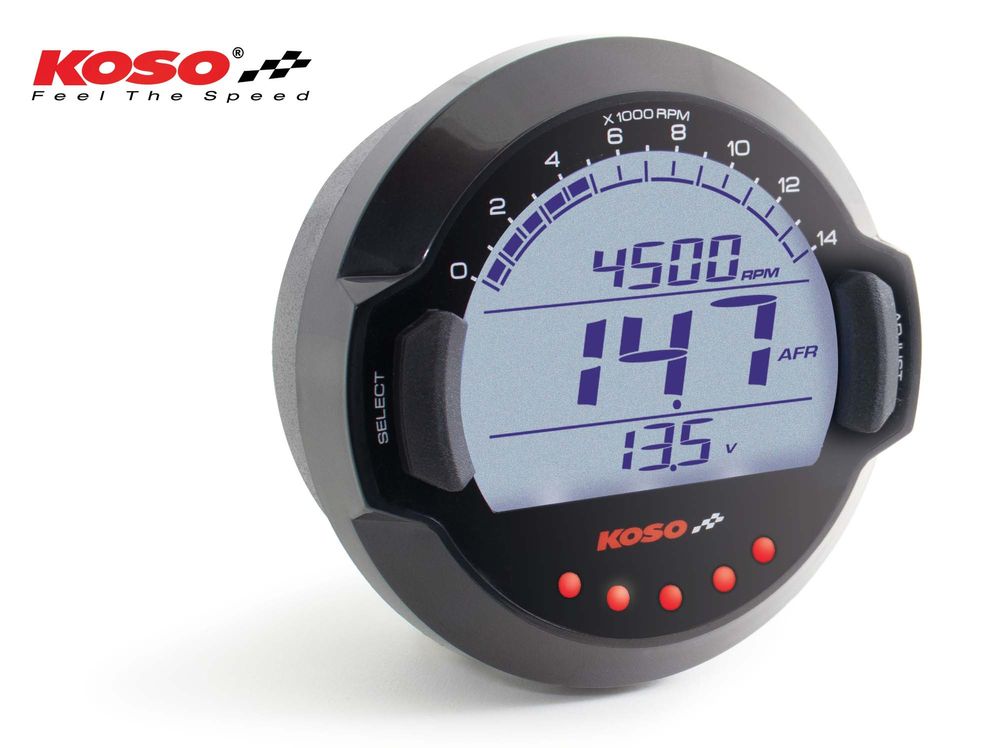

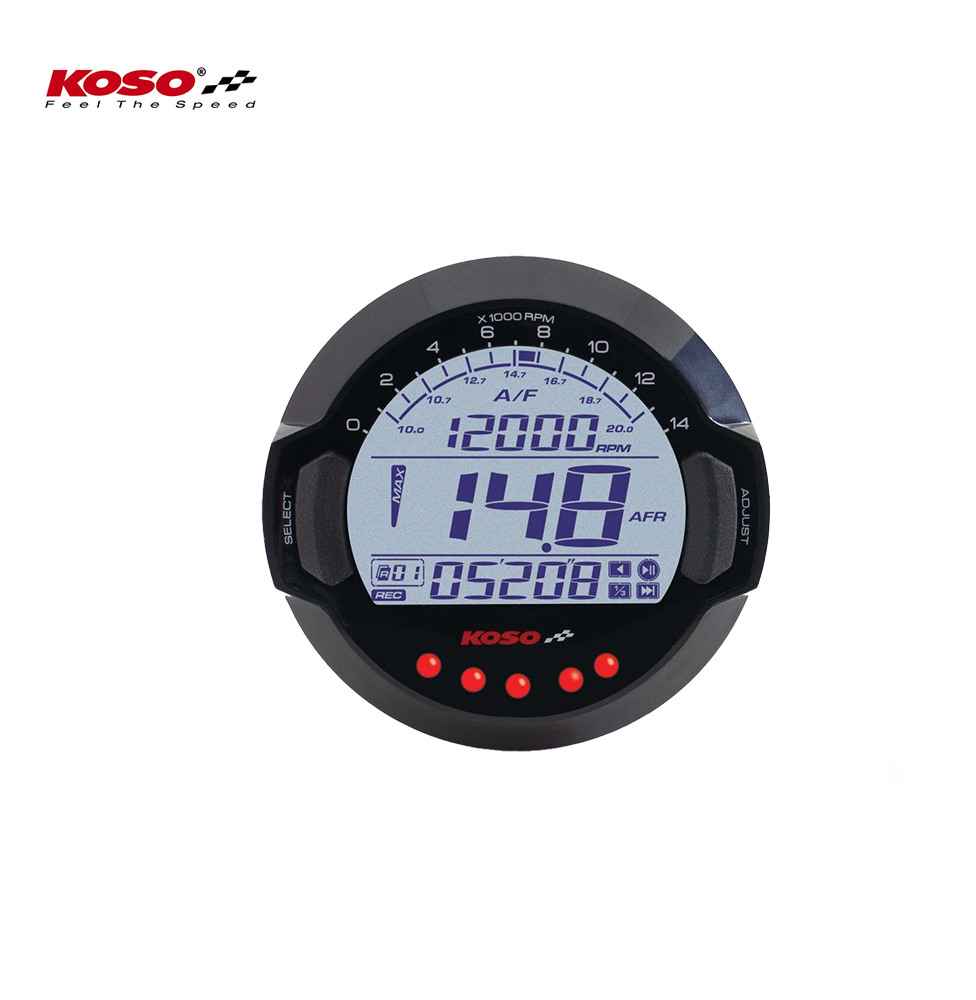

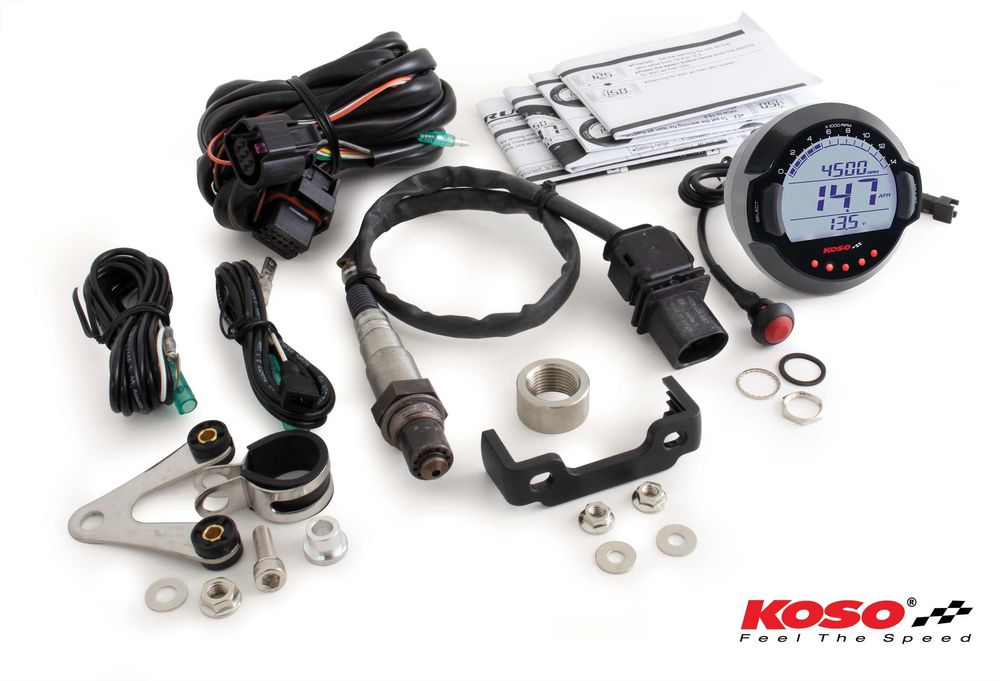

Koso DL-03A air-fuel ratio gauge with BOSCH® LSU 4.9 sensor

€387,35
€387,35
Tax included. Plus shipping. Shipping calculated at checkout.

Vendor : Koso Europe

Product Type :

Sku : BB642W32

Add to wishlist
Sizechart

Lieferzeit 5-8 Tage*

*gilt für Lieferungen innerhalb Deutschlands, Lieferzeiten für andere Länder entnehmen Sie bitte der Schaltfläche "Zahlung und Versand"

Bitte beachten Sie unsere AGB.

The Koso DL-03A with BOSCH® LSU 4.9 sensor displays the air-fuel ratio, has a speed data memory and can optimize driving performance thanks to the associated playback capability. A tachometer, digital voltmeter and 5 different LED signal lights are also integrated.

A special feature of the DL-03A is the heated screen, which optimizes the view of the displays in cold weather conditions.

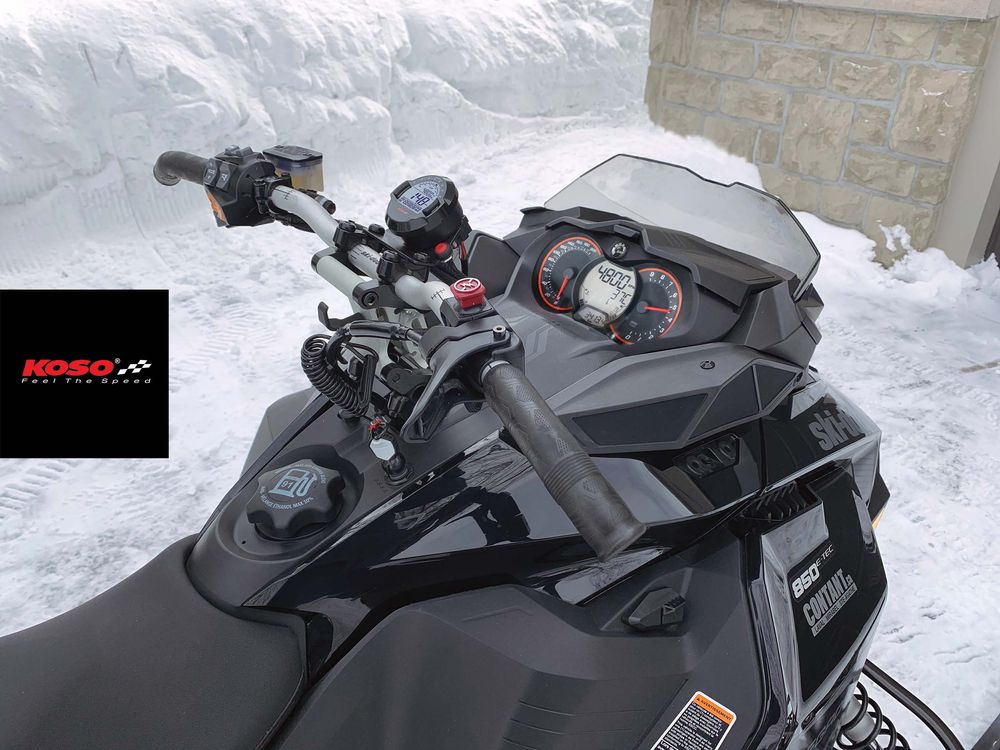

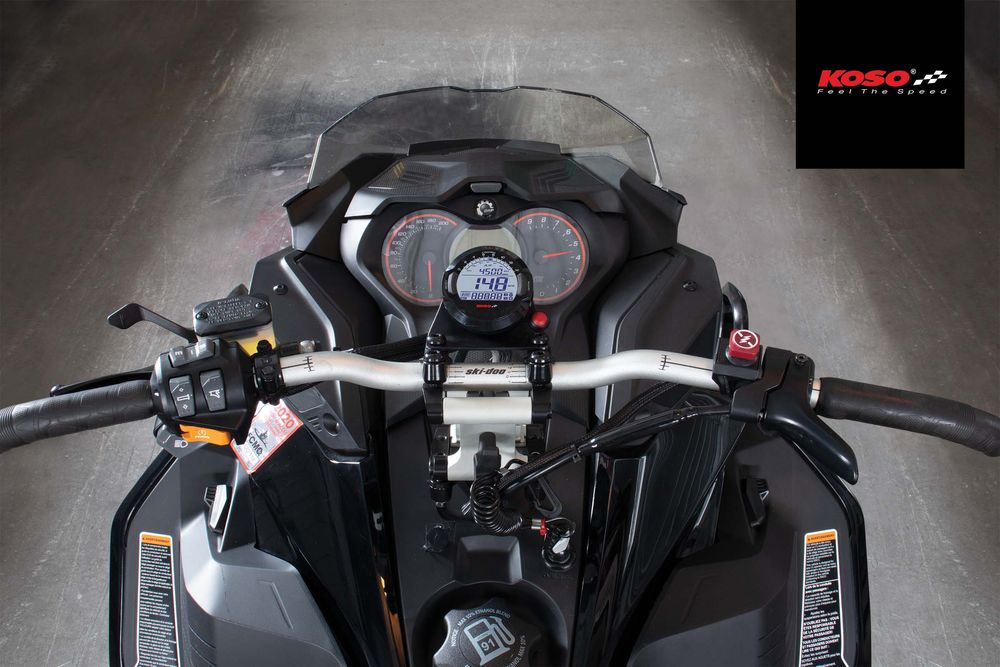

The large numbers and bright backlight make reading easier, and the meter is easy to use, compact, lightweight and can be mounted on many vehicles, especially snowmobiles and UTVs.

without ABE
Specifications

Tachometer

Display range: 0 ~ 14,000 rpm

Display unit: 100 rpm

Tachometer (display in segments)

Display range: Display in 14 segments (100 rpm per segment)

Air-fuel ratio

Display range: 9.0 ~ 24.0

Setting unit: 0.1

Air-fuel ratio (displayed in segments)

Display area: Display in 14 segments

Saturated air-fuel ratio warning

Adjustment range: 9.0 ~ 14.7

Setting unit: 0.1

Default value: 14.4

Low air fuel ratio warning

Adjustment range: 14.7 ~ 24.0

Setting unit: 0.1

Default value: 15.0

Speed ​​input pulse

Setting range: 0.5, 1, 1 .5, 2, 2 .5, 3, 4, 5, 6,

7, 8, 9, 10, 11, 12, 13, 14, 15, 16, 17, 18, 19, 20, 21, 22, 23, 24

Max. speed

Display range: 0 ~ 14,000 rpm

Max Air Fuel Ratio (Value of Ratio) Record

Display range: 9.0 ~ 24.0

Max. air-fuel ratio (λ) record

Display range: 0.61 ~ 1.63

Type of speed signal

Setting range: Hi Act `Lo Act

Default value: Hi Act

Air-fuel ratio warning

Adjustment range: 1,000 ~ 14,000 rpm

Setting unit: 100 rpm

Default value: 8,000

Low voltage warning

Adjustment range: 8.0~13.0V

Setting unit: 0.1 V

Default value: 11.5 V

  • Compatibility
    2 stroke or 4 stroke engines
  • ”2 stroke adapter” BG001855 is
    optional when used on a 2
    stroke application

recording

Maximum number of recorded runs: 50 runs

Maximum recording time for a single recording pass: 99m 59s 90; recording stops as soon as the maximum time is reached.

Maximum recording time: Approx. 3.15 hours

Maximum speed and air-fuel ratio for a single run

Recording range for rpm: 0 ~ 14,000 rpm

Air-fuel ratio (value of ratio) record: 9.0 ~ 24.0

Air-fuel ratio (λ ) record: 0.61 ~ 1.63

Backlight brightness

Adjustment range: 1 - 5 (darkest) ~ 5 - 5 (brightest)

Default value: 5

Operating voltage

DC 12V

Temperature range

-10 ~ +60°C

specification

JIS D 0203 (S2)

Size of the measuring device

72 x 32.3mm

Weight of the measuring device

~ 100g

Produkt Details - Anbauanleitung - Hersteller

Dokumentation – Anleitung
Anleitung Englisch
